BZG04-Series
Vishay Semiconductors
Zener Diodes with Surge Current Specification
Features
•
•
•
•
•
•
•
Glass passivated junction
High reliability
e3
Stand-off Voltage range 8.2 V to 220 V
Excellent clamping cabability
Fast response time (typ.
≤
1 ps from 0 to V
Zmin
)
Lead (Pb)-free component
Component in accordance to RoHS 2002/95/EC
and WEEE 2002/96/EC
15811
Applications
Protection from high voltage, high energy transients

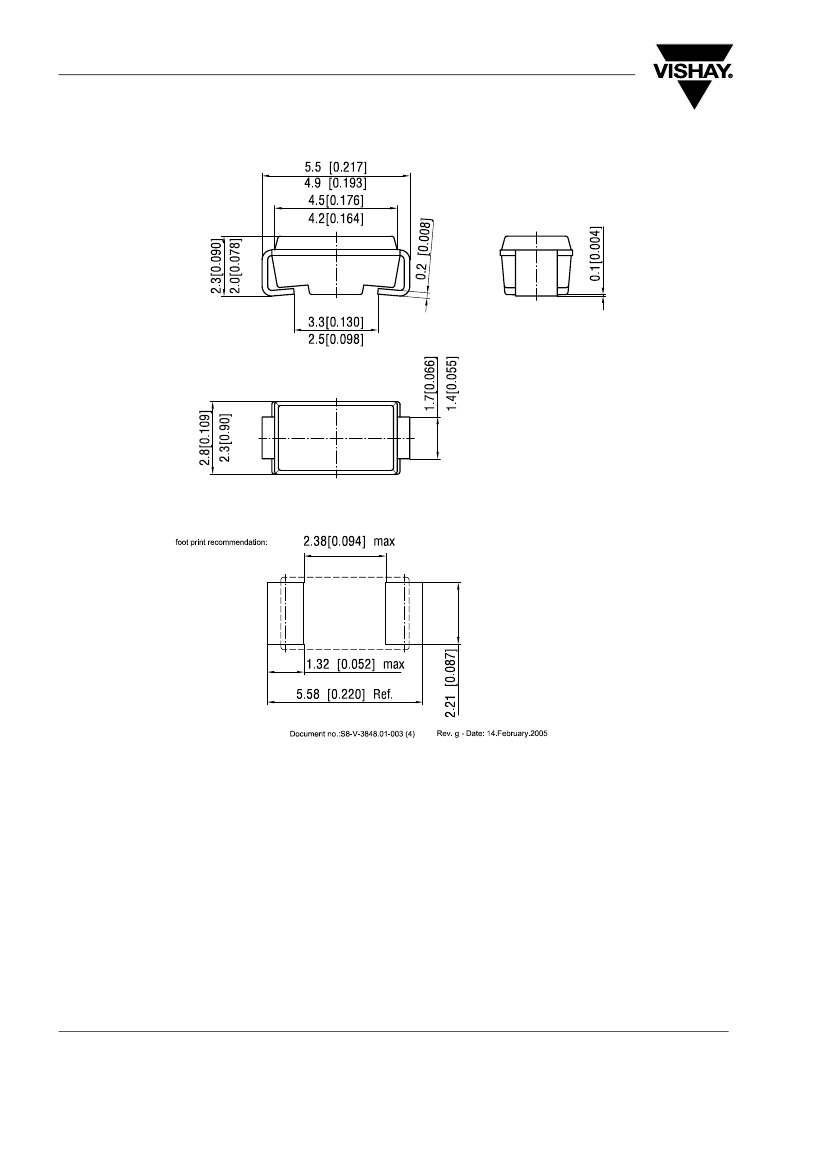

Mechanical Data
Case:
DO-214AC
Weight:
approx. 77 mg
Packaging Codes/Options:
TR / 1.5 k 7 " reel
TR3 / 6 k 13 " reel 6 k/box
Absolute Maximum Ratings
T
amb
= 25 °C, unless otherwise specified
Parameter
Power dissipation
Test condition
R
thJA
< 25 K/W, T
amb
= 100 °C
R
thJA
< 100 K/W, T
amb
= 50 °C
Non repetitive peak surge power t
p
= 10/1000
µs
sq.pulse,
dissipation
T
j
= 25 °C prior to surge
Peak forward surge current
Junction temperature
Storage temperature range
10 ms single half sine wave
Symbol
P
diss
P
diss
P
ZSM
I
FSM
T
j
T
stg
Value
3
1.25
300
50
150
- 65 to + 150
Unit
W
W
W
A
°C
°C
Thermal Characteristics
T
amb
= 25 °C, unless otherwise specified
Parameter
Junction lead
Junction ambient
mounted on epoxy-glass hard
tissue, Fig. 1a
mounted on epoxy-glass hard
tissue, Fig. 1b
mounted on Al-oxid-ceramic
(Al
2
O
3
), Fig. 1b
Test condition
Symbol
R
thJL
R
thJA
R
thJA
R
thJA
Value
25
150
125
100
Unit
K/W
K/W
K/W
K/W
Electrical Characteristics
T
amb
= 25 °C, unless otherwise specified
Parameter
Forward voltage
Document Number 85594
Rev. 2.2, 15-Sep-05
Test condition
I
F
= 0.5 A
Symbol
V
F
Min
Typ.
Max
1.2
Unit
V
www.vishay.com
1
BZG04-Series
Vishay Semiconductors
Typical Characteristics (Tamb = 25
°C
unless otherwise specified)
a)
b)
I
F
– Forward Current (A )
3.0
5.0
2.5
2.0
1.5
1.0
0.5
2.0
1.5
10.0
2.0
25.0
94 9313
1.0
25.0
94 9581
0
0
0.5
1.0
1.5
2.0
V
F
– Forward Voltage ( V )

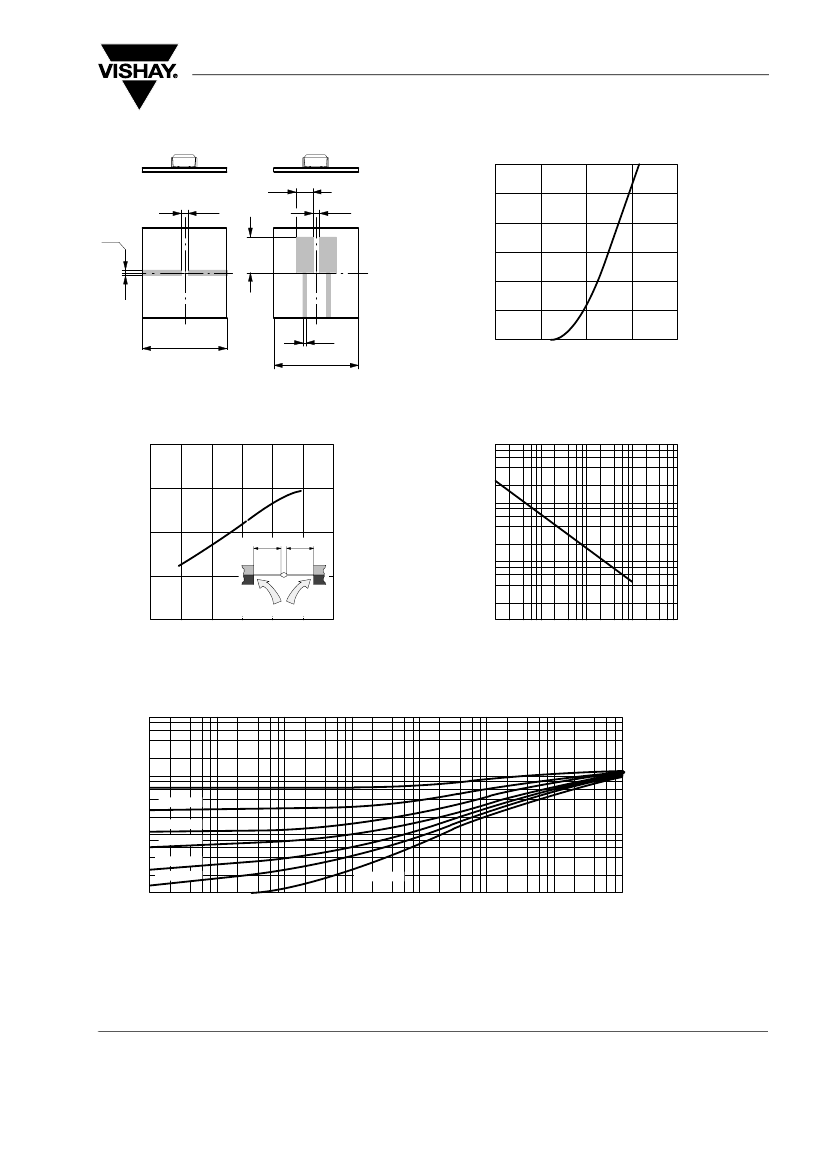

Figure 1. Boards for R
thJA
definition (copper overlay 35µ)
Figure 3. Forward Current vs. Forward Voltage
R
thJA
–Therm. Resist.Junction/ Ambient ( K/W)
30
P
ZSM
– Non-Repetitive Surge Power
Dissipation (W)
40
10000
1000
20
l
10
l
100
0
0
5
10
15
T
L
= constant
20
25
30
94 9582
10
0.01
0.1
1
10
100
94 9570
l – Lead Length ( mm )
t
p
– Pulse Length ( ms )
Figure 2. Typ. Thermal Resistance vs. Lead Length
Z thp–Thermal Resistance for Pulse Cond.(K/W
Figure 4. Non Repetitive Surge Power Dissipation vs. Pulse
Length
1000
100
t
p
/T=0.5
10
t
p
/T=0.2
t
p
/T=0.1
t
p
/T=0.05
t
p
/T=0.02
1
10
–5
10
–4
10
–3
t
p
/T=0.01
10
–2
10
–1
10
0
10
1
10
2
94 9583
t
p
– Pulse Length ( s )
Figure 5. Thermal Response
Document Number 85594
Rev. 2.2, 15-Sep-05
www.vishay.com
3
BZG04-Series
Vishay Semiconductors
