38-RE15131121: DescriptionALL DIMENSIONS IN MM [INCH]; File Size289KB，1 Pages; ManufacturerE-Switch; Websitehttp://www.e-switch.com

Download Datasheet View All

38-RE15131121 Overview

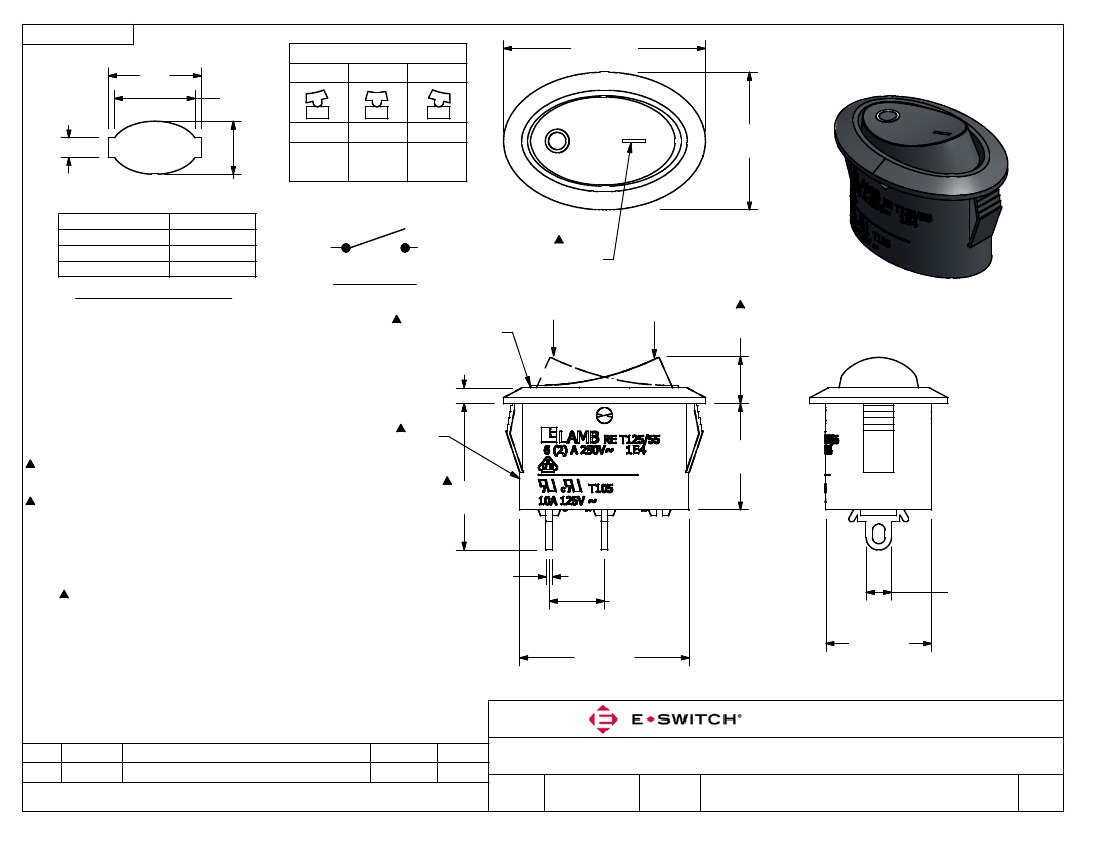

ALL DIMENSIONS IN MM [INCH]

Preview

Download Datasheet

View All

SHEET 1 OF 1

SWITCH FUNCTION

(X)

5.00

[.197 in]

20.40

[.803 in]

OFF

OPEN

13.50

[.531 in]

PANEL THICKNESS (X) DIMENSION

0.75 TO 1.25

23.3

1.25 TO 2.00

23.6

2.00 TO 3.00

23.9

SUGGESTED PANEL CUTOUT

POS. 1

BLACK ACTUATOR

2.00

[.079 in]

NOTE:

1. ALL DIMENSIONS IN MM [INCH]

2. GENERAL TOLERANCE: X.X = ± 0.4

BLACK BODY

X.XX = ± 0.25

3. TERMINAL NOS. FOR REF. ONLY

4. RATINGS: ANSI/UL 1054:

10A 125VAC [UR, cUR]

6(2)A 250V~ µ 5E4 T85 [ENEC14, SEMKO]

18.60

.50

[.732

.020

in]

5. CONTACT MATERIAL: SILVER ALLOY CLAD COPPER

6. CONTACT RESISTANCE: 35mΩ MAX. @ 50VAC INITIAL

7. INSULATION RESISTANCE: 100MΩ MIN. @ 500VDC

8. DIELECTRIC STRENGTH: 1,500 VAC FOR 1 MINUTE

9. ELECTRICAL LIFE: 10,000 CYCLES

10. TEMPERATURE: -20°C TO 105°C [UR, cUR]

.80

-20°C TO 125°C [ENEC14, SEMKO: 10(2)A 250V~]

[.031 in]

11.

DENOTES CIRTICAL PARAMETER

12. 2002/95/EC (ROHS) COMPLIANT

NONE

OPEN

2-1

POS. 1

POS. 2

POS. 3

25.60

[1.008 in]

17.50

[.689 in]

1 MARKING

COLOR: WHITE

CIRCUIT: SPST

POS. 3

6.00

.50

[.236

.020

in]

13.50

[.531 in]

7.00

[.276 in]

13.40

[.528 in]

3.20

[.126 in]

21.50

[.846 in]

REV

21177

PCR NO

RELEASE FOR PRODUCTION

DESCRIPTION

7/19/13

DATE

EBP

TITLE

RE15131121

DATE

DWG

REV

THE INFORMATION CONTAINED IN THIS DOCUMENT IS PROPRIETARY

TO E-SWITCH AND IS NOT TO BE COPIED OR TRANSFERRED

SCALE

7/19/2013

EBP

38-RE15131121
