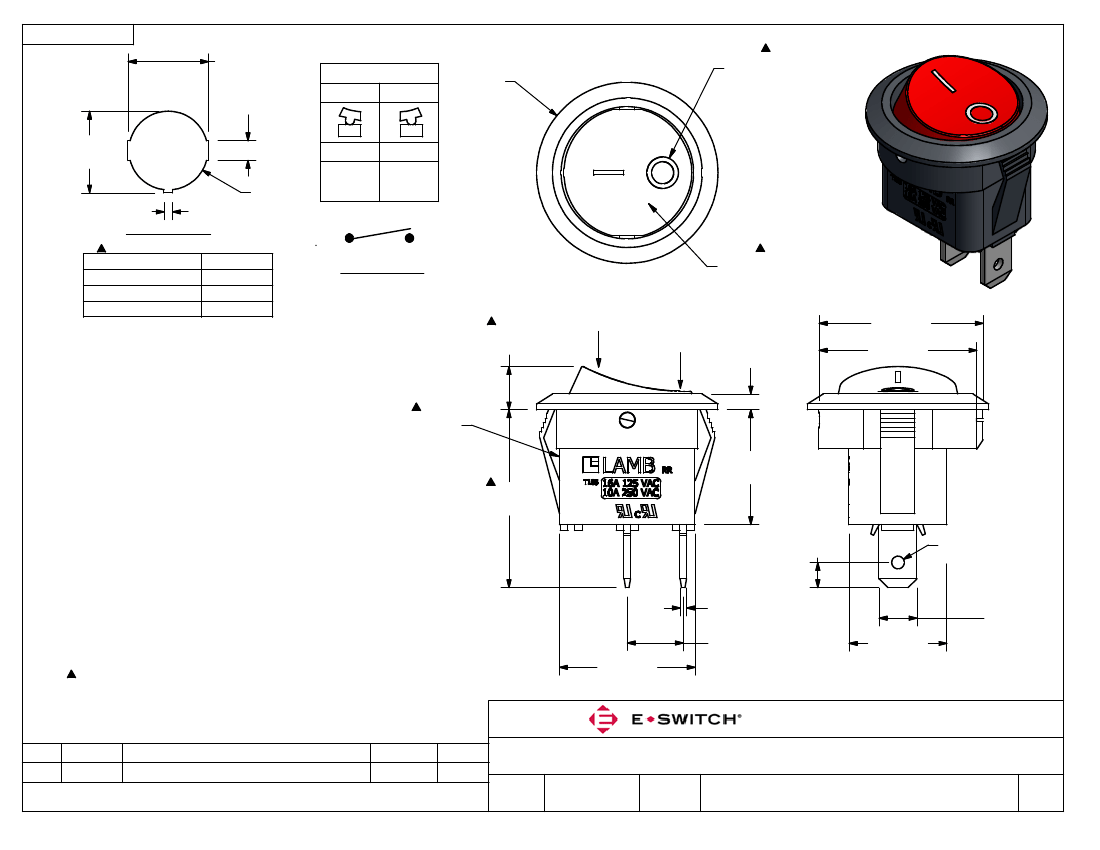

SHEET 1 OF 1
(X) DIM
SWITCH FUNCTION
5.00
[.197 in]
POS. 1
POS. 2
n
23.00
MARKING COLOR:
WHITE
[.906 in]
20.80
[.819 in]
n
20.00
OFF
OPEN
ON
2-1
2.10
[.083 in]
PANEL CUTOUT
PANEL THICKNESS
0.75 TO 1.25
1.25 TO 2.00
2.00 TO 3.00
[.787 in]
2
(X) DIM.
20.2mm
20.4mm
20.6mm
1
ACUATOR COLOR:
RED
CIRCUIT: SPST
5.50
`
.50
[.217
`
.020
in]
POS. 2
POS. 1
2.00
[.079 in]
20.80
[.819 in]
20.00
[.787 in]
NOTE:
1. DIMENSIONS IN MM [INCH]
2. GENERAL TOLERANCE: X.X =
±
0.4
BODY COLOR:
X.XX =
±
0.25
BLACK
3. TERMINAL NUMBERS FOR REF ONLY
4. CONTACT MATERIAL: SILVER
5. CONTACT RATING: ANSI/UL 1054 CAN/USA C22.2 NO. 55 (E194579):
16A @ 125VAC [UR, cUR]
10A @ 250VAC [UR, cUR]
22.60
`
.50
[.890
`
.020
in]
1/3 HP 125/250VAC [UR, cUR]
EN 61058-1: 2002:
10(4)A 250~ µ 1E4 T125/55 [ENEC14, SEMKO]
10(2)A 250~ µ 5E4 T85/55 [ENEC14, SEMKO]
6. CONTACT RESISTANCE: 35mΩ MAX. @ 50VAC
7. INSULATION RESISTANCE: 100MΩ MIN. @ 500VAC
8. DIELECTRIC STRENGTH: 1,500VAC FOR 1 MINUTE
9. ELECTRICAL LIFE: 6,000 CYCLES [UR, cUR]
10,000 CYCLES [ENEC14, SEMKO: 10(4)A 250V~]
50,000 CYCLES [ENEC14, SEMKO: 10(2)A 250V~]
10. OPERATING TEMPERATURE: -20°C TO 105°C [UR, cUR]
-20°C TO 125°C [ENEC14, SEMKO:10(4)A 250V~]
-20°C TO 85°C [ENEC14, SEMKO: 10(2)A 250V~]
11. DENOTES CRITICAL PARAMETER
12. 2002/95/EC (ROHS) COMPLIANT
14.60
[.575 in]
3.20
[.126 in]
2
1
.80
[.031 in]
7.10
[.280 in]
17.20
[.677 in]
12.40
[.488 in]
1
n
1.60
[.063 in]
4.80
[.189 in]
A
REV
21091
PCR NO
RELEASE FOR PRODUCTION
DESCRIPTION
4/2/13
DATE
EBP
BY
TITLE
RR111C1921
DATE
DR
DWG
REV
THE INFORMATION CONTAINED IN THIS DOCUMENT IS PROPRIETARY
TO E-SWITCH AND IS NOT TO BE COPIED OR TRANSFERRED
SCALE
4/2/2013
EBP
38-RR111C1921
A
