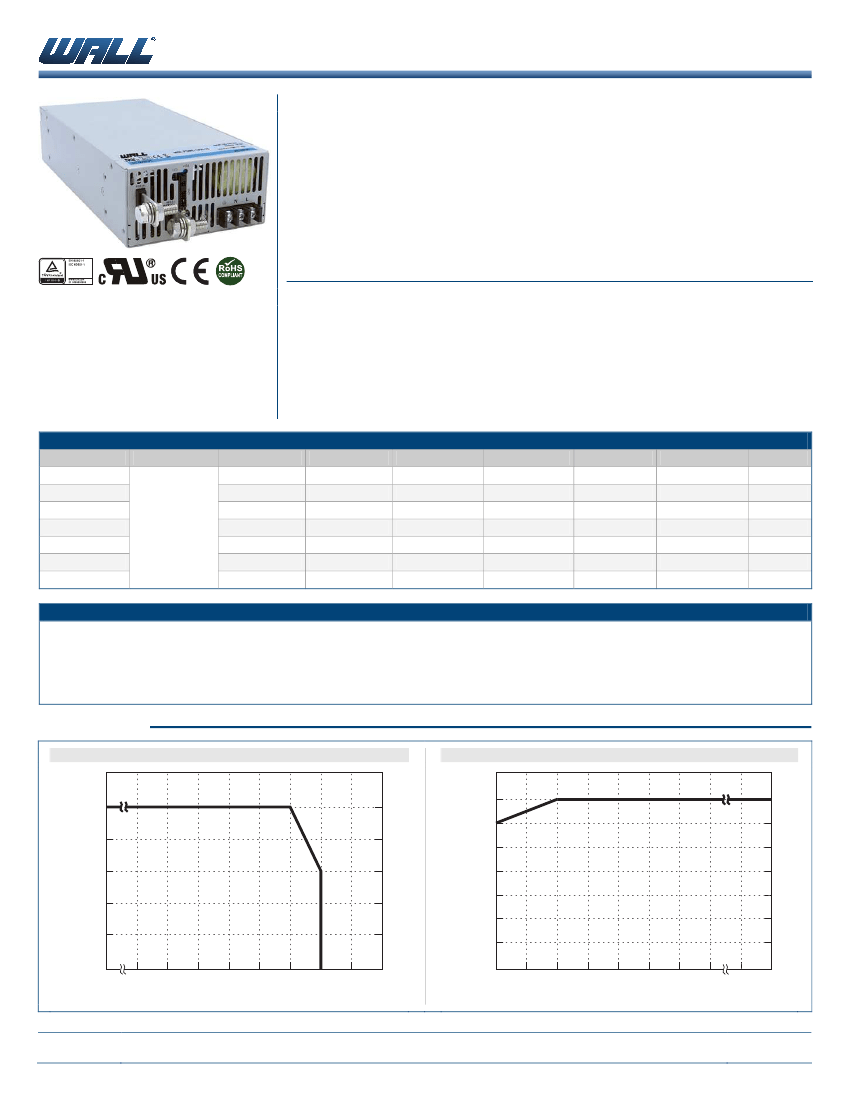

Wall Industries, Inc.
Rev A
PSME1200 SERIES
1200 Watts, Medical AC/DC Switching Power Supplies
FEATURES
•
RoHS Compliant
•
1200 Watts Output Power
•
High Efficiency up to 93%
•
4000VAC I/O Isolation (2 x MOPP)
•
Constant Current Limiting
•
Global Control via RS232
•
Power OK Signal (Power Good, Logic Low)
•
Remote ON/OFF, Remote Sense Functions
•
Protection: OLP, OVP, OTP, Fan Failure
Size:
10.256 x 5.000 x 2.500 inches
(260.50 x 127.00 x 63.50 mm)
Weight
5.73 lbs (2.6kg)
•
Remote Setting Multiple PSU via RS232, RS485 & I
2
C
•
Programmable Output Voltage (0~105%)
•
Programmable Output Current (0~105%)
•
Universal Input Voltage Range: 90~264VAC (127~370VDC)
•
Single Outputs Ranging from 12VDC to 60VDC
•
Selectable +5V/0.5A or +9V/0.3A Auxiliary Output
•
Forced Current Sharing at Parallel Operation
•
ANSI/AAMI ES60601-1, TUV EN60601-1: 2006, IEC60601-1
Medical Approvals
DESCRIPTION
The PSME1200 series of medical AC/DC switching power supplies provides 1200 Watts of output power in
a 10.256” x 5.000” x 2.500” enclosed case. This series consists of single output models ranging from 12VDC
to 60VDC with a universal input voltage range of 90~264VAC (127~370VDC). Standard features include
high efficiency up to 93%, programmable output voltage and output current, remote on/off, and power OK
signal. This series also has over temperature, over voltage, and over load protection. These supplies also
feature a low leakage current of less than 300μA (earth) and less than 100µA (patient) at 264VAC and are
designed to withstand 4000VAC input to output isolation (2 x MOPP). All models are RoHS compliant and
have ANSI/AAMI ES60601-1, TUV EN60601-1: 2006, and IEC60601-1 medical approvals.
MODEL SELECTION TABLE
Model Number
PSME-1200-12
PSME-1200-15
PSME-1200-24
PSME-1200-30
PSME-1200-36
PSME-1200-48
PSME-1200-60
Input Voltage
(2)
90~264 VAC
(127~370 VDC)
Output Voltage Output Current
12 VDC
100A
15 VDC
80A
24 VDC
50A
30 VDC
40A
36 VDC
33.4A
48 VDC
25A
60 VDC
20A
Line Regulation
±1.0%
±1.0%
±1.0%
±1.0%
±1.0%
±1.0%
±1.0%
Load Regulation Output Power Ripple & Noise
(1)
±1.0
1200W
120mVp-p
±1.0
1200W
150mVp-p
±1.0
1200W
150mVp-p
±1.0
1200W
150mVp-p
±1.0
1202.4W
150mVp-p
±1.0
1200W
150mVp-p
±1.0
1200W
150mVp-p
Efficiency
89%
90%
91%
92%
92%
93%
93%
NOTES
1. Ripple & noise is measured at 20MHz limited bandwidth and using a 12" twisted pair-wire terminated with a 0.1µF & 47µF capacitors in parallel.
2. For voltages near the low end of the input voltage range, see the derating curve for the power supply output rating.
3. When in parallel operation only one unit might operate if the total output load is less than 5% of the rated load condition.
4. The power supply is considered a component which will be installed into final equipment. The final equipment must be re-confirmed that it still meets
EMC directives.
DERATING CURVES
Load vs Ambient Temperature
120
120
100
90
80
Ta=25°C
Load vs Input Voltage
100
Load (%)
60
40
20
Load (%)
0
10
20
30
40
50
60
70
80
80
70
60
50
40
-20
90
100
110
120
264
Ambient Temperature (°C)
Input Voltage (VAC)
06/05/2014
Wall Industries, Inc. • 37 Industrial Drive, Exeter, NH 03833 • Tel: 603-778-2300 • Toll Free: 888-597-9255 • Fax 603-778-9797
website: www.wallindustries.com • e-mail: sales@wallindustries.com
Page 1 of 7
Wall Industries, Inc.
Rev A
PSME1200 SERIES
1200 Watts, Medical AC/DC Switching Power Supplies
SPECIFICATIONS: PSME1200 SERIES
All specifications are based on 25°C, Nominal Input Voltage, and Maximum Output Current unless otherwise noted.
We reserve the right to change specifications based on technological advances.
SPECIFICATION
INPUT SPECIFICATIONS
Input Voltage (See Note 2)
Input Frequency
AC Current
Inrush Current
Power Factor
OUTPUT SPECIFICATIONS
Output Voltage
Voltage Tolerance
Voltage Adjustability
Line Regulation
Load Regulation
Output Power
Output Current
Ripple & Noise (20MHz BW)
Hold-up Time
Setup Time
Rise Time
Temperature Coefficient
PROTECTION
Over Voltage Protection (see page 7)
Over Load Protection
Over Temperature Protection
GENERAL SPECIFICATIONS
Efficiency
Input to Output
Isolation Voltage
Input to FG
Output to FG
Input to Output
Isolation Resistance Input to FG
Output to FG
Earth
Leakage Current
Patient
FUNCTIONS
Auxiliary Power
Remote ON/OFF Control (see page 4)
Power OK Signal
Output Voltage Trim
Output Current Trim
Parallel Operation (Current Sharing)
ENVIRONMENTAL SPECIFICATIONS
Operating Temperature
Storage Temperature
Operating Humidity
Storage Humidity
Cooling
Vibration
PHYSICAL SPECIFICATIONS
Weight
Dimensions (W x H x D)
SAFETY & EMC (See Note 4)
Safety Approvals
EMI (Conduction & Radiation)
Harmonic Current
EMS Immunity
At 115VAC and full load
At 230VAC and full load
At 115VAC and cold start
At 230VAC and cold start
At 115VAC and full load
At 230VAC and full load
AC input voltage range
DC input voltage range
TEST CONDITIONS
Min
90
127
47
Typ
Max
264
370
63
Unit
VAC
VDC
Hz
A
A
14.5
6
30
45
0.99
0.95
See Table
+2.0
+5.0
+1.0
+1.0
See Table
See Table
See Table
800
100
-0.02
+0.02
Includes set-up tolerance, line regulation, and load regulation
Typical adjustment by potentiometer (VR1)
Low Line to High Line
0% to 100% full load
-2.0
-5.0
-1.0
-1.0
%
%
%
%
Measured with 0.1µF and 47µF capacitors in parallel
At 230VAC and full load
full load
full load
0~50°C
Protection type: latch-style. Recovery after reset AC power ON or inhibit
Protection type: constant current limit
Protection type: shut down o/p voltage; auto-recovery after temp. goes down
16
ms
ms
ms
%/°C
Variable OVP, 120%±7% Vout
105% rated output power
100°C±5°C detect on heatsink of sec. side
See Table
2 x MOPP
Test is done without enclosure
500VDC
500VDC
500VDC
At 264VAC
At 264VAC
4000
1800
500
100
100
100
300
100
VAC
MΩ
µA
Isolated from output
Sink Current: 20mA max.; Drain Voltage: 40V max.
Selectable +5V/0.5A or +9V/0.3A aux. output
By external switch
Open drain signal low when PSU turns on
0
105
%Vo
0
105
%Io
See page 5
-20
+60
°C
-40
+85
°C
Non-condensing
20
90
% RH
10
95
% RH
Load and temperature control fan
10~500Hz, 2G 10 min./1 cycle, period for 60 min. each along X, Y, Z axes. Certified IEC60068-2-6-2007; IEC60068-2-64-2008
5.73 lbs (2.6kg)
10.256 x 5.000 x 2.500 inches (260.50 x 127.00 x 63.50 mm)
UL/cUL (ANSI/AAMI ES60601-1; CAN / CSA-C22.2 No.60601-1); NFPA 99; TUV (EN60601-1; IEC60601-1); MOPP approval
EN55011
EN61000-3-2; EN61000-3-3
EN60601-1-2; IEC61000-4-2, 3, 4, 5, 6, 8, 11
See derating curve
06/05/2014
Wall Industries, Inc. • 37 Industrial Drive, Exeter, NH 03833 • Tel: 603-778-2300 • Toll Free: 888-597-9255 • Fax 603-778-9797
website: www.wallindustries.com • e-mail: sales@wallindustries.com
Page 2 of 7
Wall Industries, Inc.
Rev A
PSME1200 SERIES
1200 Watts, Medical AC/DC Switching Power Supplies

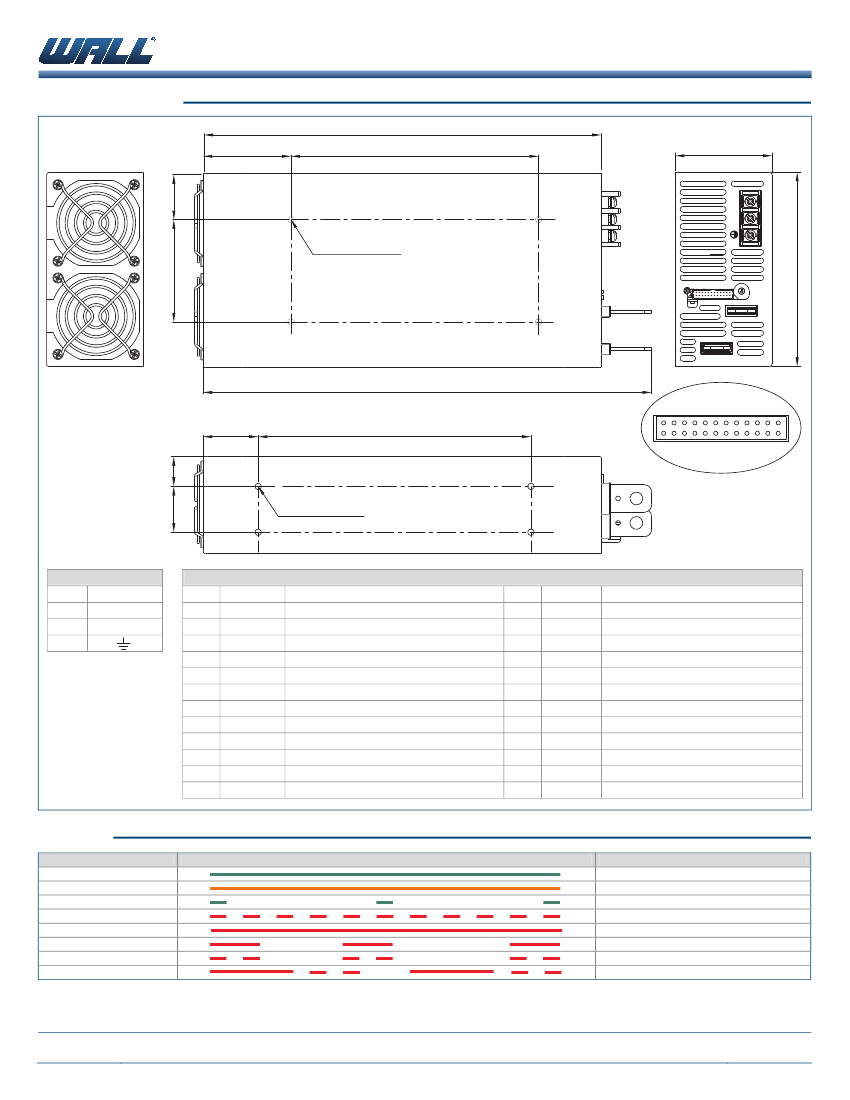

MECHANICAL DRAWING
Unit: inches [mm]
2.264 [57.50]
10.236 [260.50]
6.378 [162.00]
2.500 [63.50]
1.161 [29.50]
N
L
4-M4 L=4 both sides
LED
11.555 [293.50]
POS (+)
CN5
1.417 [36.00]
7.028 [178.50]
24
22
20
18
16
14
12
10
8
6
4
2
1.181
[30.00]
0.768
[19.50]
4-M4 L=4 both sides
AC Input Terminal
Pin
Function
1
ACL
2
ACN
3
Pin
1
2
3
4
5
6
7
8
9
10
11
12
Function
NC
NC
AUX
GND
SCL
SDA
AUX
GND
VCI
GND
ACI
GND
Control Pin Number Assignment (CN5): JST S24B-PHDSS or Equivalent
Description
Pin
Function
Description
For RS232 Receiver Function
13
EN+
Inhibit ON/OFF (+)
For RS232 Transmission Function
14
AUX
+5V/0.5A or +9V/0.3A Auxiliary Power
+5V/0.5A or +9V/0.3A Auxiliary Power
15
EN-
Inhibit ON/OFF (-)
Ground
16
GND
Ground
2
Serial Clock used in the I C Interface
17
PAR
Parallel Operation Current Sharing
2
Serial Data used in the I C Interface
18
VSET
AUX Output Set
+5V/0.5A or +9V/0.3A Auxiliary Power
19
POK
Power OK
Ground
20
GND
Ground
V Program
21
VS-
Remote Sense (-)
Ground
22
VO-
Negative Output Voltage
I Program
23
VS+
Remote Sense (+)
Ground
24
VO+
Positive Output Voltage
LED STATUS
LED
Solid (Green)
Solid (Orange)
Slow Blink (Green)
Fast Blink (Red)
Solid (Red)
Slow Blink (Red)
Intermittent Blink (Red)
Interlace Blink (Red)
LED Signal
Status
Power OK (Local Mode)
Power OK (Remote Mode)
Power Standby
Over Voltage Protection (OVP)
Over Load Protection (OLP)
Over Temperature Protection (OTP)
Fan Failure
Power Failure
* Local mode: Use ACI/VCI to control output current and voltage
* Remote Mode: Use RS232 or I
2
C command to control output current and voltage
Wall Industries, Inc. • 37 Industrial Drive, Exeter, NH 03833 • Tel: 603-778-2300 • Toll Free: 888-597-9255 • Fax 603-778-9797
website: www.wallindustries.com • e-mail: sales@wallindustries.com
06/05/2014
23
21
19
17
15
13
11
9
7
5
3
1
NEG (-)
Addr. SW
Page 3 of 7
5.000 [127.00]
2.638 [67.00]
V-Adj
1
CN5
Wall Industries, Inc.
Rev A
PSME1200 SERIES
1200 Watts, Medical AC/DC Switching Power Supplies

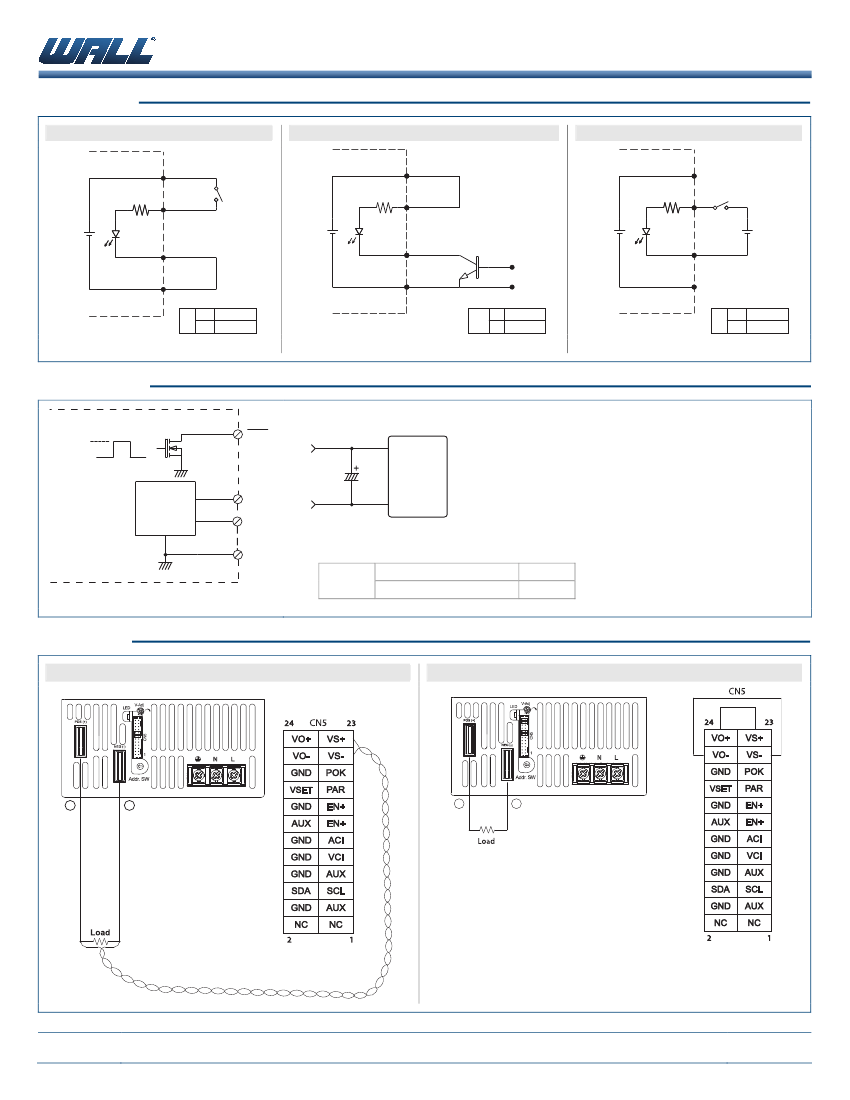

REMOTE ON/OFF
(1) Using Internal 5V Auxiliary Source
AUX
2KΩ
SW
EN+
AUX
EN-
GND
EN-
Tr
Ctrl
GND
GND
L
H
Power OFF
Power ON
(2) ON/OFF Control by NPN Transistor
AUX
2KΩ
EN+
(3) Using External Voltage Source
AUX
2KΩ
EN+
SW
AUX
EN-
AUX
AUX
GND
OFF Power OFF
ON
Power ON
sw
OFF Power OFF
ON
Power ON
Ctrl
sw
Default setting
POWER OK SIGNAL
* Place an additional capacitor to have a better performance of auxiliary power operation.
Good
Failure
DC / DC
5V/0.5A
or
9V/0.3A
P.OK
470µF
16V
*
AUX
VSET
GND
Internal Circuit
AUX
LOAD
* The grounding of “AUX” power should be connected to “GND” port. If “V-“ is connected as
Grounding make sure to short the “GND” and “V-“ ports.
VSET
Open (Default Setting)
Short to GND
5V
9V
AUX and P.OK Signal
REMOTE SENSE
1) Remote Sense
+
2) Local Sense (Default Setting)
+
+
-
+
-
06/05/2014
Wall Industries, Inc. • 37 Industrial Drive, Exeter, NH 03833 • Tel: 603-778-2300 • Toll Free: 888-597-9255 • Fax 603-778-9797
website: www.wallindustries.com • e-mail: sales@wallindustries.com
Page 4 of 7
Wall Industries, Inc.
Rev A
PSME1200 SERIES
1200 Watts, Medical AC/DC Switching Power Supplies

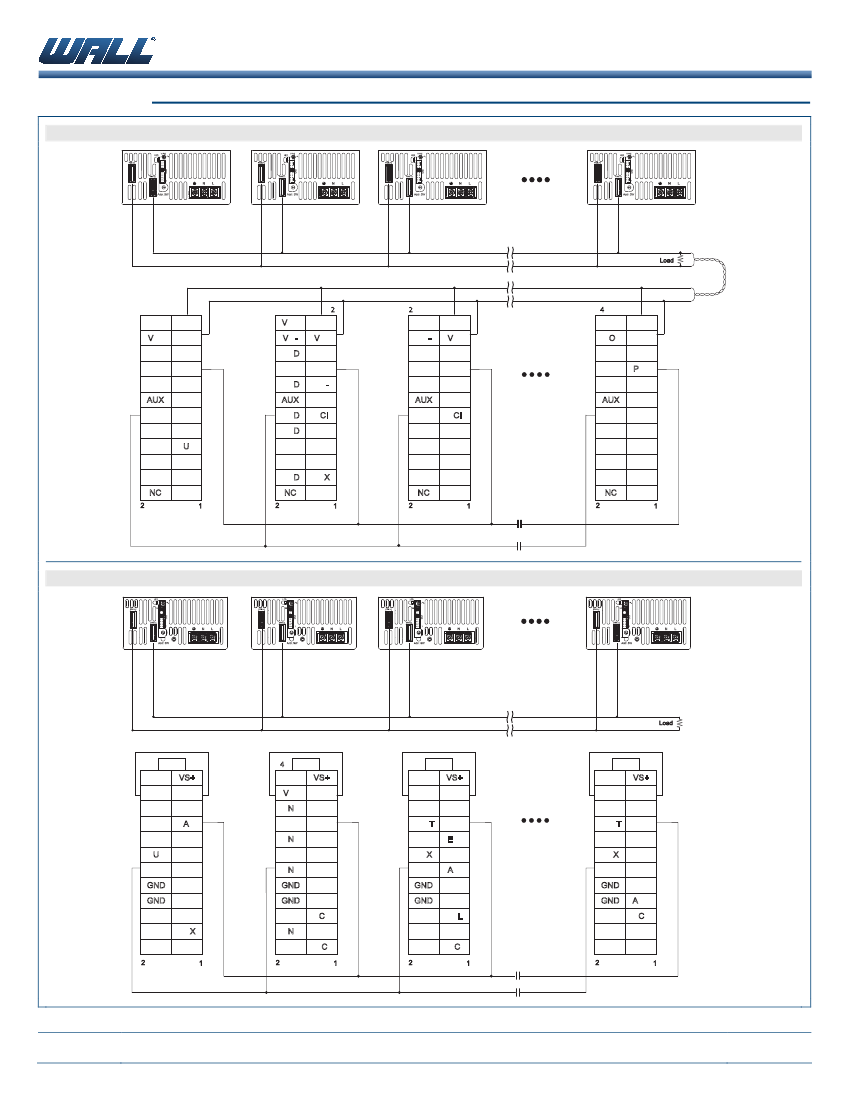

CURRENT SHARING
3) Current Sharing with Remote Sense
+
+
+
+
24
23
24
23
24
23
24
23
VO+
VO-
GND
VSET
GND
AUX
GND
GND
GND
SDA
GND
NC
VS+
VS-
POK
PAR
EN-
EN+
ACI
VCI
AUX
SCL
AUX
NC
VO+
VO-
GND
VSET
GND
AUX
GND
GND
GND
SDA
GND
NC
VS+
VS-
POK
PAR
EN-
EN+
ACI
VCI
AUX
SCL
AUX
NC
VO+
VO-
GND
VSET
GND
AUX
GND
GND
GND
SDA
GND
NC
VS+
VS-
POK
PAR
EN-
EN+
ACI
VCI
AUX
SCL
AUX
NC
VO+
VO-
GND
VSET
GND
AUX
GND
GND
GND
SDA
GND
NC
VS+
VS-
POK
PAR
EN-
EN+
ACI
VCI
AUX
SCL
AUX
NC
4) Current Sharing with Local Sensing
+
+
+
+
24
23
24
23
24
23
24
23
VO+
VO-
GND
VSET
GND
AUX
GND
GND
GND
SDA
GND
NC
VS+
VS-
POK
PAR
EN-
EN+
ACI
VCI
AUX
SCL
AUX
NC
VO+
VO-
GND
VSET
GND
AUX
GND
GND
GND
SDA
GND
NC
VS+
VS-
POK
PAR
EN-
EN+
ACI
VCI
AUX
SCL
AUX
NC
VO+
VO-
GND
VSET
GND
AUX
GND
GND
GND
SDA
GND
NC
VS+
VS-
POK
PAR
EN-
EN+
ACI
VCI
AUX
SCL
AUX
NC
VO+
VO-
GND
VSET
GND
AUX
GND
GND
GND
SDA
GND
NC
VS+
VS-
POK
PAR
EN-
EN+
ACI
VCI
AUX
SCL
AUX
NC
06/05/2014
Wall Industries, Inc. • 37 Industrial Drive, Exeter, NH 03833 • Tel: 603-778-2300 • Toll Free: 888-597-9255 • Fax 603-778-9797
website: www.wallindustries.com • e-mail: sales@wallindustries.com
Page 5 of 7
京公网安备 11010802033920号
EEWORLD
