SHEET 1 OF 1
30.00
[1.181 in]
33.00
[1.299 in]

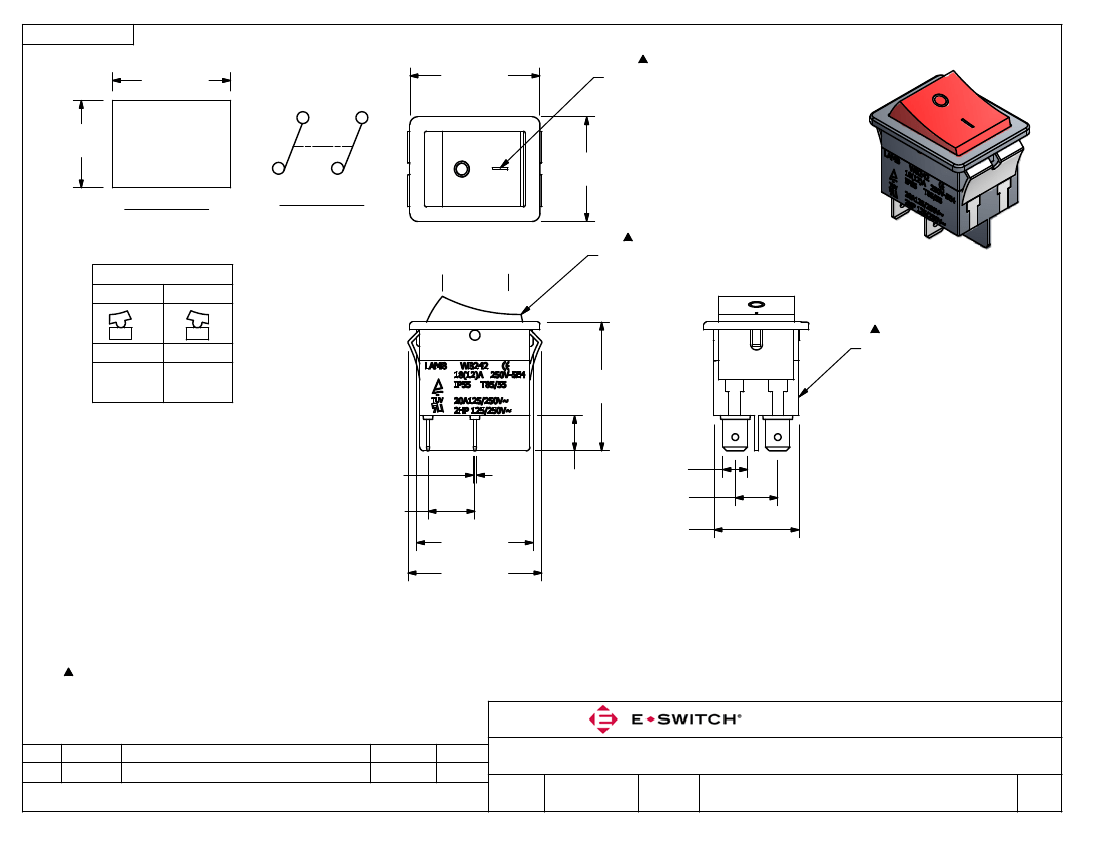

I/O VERTICAL
COLOR: WHITE
22.20
[.874 in]
1
PANEL CUTOUT
2
5
26.60
[1.047 in]
4
CIRCUIT: DPST
SWITCH FUNCTION
POS. 1
POS. 2
POS. 1
POS. 2
ACTUATOR:
RED
OFF
OPEN
ON
2-1, 5-4
32.70
[1.287 in]
BODY:
BLACK
NOTE:
.80
1. DIMENSIONS IN MM [INCH]
[.031 in]
2. GENERAL TOLERANCE: X.X =
±
0.4
X.XX =
±
0.25
11.90
3. TERMINAL NUMBERS FOR REF ONLY
[.469 in]
4. CONTACT MATERIAL: SILVER PLATED COPPER
5. CONTACT RATINGS: 20A @ 125VAC [cUR
US
]
20A @ 250VAC [cUR
US
]
2HP 125/250VAC
6. CONTACT RESISTANCE: 50mΩ MAX. INITIAL
7. INSULATION RESISTANCE: 500MΩ MIN. @ 500VDC
8. DIELECTRIC STRENGTH: 1,500VAC FOR 1 MINUTE
9. IP RATING: IP55
10. OPERATING TEMPERATURE: -20°C TO 65°C [cUR
US
]
-20°C TO 65°C [TUV]
11. RUBBER SEAL: MVQ
11. DENOTES CRITICAL PARAMETER
12. 2002/95/EC (ROHS) COMPLIANT
4
5
9.00
[.354 in]
6.30
[.248 in]
10.80
[.425 in]
21.60
[.850 in]
5
2
29.60
[1.165 in]
34.00
[1.339 in]
A
REV
20475
PCR NO
RELEASE FOR PRODUCTION
DESCRIPTION
02/14/12
DATE
BMA
BY
TITLE
SCALE
34-WB242D1921
DATE
THE INFORMATION CONTAINED IN THIS DOCUMENT IS PROPRIETARY
TO E-SWITCH AND IS NOT TO BE COPIED OR TRANSFERRED
1:1
2/14/2012
BMA
DR
34-WB242D1921
DWG
REV
A
