BG151-70-C-0320-P-G datasheet, PDF

EEWORLDEEWORLD

Datasheet

Datasheet> All Categories > The connector> The connector> BG151-70-C-0320-P-G

Preview

BG151-70-C-0320-P-G: DescriptionBoard Connector, 70 Contact(s), 2 Row(s), Female, Right Angle, Solder Terminal, Locking, Black Insulator,; CategoryThe connector The connector; File Size169KB，1 Pages; ManufacturerGlobal Connector Technology; Environmental Compliance

Download Datasheet Parametric View All

BG151-70-C-0320-P-G Overview

Board Connector, 70 Contact(s), 2 Row(s), Female, Right Angle, Solder Terminal, Locking, Black Insulator,

BG151-70-C-0320-P-G Parametric

Parameter Name	Attribute value
Is it lead-free?	Lead free
Is it Rohs certified?	conform to
Objectid	1325842786
Reach Compliance Code	compliant
body width	0.197 inch
subject depth	0.506 inch
body length	3.519 inch
Connector type	BOARD CONNECTOR
Contact to complete cooperation	SN ON NI
Contact completed and terminated	Tin (Sn) - with Nickel (Ni) barrier
Contact point gender	FEMALE
Contact material	COPPER ALLOY
contact mode	RECTANGULAR
Contact resistance	20 mΩ
Contact style	SQ PIN-SKT
Dielectric withstand voltage	600VAC V
Durability	100 Cycles
maximum insertion force	3.0024 N
Insulation resistance	1000000000 Ω
Insulator color	BLACK
insulator material	POLYBUTYLENE TEREPHTHALATE
JESD-609 code	e3
Manufacturer's serial number	BG151
Installation option 1	LOCKING
Installation method	RIGHT ANGLE
Installation type	BOARD
Number of connectors	ONE
PCB row number	2
Number of rows loaded	2
Maximum operating temperature	105 °C
Minimum operating temperature	-40 °C
PCB contact pattern	RECTANGULAR
polarization key	POLARIZED HOUSING
Rated current (signal)	3 A
Guideline	UL
reliability	COMMERCIAL
Terminal length	0.126 inch
Termination type	SOLDER
Total number of contacts	70
Evacuation force-minimum value	.3058 N

Preview

Download Datasheet

View All

1

2

3

4

5

6

7

8

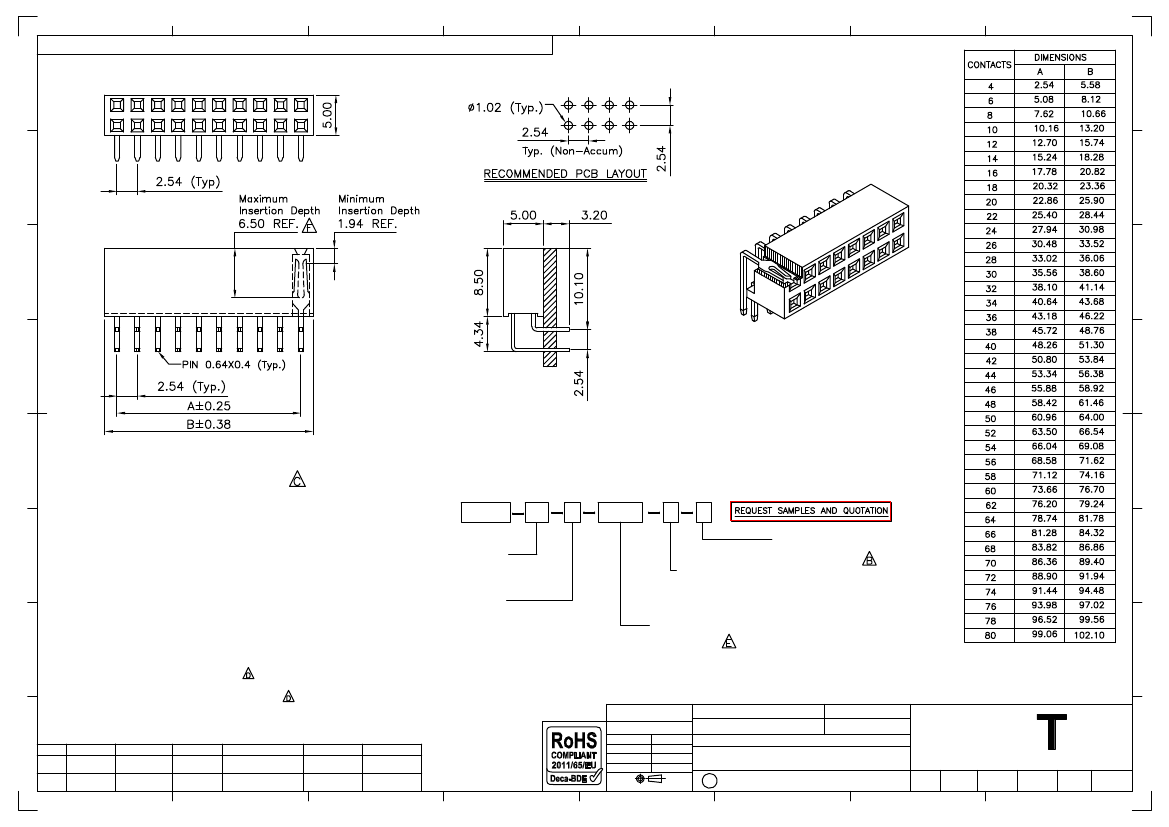

Global Connector Technology Ltd. - BG151: 2.54mm PITCH SOCKET, DUAL ROW, THROUGH-HOLE, HORIZONTAL

A

B

C

D

E

F

G

H

SPECIFICATIONS

规格

CURRENT RATING

电流额定值

: 3 A

INSULATOR RESISTANCE

绝缘电阻值

: 1000 MΩ MIN.

CONTACT RESISTANCE

接触电阻值

: 20 MΩ MAX

DIELECTRIC WITHSTANDING

耐电压

: AC 600 V

OPERATING TEMPERATURE

工½温度

: -40° TO +105°C

CONTACT MATERIAL

端子物料

: COPPER ALLOY

INSULATOR MATERIAL

绝缘½物料

:

STANDARD

标准物料

: POLYAMIDE

聚醯胺

, NYLON 6T, UL 94V-0

OPTIONS

可选物料

: POLYESTER

聚酯

, LCP, UL 94V-0

OR POLYESTER

聚酯

, PBT, UL 94V-0

SOLDERING PROCESS

可焊性

:

NYLON 6T (STANDARD

标准物料

) -

IR REFLOW

回流焊

: 260°C for 10 sec.

WAVE

波峰焊

: 230°C for 5-10 sec.

MANUAL SOLDER

人工焊接

: 350°C for 3-5 sec

PBT (OPTION

可选物料

) - MANUAL SOLDER

人工焊接

: 330°C for 3-5 sec.

(NOT SUITABLE FOR HI-TEMP PROCESS

不适合高温处理

)

LCP (OPTION

可选物料

) -

IR REFLOW

回流焊

: 260°C for 10 sec.

WAVE

波峰焊

: 250°C for 5-10 sec.

MANUAL SOLDER

人工焊接

: 350°C for 3-5 sec

MATES WITH

配套之母座

(SUBJECT TO PIN LENGTH

在端子长度适合的条件下

):

BG025

BG040

BG045

BG050

BG065

BG070

BG085

By

DETAIL

REV

DATE

LYH

DRAWING

RELEASE

A

10/03/09

CB

ASE

DR

CHANGE TO SOLDER

TEMP. INFORMATION

D

05/08/09

AJO

SELECTABLE

LENGTH REMOVED

E

Ordering Grid

BG151

No. of Contacts

04 to 80

XX

X

0320

X

Packing Options

D = Tube (Standard)

G = Plastic Box

F

Contact Plating

A = Gold Flash All Over (Standard)

B = Selective Gold Flash Contact

Area/Tin On Tail

C = Tin All Over

G = 10µ" Gold Contact Area/Tin On Tail

I = 30µ" Gold Contact Area/Tin On Tail

Insulator Material

N = Nylon 6T (Standard)

P = PBT

L = LCP

Insulator to Pin End (1/100mm)

0320 = 3.20mm

G

Tolerances

(Except as noted)

Part Number:-

Date:-

Dimensions in mm

X.°±5°

.X°±2°

X.X ± 0.20

.XX°±1°

X.XX ± 0.15

X.XXX ± 0.10 .XXX°±0.5°

X. ± 0.30

Third Angle Projection

BG151

Description:-

10 MAR 09

AJO

MAX INSERTION

DEPTH ADDED

PACKING OPTIONS SPECIFICATION

CHANGED

2.54mm PITCH SOCKET, DUAL ROW ,THROUGH-HOLE,

HORIZONTAL

GC

Scale

NTS

H

Sheet No.

E & OE

1/1

www.gct.co

Drawn by

LYH

1

B

27/04/09

C

05/06/09

2

E

16/07/12

3

F

23/05/13

C

THIS DRAWING IS CONFIDENTIAL AND MUST NOT BE

COPIED OR DISCLOSED WITHOUT WRITTEN CONSENT

Revision

F

Material

See Note

4

5

6

7

8
