3592-133-511: DescriptionCard Edge Connector, 168 Contact(s), 2 Row(s), Straight, 0.05 inch Pitch, Solder Terminal, Latch & Eject, Black Insulator, Receptacle; CategoryThe connector The connector; File Size271KB，1 Pages; ManufacturerTekcon Electronics Corp

Download Datasheet Parametric View All

3592-133-511 Overview

Card Edge Connector, 168 Contact(s), 2 Row(s), Straight, 0.05 inch Pitch, Solder Terminal, Latch & Eject, Black Insulator, Receptacle

3592-133-511 Parametric

Parameter Name	Attribute value
Is it Rohs certified?	incompatible
Objectid	305417570
Reach Compliance Code	unknown
ECCN code	EAR99
Board mount options	SPLIT BOARD LOCK
body width	0.297 inch
subject depth	0.59 inch
body length	5.55 inch
Body/casing type	RECEPTACLE
Connector type	CARD EDGE CONNECTOR
Contact to complete cooperation	AU
Contact completed and terminated	Tin/Lead (Sn/Pb)
Contact material	COPPER ALLOY
Contact resistance	30 mΩ
Contact style	BELLOWED TYPE
Dielectric withstand voltage	1000VAC V
Durability	25 Cycles
Insulation resistance	10000000000 Ω
Insulator color	BLACK
insulator material	LIQUID CRYSTAL POLYMER (LCP)
JESD-609 code	e0
Manufacturer's serial number	3592
Plug contact pitch	0.05 inch
Installation option 1	LATCH & EJECT
Installation option 2	LOCKING
Installation method	STRAIGHT
Installation type	BOARD
Number of connectors	ONE
PCB row number	4
Number of rows loaded	2
Maximum operating temperature	105 °C
Minimum operating temperature	-55 °C
PCB contact pattern	STAGGERED
PCB contact row spacing	0.075 mm
Plating thickness	10u inch
polarization key	POLARIZED HOUSING
Rated current (signal)	1 A
Guideline	UL
reliability	COMMERCIAL
Terminal pitch	2.54 mm
Termination type	SOLDER
Total number of contacts	168

Preview

Download Datasheet

View All

b

http://www.tekcon.com

http://www.tekcon.com.tw

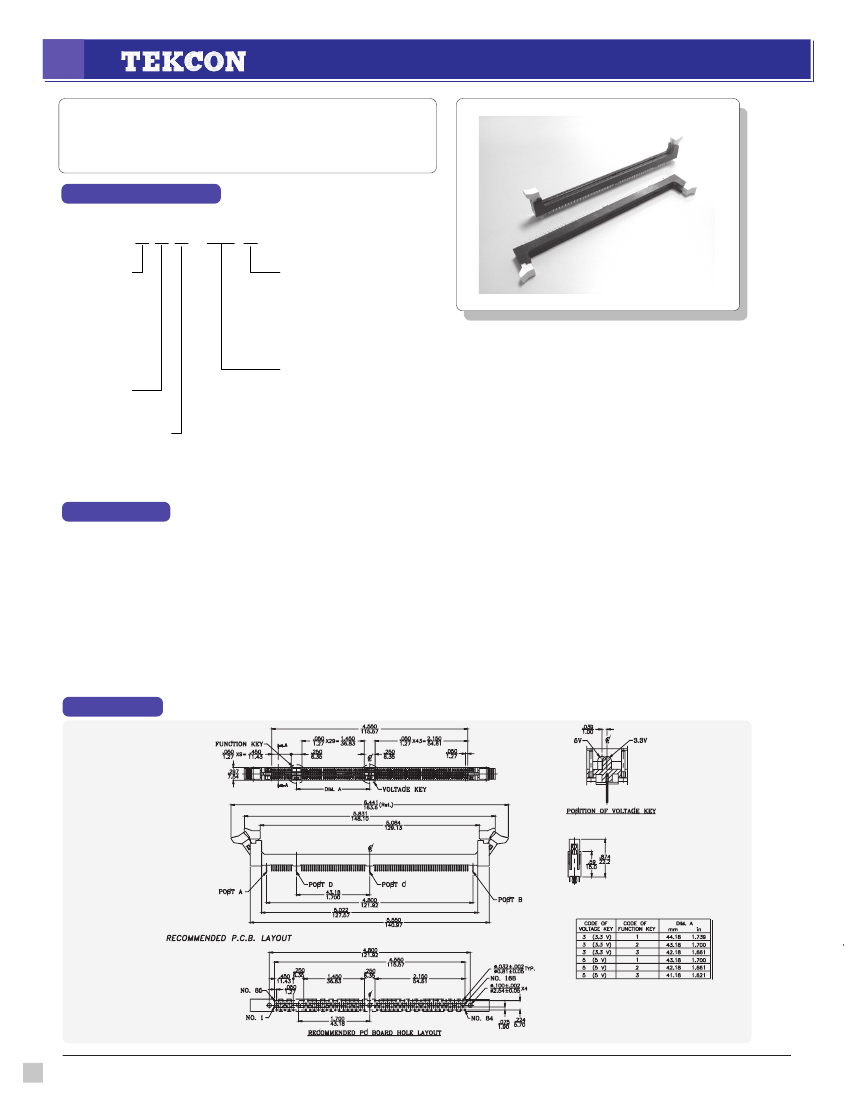

3592 Series

DIMM Socket

1.27 mm Pitch, Forming Type

Ordering Information

3592

-

X X X

-

XX X

Contact Plating

A - Gold Flash all area

0 - Gold Flash/Tin

1 - 10

µ"

Gold/Tin

2 - 20

µ"

Gold/Tin

3 - 30

µ"

Gold/Tin

4 - 3

µ"

Gold/Tin

5 - 15

µ"

Gold/Tin

8 - Tin

Voltage Key

3 - apply 3.3 V module

5 - apply 5 V module

Function Key (DRAM Key)

1-offset Left Key. (SDRAM)

2-offset Centered Key(DRAM)

3-offset Right Key (Unbuffered DRAM)

Housing Material

1 - LCP, Black

2 - LCP, Ivory

5 - Ny66, Black

6 - Ny66, Ivory

7 - PBT, Black

8 - PBT, Ivory

With Post Position

51- with A,B,C Metal Clip

52- with B,C,D Metal Clip

Specification

p

Materials:

s

Housing & Latch:

High Temperature Glass Fiber Reinforced

Thermoplastic, UL94V-0.

s

Contact:

Copper Alloy.

s

Plating:

Gold Flash on Contact Area and Tin/

Lead on Solder Tail.

p

Electrical:

s

Insulation Resistance:

10,000 MΩ Minimum.

s

Dielectric Withstanding Voltage:

1000 VAC R.M.S.

s

Voltage Rating:

500V.

s

Current Rating:

1 AMP.

s

Contact Resistance:

30 mΩ Maximum.

s

Capacitance:

1 PF (Max.) at 1Mhz between

randomly selected adjacent contacts.

p

Mechanical

s

Durability:

25 cycles Minimum.

s

Contact Engaging Force:

1.390N Maximum,

Pair Contact.

s

Contact Retention Force:

500 g Minimum,

per Contact.

s

Accept Standard JEDEC Modules:

0.05 +/- 0.004

p

Enviromental

s

Temperature: -558C to +1058C

Dimensions

TEKCON Electronics Corporation

11-1
