SHEET 1 OF 1
27.20
[1.071 in]
12.10
[.476 in]
31.50
[1.240 in]

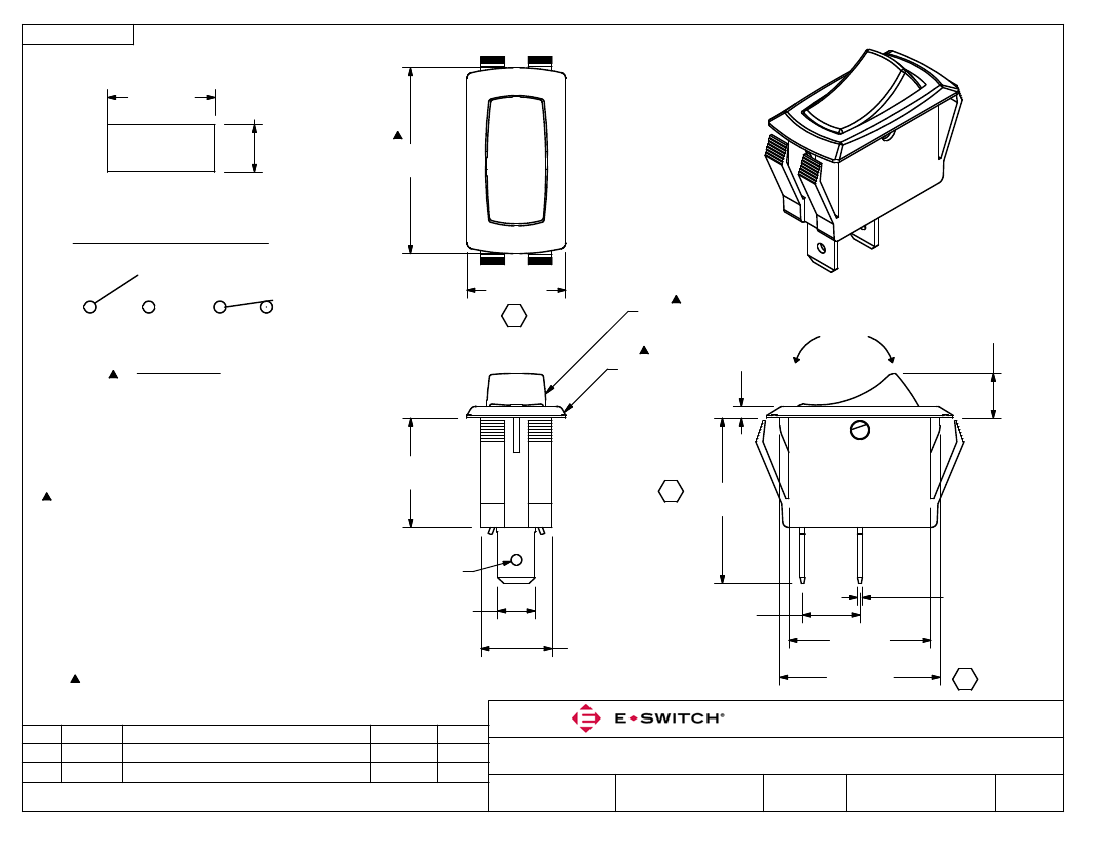

SUGGESTED PANEL CUTOUT
16.70
[.657 in]
2
1
2
1
B
BLACK ACTUATOR
2.00
[.079 in]
POS.
1
POS.
2
7.60
`
.50
[.30
`
.020
in]
POS. 1
CIRCUIT: SPST
OFF - ON
POS. 2
BLACK
HOUSING
NOTES:
1. ALL DIMENSIONS IN MM [INCH]
2. GENERAL TOLERANCE: X.X=±0.4
X.XX=±0.25
3. TERM. NOS. FOR REF. ONLY
4. RATING: 20A @ 125VAC [cULus]
16A @ 250VAC [cULus]
3/4HP 125/250VAC [cULus]
16(4)A @ 250V~ 1E4 T85 [ENEC, VDE]
20(8)A @ 250V~ 1E4 T125 [ENEC, VDE]
10(2)A @ 250V~ 5E4 T85 [ENEC, VDE]
5. MATERIAL:
CONTACT SURFACE: SILVER PLATED COPPER
CIRCUIT TERMINAL: BRASS ALLOY w/SILVER PLATE
6. ELECTRICAL LIFE: 10,000 CYCLES MIN.
7. CONTACT RESISTANCE: 20 m MAX.
8. INSULATION RESISTANCE: 1,000 M MIN. @ 500VDC
8. OPERATING TEMP: -20°C TO 85°C @ 1A 5VDC
9. DIELECTRIC STRENGTH: >1,000V AC 1MIN
10. DENOTES CRITICAL PARAMETER.
11. 2002/95/EC (ROHS) COMPLIANT.
18.50
[.728 in]
B
28.00
`
.50
[1.10
`
.020
in]
n
1.80
[.071 in]
1
9.7
[.38 in]
12.00
[.472 in]
1
2
.80
[.031 in]
24.00
[.945 in]
27.10
[1.067 in]
B
6.30
[.248 in]
B
A
REV
21527
21079
PCR NO
UPDATE NOTED DIMENSIONS
Release For Production
DESCRIPTION
7/28/14
3/25/13
DATE
EBP
EBP
BY
TITLE
RSC241D1100
DATE
DR
DWG
REV
