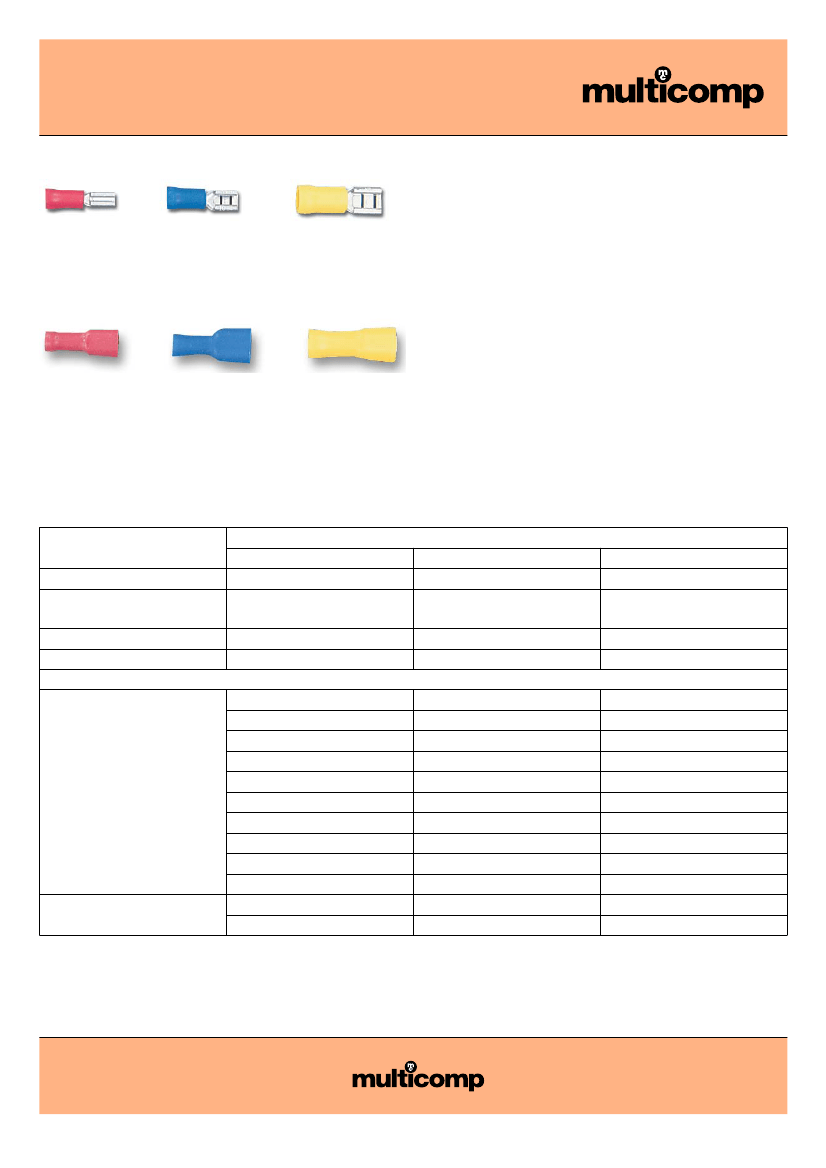

FDD / FDFD Series
Insulated Crimp Terminals Metric
Female Push-On
Features:
•
•
•
•
Easy cable entry guide which eliminates flared wire strands.
Bright electrotinned finish which prevents oxidisation.
Full compliance to BS4579, IEC352-2, ISO1996.
A digit is indented above the crimp to verify correct usage.
Fully Insulated Female Push-On
Specifications:
Current ratings
Temperature range
Insulation
Terminal
Plating
Maximum Electrical Rating
: Quoted at 415 V ac maximum at
32°C.
: -20°C to +85°C.
: Coloured Vinyl.
: Brass, Copper to BS6017 (1981).
: Electrotinned to BS1872 (1984).
: 75°C 300 Volts.
Crimp Selection Chart
Wire Details
Wire size in mm
2
Single standard wire size
diameter
Equivalent A.W.G.
Equivalent S.W.G.
Insulation Colour
Red
0.25 - 1.65
0.57 - 1.44
22 - 16
29 - 17
Suitable metric cables
19/0.15
13/0.2
16/0.2
19/0.2
Stranded
14/0.25
24/0.2
19/0.25
32/0.2
40/0.2
19/0.3
Single
1/0.9
1/1.13
19/0.3
7/0.5
21/0.3
30/0.25
19/0.335
63/0.2
28/0.3
35/0.3
51/0.25
-
1/1.38
1/1.78
19/0.45
44/0.3
7/0.85
56/0.3
65/0.3
37/0.4
159/0.2
84/0.3
7/1.04
-
1/2.25
-
Dimensions : Millimetres
Blue
1.04 - 2.63
1.14 - 1.82
16 - 14
17 - 13
Yellow
2.63 - 6.64
1.82 - 2.89
12 - 10
11 - 6
AWG = American Wire Gauge.
SWG = Standard Wire Gauge.
Conductor make up metric cables i.e. 19/0.15 = 19 strands of 0.15mm diameter.
Page 1
21/10/05 V1.1
FDD / FDFD Series
Insulated Crimp Terminals Metric
Notes:
