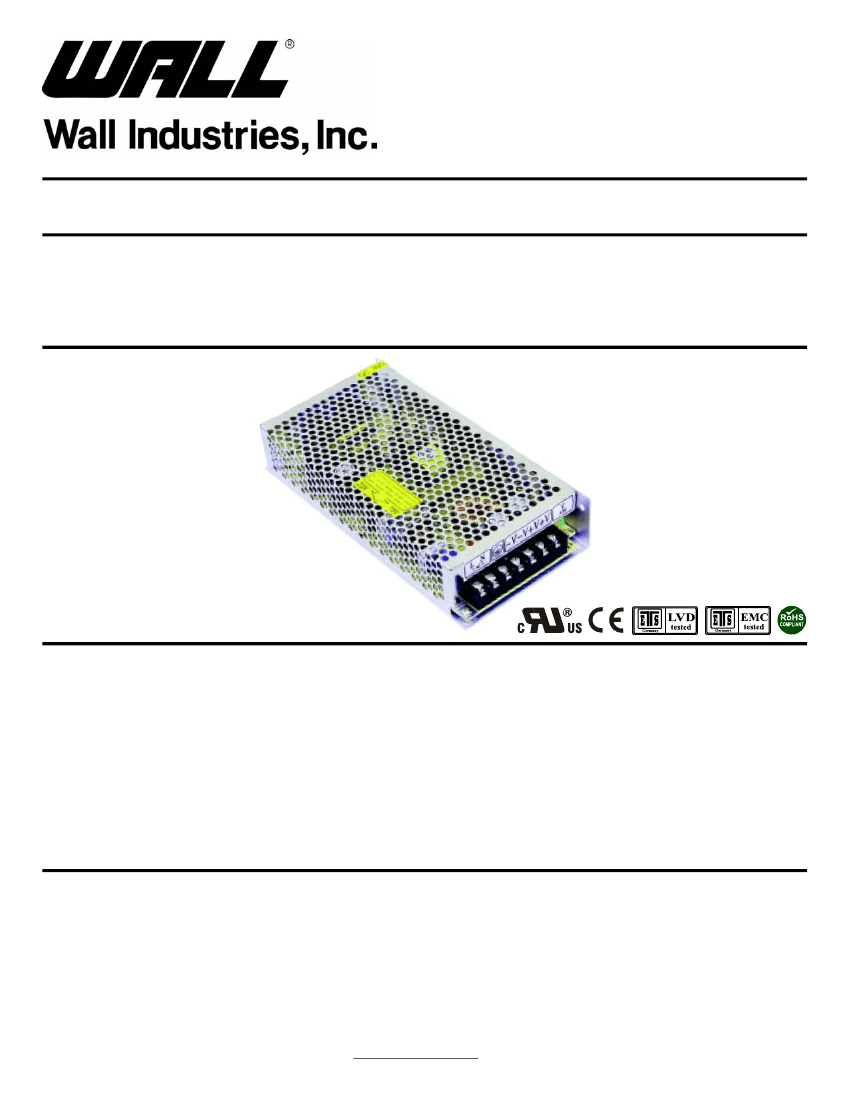

DATASHEET
Rev. A
PSHF100W SERIES
85~132 / 170~264VAC Input Selectable by Switch
Up to 108 Watts Output Power
5, 7.5, 12, 13.8, 15, 24, & 48VDC Single Outputs
AC/DC Switching Power Supplies
FEATURES
RoHS Compliant
±10% Voltage Adjustment Range
Free Air Convection
85~132/170~264VAC Input Selectable by Switch
High Reliability
Single Outputs
7.83” x 3.86” x 1.54” Enclosed Case
100W Output Power
100% Full Load Burn-in Tested
Short Circuit, Over Current, Over Voltage Protection
UL, ETS/LVD/EMC, and CE Approvals
DESCRIPTION
The PSHF100W series of AC/DC power supplies offers up to 108W of output power in a 7.83” x 3.86” x 1.54”
enclosed case. This series consists of 5, 7.5, 12, 13.8, 15, 24, and 48VDC single output models with an input
voltage range of 85~132 / 170~264VAC selectable by switch. These supplies have a ±10% output adjustment
range and are protected against short circuit, over current, and over voltage conditions. This series is RoHS
compliant and has UL, ETS/LVD/EMC, and CE approvals.
01/04/2012
Wall Industries, Inc. 5 Watson Brook Road Exeter, NH 03833
603-778-2300 www.wallindustries.com Fax 603-778-9797
Page 1 of 4
Rev. A
PSHF100W Series
Single Outputs
Up to 108 Watts
AC/DC Switching Power Supplies
SPECIFICATIONS: PSHF100W SERIES
All specifications are based on 25°C, Nominal Input Voltage, and Maximum Output Current unless otherwise noted.
We reserve the right to change specifications based on technological advances.
SPECIFICATION
INPUT SPECIFICATIONS
Input Voltage Range
Inrush Current
Input Frequency
OUTPUT SPECIFICATIONS
Output Voltage
Output Voltage Adjustment Range
Line Regulation
Load Regulation
Output Current
Output Power
Ripple & Noise
Rise Time
Hold-up Time
PROTECTION
Over Current Protection
Over Voltage Protection
Short Circuit Protection
GENERAL SPECIFICATIONS
Efficiency
TEST CONDITIONS
Selected by switch
At 115VAC
At 230VAC
Min
Nom
Max
Unit
Cold start
85~132 / 170~264VAC
20
A
40
47
63
Hz
See Table
+10
+0.5
0.5
See Table
See Table
See Table
50
20
130
150
Yes
See Table
Full load
-10
-0.5
%
%
%
Full load
Full load
110
115
ms
ms
%
%
Input to Output
Withstand Voltage
Input to FG
Output to FG
Leakage Current
At 230VAC
ENVIRONMENTAL SPECIFICATIONS
Operating Temperature
Operating Humidity
non-condensing
Storage Temperature
Storage Humidity
non-condensing
Cooling Method
PHYSICAL SPECIFICATIONS
Weight
Dimensions (L x W x H)
SAFETY & EMC CHARACTERISTICS
Safety Standards
EMC Standards
All for 1 minute
3000
1500
500
0.7
-10
20
-20
20
VAC
mA
+50
°C
93
% RH
+85
°C
95
% RH
Free air convection
1.4 lbs (650g)
7.83 x 3.86 x 1.54 inches
(199 x 98 x 39 mm)
UL60950, EN60950, GB4943
GB9254, EN55022 Class B, EN55024, EN61000-3-2,3, EN61000-4-2,3,4,5,6,8,11
01/04/2012
Wall Industries, Inc. 5 Watson Brook Road Exeter, NH 03833
603-778-2300 www.wallindustries.com Fax 603-778-9797
Page 2 of 4
Rev. A
PSHF100W Series
Single Outputs
Up to 108 Watts
AC/DC Switching Power Supplies
MODEL SELECTION TABLE
Model Number
PSHF100W-SF-5
PSHF100W-SF-7.5
PSHF100W-SF-12
PSHF100W-SF-13.8
PSHF100W-SF-15
PSHF100W-SF-24
PSHF100W-SF-48
85~132 / 170~264 VAC
(selectable by switch)
Input Voltage Range
Output Voltage
5 VDC
7.5 VDC
12 VDC
13.8 VDC
15 VDC
24 VDC
48 VDC
Output Current
20.0A
13.5 A
8.5A
7.5 A
6.7A
4.5A
2.2A
Ripple & Noise
100mVp-p
100mVp-p
100mVp-p
100mVp-p
100mVp-p
100mVp-p
150mVp-p
Output Power
100W
101W
102W
103.5W
100.5W
108W
105.6W
Efficiency
77%
78%
82%
82%
82%
82%
82%

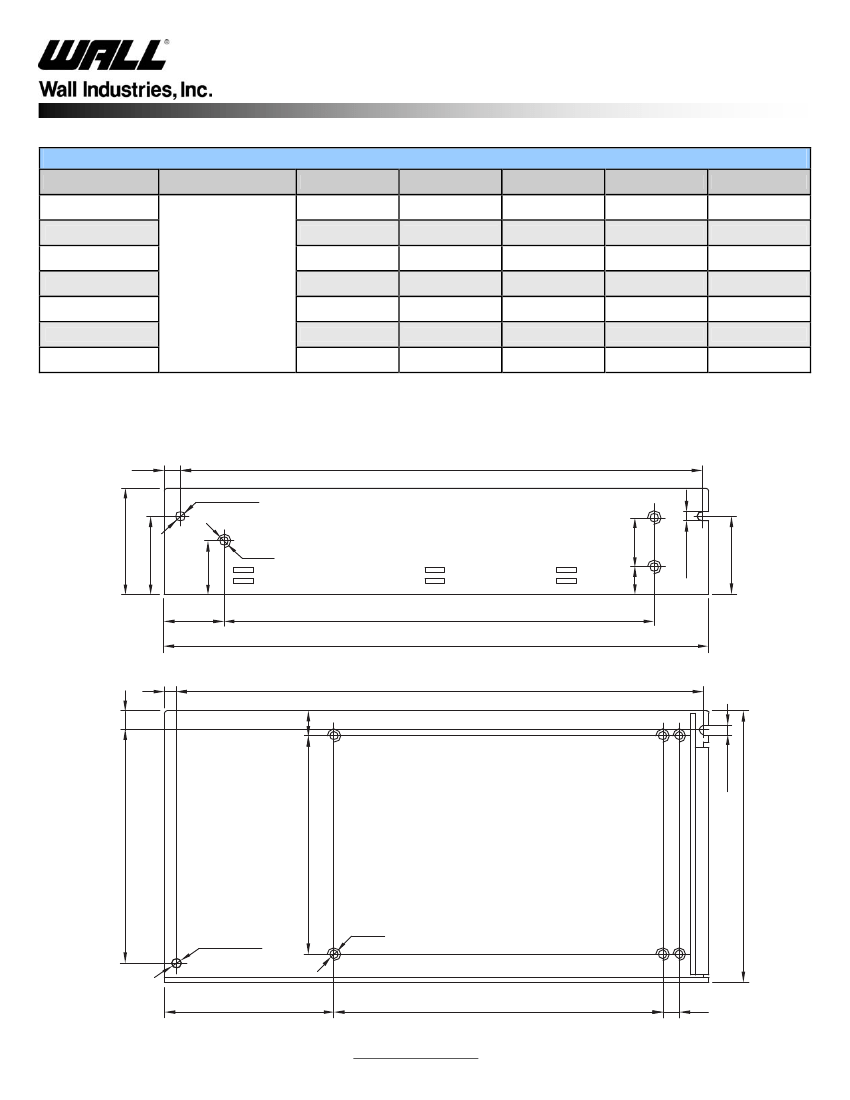

MECHANICAL DRAWING
Unit: inches (mm)
0.26
(6.5)
Ø0.14 (Ø3.5)
7.48 (190)
1.54 (39)
0.40
(10.2) 0.71 (18)
1.13 (28.7)
0.78
(19.7)
3 - M3
0.87 (22)
6.18 (157)
7.83 (199)
0.18
(4.5)
7.58 (192.5)
0.28
(7)
0.35
(9)
3.37 (85.5)
3.15 (80)
0.14 (3.5)
Ø0.14 (Ø3.5)
6 - M3
2.44 (62)
4.72 (120)
0.24
(6)
01/04/2012
Wall Industries, Inc. 5 Watson Brook Road Exeter, NH 03833
603-778-2300 www.wallindustries.com Fax 603-778-9797
3.86 (98)
1.13 (28.7)
0.14 (3.5)
Page 3 of 4
Rev. A
PSHF100W Series
Single Outputs
Up to 108 Watts
AC/DC Switching Power Supplies
COMPANY INFORMATION
Wall Industries, Inc. has created custom and modified units for over 50 years. Our in-house research and development
engineers will provide a solution that exceeds your performance requirements on-time and on budget. Our ISO9001-2008
certification is just one example of our commitment to producing a high quality, well-documented product for our customers.
Our past projects demonstrate our commitment to you, our customer. Wall Industries, Inc. has a reputation for working
closely with its customers to ensure each solution meets or exceeds form, fit and function requirements. We will continue to
provide ongoing support for your project above and beyond the design and production phases. Give us a call today to discuss
your future projects.
Contact
Wall Industries
for further information:
Phone:
Toll Free:
Fax:
E-mail:
Web:
Address:
(603)778-2300
(888)597-9255
(603)778-9797
sales@wallindustries.com
www.wallindustries.com
5 Watson Brook Rd.
Exeter, NH 03833
