YFW15 Ultra Wide Series
Single and Dual Output
15 Watt DC/DC Converter
4:1 Wide Input Voltage Range
FEATURES
●
UL60950-1 Licensed
●
15 Watts Output Power
●
Output Current up to 3A
●
High Efficiency up to 82%
●
Fixed Switching Frequency
●
Six-Sided Continuous Shielding
●
4:1 Ultra Wide Input Voltage Range
●
Standard 2.0 x 1.6 x 0.4 Inch Package
●
ISO9001 Certified Manufacturing Facilities
●
Compliant to RoHS EU Directive 2002/95/EC
APPLICATIONS
●
Measurement
●
Wireless Network
●
Telecom/Datacom
●
Industry Control System
●
Semiconductor Equipment
SPECIFICATIONS:
YFW15 Ultra Wide Series
All specifications apply @ 25°C ambient unless otherwise noted
INPUT SPECIFICATIONS
Input Voltage Range ............ 24V nominal input ...........................9-36VDC
48V nominal input ........................ 18-75VDC
Input Filter ....................................................................................... Pi Type
Input Surge Voltage (100ms max) ....... 24V input ...........................50VDC
48V input .........................100VDC
Input Reflected Ripple Current (nominal Vin and full load) ...........20mAp-p
Start Up Time (nominal Vin and constant resistive load) .............20ms typ.
Remote ON/OFF (Note 7)
(Positive Logic)............... DC-DC ON .............Open or 3.5V < Vr < 12V
DC-DC OFF .............Short or 0V < Vr < 1.2V
Input Current of Remote Control Pin (nominal Vin) ........ -0.5mA ~ +0.5mA
Remote Off Input Current (nominal Vin) ............................................20mA
PROTECTION SPECIFICATIONS
Over Voltage Protection .......................5V output................................. 6.2V
(zener diode clamp)
12V output................................ 15V
15V output................................ 18V
Over Load Protection (% of full load at nominal input) ............... 150% max.
Short Circuit Protection...................................... Hiccup, automatic recovery
ENVIRONMENTAL SPECIFICATIONS
Operating Temperature ................................ -40°C ~ +85°C (with derating)
Storage Temperature .......................................................... -55°C ~ +105°C
Maximum Case Temperature ............................................................. 100°C
Relative Humidity...................................................................5% to 95% RH
Thermal Impedance (Note 8)
Natural Convection ............................................................. 10°C / Watt
Natural Convection with Heat-Sink.................................. 8.24°C / Watt
Thermal Shock ..................................................................... MIL-STD-810F
Vibration ................................10~55Hz, 10G, 30 minutes along X, Y, and Z
MTBF (Note 1)......................................................................2.041 X 10 hrs
6
OUTPUT SPECIFICATIONS
Output Voltage ..............................................................................see table
Voltage Accuracy (nominal Vin and full load) ...................................... ±1%
Voltage Adjustability........................................................................... ±10%
Output Current ..............................................................................see table
Output Power ........................................................................ 15 watts max.
Line Regulation (LL to HL at FL)....................................................... ±0.2%
Load Regulation (min load to full load) ........ Single.......................... ±0.5%
Dual ............................... ±1%
Cross Regulation (Dual) (Asymmetrical load 25% / 100% FL) ............ ±5%
Minimum Load (Note 6) ................................................................see table
Ripple/Noise (20 MHz BW) .......................................................... 75mVp-p
Temperature Coefficient ................................................. ±0.02% / °C max.
Transient Response Recovery Time (25% load step) ...................... 250µs
PHYSICAL SPECIFICATIONS
Weight ..................................................................................... 48g (1.69 oz)

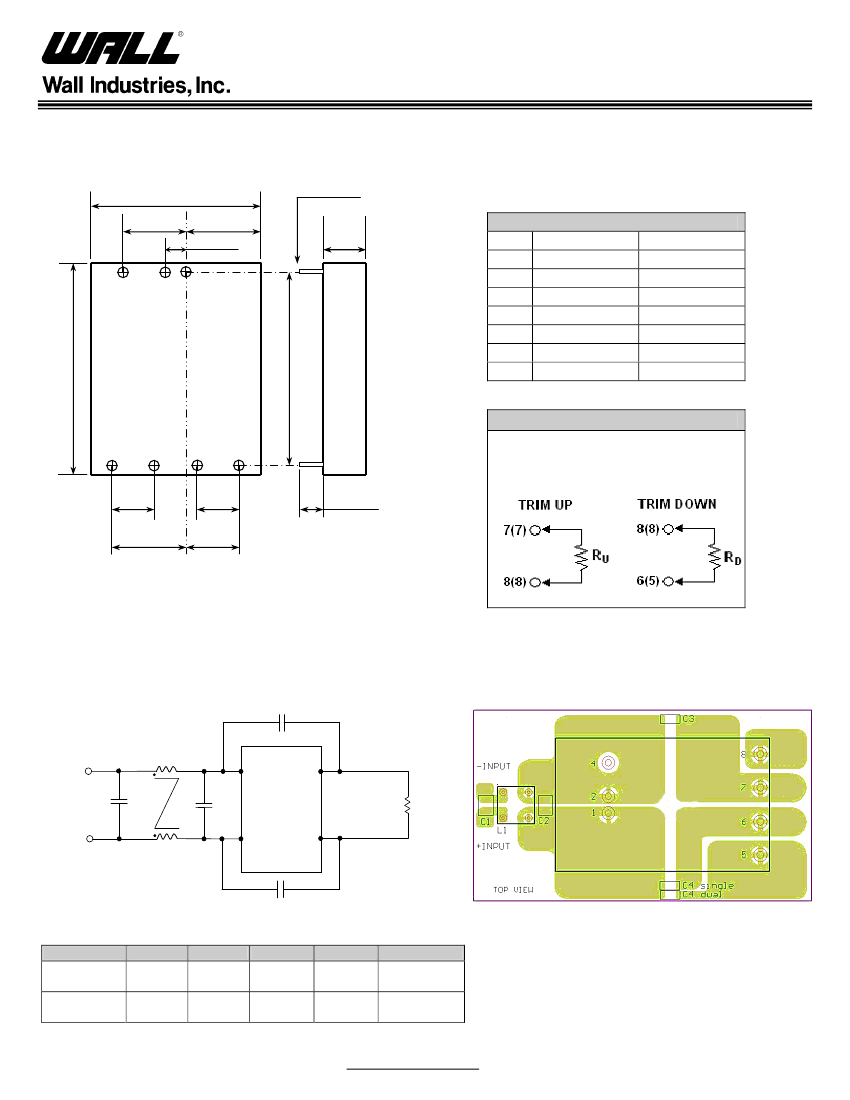

Dimensions....................... 2.0 x 1.6 x 0.40 inches (50.8 x 40.6 x 10.2 mm)
Case Material ..............................................................Nickel-coated copper
Base Material...................................................Non-conductive black plastic
Potting material..................................................................Epoxy (UL94-V0)
Shielding......................................................................................... six-sided
SAFETY & EMC
Safety Standard Pending.............................................................UL60950-1
EM ......................................EN55022 .............................................. Class A
± 8KV ............... Criteria B
ESD ....................EN61000-4-2 ...... .. Air
Contact ± 6KV
Radiated Immunity..............EN61000-4-3............... 10V/m Perf. Criteria A
Fast Transient.....................EN61000-4-4................. ±2KV Perf. Criteria B
Surge (See Note 9).............EN61000-4-5................ .±1KV Perf. Criteria B
Conducted Immunity...........EN61000-4-6............ 10 Vrms Perf. Criteria A
GENERAL SPECIFICATIONS
Efficiency.......................................................................................see table
Switching Frequency................................................................270KHz typ.
Isolation Voltage (Input to Output) ....................................... 1600VDC min.
Isolation Resistance............................................................. 10 ohms min.
Isolation Capacitance............................................................... 300pF max.
9
Due to advances in technology, specifications subject to change without notice
Wall Industries, Inc. 5 Watson Brook Road Exeter, NH 03833
603-778-2300 www.wallindustries.com Fax 603-778-9797
Rev B
YFW15 Ultra Wide Series
Single and Dual Output
15 Watt DC/DC Converter
4:1 Wide Input Voltage Range
MODEL SELECTION GUIDE
Model Number
YFW24S5-3000
YFW24S12-1250
YFW24S15-1000
YFW24D5-1500
YFW24D12-625
YFW24D15-500
YFW48S5-3000
YFW48S12-1250
YFW48S15-1000
YFW48D5-1500
YFW48D12-625
YFW48D15-500
Input
Range
Output
Voltage
5 VDC
12 VDC
15 VDC
± 5 VDC
± 12 VDC
± 15 VDC
5 VDC
12 VDC
15 VDC
± 5 VDC
± 12 VDC
± 15 VDC
Output Current
Min. load Full load
210mA
100mA
80mA
± 105mA
± 50mA
± 40mA
210mA
100mA
80mA
± 105mA
±50mA
± 40mA
3000mA
1250mA
1000mA
± 1500mA
± 625mA
± 500mA
3000mA
1250mA
1000mA
± 1500mA
± 625mA
± 500mA
Output
(2)
Ripple & Noise
75mVp-p
75mVp-p
75mVp-p
75mVp-p
75mVp-p
75mVp-p
75mVp-p
75mVp-p
75mVp-p
75mVp-p
75mVp-p
75mVp-p
Input Current
Capacitor
(5)
Efficiency
(4)
Load max
No load
(3)
Full load
(2)
20mA
10mA
20mA
20mA
20mA
20mA
15mA
15mA
10mA
10mA
20mA
15mA
822mA
801mA
801mA
822mA
801mA
801mA
411mA
401mA
401mA
411mA
401mA
401mA
80%
82%
82%
80%
82%
82%
80%
82%
82%
80%
82%
82%
6800µF
890µF
570µF
± 1700µF
± 300µF
± 200µF
6800µF
890µF
570µF
± 1700µF
± 300µF
± 200µF
24 VDC
(9-36 VDC)
48VDC
(18-75 VDC)
NOTES
1.
2.
3.
4.
5.
6.
7.
8.
9.
BELLCORE TR-NWT-000332. Case I: 50% Stress, Temperature at 40ºC. (Ground fixed and controlled environment).
Maximum value at nominal input voltage and full load.
Typical value at nominal input voltage and no load.
Typical value at nominal input voltage and full load.
Test by minimum Vin and constant resistive load.
The output requires a minimum loading to maintain specified regulations. Operation under no-load conditions will not damage these
devices, however they may not meet all listed specifications.
The ON/OFF control pin voltage is reference to -Vin.
Heat-sink is optional, please contact factory for ordering details.
An external filter capacitor is required if the module has to meet EN61000-4-5. The filter capacitor suggested is Nippon chemi-con KY
Series, 220μF/100V, ESR 48mΩ.

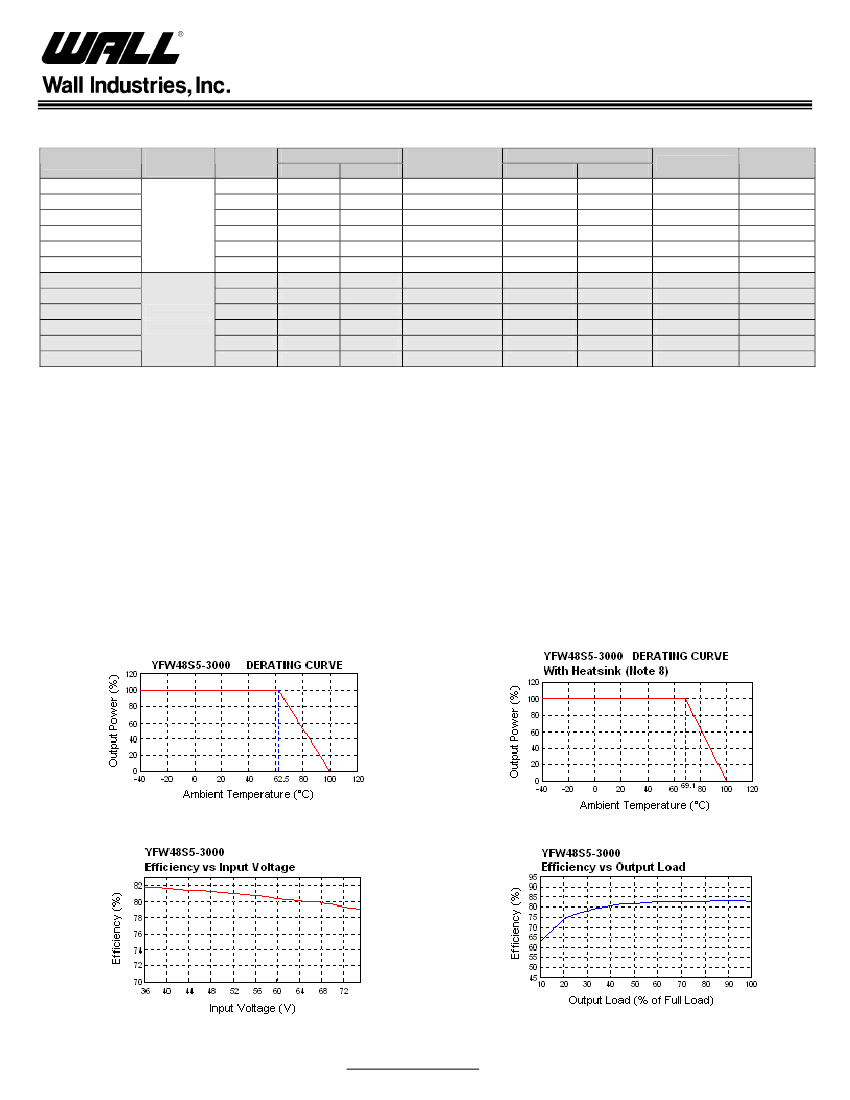

DERATING CURVES & EFFICIENCY GRAPHS
Wall Industries, Inc. 5 Watson Brook Road Exeter, NH 03833
603-778-2300 www.wallindustries.com Fax 603-778-9797
