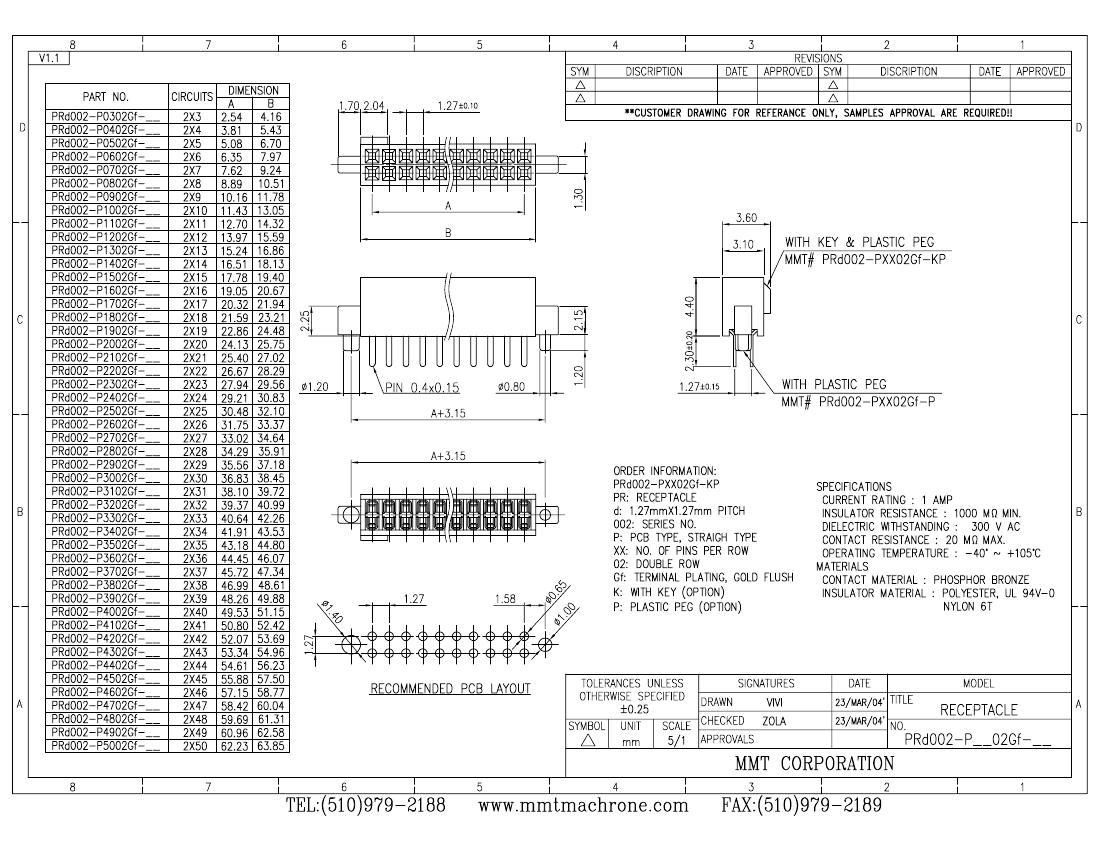

PRD002-P1202GF-KP: DescriptionBoard Connector, 24 Contact(s), 2 Row(s), Female, Straight, 0.05 inch Pitch, Solder Terminal, Plug; CategoryThe connector The connector; File Size123KB，1 Pages; ManufacturerMMT Corp; Websitehttp://www.mmtmachrone.com

Download Datasheet Parametric Compare View All

PRD002-P1202GF-KP Overview

Board Connector, 24 Contact(s), 2 Row(s), Female, Straight, 0.05 inch Pitch, Solder Terminal, Plug

PRD002-P1202GF-KP Parametric

Parameter Name	Attribute value
Objectid	304299458
Reach Compliance Code	unknown
ECCN code	EAR99
Board mount options	PEG
body width	0.142 inch
subject depth	0.173 inch
body length	0.748 inch
Body/casing type	PLUG
Connector type	BOARD CONNECTOR
Contact to complete cooperation	AU
Contact point gender	FEMALE
Contact material	PHOSPHOR BRONZE
contact mode	RECTANGULAR
Contact resistance	20 mΩ
Contact style	SQ PIN-SKT
Dielectric withstand voltage	300VAC V
Insulation resistance	1000000000 Ω
Manufacturer's serial number	PRD002
Plug contact pitch	0.05 inch
Match contact row spacing	0.05 inch
Installation method	STRAIGHT
Installation type	BOARD
Number of connectors	ONE
PCB row number	2
Number of rows loaded	2
Maximum operating temperature	105 °C
Minimum operating temperature	-40 °C
PCB contact pattern	RECTANGULAR
PCB contact row spacing	1.27 mm
Plating thickness	FLASH inch
Rated current (signal)	1 A
Guideline	UL
reliability	COMMERCIAL
Terminal pitch	1.27 mm
Termination type	SOLDER
Total number of contacts	24

Preview

Download Datasheet

View All

PRD002-P1202GF-KP Related Products

	PRD002-P1202GF-KP	PRD002-P1002GF-KP	MR10X4301FQL	PRD002-P4802GF-KP	PRD002-P2002GF-KP	PRD002-P0702GF-KP	PRD002-P1102GF-KP	PRD002-P1302GF-KP
Description	Board Connector, 24 Contact(s), 2 Row(s), Female, Straight, 0.05 inch Pitch, Solder Terminal, Plug	Board Connector, 20 Contact(s), 2 Row(s), Female, Straight, 0.05 inch Pitch, Solder Terminal, Plug	Fixed Resistor, Metal Glaze/thick Film, 0.5W, 4300ohm, 200V, 1% +/-Tol, 100ppm/Cel, Surface Mount, 1210, CHIP	Board Connector, 96 Contact(s), 2 Row(s), Female, Straight, 0.05 inch Pitch, Solder Terminal, Plug	Board Connector, 40 Contact(s), 2 Row(s), Female, Straight, 0.05 inch Pitch, Solder Terminal, Plug	Board Connector, 14 Contact(s), 2 Row(s), Female, Straight, 0.05 inch Pitch, Solder Terminal, Plug	Board Connector, 22 Contact(s), 2 Row(s), Female, Straight, 0.05 inch Pitch, Solder Terminal, Plug	Board Connector, 26 Contact(s), 2 Row(s), Female, Straight, 0.05 inch Pitch, Solder Terminal, Plug
Reach Compliance Code	unknown	unknow	compliant	unknown	unknown	unknown	unknown	unknown
Maximum operating temperature	105 °C	105 °C	155 °C	105 °C	105 °C	105 °C	105 °C	105 °C
Minimum operating temperature	-40 °C	-40 °C	-55 °C	-40 °C	-40 °C	-40 °C	-40 °C	-40 °C
Guideline	UL	UL	AEC-Q200	UL	UL	UL	UL	UL
Objectid	304299458	-	145047755099	-	-	304299453	304299457	304299459
ECCN code	EAR99	-	EAR99	EAR99	EAR99	EAR99	EAR99	EAR99
Board mount options	PEG	PEG	-	PEG	PEG	PEG	PEG	PEG
body width	0.142 inch	0.142 inch	-	0.142 inch	0.142 inch	0.142 inch	0.142 inch	0.142 inch
subject depth	0.173 inch	0.173 inch	-	0.173 inch	0.173 inch	0.173 inch	0.173 inch	0.173 inch
body length	0.748 inch	0.648 inch	-	2.548 inch	1.148 inch	0.498 inch	0.698 inch	0.798 inch
Body/casing type	PLUG	PLUG	-	PLUG	PLUG	PLUG	PLUG	PLUG
Connector type	BOARD CONNECTOR	BOARD CONNECTOR	-	BOARD CONNECTOR	BOARD CONNECTOR	BOARD CONNECTOR	BOARD CONNECTOR	BOARD CONNECTOR
Contact to complete cooperation	AU	AU	-	AU	AU	AU	AU	AU
Contact point gender	FEMALE	FEMALE	-	FEMALE	FEMALE	FEMALE	FEMALE	FEMALE
Contact material	PHOSPHOR BRONZE	PHOSPHOR BRONZE	-	PHOSPHOR BRONZE	PHOSPHOR BRONZE	PHOSPHOR BRONZE	PHOSPHOR BRONZE	PHOSPHOR BRONZE
contact mode	RECTANGULAR	RECTANGULAR	-	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR
Contact resistance	20 mΩ	20 mΩ	-	20 mΩ	20 mΩ	20 mΩ	20 mΩ	20 mΩ
Contact style	SQ PIN-SKT	SQ PIN-SKT	-	SQ PIN-SKT	SQ PIN-SKT	SQ PIN-SKT	SQ PIN-SKT	SQ PIN-SKT
Dielectric withstand voltage	300VAC V	300VAC V	-	300VAC V	300VAC V	300VAC V	300VAC V	300VAC V
Insulation resistance	1000000000 Ω	1000000000 Ω	-	1000000000 Ω	1000000000 Ω	1000000000 Ω	1000000000 Ω	1000000000 Ω
Manufacturer's serial number	PRD002	PRD002	-	PRD002	PRD002	PRD002	PRD002	PRD002
Plug contact pitch	0.05 inch	0.05 inch	-	0.05 inch	0.05 inch	0.05 inch	0.05 inch	0.05 inch
Match contact row spacing	0.05 inch	0.05 inch	-	0.05 inch	0.05 inch	0.05 inch	0.05 inch	0.05 inch
Installation method	STRAIGHT	STRAIGHT	-	STRAIGHT	STRAIGHT	STRAIGHT	STRAIGHT	STRAIGHT
Installation type	BOARD	BOARD	-	BOARD	BOARD	BOARD	BOARD	BOARD
Number of connectors	ONE	ONE	-	ONE	ONE	ONE	ONE	ONE
PCB row number	2	2	-	2	2	2	2	2
Number of rows loaded	2	2	-	2	2	2	2	2
PCB contact pattern	RECTANGULAR	RECTANGULAR	-	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR
PCB contact row spacing	1.27 mm	1.27 mm	-	1.27 mm	1.27 mm	1.27 mm	1.27 mm	1.27 mm
Plating thickness	FLASH inch	FLASH inch	-	FLASH inch	FLASH inch	FLASH inch	FLASH inch	FLASH inch
Rated current (signal)	1 A	1 A	-	1 A	1 A	1 A	1 A	1 A
reliability	COMMERCIAL	COMMERCIAL	-	COMMERCIAL	COMMERCIAL	COMMERCIAL	COMMERCIAL	COMMERCIAL
Terminal pitch	1.27 mm	1.27 mm	-	1.27 mm	1.27 mm	1.27 mm	1.27 mm	1.27 mm
Termination type	SOLDER	SOLDER	-	SOLDER	SOLDER	SOLDER	SOLDER	SOLDER
Total number of contacts	24	20	-	96	40	14	22	26
