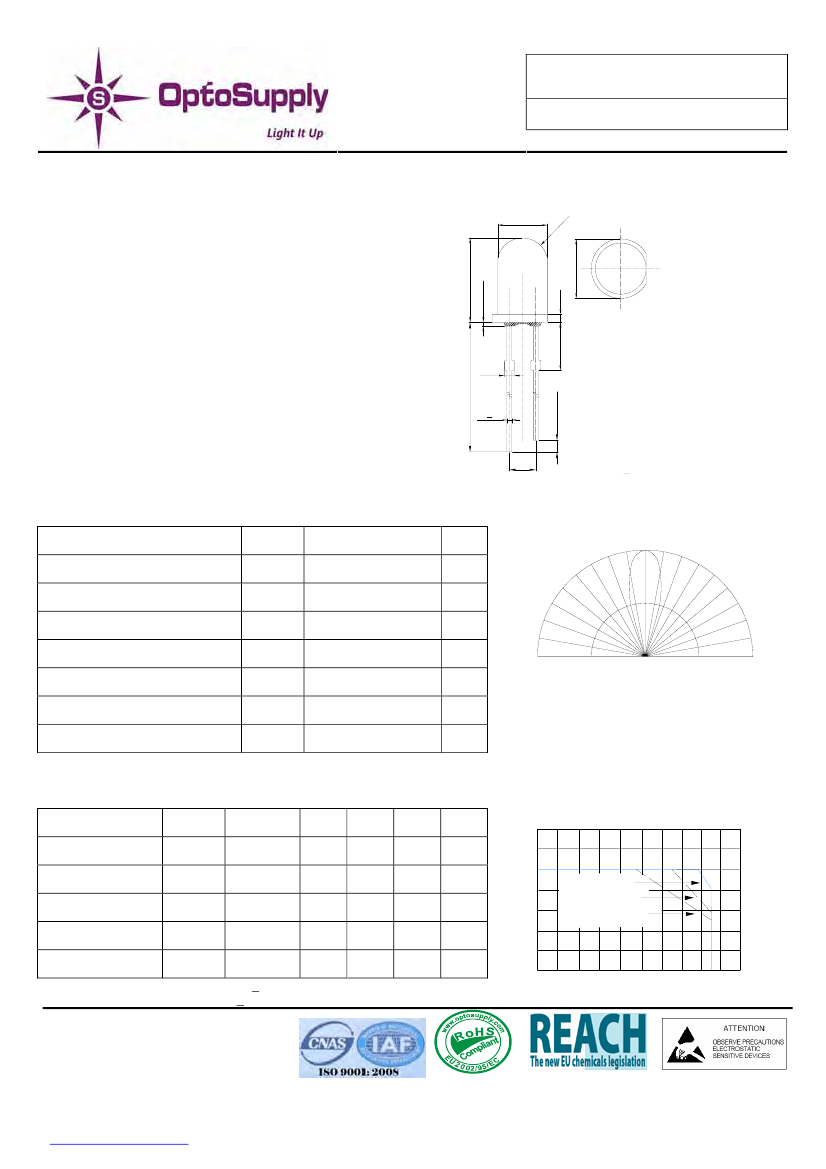

5mm Round Yellow LED
OS5YPM5C31C
■
Features
●
■
Outline
5.0
.7
R2
Dimension
High Luminous LEDs
5mm Round Standard Directivity
Superior Weather-resistance
1.5MAX
●
●
●
UV Resistant Epoxy
Water Clear Type
8.6
●
■
Applications
●
Traffic Signal
Backlighting
Signal and channel letter
Other Lighting
26.0MIN
1.0
1.5MIN
2.54
2
1
●
●
0.5+0.1
4.0
1:Anode
2:Cathode
Unit:mm
Tolerance:+0.3mm
●
■
Absolute
Maximum Rating
Item
Symbol
I
F
I
FP
V
R
P
D
Topr
Tstg
Tsol
(Ta=25℃)
Value
50
120
5
130
-30 ~ +85
-40 ~ +100
260℃/ 5sec
■
Directivity
1.0
5.8
Unit
30°
0
30°
DC Forward Current
Pulse Forward Current*
Reverse Voltage
Power Dissipation
Operating Temperature
Storage Temperature
Lead Soldering Temperature
mA
mA
V
mW
℃
℃
-
90°
1
60°
60°
0.5
0
0.5
1
90°
*Pulse width Max.10ms , Duty ratio max 1/10
■
Electrical
-Optical Characteristics
Symbol
V
F
I
R
λ
D
Iv
2θ
1/2
(Ta=25℃)
Min.
1.8
-
585
7000
-
■
Maximum
Forward Current
Maximun Permissible Forward Current Tj=115°C
Item
DC Forward Voltage
DC Reverse Current
Domi. Wavelength*
Luminous Intensity*
50% Power Angle
Condition
I
F
=20mA
V
R
=5V
I
F
=20mA
I
F
=20mA
I
F
=20mA
Typ.
2.1
-
590
8000
30
Max.
2.6
10
595
-
-
Unit
If( Forward Current-mA)
70
60
50
40
30
20
10
Rth(J-a)=250°C/W
Rth(J-a)=350°C/W
Rth(J-a)=450°C/W
V
µA
nm
mcd
deg
0
0
*
1
Tolerance of dominant wavelength is +1nm
*
2
Tolerance of luminous intensity is +15%
10
20
30 40
50 60 70
80 90
Ta(Ambient Temperature -°C)
LED & Application Technologies
http://www.optosupply.com
VER A.0
