Model No.
REV.
LSB2XS
C2
PRODUCT SPECIFICATION FOR
LED Ribbon Light
Descriptions:
Linear separable LED strip on flexible printed circuit board with self-
adhesive back
Long life, easy Installation
Voltages available 12VDC
LED type SMD 5050
1
Features:
•
•
•
•
•
Available in red, orange, yellow, green, blue, white, etc
Directly use on line voltage
Low power consumption, high intensity
Energy saving
Excellent beam control
Long life
1
Application:
•
•
•
•
•
•
•
Inside of Auto lighting
Channel letter signs
Indirect accent décor light
Large area back lighting
Under counter light
Decorate building’s contour
Substitute neon light
1

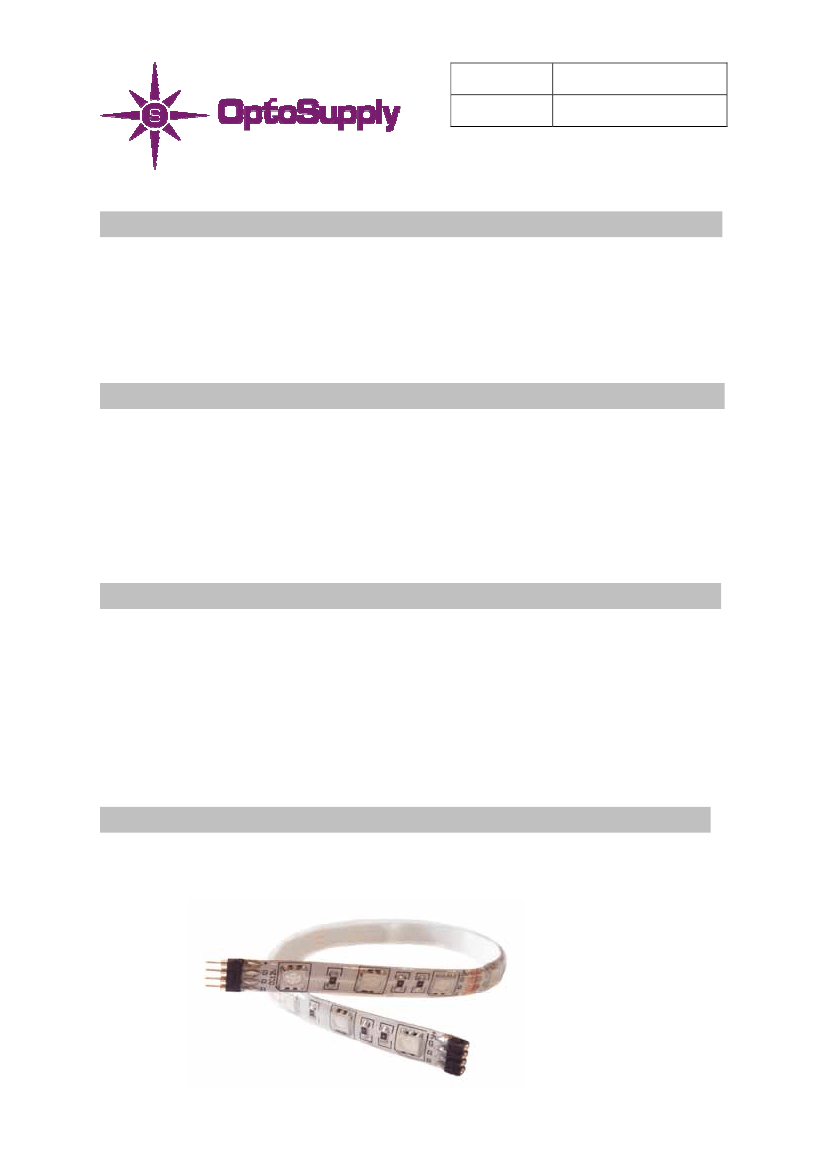

Product Picture:
1
1
Model No.
REV.
LSB2XS
C2
Device Selection Guide
Module No.
LSB2RS
LSB2OS
LSB2YS
LSB2GS
LSB2BS
LSB2WS
LSB2MS
LSB2KS
LSB2TS
1
Dom. Wavelength
(Typ.)
625±5nm
605±5nm
590±5nm
525±5nm
470±5nm
X=0.27;Y=0.28
X=0.45;Y=0.41
X=0.45;Y=0.17
625±5nm
525±5nm
470±5nm
Color
Red
Orange
Yellow
Green
Blue
White
Warm White
Pink
Red
Green
Blue
Intensity / Per LED
(Typ.)
1120 mcd
1120 mcd
1120 mcd
3000 mcd
1560mcd
7000mcd
5000mcd
1900mcd
750mcd
1120mcd
400mcd
Absolute Maximum Ratings(Ta=25℃)
Items
Operating Supply Range(DC)
Input Current (DC)
Power Dissipation
LED Light Source Temperature
Operating Temperature
Storage Temperature
1
Values
14
0.54
7.56
105
-10 ~ +40
-20 ~ +80
Symbol
Vidc
Ii
Pa
Tled
Tope
Tsto
Units
V
A
W
DegC
DegC
DegC
Typical Performance (Ta=25℃)
Items
LED Module Power
Input Voltage(DC)
Product Input Current
Beam Pattern
LED Quantity
Total Length of Modules
(Including Pin)
Net Weight
1
Min.
-
-
-
-
-
-
---
Symbol
Pm
Vi
If
BP
QTY
Lmod.
Wei.
2
Typ.
4.32
12
0.36
120
18
311
30
Max.
7.56
14
0.54
-
-
-
---
Units
w
V
A
Deg
PCS
mm
g
Model No.
REV.
LSB2XS
C2

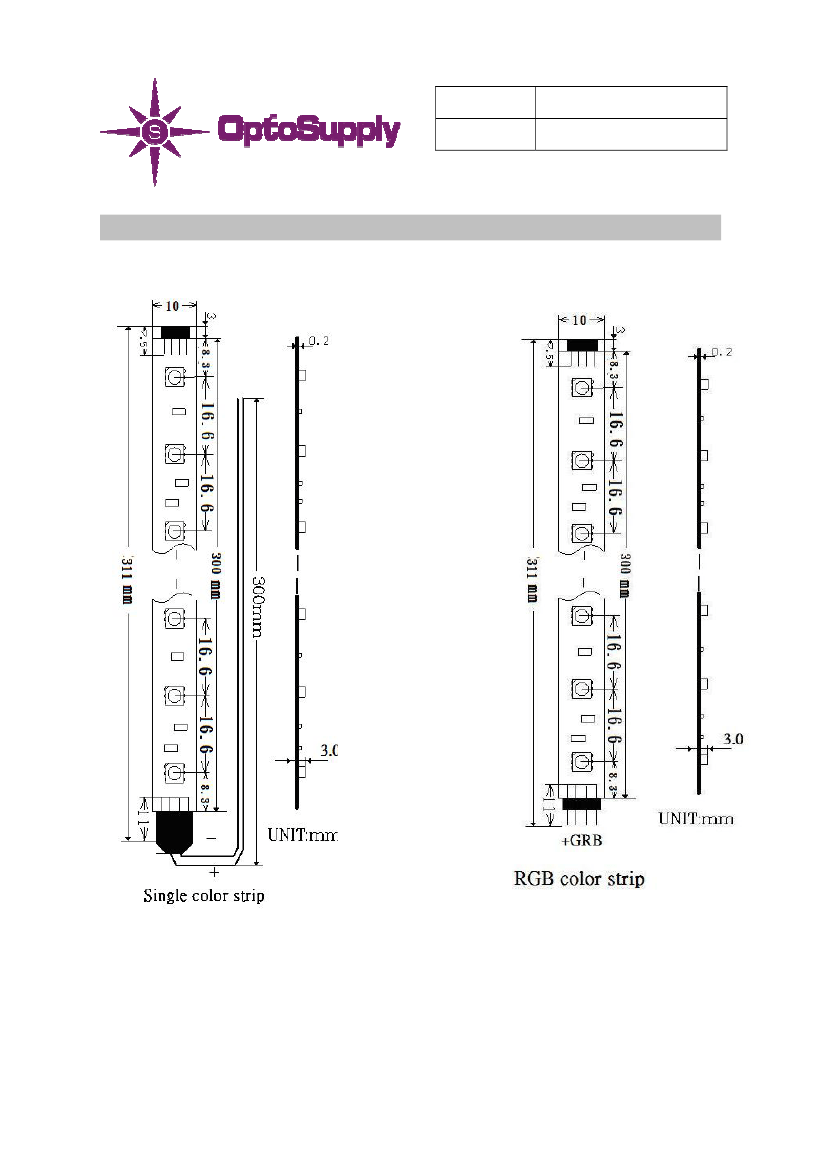

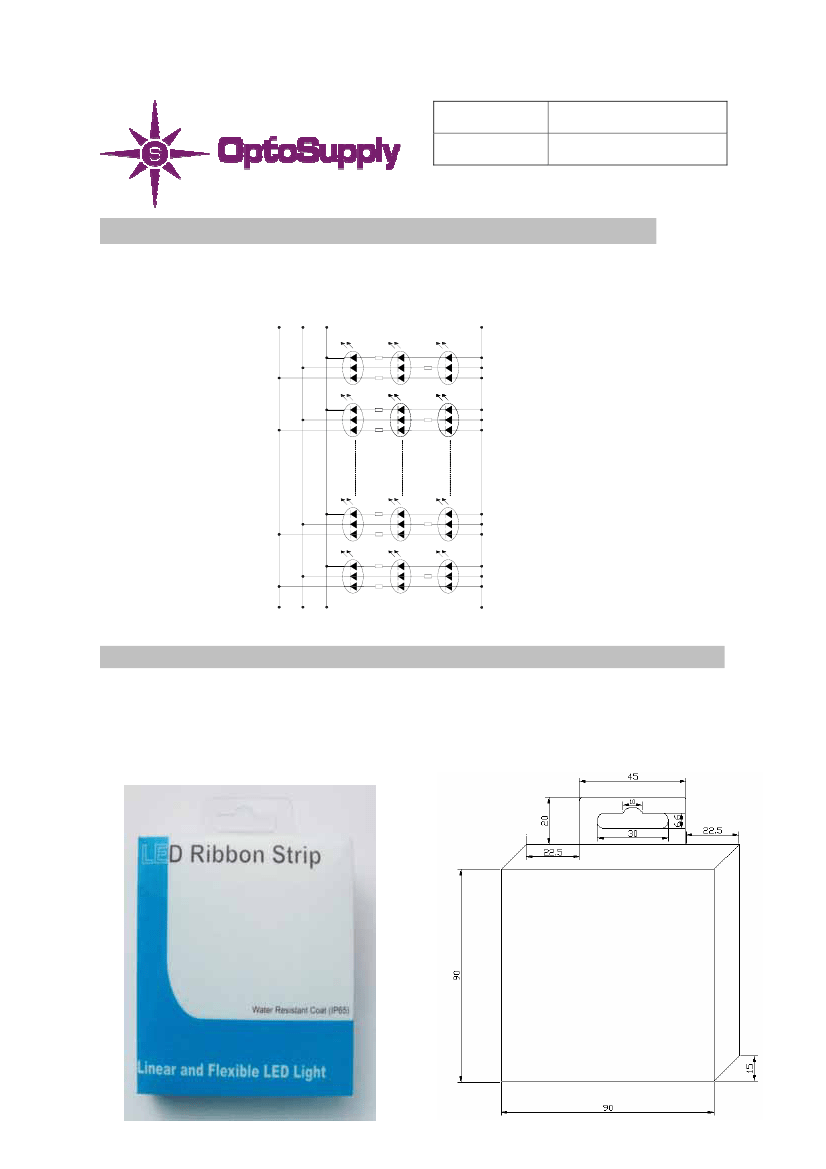

Product Dimensions:
1
Tolerance:±2mm
Remark:
1) For single color, use 2-wire (Red, black) external connection wire in which
three internal “-“ shorted.
2) For RGB color, It not connection wire.
3
