PHASE SHIFTER
SuRFAcE mounT moDEL:
PS-909
10% BANDWIDTH
FEATURES:
►
Over 180º Phase Shift
►
Low Control Voltage
►
Good Tuning Linearity
►
Low Insertion Loss
►
Low VSWR
Fc = 20 MHz
SPECIFICATIONS (Rev. A 01/13/09)
Package #
124S
Frequency
19 - 21 MHz
Typ.
1.2
DC to 50 kHz (Min.)
Max.
1.5
Insertion Loss (dB)
Control Bandwidth
Control Voltage
Phase Shift
VSWR
Input Power
Impedance
Operating Temperature Range
0 - 5 Volts
180º (Min.)
1.5:1 (Typ.)
-10 dBm (Max.)
50 Ohms (Nom.)
-20 to +70 °C
Input

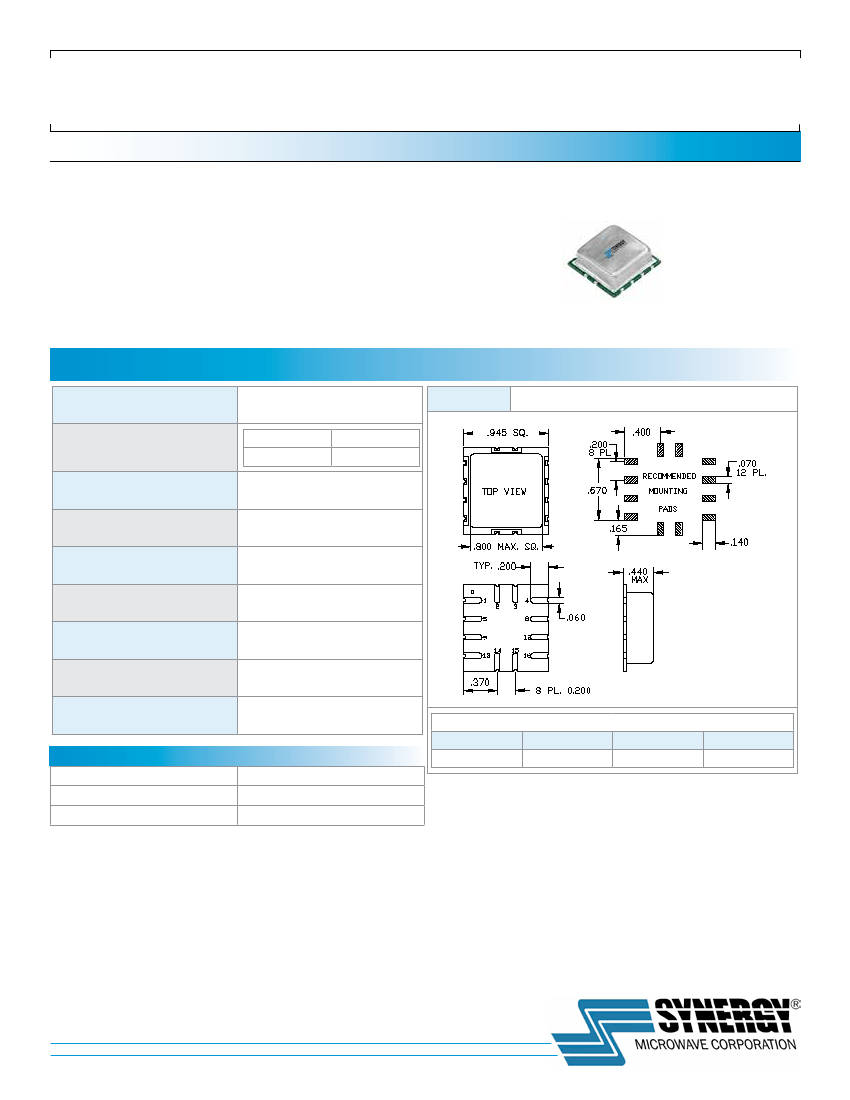

PORT CONFIGURATION
Output
13
Control
4
Case GND
All Others
1
Absolute Maximum Ratings
Storage Temp. Range
RF Input Power
Contol Voltage
-55 to +100 ºC
+20 dBm
+12 V
Copyright © Synergy Microwave Corporation
201 McLean Boulevard • Paterson, New Jersey 07504 • Tel: (973) 881-8800 • Fax: (973) 881-8361
E-Mail: sales@synergymwave.com • World Wide Web: http://www.synergymwave.com
[ 1 of 3 ]
PHASE SHIFTER
SuRFAcE mounT moDEL:
PS-909
10% BANDWIDTH
Fc = 20 MHz
Data @ 25ºC
240
220
200
180
Phase Shift (deg.)

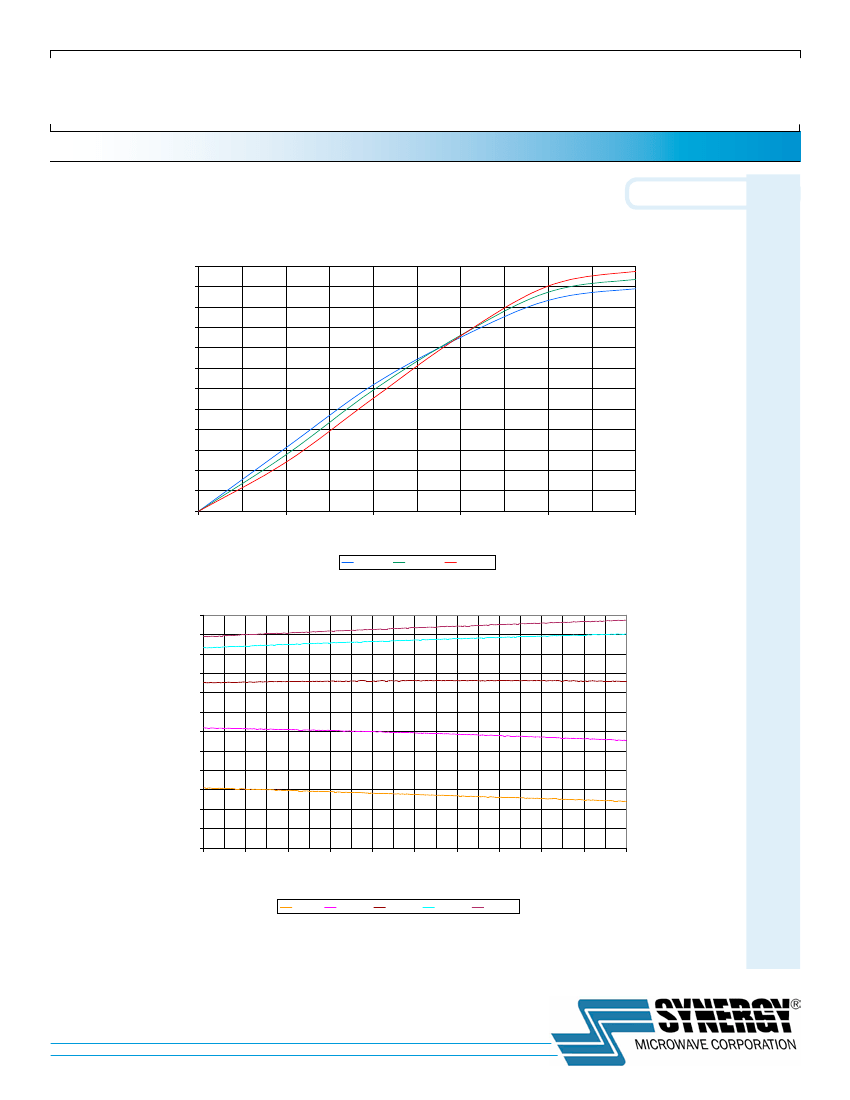

PERFORMANCE PLOTS
160
140
120
100
80
60
40
20
0
0
1
2
19 MHz
20 MHz
3
21 MHz
4
5
Control Voltage (Vdc)
240
220
200
Phase Shift/Volt (degrees)
180
160
140
120
100
80
60
40
20
0
19
19.2
19.4
19.6
19.8
20
20.2
20.4
20.6
20.8
21
Frequency (MHz)
1 Volt
2 Volts
3 Volts
4 Volts
5 Volts
Copyright © Synergy Microwave Corporation
201 McLean Boulevard • Paterson, New Jersey 07504 • Tel: (973) 881-8800 • Fax: (973) 881-8361
E-Mail: sales@synergymwave.com • World Wide Web: http://www.synergymwave.com
[ 2 of 3 ]
PHASE SHIFTER
SuRFAcE mounT moDEL:
PS-909
10% BANDWIDTH
Fc = 20 MHz
Data @ 25ºC
0.0
0.2
0.4
0.6
0.8
1.0
1.2
1.4
19
19.2
19.4
19.6
19.8
20
20.2
20.4
20.6
20.8
21

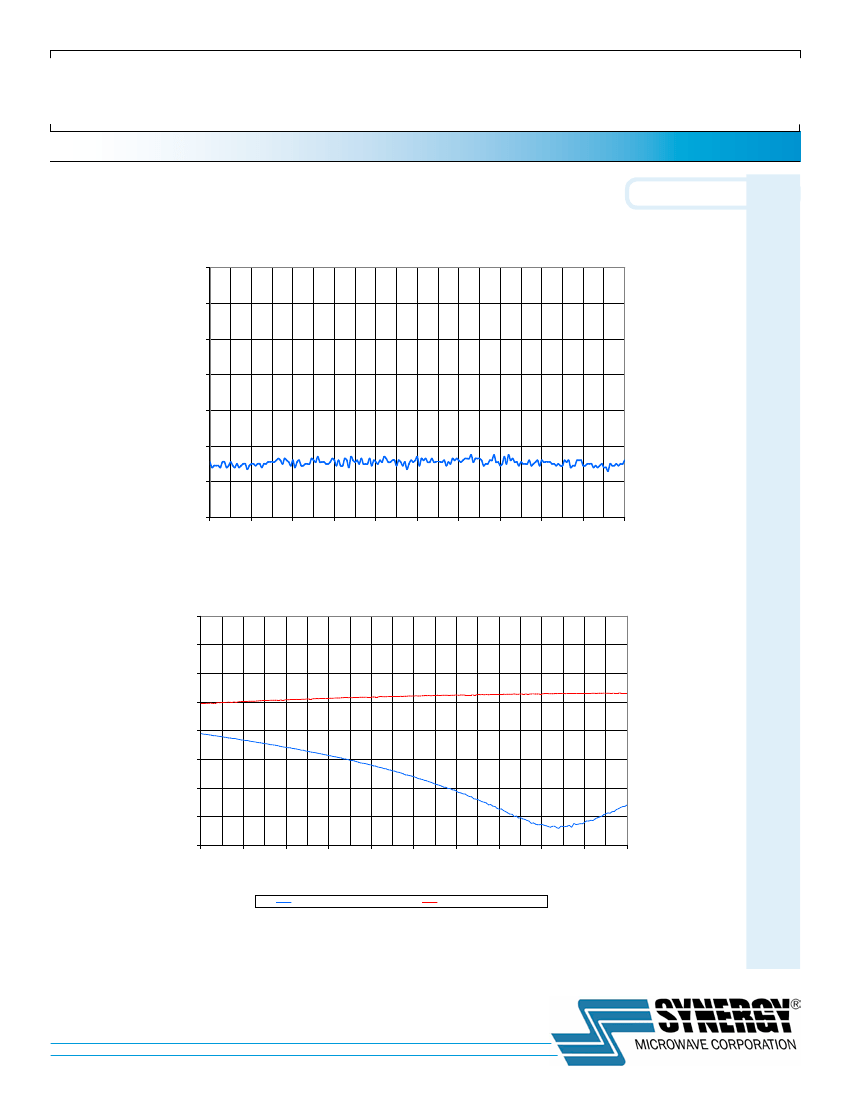

PERFORMANCE PLOTS
Insertion Loss (dB)
Frequency (MHz)
0
5
10
Return Loss (dB)
15
20
25
30
35
40
19
19.2
19.4
19.6
19.8
20
20.2
20.4
20.6
20.8
21
Frequency (MHz)
S11 RETURN LOSS
S22 RETURN LOSS
Copyright © Synergy Microwave Corporation
201 McLean Boulevard • Paterson, New Jersey 07504 • Tel: (973) 881-8800 • Fax: (973) 881-8361
E-Mail: sales@synergymwave.com • World Wide Web: http://www.synergymwave.com
[ 3 of 3 ]
