PS2122B datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > Wireless rf/communication> Radio frequency and microwave> PS2122B

PS2122B: DescriptionPHASE SHIFTER; CategoryWireless rf/communication Radio frequency and microwave; File Size265KB，3 Pages; ManufacturerSYNERGY; Websitehttp://www.synergymwave.com/

Download Datasheet Parametric View All

PS2122B Overview

PHASE SHIFTER

PS2122B Parametric

Parameter Name	Attribute value
package instruction	ROHS COMPLIANT PACKAGE-6
Reach Compliance Code	compli
Characteristic impedance	50 Ω
structure	COMPONENT
Maximum input power (CW)
Maximum insertion loss	2.4 dB
Maximum operating frequency	2200 MHz
Minimum operating frequency	2100 MHz
Maximum operating temperature	85 °C
Minimum operating temperature	-40 °C
minimum phase shift	180 deg
RF/Microwave Device Types	PHASE SHIFTER
Maximum voltage standing wave ratio	1.5
Base Number Matches	1

Preview

Download Datasheet

View All

PHASE SHIFTER

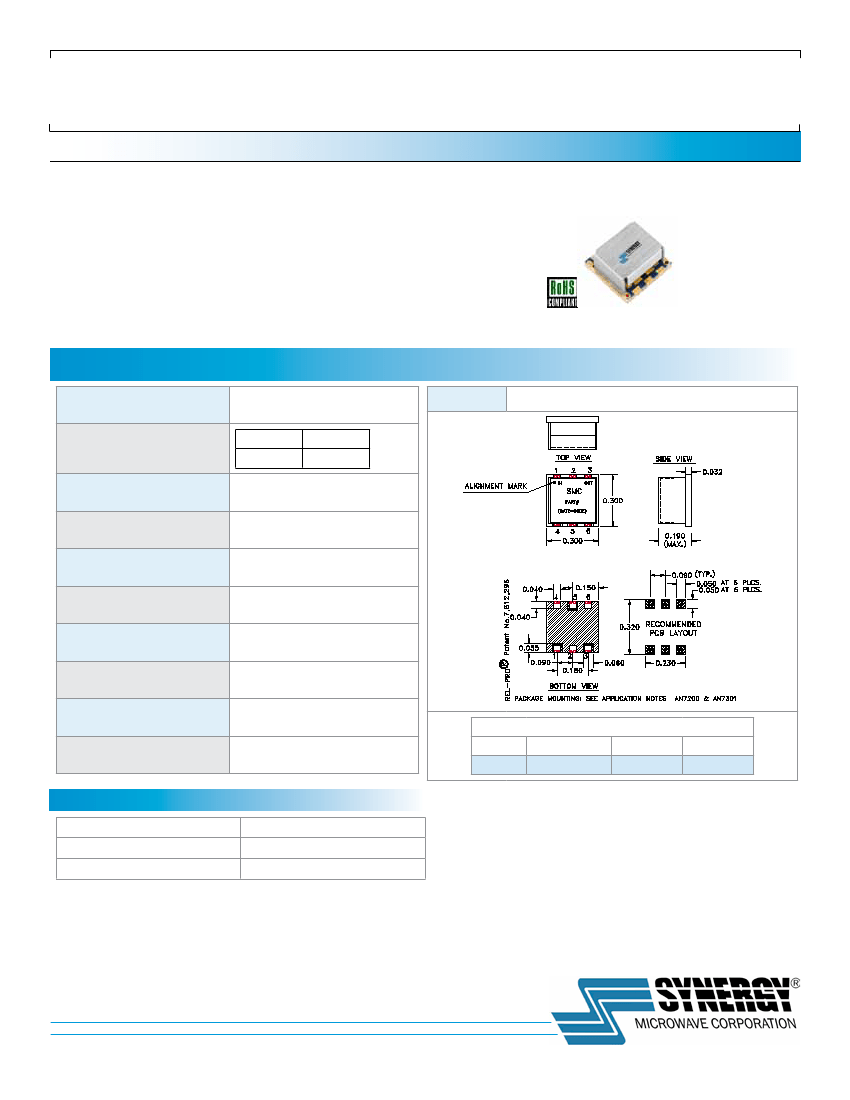

SURFACE MOUNT MODEL:

PS2122B

OPTIMIZED BANDWIDTH

FEATURES:

►

Over 180º of Phase Shift

►

Low Control Voltage

►

Low VSWR

►

Low Insertion Loss

►

Lead Free Patented REL-PRO

Technology

2100 - 2200 MHz

SPECIFICATIONS (Rev. E 08/23/11)

Frequency

2100 - 2200 MHz

Typ.

2.1

DC to 10 MHz

0 - 15 Volts

20 uA (Max.)

180º (Min.)

1.3:1 (Typ.)

0 dBm (Max.)

50 Ohms (Nom.)

-40 to +85 °C

Input

Max.

2.4

Package #

306

Insertion Loss (dB)

Control Bandwidth

Control Voltage

Control Current

Phase Shift

VSWR

RF Power

Impedance

Operating Temperature Range

PORT IDENTIFICATION

Output

CTRL

GND

All Others

Absolute Maximum Ratings

Storage Temp. Range

RF Input Power

Contol Voltage

-55 to +100 ºC

20 dBm

+20 V

201 McLean Boulevard • Paterson, New Jersey 07504 • Tel: (973) 881-8800 • Fax: (973) 881-8361

E-Mail: sales@synergymwave.com • World Wide Web: http://www.synergymwave.com

[ 1 of 3 ]
