TSHS-148-S-26-A-G-LF datasheet, PDF

Datasheet> All Categories > The connector> The connector> TSHS-148-S-26-A-G-LF

TSHS-148-S-26-A-G-LF: DescriptionBoard Connector, 48 Contact(s), 1 Row(s), Male, Straight, 0.1 inch Pitch, Wire Wrap Terminal, Receptacle; CategoryThe connector The connector; File Size77KB，1 Pages; ManufacturerMajor League Electronics; Websitehttp://www.mlelectronics.com/; Environmental Compliance

Download Datasheet Parametric View All

TSHS-148-S-26-A-G-LF Overview

Board Connector, 48 Contact(s), 1 Row(s), Male, Straight, 0.1 inch Pitch, Wire Wrap Terminal, Receptacle

TSHS-148-S-26-A-G-LF Parametric

Parameter Name	Attribute value
Is it Rohs certified?	conform to
Objectid	1163036365
Reach Compliance Code	compliant
ECCN code	EAR99
Other features	ROHS COMPLIANT
body width	0.1 inch
subject depth	0.1 inch
body length	4.8 inch
Body/casing type	RECEPTACLE
Connector type	BOARD CONNECTOR
Contact to complete cooperation	GOLD OVER NICKEL
Contact completed and terminated	Gold (Au)
Contact point gender	MALE
Contact material	NOT SPECIFIED
contact mode	RECTANGULAR
Contact resistance	20 mΩ
Contact style	SQ PIN-SKT
Dielectric withstand voltage	600VAC V
Insulation resistance	1000000000 Ω
insulator material	NYLON
JESD-609 code	e4
Manufacturer's serial number	TSHS-1-S
Plug contact pitch	0.1 inch
Installation method	STRAIGHT
Installation type	BOARD
Number of connectors	ONE
PCB row number	1
Number of rows loaded	1
Maximum operating temperature	105 °C
Minimum operating temperature	-40 °C
PCB contact pattern	RECTANGULAR
Plating thickness	10u inch
Rated current (signal)	3 A
Guideline	UL
reliability	COMMERCIAL
Terminal length	0.7 inch
Terminal pitch	2.54 mm
Termination type	WIRE WRAP
Total number of contacts	48

Preview

Download Datasheet

View All

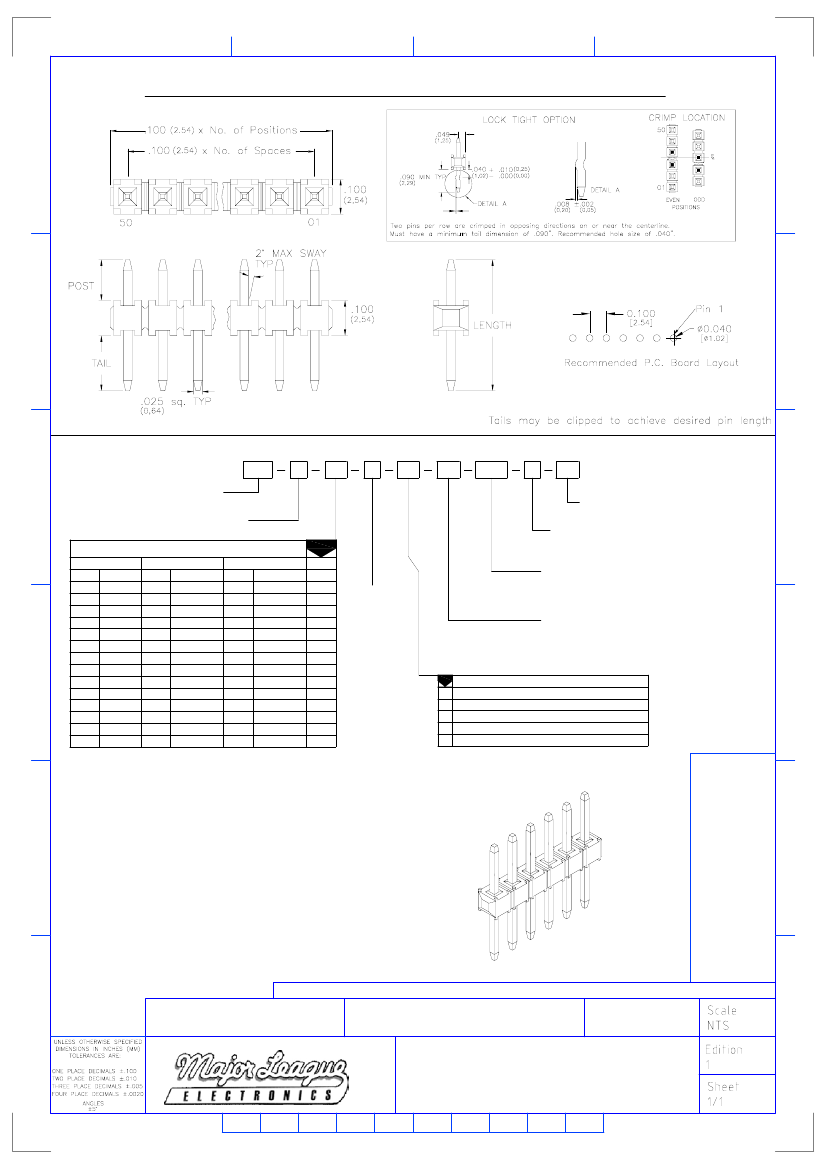

Major League Electronics .100 cl Terminal Strip Headers - Straight

Ordering Information

TSHS-1

Pins Per Row

01 - 50

XXX

Lead Free

Every Other Pin Filled (.200 Centers)

Leave blank if not needed

E = Filled

Row Specification

S = Single

Pin Option

Length

.430

10.92

.445

.456

.480

.530

.630

.730

.830

.930

1.030

1.130

1.230

1.330

1.430

1.530

11.30

11.58

12.19

13.46

16.00

18.54

21.08

23.62

26.16

28.70

31.24

33.78

36.32

38.86

Tail With .230 Post

2.54

.100

2.92

.115

3.20

.126

3.81

.150

5.08

.200

7.62

.300

.400

10.16

.500

12.70

.600

15.24

.700

17.78

.800

20.32

.900

22.86

1.000

25.40

1.100

27.94

1.200

30.48

Tail With .318 Post

N/A

.112

.212

.312

.412

.512

.612

.712

.812

.912

1.012

1.112

N/A

2.84

5.38

7.92

10.46

13.00

15.54

18.08

20.62

23.16

25.70

28.25

Post Height

Leave blank if not needed

If required, specify empty pin position, e.g. 012 for Pin 12

Polarized Position

A = .230 (5.84)

B = .318 (8.08)

Lock Tight "LT" (Optional)

Leave blank if not needed

LT = With

Plating Options

- 10µ Gold on Contact area/Flash on Tail

- Matte Tin all Over

- Gold Flash Over Entire Pin

- 10µ Gold on Contact Area / Matte Tin on Tail

- 30µ Gold on Contact Area / Matte Tin on Tail

Specifications

Current Rating: 3.0 Ampere

Insulation Resistance: 1000MΩ Min.

Dielectric Withstanding: 600V AC

Contact Resistance: 20 mΩ Max.

Operating Temperature: -40°C to + 105°C

Max. Process Temperature:

Peak: 260°C up to 20 secs.

Process: 230°C up to 60 secs.

Wave: 260°C up to 6 secs.

Manual Solder: 350°C up to 5 secs.

Materials

Contact Material: Phosphor Bronze

Insulator Material: Nylon 6T

Plating: Au or Sn over 50µ" (1,27) Ni

Mates with:

BCSS,

BSSH,

BSSHC,

BSSQ,

BSSQC,

BSSQM,

LBCSS,

LSMBC,

LSWSS,

SMBC,

SSHQ,

SSHQR,

SSHR,

SSHS,

SSHSM

Parts are subject to change without notice

Products cut to specific sizes are uncancellable/nonreturnable

TSHS-1-S SERIES

.100 cl Single Row

Terminal Strip Headers - Straight

12 DEC 06

4235 Earnings Way, New Albany, Indiana, 47150, USA

1-800-782-3486 (USA/Canada/Mexico)

Tel: 812-944-7244

Fax: 812-944-7268

E-mail: mle@mlelectronics.com

Web: www.mlelectronics.com
