Product Datasheet

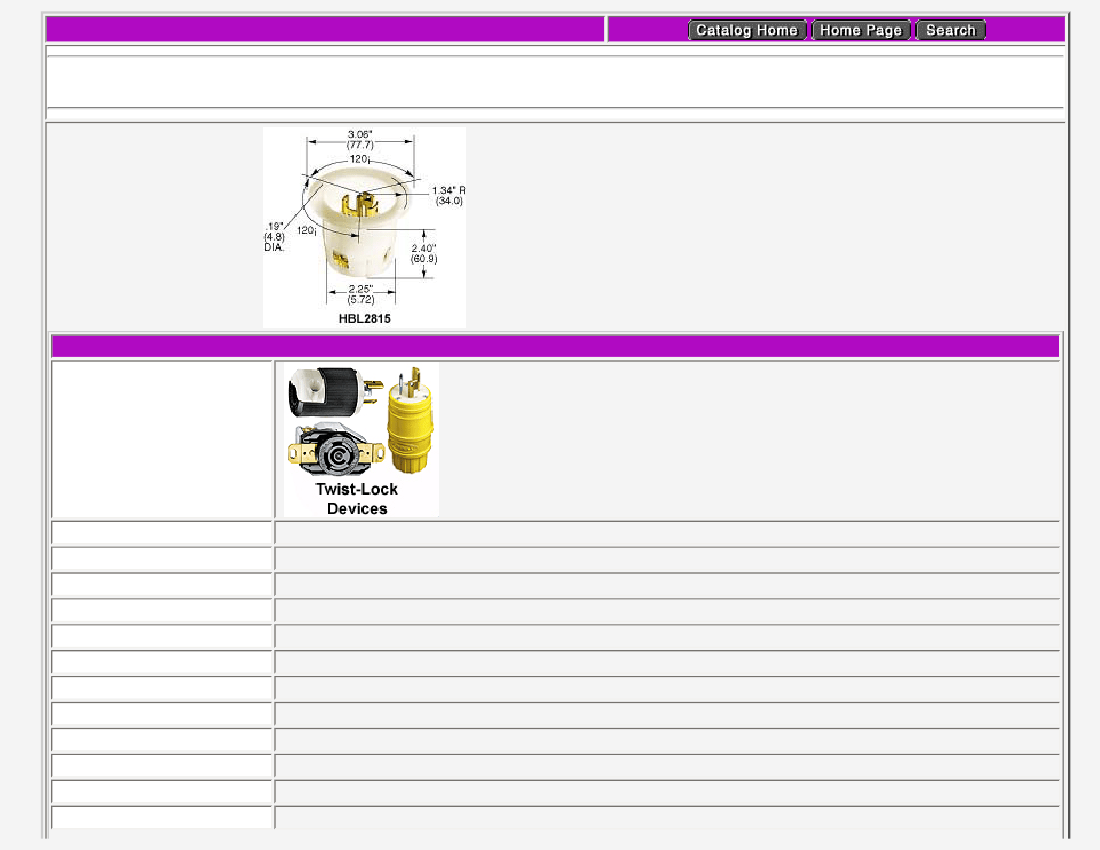

HBL2815 -- Twist-Lock Flanged Inlet
4P5W, 30A 3PH 120/208V AC, L21-30P, White Nylon
Product Specifications
Product Type
Product Item
Wiring Scheme
Amperage
Voltage
NEMA Configuration
Item Style
Device Color
Terminal Retainer Material
Blade Material
Terminal Clamp Material
Terminal Screw Material
Ground Screw Material
Flanged Inlet
4 Pole, 5 Wire Grounding
30A
3 Phase Y 120/208V AC
L21-30R
Standard
White
Clear polycarbonate
Brass
.08" (2) steel-nickel plated
#10-32 Brass (white finish on neutral screw when used) Multi-drive
#10-32 Brass (green finish) Multi-drive
Body Holding Screw Material
Flanged Casing Material
Mounting Screw Material
Ratings
Catalog No.
Dielectric Voltage Withstand
Current Interrupting
Temperature Rise
Terminal Accommodation
Terminal Identification
Flammability
Operating Temperatures
Listings
Catalog Page
Brochures
Hubbellnet
Catalog Section
UPC Number
Weight in LBs
Steel, zinc plated Multi-drive
Natural White Nylon
Nickel-plated Brass Round head screws
Molded into face
Permanently ink marked on casing
2,000V minimum.
Certified for current interrupting at full rated current.
Max 30 C temperature rise at full rated current after 50 cycles of overload at 150% of rated current at a power factor
of .75.
30A #10 AWG
Terminals identified in accordance with UL 498 (X, Y, Z, White, Green)
HB or better per UL 94 or CSA 22.2 No. 0.6
Maximum Continuous 75 C Minimum -40 C (w/o impact)
FED SPEC UL/CSA
Click here for catalog page B54
Click here for product brochure
Click here for Hubbellnet
Click here for Section-B
78358503967
0.3
Body Contact Carrier Material
Natural White Nylon
NEMA
Configuration
Locking Devices
TWIST-LOCK
®
Devices
4 Pole, 5 Wire Grounding
30 Ampere, 3Ø Y 120/208, 277/480 and 347/600 Volts AC
Receptacles, INSULGRIP
®
Connector Bodies, Flanged Devices and Plugs
1.70"
(43.2)
1.23"
(31.2)
F
S
W
X
Y
W
X
Y
W
X
Y
Fed.Spec.
G
Z
G
Z
G
Z
Single Flush Receptacles,
Back and Side Wired
2.67"
(67.8)
1.56" 2.38" 3.28"
(39.6) (60.5) (83.3)
NEMA L21-30R
30A 3ØY
120/208V AC
UL/CSA
3 HP
NEMA L22-30R
30A 3ØY
277/480V AC
UL/CSA
10 HP
NEMA L23-30R
30A 3ØY
347/600V AC
UL/CSA
Description
Black nylon face.
Isolated ground, orange nylon face.
Catalog Numbers
HBL2810
IG2810
HBL2820
–
HBL2830
–
#6-32 TAP
HBL2810
.98"
(24.9)

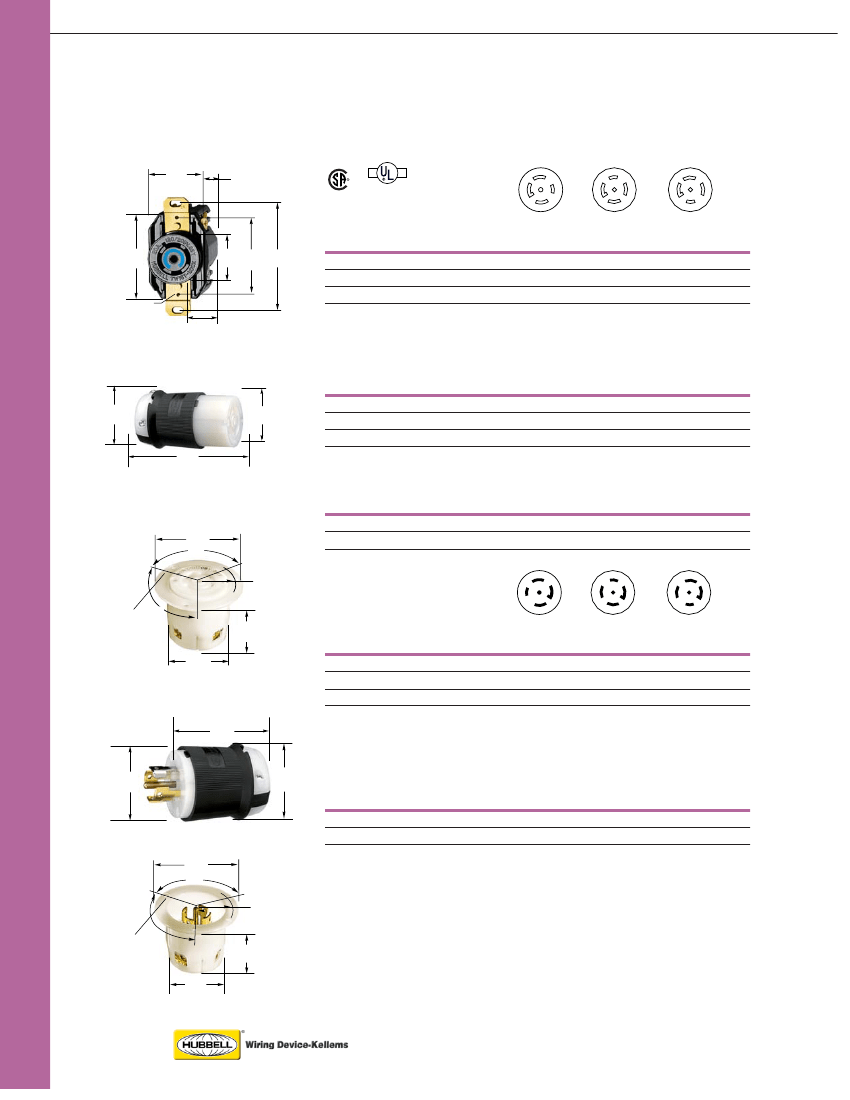

Insulgrip Connector Bodies
IP20
SUITABILITY
2.33"
(59.3)
2.21"
(56.1)
Description
Catalog Numbers
HBL2833
–
3.86"
(98.0)
Black and white nylon.
HBL2813
HBL2823
Corrosion resistant, yellow nylon.
HBL28CM13
–
Note: Cord grip range .35 ”-1.15 ” (9-29).
HBL2813
Insulgrip Flanged Receptacles
Description
Catalog Numbers
HBL2816
X
Y
W
Z
Y
4P 5W, 30A, 3ØY 120/208, 277/480 and 347/600V AC
3.06"
(77.7)
120°
1.34" R
(34.0)
.19"
(4.8)
DIA.
120°
2.27"
(57.7)
2.23"
(56.6)
Nylon casing, back wired.
HBL2826
X
W
HBL2836
X
Y
W
Z
G
G
Z
G
Insulgrip Plugs
IP20
NEMA L21-30P
30A 3ØY
120/208V AC
UL/CSA
SUITABILITY
3 HP
NEMA L22-30P
30A 3ØY
277/480V AC
UL/CSA
10 HP
NEMA L23-30P
30A 3ØY
347/600V AC
UL/CSA
HBL2816
Description
Black and white nylon.
Corrosion resistant, yellow nylon.
Catalog Numbers
HBL2811
HBL2821
HBL28CM11
–
HBL2831
–
2.75"
(69.9)
Notes: Grip range .35 ”-1.15 ” (9-29).
See page B-73 for Add-A-Shroud™ kit.
2.21"
(56.1)
2.33"
(59.2)
Insulgrip Flanged Inlets
Description
HBL2811
3.06"
(77.7)
120°
1.34" R
(34.0)
.19"
(4.8)
DIA.
120°
2.27"
(57.2)
2.23"
(56.6)
Catalog Numbers
HBL2815
HBL2825
HBL2835
Nylon casing, back wired.
Notes: Only receptacles and plugs 480V AC or less are HP rated.
HP rating are AC only.
See pages B-70 and B-71 for accessories.
For technical information see page B-83.
See page B-63 for a switched enclosure.
HBL2815
B-54
www.hubbell-wiring.com
Dimensions in Inches (mm)
