BEI15-050-Q48P-C

Description
DC-DC Regulated Power Supply Module, 2 Output, 15W, Hybrid, PACKAGE-6
CategoryPower/power management    The power supply circuit
File Size352KB,15 Pages
ManufacturerMurata Power Solutions
Environmental Compliance
Download Datasheet Parametric Compare View All

BEI15-050-Q48P-C Online Shopping

Suppliers Part Number Price MOQ In stock
BEI15-050-Q48P-C - - View Buy Now

BEI15-050-Q48P-C Overview

DC-DC Regulated Power Supply Module, 2 Output, 15W, Hybrid, PACKAGE-6

BEI15-050-Q48P-C Parametric

Parameter NameAttribute value
Is it lead-free?Lead free
Is it Rohs certified?conform to
Objectid1001527666
Parts packaging codeMODULE
package instruction,
Contacts6
Reach Compliance Codecompliant
ECCN codeEAR99
Other features-5V ADDITIONAL OUTPUT AVAILABLE
Analog Integrated Circuits - Other TypesDC-DC REGULATED POWER SUPPLY MODULE
Maximum input voltage75 V
Minimum input voltage18 V
Nominal input voltage48 V
JESD-30 codeR-XDMA-P6
JESD-609 codee4
length27.9 mm
Maximum load regulation0.25%
Number of functions1
Output times2
Number of terminals6
Maximum operating temperature70 °C
Minimum operating temperature-40 °C
Maximum output voltage5.05 V
Minimum output voltage4.95 V
Nominal output voltage5 V
Package body materialUNSPECIFIED
Package shapeRECTANGULAR
Package formMICROELECTRONIC ASSEMBLY
Peak Reflow Temperature (Celsius)NOT SPECIFIED
Certification statusNot Qualified
Maximum seat height8.9 mm
surface mountNO
technologyHYBRID
Temperature levelOTHER
Terminal surfaceGOLD OVER NICKEL
Terminal formPIN/PEG
Terminal locationDUAL
Maximum time at peak reflow temperatureNOT SPECIFIED
Maximum total power output15 W
Fine-tuning/adjustable outputNO
width24.4 mm

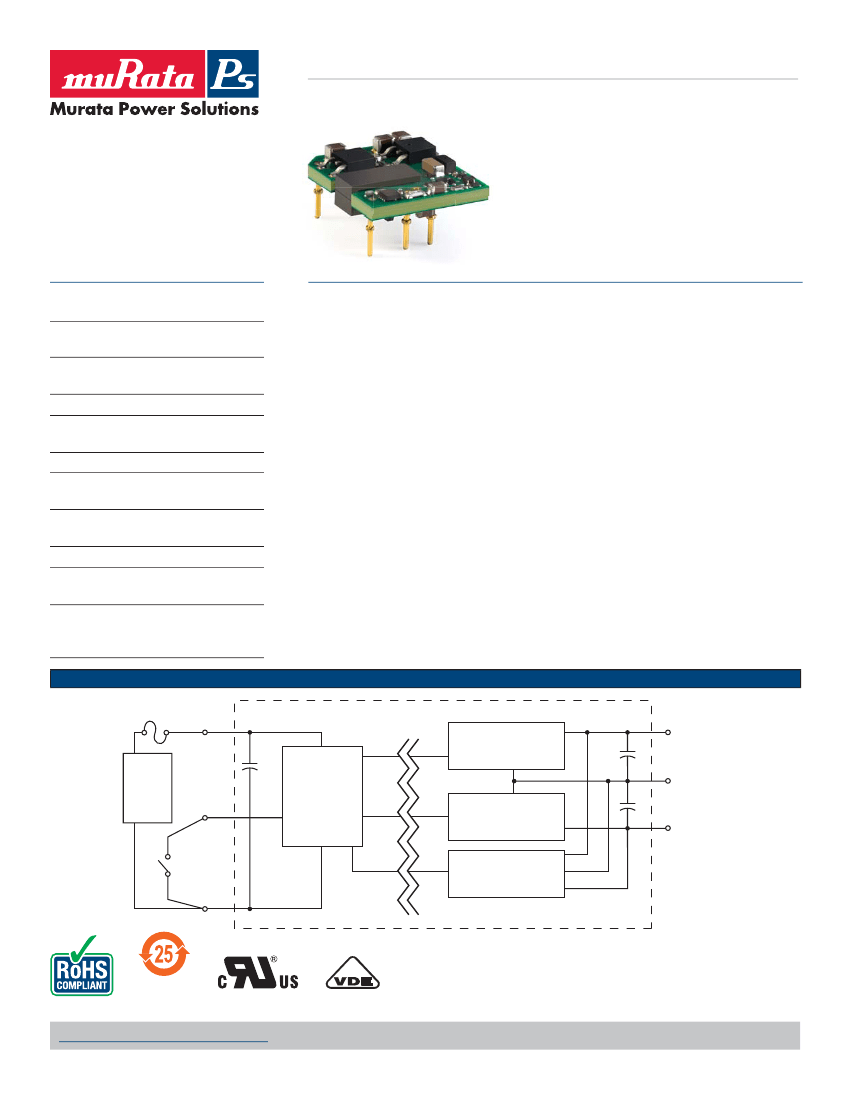

www.murata-ps.com
BEI15 Series
Isolated Wide Input Bipolar 15-Watt DC/DC Converters
Typical unit
FEATURES

Small footprint DC/DC converter, ideal for
high current applications

Industry standard 0.96" x 1.1" X 0.33"
open frame package and pinout

range input voltages 9-36 and
Wide
18-75 Vdc

Bipolar ±5V, ±12V and ±15V outputs

to 15 Watts or greater total output
Up
power with overtemperature shutdown

Isolation up to 2250 VDC (basic), Q48 models

efficiency synchronous rectifier
High
forward topology

Usable -40 to 85°C temperature range
(with derating)

Assembly and attachment for RoHS standards

Extensive self-protection shut down
features

Meets UL 60950-1, CAN/CSA-
C22.2 No. 60950-1, IEC60950-1,
EN60950-1 safety approvals (2nd Edition)
CONNECTION DIAGRAM
F1
+Vin (1)
PRODUCT OVERVIEW
Featuring a full 15 Watt output in one square
inch of board area, the BEI-15 series isolated DC/
DC converter family offers efficient regulated DC
power for printed circuit board mounting. The
wide range 4:1 inputs on the 0.96" x 1.1" x 0.33"
(24.4 x 27.9 x 8.4 mm) converter are either 9 to 36
Volts DC (Q12 models) or 18 to 75 Volts DC (Q48
models), ideal for battery-powered and telecom
equipment. The industry-standard pinout fits larger
1" x 2" converters. Fixed output voltages of ±5,
±12 or ±15 VDC are regulated to within ±0.25%.
Applications include small instruments, area-
limited microcontrollers, data communications
equipment, remote sensor systems, vehicle and
portable electronics.
The BEI-15 series includes full magnetic
and optical isolation with Basic protection up to
2250 Volts DC (Q48 models) and 2000 VDC (Q12
models). For powering digital systems, the outputs
offer fast settling to step transients and will accept
higher capacitive loads. Excellent ripple and noise
specifications assure compatibility to noise-sus-
ceptible circuits. For systems requiring controlled
startup/shutdown, an external remote On/Off
control may use a switch, transistor or digital logic.
A wealth of self-protection features avoid both
converter and external circuit faults. These include
input undervoltage lockout and overtemperature
shutdown. The outputs current limit using the
“hiccup” autorestart technique and the outputs
are short-circuit protected. Additional features
include output overvoltage and reverse conduction
elimination. The high efficiency offers minimal heat
buildup and “no fan” operation.
Barrier
External
DC
Power
Source
+Vout (6)
On/Off
Control
(3)
Controller
and
Power
Common (5)
-Vout (4)
Open = On
Reference and
Error Amplifier
-Vin (2)

Typical topology is shown.
For full details go to
www.murata-ps.com/rohs
Murata Power Solutions recommends a fuse at F1.
REG.-Nr. D806
www.murata-ps.com/support
MDC_BEI15W.A18
Page 1 of 15

BEI15-050-Q48P-C Related Products

BEI15-050-Q48P-C BEI15-120-Q12N-C BEI15-120-Q12P-C BEI15-050-Q12P-C BEI15-050-Q48N-C
Description DC-DC Regulated Power Supply Module, 2 Output, 15W, Hybrid, PACKAGE-6 DC-DC Regulated Power Supply Module, 2 Output, 15W, Hybrid, PACKAGE-6 DC-DC Regulated Power Supply Module, 2 Output, 15W, Hybrid, PACKAGE-6 DC-DC Regulated Power Supply Module, 2 Output, 15W, Hybrid, PACKAGE-6 DC-DC Regulated Power Supply Module, 2 Output, 15W, Hybrid, PACKAGE-6
Is it lead-free? Lead free Lead free Lead free Lead free Lead free
Is it Rohs certified? conform to conform to conform to conform to conform to
Objectid 1001527666 1001527669 2140977823 2140977821 2140977822
Parts packaging code MODULE MODULE MODULE MODULE MODULE
Contacts 6 6 6 6 6
Reach Compliance Code compliant compliant compliant compliant compliant
ECCN code EAR99 EAR99 EAR99 EAR99 EAR99
Other features -5V ADDITIONAL OUTPUT AVAILABLE -12V ADDITIONAL OUTPUT AVAILABLE -12V ADDITIONAL OUTPUT AVAILABLE -5V ADDITIONAL OUTPUT AVAILABLE -5V ADDITIONAL OUTPUT AVAILABLE
Analog Integrated Circuits - Other Types DC-DC REGULATED POWER SUPPLY MODULE DC-DC REGULATED POWER SUPPLY MODULE DC-DC REGULATED POWER SUPPLY MODULE DC-DC REGULATED POWER SUPPLY MODULE DC-DC REGULATED POWER SUPPLY MODULE
Maximum input voltage 75 V 36 V 36 V 36 V 75 V
Minimum input voltage 18 V 9 V 9 V 9 V 18 V
Nominal input voltage 48 V 24 V 24 V 24 V 48 V
JESD-30 code R-XDMA-P6 R-XDMA-P6 R-XDMA-P6 R-XDMA-P6 R-XDMA-P6
JESD-609 code e4 e4 e4 e4 e4
length 27.9 mm 27.9 mm 27.9 mm 27.9 mm 27.9 mm
Maximum load regulation 0.25% 0.25% 0.25% 0.25% 0.25%
Number of functions 1 1 1 1 1
Output times 2 2 2 2 2
Number of terminals 6 6 6 6 6
Maximum operating temperature 70 °C 70 °C 70 °C 70 °C 70 °C
Minimum operating temperature -40 °C -40 °C -40 °C -40 °C -40 °C
Maximum output voltage 5.05 V 12.12 V 12.12 V 5.05 V 5.05 V
Minimum output voltage 4.95 V 11.88 V 11.88 V 4.95 V 4.95 V
Nominal output voltage 5 V 12 V 12 V 5 V 5 V
Package body material UNSPECIFIED UNSPECIFIED UNSPECIFIED UNSPECIFIED UNSPECIFIED
Package shape RECTANGULAR RECTANGULAR RECTANGULAR RECTANGULAR RECTANGULAR
Package form MICROELECTRONIC ASSEMBLY MICROELECTRONIC ASSEMBLY MICROELECTRONIC ASSEMBLY MICROELECTRONIC ASSEMBLY MICROELECTRONIC ASSEMBLY
Peak Reflow Temperature (Celsius) NOT SPECIFIED NOT SPECIFIED NOT SPECIFIED NOT SPECIFIED NOT SPECIFIED
Certification status Not Qualified Not Qualified Not Qualified Not Qualified Not Qualified
Maximum seat height 8.9 mm 8.9 mm 8.9 mm 8.9 mm 8.9 mm
surface mount NO NO NO NO NO
technology HYBRID HYBRID HYBRID HYBRID HYBRID
Temperature level OTHER OTHER OTHER OTHER OTHER
Terminal surface GOLD OVER NICKEL GOLD OVER NICKEL GOLD OVER NICKEL Gold (Au) - with Nickel (Ni) barrier GOLD OVER NICKEL
Terminal form PIN/PEG PIN/PEG PIN/PEG PIN/PEG PIN/PEG
Terminal location DUAL DUAL DUAL DUAL DUAL
Maximum time at peak reflow temperature NOT SPECIFIED NOT SPECIFIED NOT SPECIFIED NOT SPECIFIED NOT SPECIFIED
Maximum total power output 15 W 15 W 15 W 15 W 15 W
Fine-tuning/adjustable output NO NO NO NO NO
width 24.4 mm 24.4 mm 24.4 mm 24.4 mm 24.4 mm
