SMBJ26 Overview

600 W, UNIDIRECTIONAL, SILICON, TVS DIODE, DO-214AA

Preview

Download Datasheet

View All

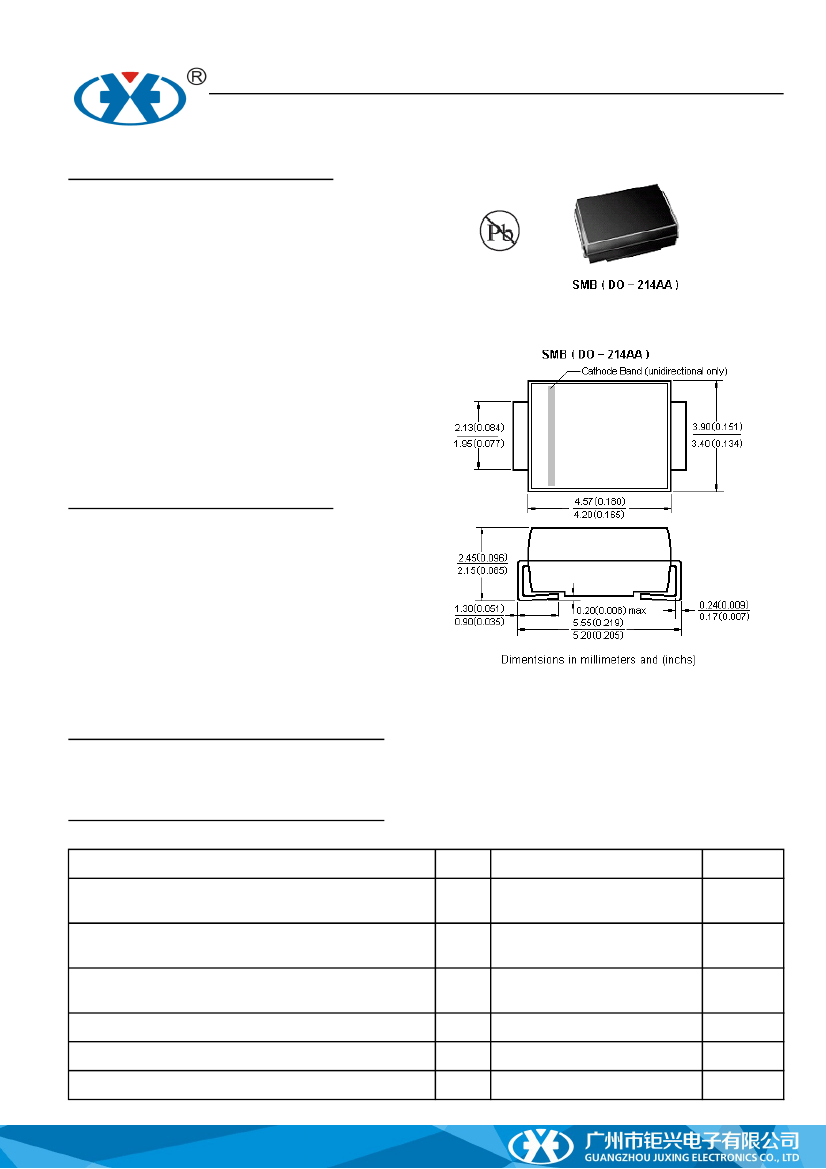

SMBJ5.0 THRU SMBJ188A

TRANSIENT VOLTAGE SUPPRESSORS

Features

●

For surface mounted applications in

order to optimize board space

Low profile space

Glass passivated chip

Low inductance

Excellent clamping capability

Very fast response time

Typical I

less than 1µA at V

600W peak pulse power capability

with a 10/1000 µs waveform

Component in accordance to

RoHS 2002/95/1 and WEEE 2002/96/EC

●

Mechanical Date

●

Case: JEDEC DO-214AA molded plastic

over passivated chip

Terminals: Solder plated, solderable per

MIL-STD-750 Method 2026

Polarity: For uni-directional types the band

by laser denotes the cathode, which is

positive with respect to the anode under

normal TVS operation

●

Devices for Bidirectional Applications

●

For bi-directional devices, use suffix C or CA (e.g.SMBJ10C, SMBJ10CA).

Electrical characteristics apply in both directions.

Maximum Ratings & Thermal Characteristics

(TA = 25 °C unless otherwise noted)

Symbol

Peak pulse power dissipation

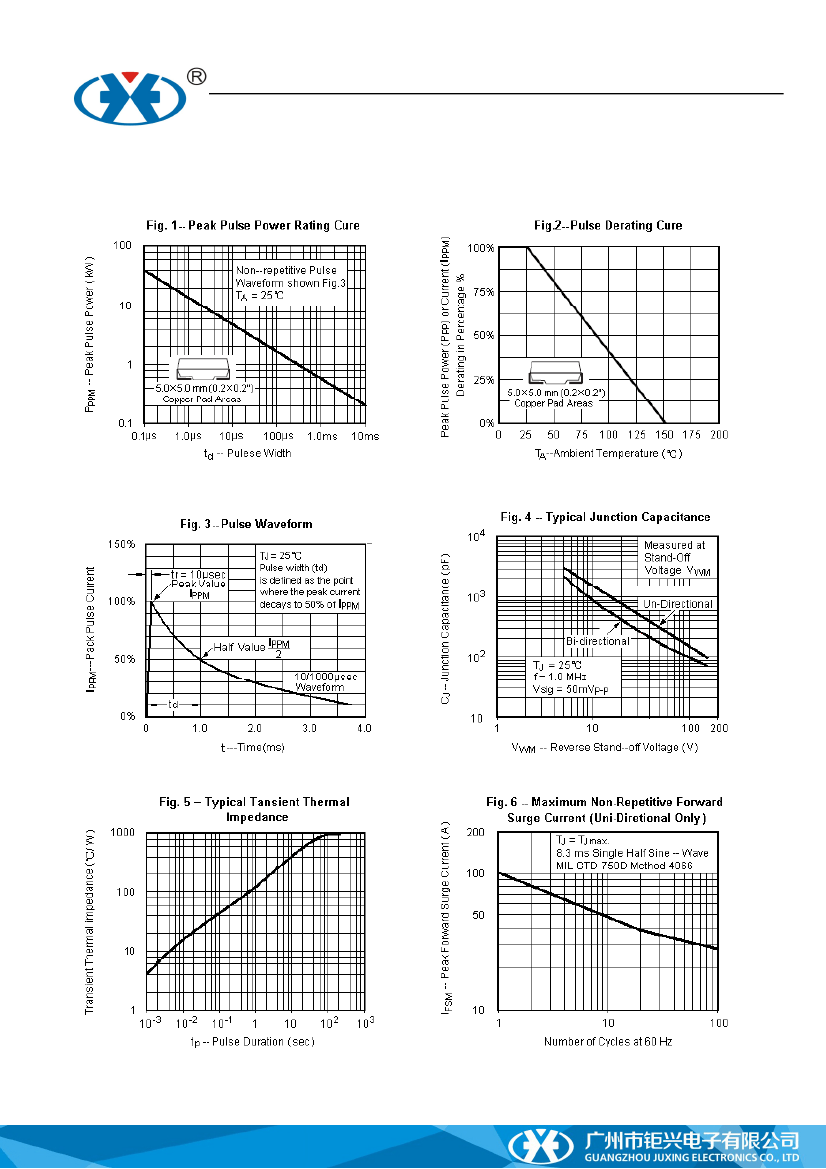

with a 10/1000µs waveform (see fig. 1)

Peak pulse current

with a waveform (see fig. 3 , single pulse)

Peak forward surge current

8.3ms single half sine-wave uni-directional only

Typical thermal resistance, junction to ambient

Typical thermal resistance, junction to lead

Operating junction and storage temperature range

PPM

FSM

θJA

θJL

STG

VALUE

600

See Next Table

100

–55 to +150

UNIT

°C / W

°C

http://www.trr-jx.com
