G6100-98NT15XN datasheet, PDF - EEWORLD Datasheet

G6100-98NT15XN: DescriptionCard Edge Connector, 98 Contact(s), 2 Row(s), Straight, 0.1 inch Pitch, Solder Terminal, Receptacle; CategoryThe connector The connector; File Size76KB，1 Pages; ManufacturerWieson Technologies Co., Ltd.; Environmental Compliance

Download Datasheet Parametric View All

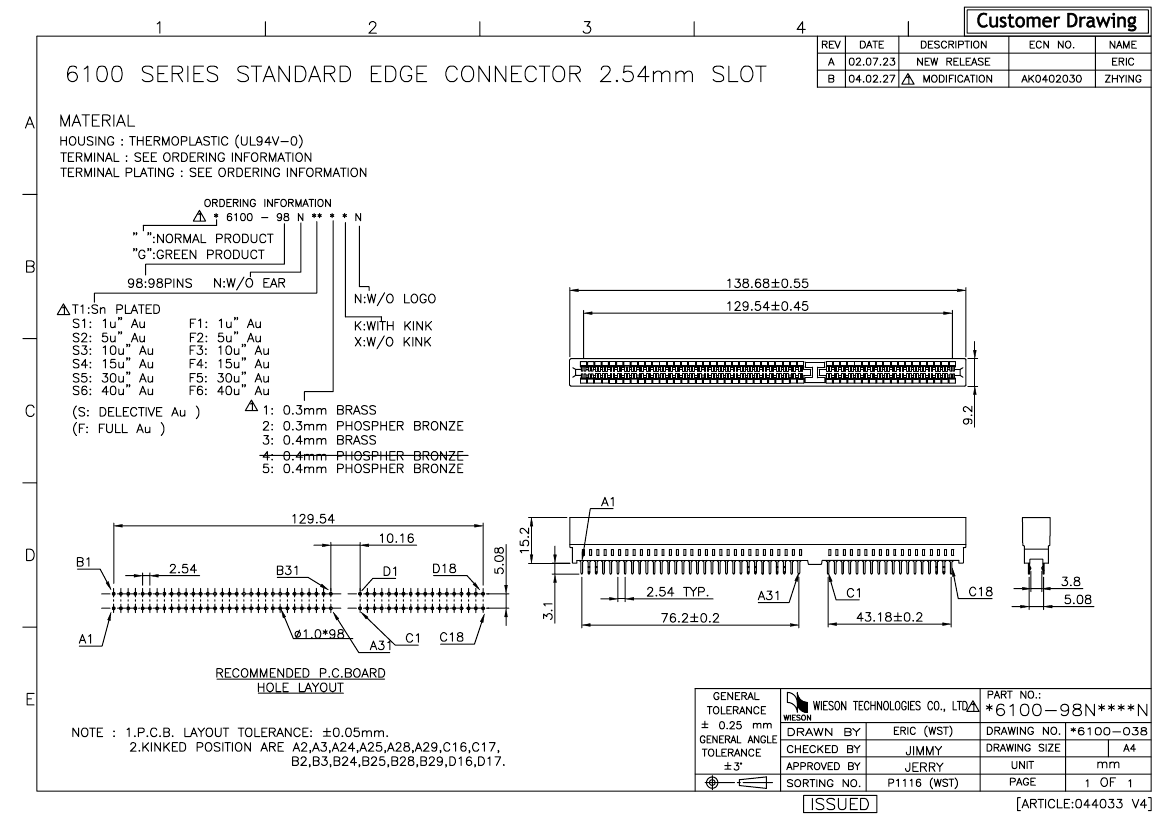

G6100-98NT15XN Overview

Card Edge Connector, 98 Contact(s), 2 Row(s), Straight, 0.1 inch Pitch, Solder Terminal, Receptacle

Parameter Name	Attribute value
Is it Rohs certified?	conform to
Objectid	304210238
Reach Compliance Code	unknown
ECCN code	EAR99
Other features	ROHS COMPLIANT
body width	0.362 inch
subject depth	0.598 inch
body length	5.46 inch
Body/casing type	RECEPTACLE
Connector type	CARD EDGE CONNECTOR
Contact to complete cooperation	AU
Contact material	PHOSPHOR BRONZE
contact mode	RECTANGULAR
Contact style	BELLOWED TYPE
insulator material	THERMOPLASTIC
Manufacturer's serial number	6100
Plug contact pitch	0.1 inch
Installation method	STRAIGHT
Installation type	BOARD
Number of connectors	ONE
PCB row number	2
Number of rows loaded	2
PCB contact pattern	RECTANGULAR
PCB contact row spacing	5.08 mm
Guideline	UL
reliability	COMMERCIAL
Terminal length	0.122 inch
Terminal pitch	2.54 mm
Termination type	SOLDER
Total number of contacts	98
