EDH1M-40GCB2-L datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > The connector> The connector> EDH1M-40GCB2-L

EDH1M-40GCB2-L: DescriptionBoard Connector, 40 Contact(s), 2 Row(s), Male, Straight, 0.1 inch Pitch, Surface Mount Terminal, Eject Lever, Black Insulator, Receptacle; CategoryThe connector The connector; File Size219KB，1 Pages; ManufacturerAmtek Technology Co., Ltd.; Environmental Compliance

Download Datasheet Parametric View All

EDH1M-40GCB2-L Overview

Board Connector, 40 Contact(s), 2 Row(s), Male, Straight, 0.1 inch Pitch, Surface Mount Terminal, Eject Lever, Black Insulator, Receptacle

EDH1M-40GCB2-L Parametric

Parameter Name	Attribute value
Is it Rohs certified?	conform to
Objectid	305325840
Reach Compliance Code	unknown
ECCN code	EAR99
Other features	ROHS COMPLIANT
body width	0.327 inch
subject depth	0.669 inch
body length	2.756 inch
Body/casing type	RECEPTACLE
Connector type	BOARD CONNECTOR
Contact to complete cooperation	AU
Contact completed and terminated	Gold (Au)
Contact point gender	MALE
Contact material	COPPER ALLOY
contact mode	RECTANGULAR
Contact resistance	20 mΩ
Contact style	SQ PIN-SKT
Dielectric withstand voltage	1000VAC V
Insulation resistance	1000000000 Ω
Insulator color	BLACK
insulator material	POLYBUTYLENE TEREPHTHALATE
JESD-609 code	e4
Manufacturer's serial number	EDH1
Plug contact pitch	0.1 inch
Match contact row spacing	0.1 inch
Installation option 1	EJECT LEVER
Installation option 2	LOCKING
Installation method	STRAIGHT
Installation type	BOARD
Number of connectors	ONE
PCB row number	2
Number of rows loaded	2
Maximum operating temperature	105 °C
Minimum operating temperature	-40 °C
PCB contact pattern	RECTANGULAR
PCB contact row spacing	7.239 mm
Plating thickness	20u inch
polarization key	POLARIZED HOUSING
Rated current (signal)	3 A
Guideline	UL
reliability	COMMERCIAL
Terminal pitch	2.54 mm
Termination type	SURFACE MOUNT
Total number of contacts	40

Preview

Download Datasheet

View All

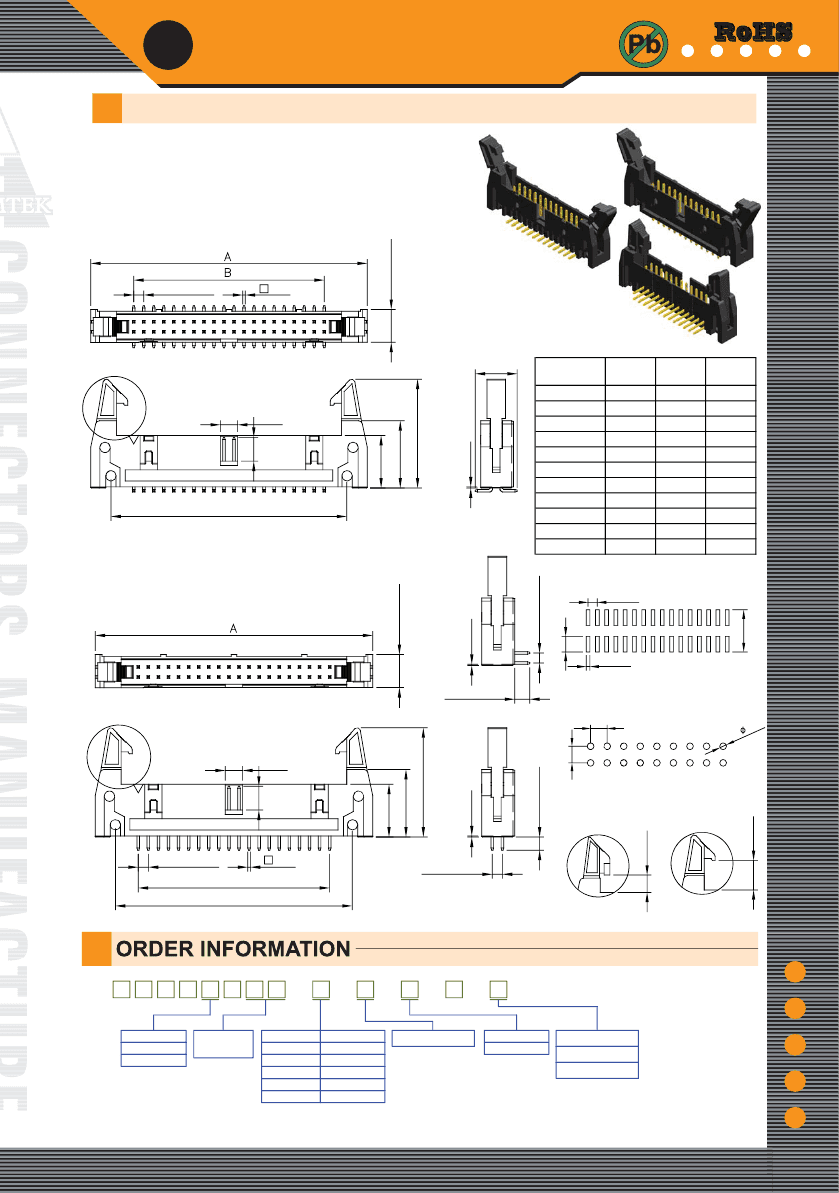

jector Header 2.54mm

Material

Insulator:Polyester,UL 94V-0

Standard:PBT or Nylon 6T

Terminal:Copper Alloy

Plating:Gold Plated

Ejector Header 2.54mm SMT/Right Angle/Straight Type

Specifications

Current Rate:3AMP

Insulation Resistance:1000MΩ Min.

Contact Resistance:20mΩ Max.

Dielectric Voltage:1000V AC for one minute

Operation Temperature:-40°C to +105°C

No. of

Contacts

Dim. A

31.90

36.98

39.52

44.60

52.22

57.30

62.38

70.00

82.70

95.40

100.48

Dim. B

10.16

15.24

17.78

22.86

30.48

35.56

40.64

48.26

60.96

73.66

78.74

Dim. C

21.70

26.78

29.32

34.40

42.02

47.10

52.18

59.80

72.50

85.20

90.28

Short ejector

Long ejector

E D H 1 X - X X

S:Straight

R:Right Angle

M:SMT

S:Selective

1:Long Ejector

2:Short Ejector

No. of Contacts

(10~64)

G:Gold Flash

GA:Gold 5u"

GB:Gold 10u"

GC:Gold 20u"

GD:Gold 30u"

T:Tin Plated

B:Black Insulator

L:RoHS + PBT

U:RoHS + Nylon 6T

(U For SMT Only)

SA:Selective 5u"

SB:Selective 10u"

SC:Selective 20u"

SD:Selective 30u"

TE:Tin 200u"

Standard Recommended

www.amtek-co.com.tw

2-107
