EDH4AS-34SCB1-U: DescriptionBoard Connector, 34 Contact(s), 2 Row(s), Male, Straight, 0.05 inch Pitch, Solder Terminal, Eject Lever, Black Insulator, Receptacle; CategoryThe connector The connector; File Size194KB，1 Pages; ManufacturerAmtek Technology Co., Ltd.; Environmental Compliance

Download Datasheet Parametric View All

EDH4AS-34SCB1-U Overview

Board Connector, 34 Contact(s), 2 Row(s), Male, Straight, 0.05 inch Pitch, Solder Terminal, Eject Lever, Black Insulator, Receptacle

EDH4AS-34SCB1-U Parametric

Parameter Name	Attribute value
Is it Rohs certified?	conform to
Objectid	305234279
Reach Compliance Code	unknown
ECCN code	EAR99
body width	0.315 inch
subject depth	0.413 inch
body length	1.626 inch
Body/casing type	RECEPTACLE
Connector type	BOARD CONNECTOR
Contact point gender	MALE
Contact material	COPPER ALLOY
contact mode	RECTANGULAR
Contact resistance	20 mΩ
Contact style	SQ PIN-SKT
Dielectric withstand voltage	500VAC V
Insulation resistance	1000000000 Ω
Insulator color	BLACK
insulator material	NYLON
Manufacturer's serial number	EDH4
Plug contact pitch	0.05 inch
Match contact row spacing	0.1 inch
Installation option 1	EJECT LEVER
Installation option 2	LOCKING
Installation method	STRAIGHT
Installation type	BOARD
Number of connectors	ONE
PCB row number	4
Number of rows loaded	2
Maximum operating temperature	105 °C
Minimum operating temperature	-40 °C
PCB contact pattern	STAGGERED
PCB contact row spacing	1.905 mm
Plating thickness	20u inch
polarization key	POLARIZED HOUSING
Rated current (signal)	1 A
Guideline	UL
reliability	COMMERCIAL
Terminal length	0.118 inch
Terminal pitch	2.54 mm
Termination type	SOLDER
Total number of contacts	34

Preview

Download Datasheet

View All

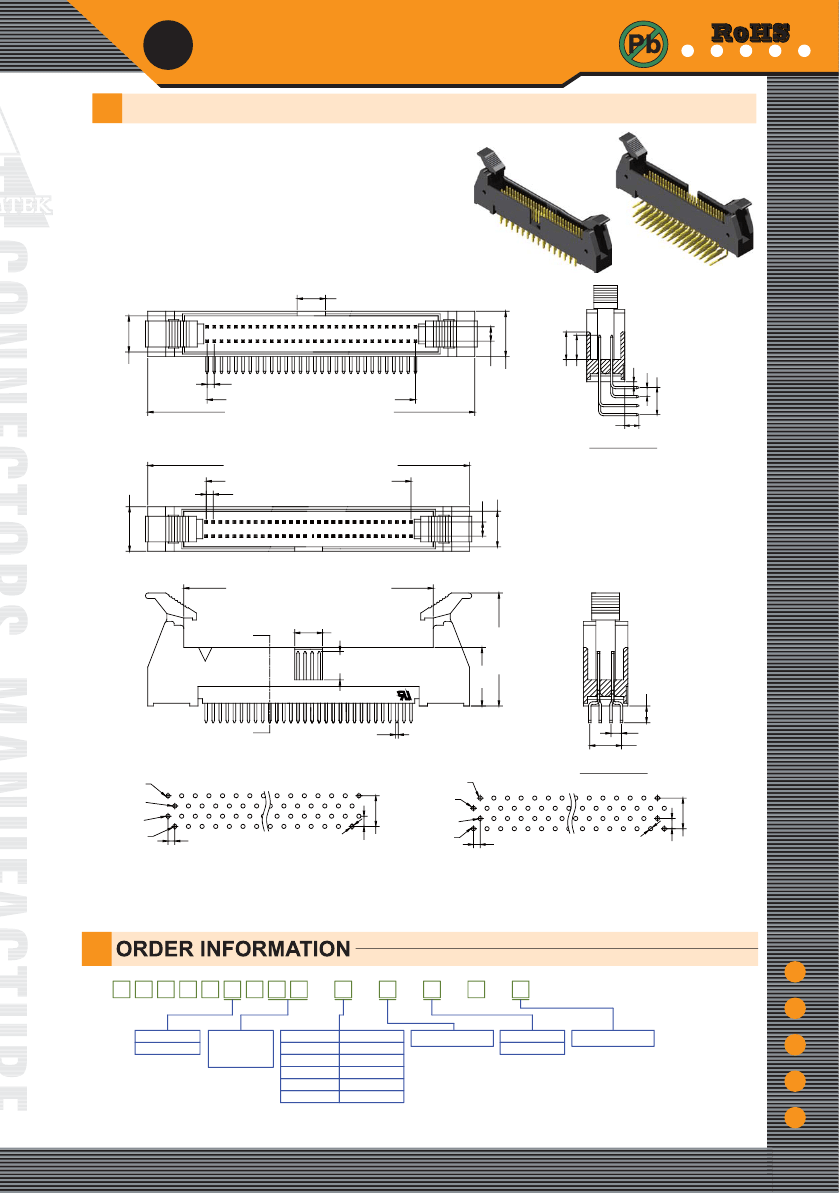

jector Header 1.27mm

Material

Insulator:Polyester,UL 94V-0

Standard:Nylon 6T

Terminal:Copper Alloy

Plating:Gold Plated

Ejector Header 1.27x2.54mm Right Angle / Straight Type

Specifications

Current Rate:1 AMP

Insulation Resistance:1000MΩ Min.

Contact Resistance:20mΩ Max.

Dielectric Voltage:500V AC for one minute

Operation Temperature:-40°C to +105°C

5.00

5 3 1

6 4 2

6.40±0.10

1.27±0.10

1.27 x No. of Contacts / 2 - 1.27 ± 0.20

1.27 x No. of Positions + 19.71 ± 0.30

2.54±0.10

8.00±0.15

5.80

5.10

A±0.25

SECTION A-A

8.00±0.15

1.27 x No. of Positions + 19.71 ± 0.30

1.27 x No. of Contacts / 2 - 1.27 ± 0.20

1.27±0.10

2 4

1 3

1.27 x No. of Positions + 6.80 ± 0.30

5.00

5.10

20.30±0.35

2.54±0.10

6.40±0.15

XXP

0.46*0.45

1.90±0.10

5.71±0.15

SECTION A-A

1.90

5.70

1.27

A TYPE

1.27

B TYPE

Recommended P.C.B Layout(Top Side)

(PCB BOARD TOLERANCE±0.05)

E D H 4 A X - X X

S:Straight

R:Right Angle

No. of Contacts

(10,12,14,16,20,24,

26,30,32,34,40,44,

50,60,64,80,100)

G:Gold Flash

GA:Gold 5u"

GB:Gold 10u"

GC:Gold 20u"

GD:Gold 30u"

T:Tin Plated

S:Selective

1:Long Ejector

2:Short Ejector

B:Black Insulator

U:RoHS + Nylon 6T

SA:Selective 5u"

SB:Selective 10u"

SC:Selective 20u"

SD:Selective 30u"

TE:Tin 200u"

Standard Recommended

www.amtek-co.com.tw

1.90

5.70

0.8

.80

3.00±0.25

10.50

1.90±0.10

5.70±0.15

D±0.25

2-32
