IRF332 datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > Discrete semiconductor> The transistor> IRF332

IRF332: Description5.5 A, 400 V, 1 ohm, N-CHANNEL, Si, POWER, MOSFET, TO-220AB; CategoryDiscrete semiconductor The transistor; File Size844KB，3 Pages; ManufacturerNew Jersey Semiconductor; Websitehttp://www.njsemi.com

Download Datasheet Parametric Compare View All

IRF332 Overview

5.5 A, 400 V, 1 ohm, N-CHANNEL, Si, POWER, MOSFET, TO-220AB

IRF332 Parametric

Parameter Name	Attribute value
Maker	New Jersey Semiconductor
Reach Compliance Code	unknown
Base Number Matches	1

Preview

Download Datasheet

View All

, O

ne.

STERN AVE.

SPRINGFIELD, NEW JERSEY 07081

U.S.A.

TELEPHONE: (973) 376-2922

(212)227-6005

FAX: (973) 376-8960

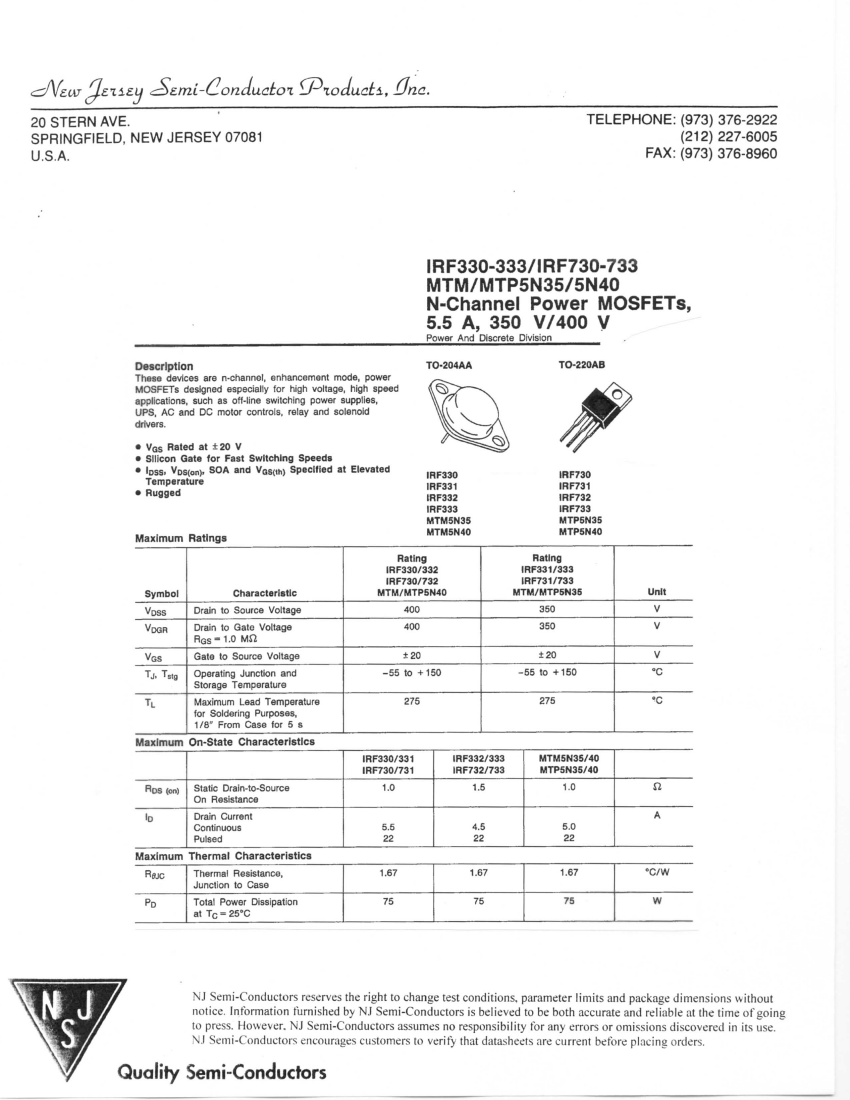

IRF330-333/IRF730-733

MTM/MTP5N35/5N40

N-Channel Power MOSFETs,

5.5 A, 350 V/400 V

Power And Discrete Division

Description

These devices are n-channol, enhancement mode, power

MOSFETs designed especially for high voltage, high speed

applications, such as off-line switching power supplies,

UPS, AC and DC motor controls, relay and solenoid

drivers.

• V

Rated at ±20 V

• Silicon Gate for Fast Switching Speeds

• "DSS. VDS(on). »w»

Temperature

Rua9ed

* VQS(lh) apecmi

IRF330

|RF331

TO-220AB

IRF730

|RF?31

IRF332

IRF333

MTM5N35

MTM5N4

IRF732

IRF733

MTP5N3S

MTPSN4

Maximum Ratings

Symbol

VDSS

VDOR

Characteristic

Drain to Source Voltage

Drain to Gate Voltage

Gate to Source Voltage

Operating Junction and

Storage Temperature

Maximum Lead Temperature

for Soldering Purposes,

1/8" From Case for 5 s

Rating

IRF330/332

IRF730/732

MTM/MTP5N40

400

±20

Rating

IRF331/333

IRF731/733

MTM/MTP5N36

350

±20

Unit

Tj, T

slg

-55 to

+150

275

-55 to

+150

275

°c

«c

Maximum On-State Characteristics

IRF330/331

IRF730/731

RDS (on)

IRF332/333

IRF732/733

1.5

MTM5N35/40

MTP5N35/40

1.0

Static Drain-to-Source

On Resistance

Drain Current

Continuous

Pulsed

1.0

5.5

4.5

5.0

Maximum Thermal Characteristics

RSJC

Thermal Resistance,

Junction to Case

Total Power Dissipation

at T

= 25°C

1.67

°C/W

NJ Semi-Conductors reserves the right to change test conditions, parameter limits and package dimensions without

notice. Information furnished by NJ Semi-Conductors is believed to be both accurate and reliable at the time of going

to press. However. NJ Semi-Conductors assumes no responsibility for any errors or omissions discovered in its use.

NJ Semi-Conductors encourages customers to verify that datasheets are current before placing orders.

Quality Semi-Conductors
