IRF541 datasheet, PDF - EEWORLD Datasheet

EEWORLDEEWORLD

Datasheet

Datasheet> All Categories > Discrete semiconductor> The transistor> IRF541

Preview

IRF541: DescriptionPOWER, FET; CategoryDiscrete semiconductor The transistor; File Size99KB，3 Pages; ManufacturerNew Jersey Semiconductor; Websitehttp://www.njsemi.com

Download Datasheet Parametric Compare View All

IRF541 Overview

POWER, FET

IRF541 Parametric

Parameter Name	Attribute value
Reach Compliance Code	unknow
Is Samacsys	N
Base Number Matches	1

Preview

Download Datasheet

View All

{/

*J.£.i\£.u ^zmi-donductoi

U

TELEPHONE: (973) 376-2922

(212) 227-6005

FAX: (973) 376-8960

20 STERN AVE.

SPRINGFIELD, NEW JERSEY 07081

U.S.A.

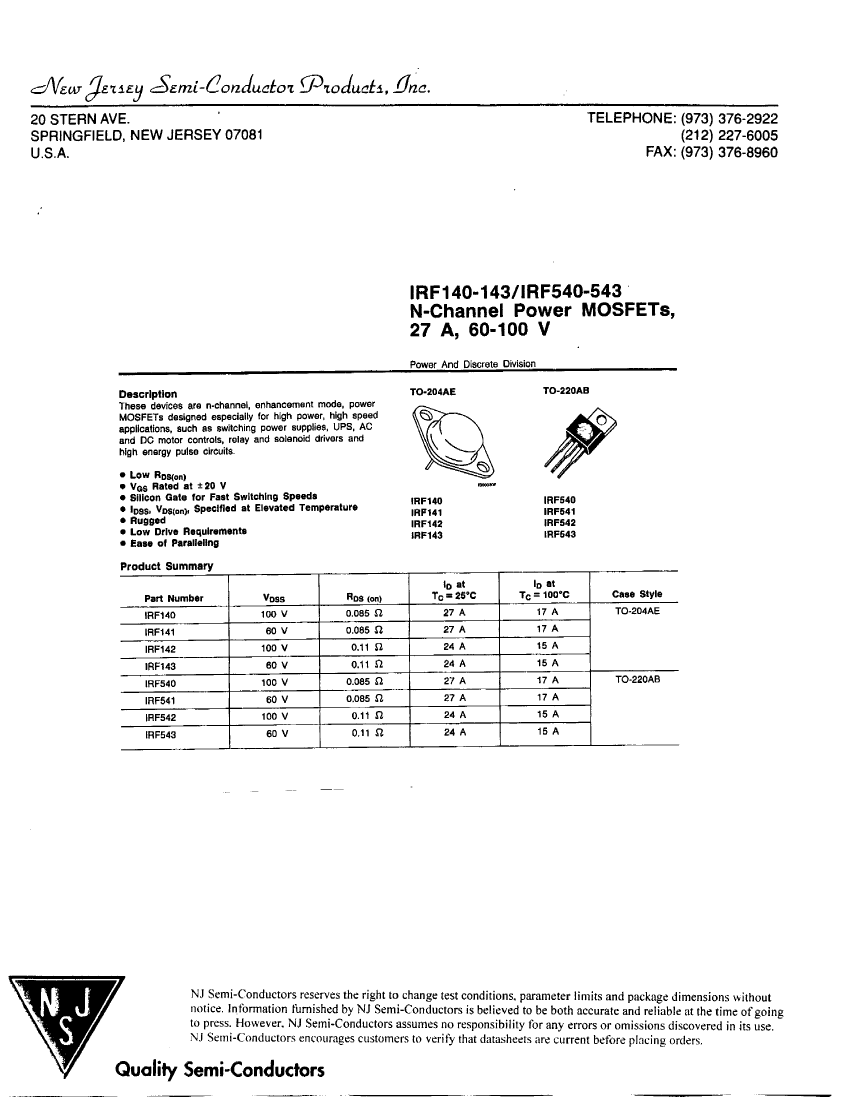

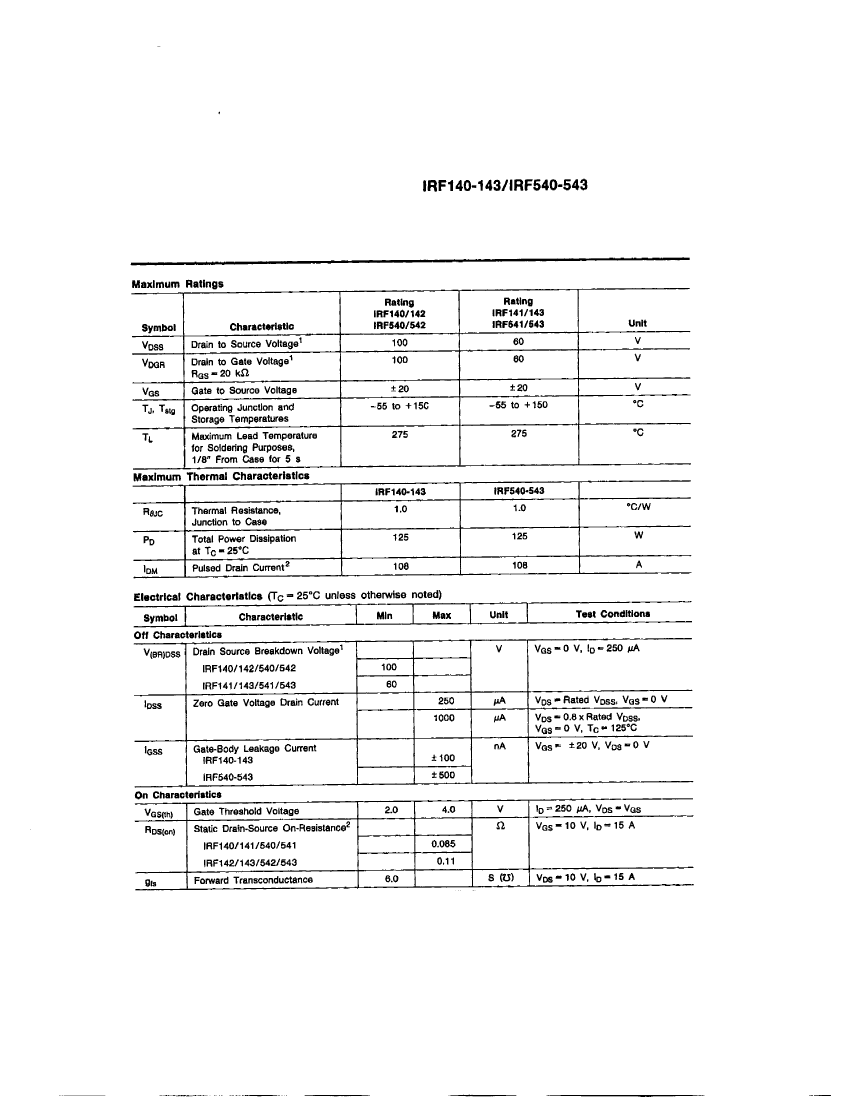

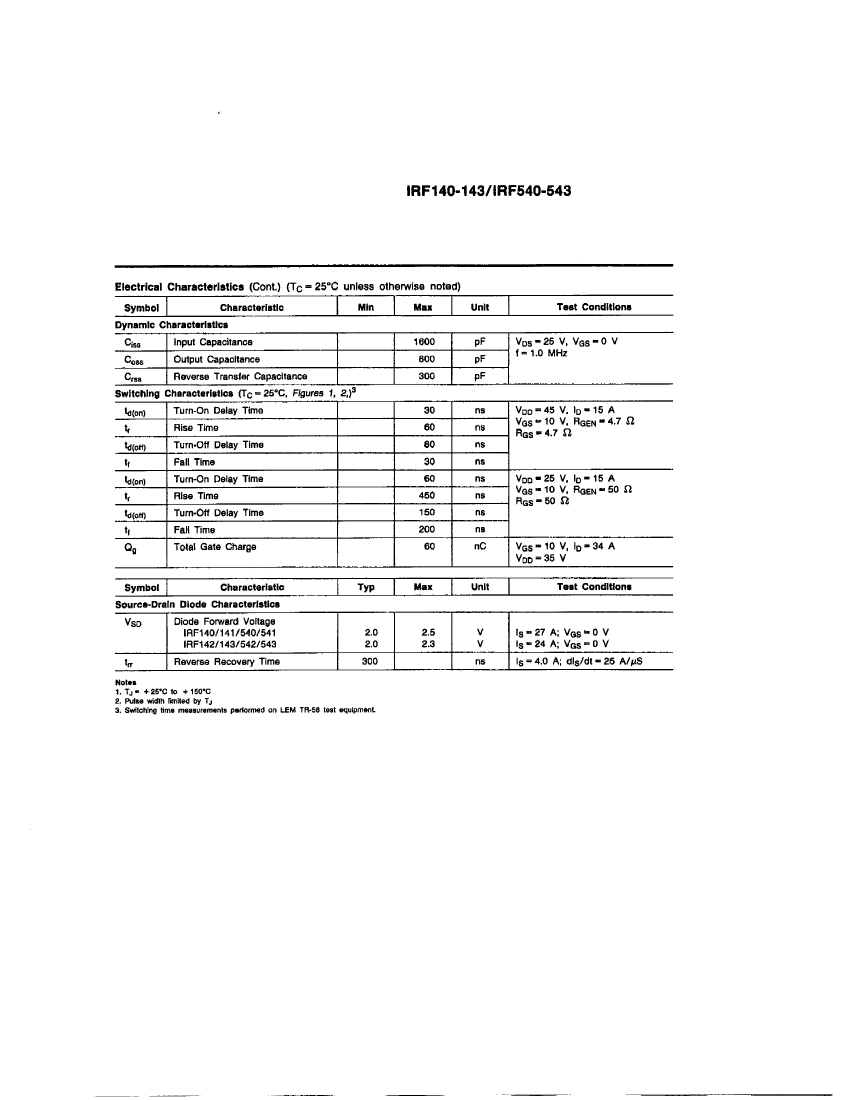

IRF140-143/IRF540-543

N-Channel Power MOSFETs,

27 A, 60-100 V

Power And Discrete Division

Description

These devices are n-channel, enhancement mode, power

MOSFETs designed especially for high power, high speed

applications, such as switching power supplies, UPS, AC

and DC motor controls, relay and solenoid drivers and

high energy pulse circuits.

Low Boston)

V

GS

Rated at ±20 V

Silicon Gate for Fast Switching Speeds

IDSS. Vos(on), Specified at Elevated Temperature

Rugged

Low Drive Requirements

Ease of Paralleling

Product Summary

TO-204AE

TO-220AB

IRFS40

IRF541

IRF542

IRF543

Part Number

IRF140

IRF141

IRF142

IRF143

IRF540

IRF541

IRF542

IRF543

VDSS

RDS

(on)

0.085 J2

Tcsas'c

27 A

24 A

27 A

24 A

ID at

T

c

= 100'C

17 A

15 A

17 A

15 A

Case Style

TO-204AE

100 V

60 V

100 V

60 V

100 V

60 V

100 V

60 V

0.085

n

0.11 n

0.085

n

o.o85

n

0.11 n

TO-220AB

NJ Semi-Conductors reserves the right to change test conditions, parameter limits and package dimensions without

notice. Information furnished by NJ Semi-Conductors is believed to be both accurate and reliable at the time of going

to press. However, NJ Semi-Conductors assumes no responsibility for any errors or omissions discovered in its use

NJ Semi-Conductors encourages customers to verify that datasheets are current before placing orders.

Quality Semi-Conductors

IRF541 Related Products

	IRF541	IRF540	IRF542	IRF543	IRF140	IRF141	IRF142	IRF143
Description	POWER, FET	28 A, 100 V, 0.077 ohm, N-CHANNEL, Si, POWER, MOSFET, TO-220AB	28 A, 100 V, 0.077 ohm, N-CHANNEL, Si, POWER, MOSFET, TO-220AB	28 A, 100 V, 0.077 ohm, N-CHANNEL, Si, POWER, MOSFET, TO-220AB	28 A, 100 V, 0.089 ohm, N-CHANNEL, Si, POWER, MOSFET, TO-204AE	POWER, FET	28 A, 100 V, 0.077 ohm, N-CHANNEL, Si, POWER, MOSFET, TO-220AB	28 A, 100 V, 0.077 ohm, N-CHANNEL, Si, POWER, MOSFET, TO-220AB
Reach Compliance Code	unknow	unknow	unknow	unknow	unknow	unknow	unknow	unknow
Maker	-	New Jersey Semiconductor	-	New Jersey Semiconductor	New Jersey Semiconductor	New Jersey Semiconductor	New Jersey Semiconductor	New Jersey Semiconductor
