Input-output isolation voltage(rms) is 5.0kV, High
speed response (TYP. 2Mb/s) and CMR is MIN.
15kV/µs.
■
Agency approvals/Compliance
1. Recognized by UL1577 (Double protection isolation),
file No. E64380 (as model No.
PC956L)
2. Approved by VDE, DIN EN60747-5-2
(∗)
(as an
option), file No. 40008898 (as model No.
PC956L)
3. Package resin : UL flammability grade (94V-0)
(∗)
DIN EN60747-5-2 : successor standard of DIN VDE0884
■
Features

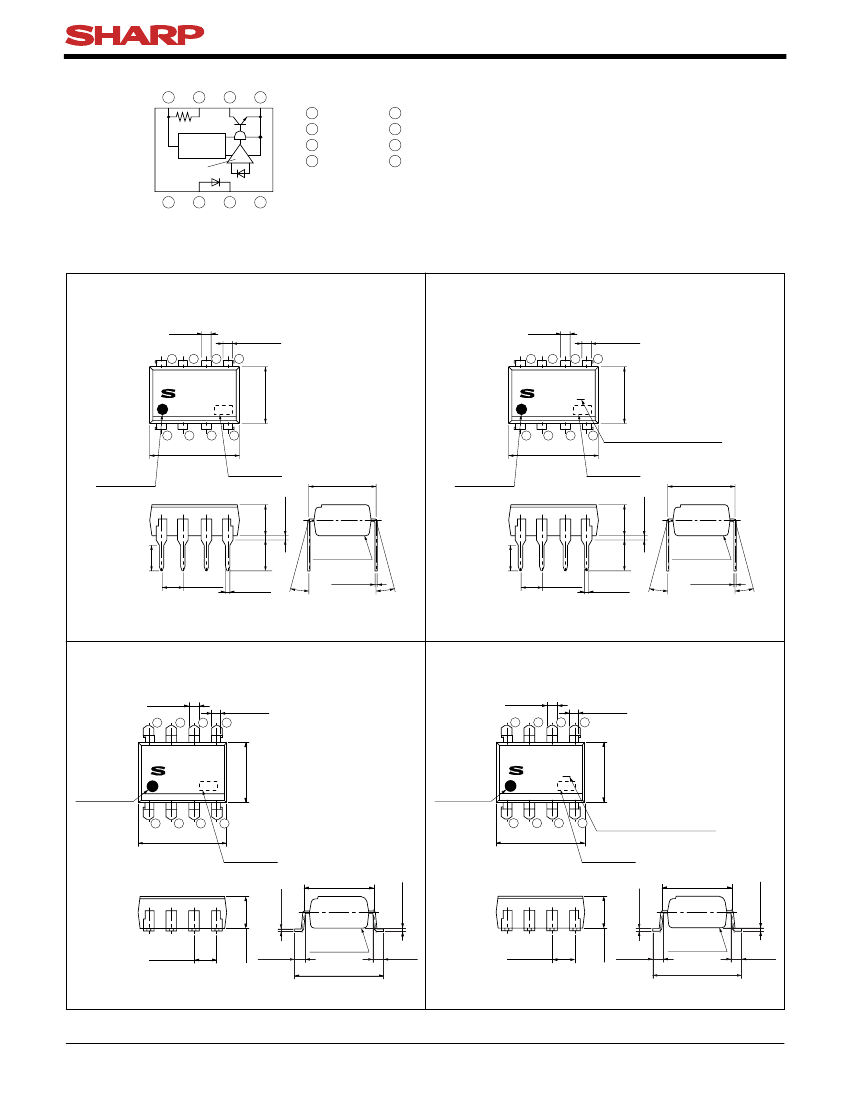

1. 8 pin DIP package
2. Double transfer mold package
(Ideal for Flow Soldering)
3. High noise immunity due to high instantaneous
common mode rejection voltage (CM
H
: MIN.
15kV/µs, CM
L
: MIN.
−15kV/µs)
4. High speed response
(t
PHL
: TYP. 210 ns, t
PLH
: TYP. 400 ns)
5. High isolation voltage between input and output
(V
iso(rms)
: 5.0 kV)
6. Lead-free and RoHS directive compliant
■
Applications
1. Programmable controller
2. Inverter
∗
"OPIC"(Optical IC) is a trademark of the SHARP Corporation. An OPIC consists of a light-detecting element and a signal-processing
circuit integrated onto a single chip.
Notice The content of data sheet is subject to change without prior notice.
In the absence of confirmation by device specification sheets, SHARP takes no responsibility for any defects that may occur in equipment using any SHARP
devices shown in catalogs, data books, etc. Contact SHARP in order to obtain the latest device specification sheets before using any SHARP device.
