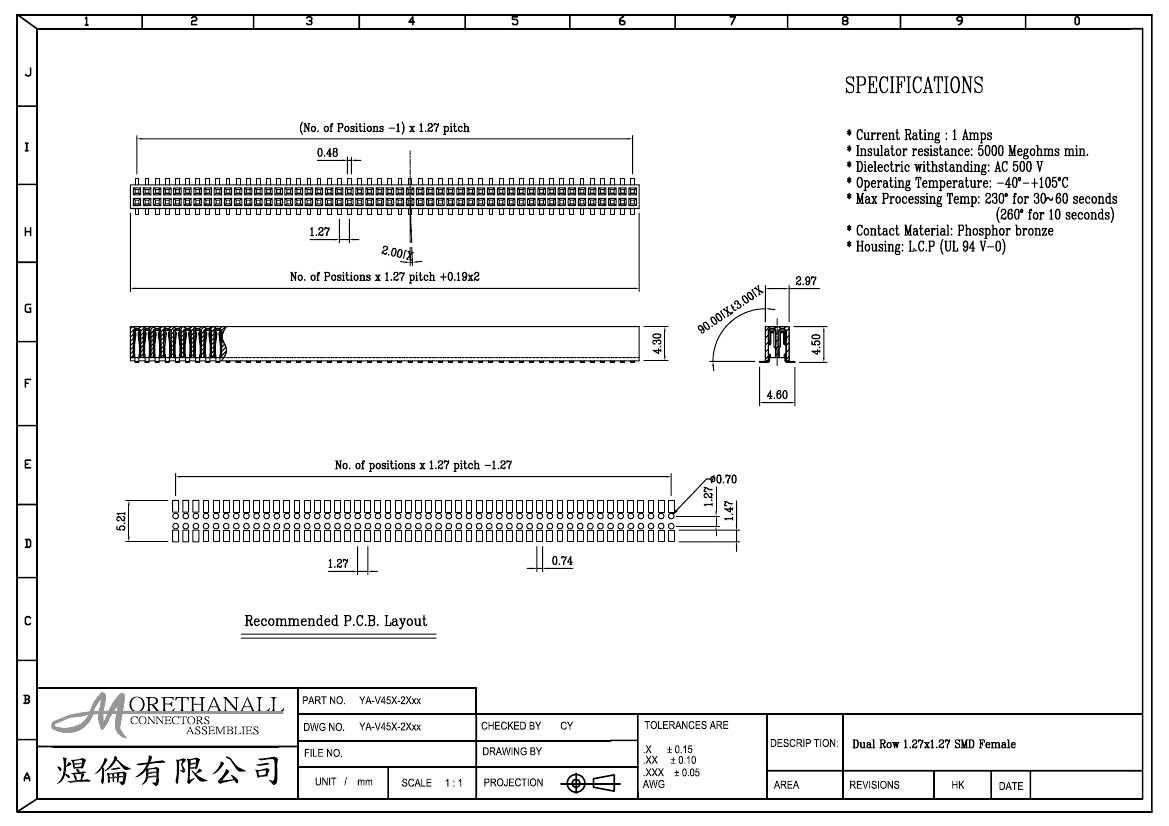

YA-V45X-2X09: DescriptionBoard Connector, 18 Contact(s), 2 Row(s), Female, Straight, 0.05 inch Pitch, Surface Mount Terminal, Locking, Plug; CategoryThe connector The connector; File Size123KB，1 Pages; ManufacturerMorethanall Co., Ltd.; Websitehttp://www.morethanall.com

Download Datasheet Parametric Compare View All

YA-V45X-2X09 Overview

Board Connector, 18 Contact(s), 2 Row(s), Female, Straight, 0.05 inch Pitch, Surface Mount Terminal, Locking, Plug

YA-V45X-2X09 Parametric

Parameter Name	Attribute value
Objectid	303897934
Reach Compliance Code	unknown
ECCN code	EAR99
body width	0.117 inch
subject depth	0.169 inch
body length	0.465 inch
Body/casing type	PLUG
Connector type	BOARD CONNECTOR
Contact point gender	FEMALE
Contact material	PHOSPHOR BRONZE
contact mode	RECTANGULAR
Contact style	SQ PIN-SKT
Dielectric withstand voltage	500VAC V
Insulation resistance	5000000000 Ω
insulator material	LIQUID CRYSTAL POLYMER (LCP)
Manufacturer's serial number	YA-V45X
Plug contact pitch	0.05 inch
Match contact row spacing	0.05 inch
Installation option 1	LOCKING
Installation method	STRAIGHT
Installation type	BOARD
Number of connectors	ONE
PCB row number	2
Number of rows loaded	2
Maximum operating temperature	105 °C
Minimum operating temperature	-40 °C
PCB contact pattern	RECTANGULAR
PCB contact row spacing	3.7338 mm
Rated current (signal)	1 A
Guideline	UL
reliability	COMMERCIAL
Terminal pitch	1.27 mm
Termination type	SURFACE MOUNT
Total number of contacts	18
