DS09SJ datasheet, PDF - EEWORLD Datasheet

DS09SJ: DescriptionD Type Connector, 9 Contact(s), Female, 0.109 inch Pitch, Solder Lug Terminal, #4-40, Plug; CategoryThe connector The connector; File Size64KB，1 Pages; ManufacturerAUK Contractors Co., Ltd.

Download Datasheet Parametric View All

DS09SJ Overview

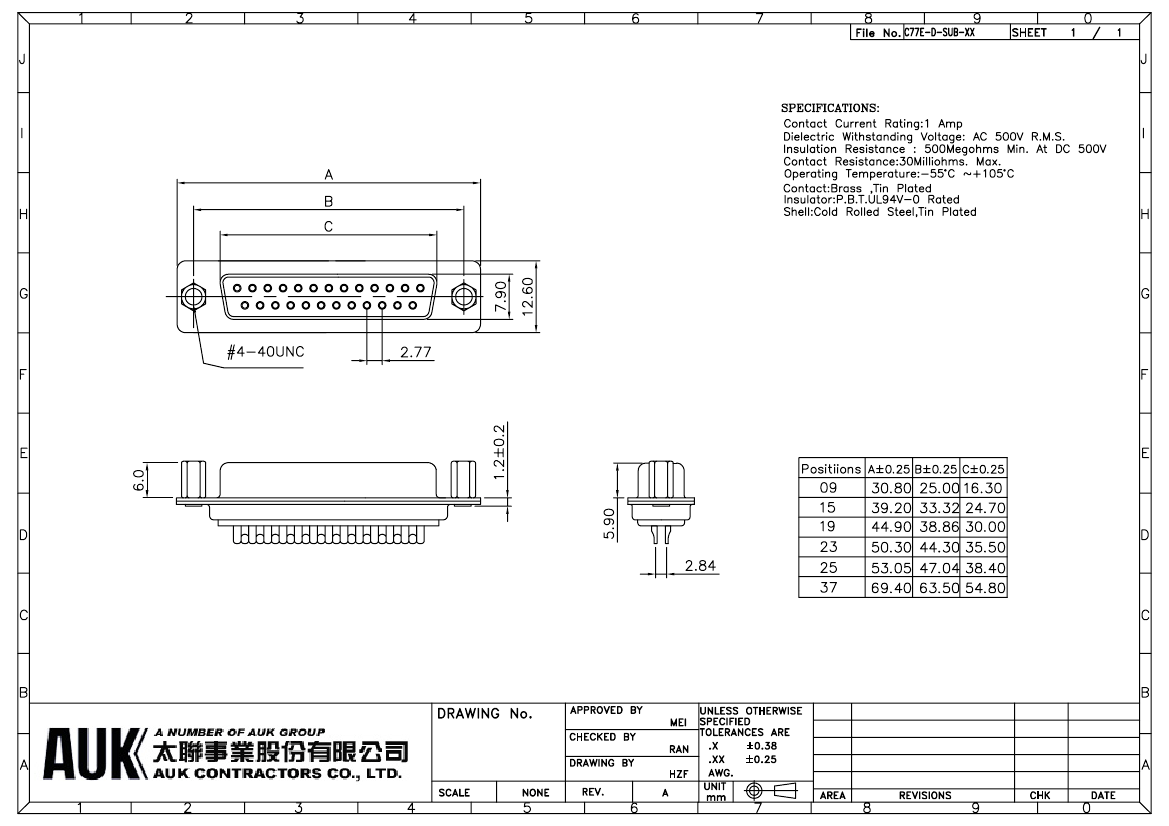

D Type Connector, 9 Contact(s), Female, 0.109 inch Pitch, Solder Lug Terminal, #4-40, Plug

Parameter Name	Attribute value
Is it Rohs certified?	incompatible
Objectid	303783130
Reach Compliance Code	unknown
ECCN code	EAR99
Other features	BAG PACKGING
body width	0.496 inch
subject depth	0.248 inch
body length	1.213 inch
Body/casing type	PLUG
Contactor design	PREASSEM CONN
Contact to complete cooperation	SN
Contact completed and terminated	TIN
Contact point gender	FEMALE
Contact material	BRASS
contact mode	STAGGERED
Contact resistance	30 mΩ
Contact style	RND PIN-SKT
Dielectric withstand voltage	500VAC V
Insulation resistance	500000000 Ω
Insulator color	BLUE
insulator material	POLYBUTYLENE TEREPHTHALATE
Manufacturer's serial number	DS
Plug contact pitch	0.109 inch
Match contact row spacing	0.112 inch
Installation option 1	#4-40
Installation option 2	RIVET
Installation type	PANEL
Number of rows loaded	2
Maximum operating temperature	105 °C
Minimum operating temperature	-55 °C
Rated current (signal)	1 A
Guideline	UL
reliability	COMMERCIAL
Shell surface	TIN
Shell material	STEEL
Termination type	SOLDER LUG
Total number of contacts	9
