DBCIDCC4226BG1: DescriptionHEADER CONNECTOR,PCB MNT,RECEPT,26 CONTACTS,PIN,0.05 PITCH,PC TAIL TERMINAL,LOCKING,BLACK; CategoryThe connector The connector; File Size86KB，1 Pages; ManufacturerAlpha 3 Manufacturing; Environmental Compliance

Download Datasheet Parametric View All

DBCIDCC4226BG1 Overview

HEADER CONNECTOR,PCB MNT,RECEPT,26 CONTACTS,PIN,0.05 PITCH,PC TAIL TERMINAL,LOCKING,BLACK

DBCIDCC4226BG1 Parametric

Parameter Name	Attribute value
Is it Rohs certified?	conform to
Objectid	304369722
Reach Compliance Code	unknown
ECCN code	EAR99
body width	0.189 inch
subject depth	0.193 inch
body length	0.893 inch
Body/casing type	RECEPTACLE
Connector type	BOARD CONNECTOR
Contact to complete cooperation	AU
Contact point gender	MALE
Contact material	PHOSPHOR BRONZE
contact mode	RECTANGULAR
Contact resistance	30 mΩ
Contact style	SQ PIN-SKT
Dielectric withstand voltage	250VAC V
Insulation resistance	1000000000 Ω
Insulator color	BLACK
insulator material	GLASS FILLED NYLON
Manufacturer's serial number	C42
Plug contact pitch	0.05 inch
Match contact row spacing	0.05 inch
Installation option 1	LOCKING
Installation method	STRAIGHT
Installation type	BOARD
Number of connectors	ONE
PCB row number	2
Number of rows loaded	2
Maximum operating temperature	105 °C
Minimum operating temperature	-40 °C
PCB contact pattern	RECTANGULAR
PCB contact row spacing	1.27 mm
Plating thickness	FLASH inch
Rated current (signal)	1 A
Guideline	UL
reliability	COMMERCIAL
Terminal length	0.118 inch
Terminal pitch	1.27 mm
Termination type	SOLDER
Total number of contacts	26

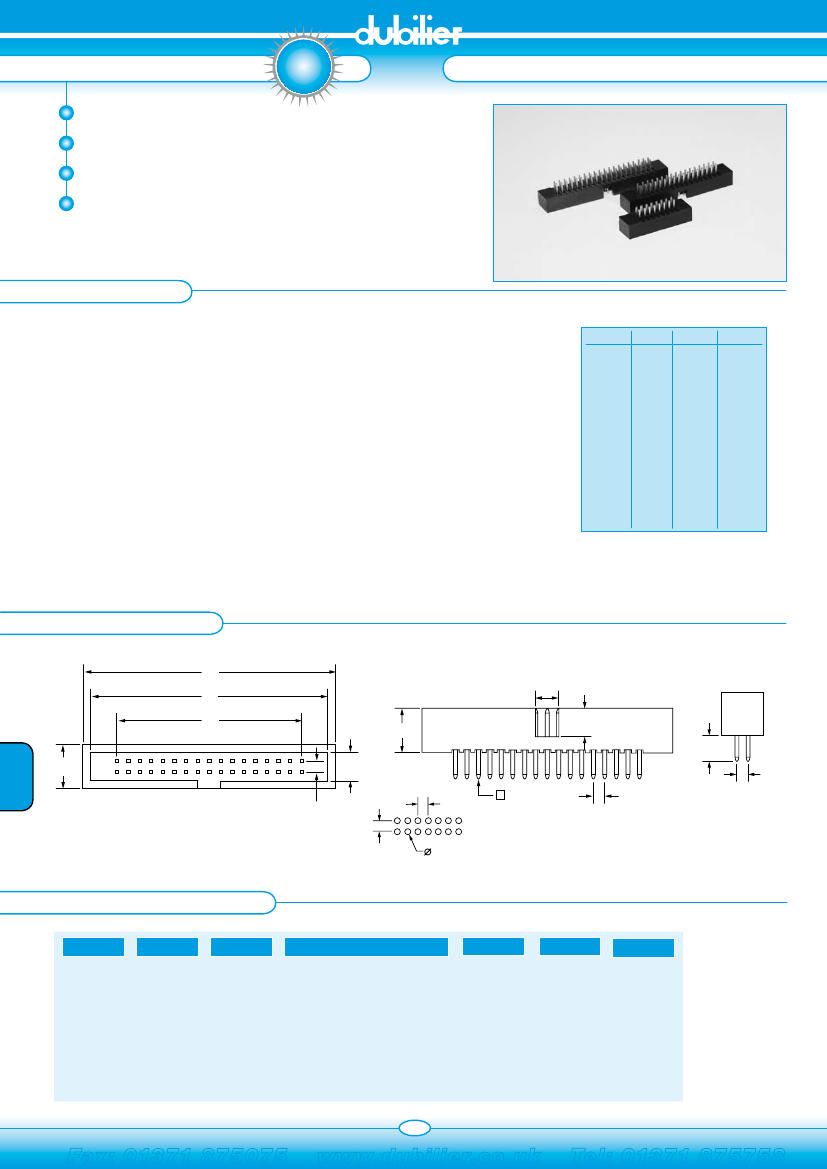

Preview

Download Datasheet

View All

T•P

Industry compatible

Competitively priced

Various Plating contacts available

1.27 mm pitch

SPECIFICATION

Material & Finish

Contact Material:

Insulator Material:

Current Rating:

Phosphor Bronze

Nylon 6T, Glass Reinforced, rated UL 94V-0

1 Amp

30M Ω Max.

1000M Ω Min.

Position

10

12

14

16

20

22

26

30

34

40

44

50

A

12.51

13.78

15.05

16.32

18.86

20.13

22.67

25.21

27.25

31.56

34.10

37.91

B

10.84

12.12

13.39

14.66

17.20

18.47

21.01

23.55

26.09

29.90

32.44

36.25

C

5.08

6.35

7.62

8.89

11.43

12.70

15.24

17.78

20.32

24.13

26.67

30.48

Contact Resistance:

Insulator Resistance:

Dielectric Withstanding

Voltage:

250V AC for One Minute

-40°C to + 105°C

Operating Temperature:

OUTLINE DRAWING

A

B

C

4.9

3.1

3.0

4.8

ORDERING INFORMATION

DBC

Dubilier

Connectors

IDC

Connector

C42

Series

10=10way

12=12way

14=14way

16=16way

20=20way

22=22way

Fax: 01371 875075

DU

RO

C

IDC

NEW

DU

RO

C

T

•P

BOX HEADER STRAIGHT 1.27mm

2.5

SECTION 15

3.1

1.27

0.7

+0.05

-0

1.27

0.4*0.4

1.27

RECOMMENDED P.C.B. LAYOUT

26

Nº of Ways

26=26way

30=30way

34=34way

40=40way

44=44way

50=50way

B

Contact Material

B=Phosphor

Bronze

G

Contact Plating

G= Gold Flash

S=Selective

*=Other Plating

available

1

Colour

1=Black

344

www.dubilier.co.uk

Tel: 01371 875758
