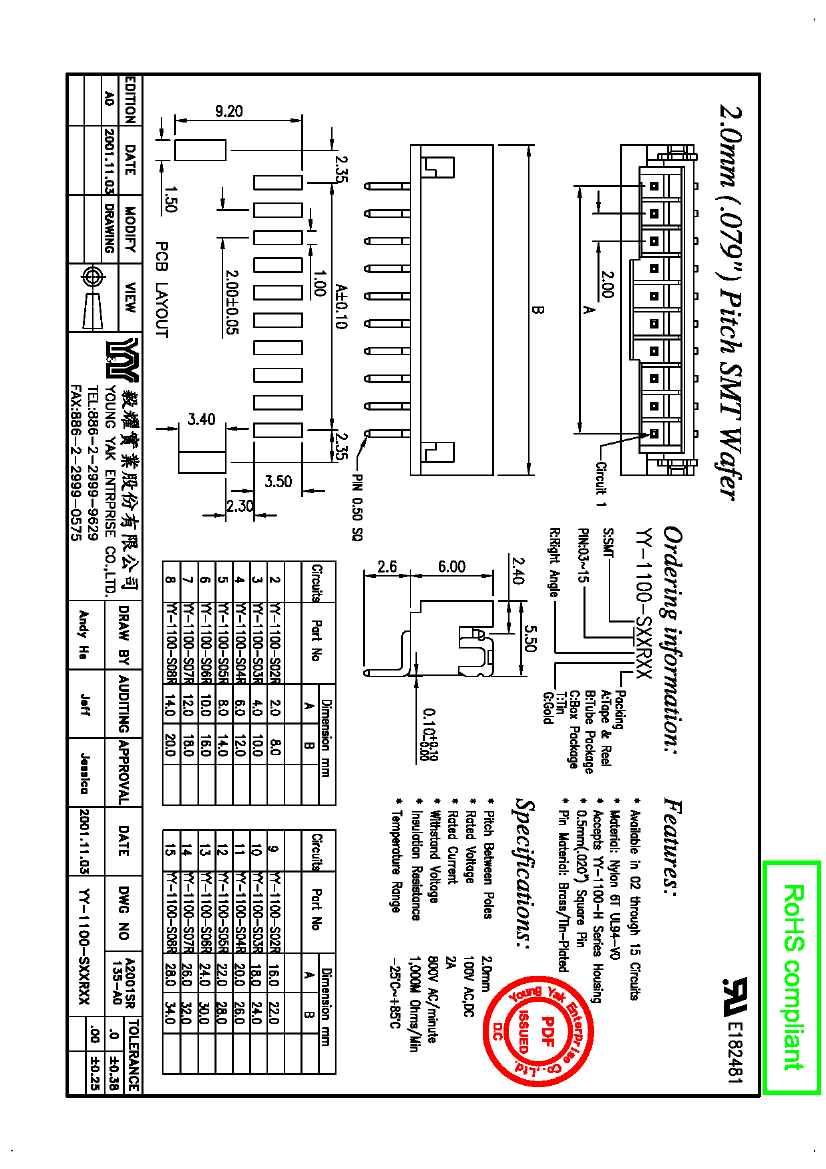

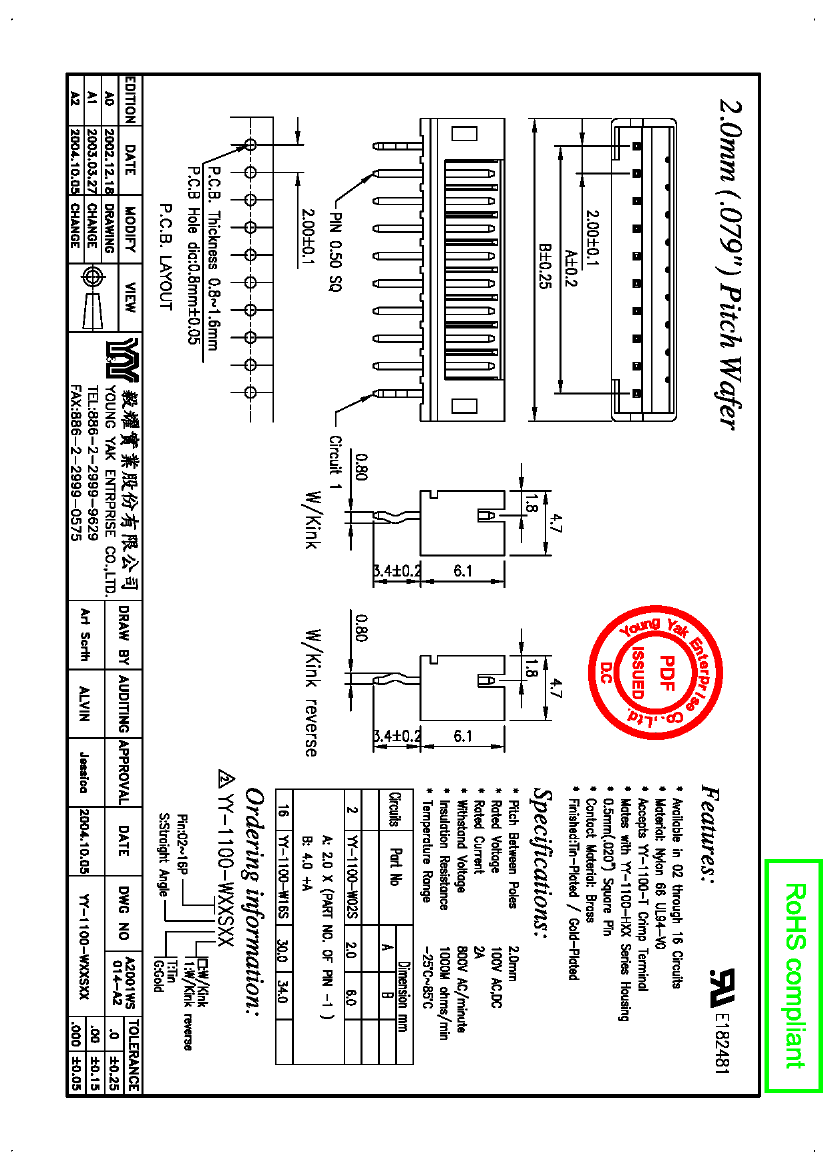

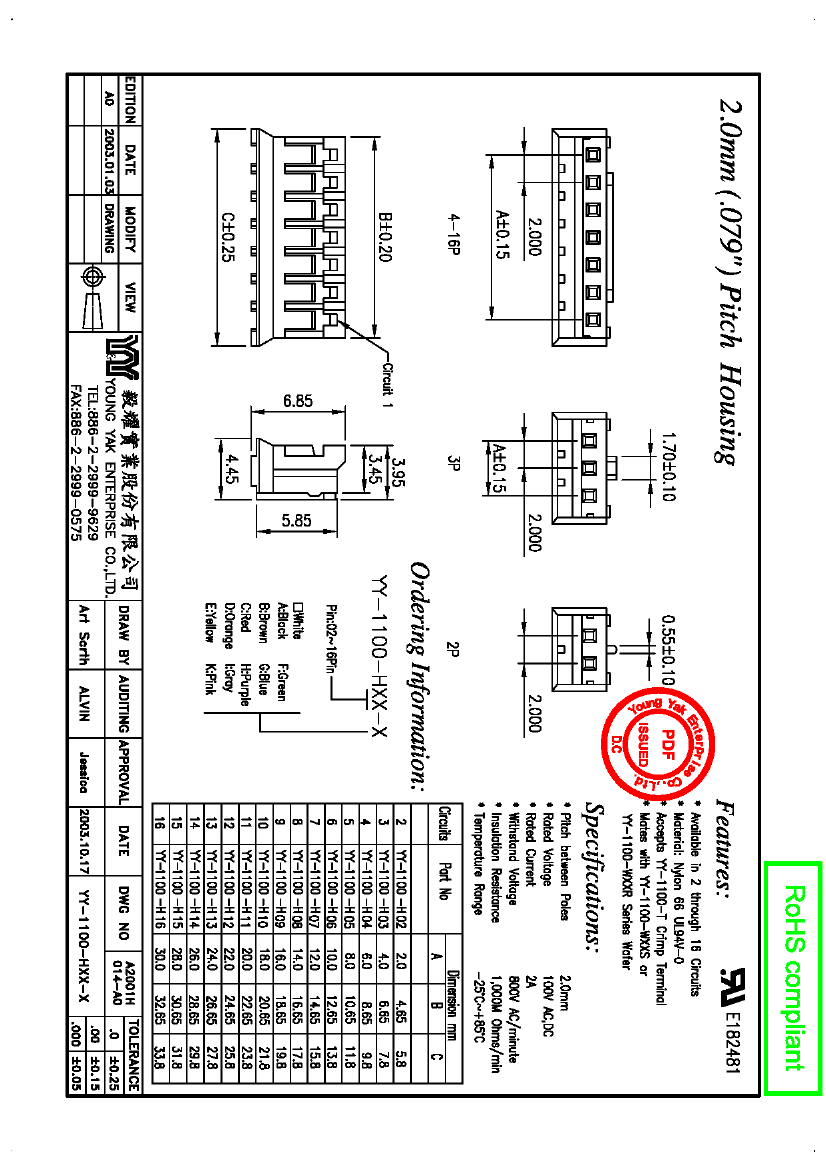

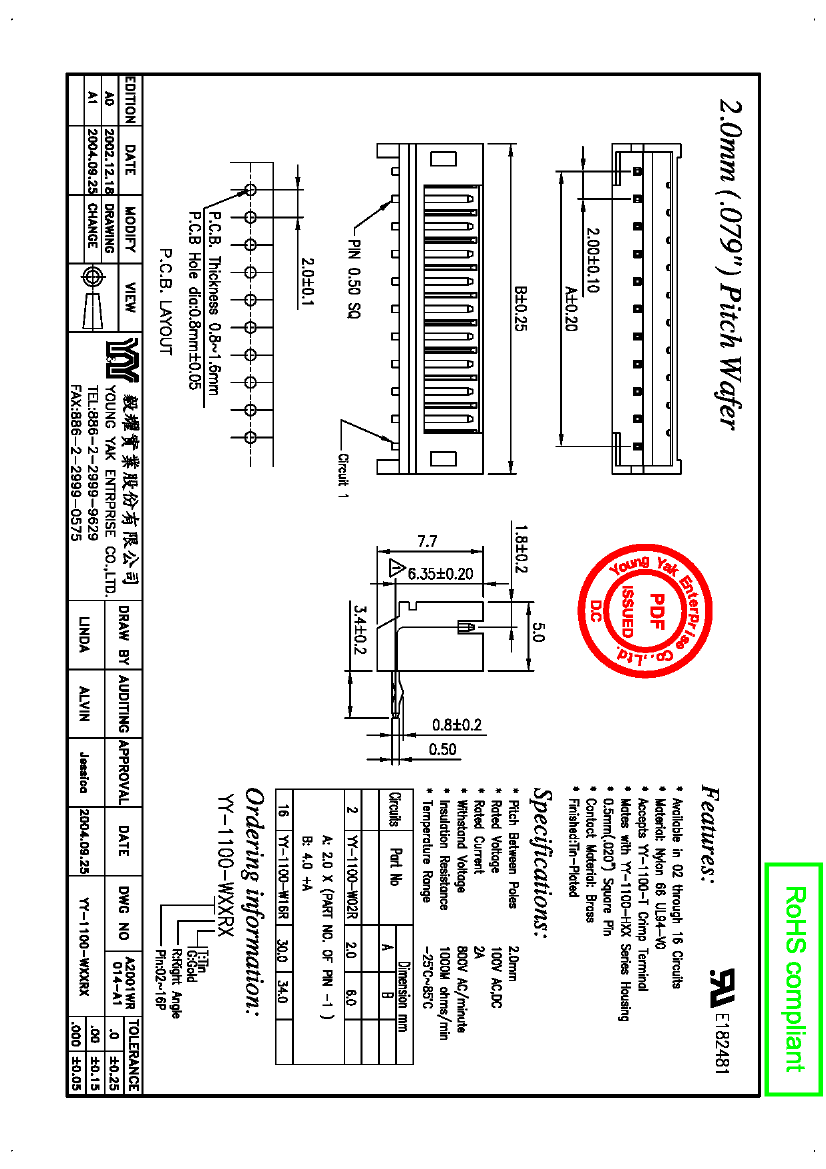

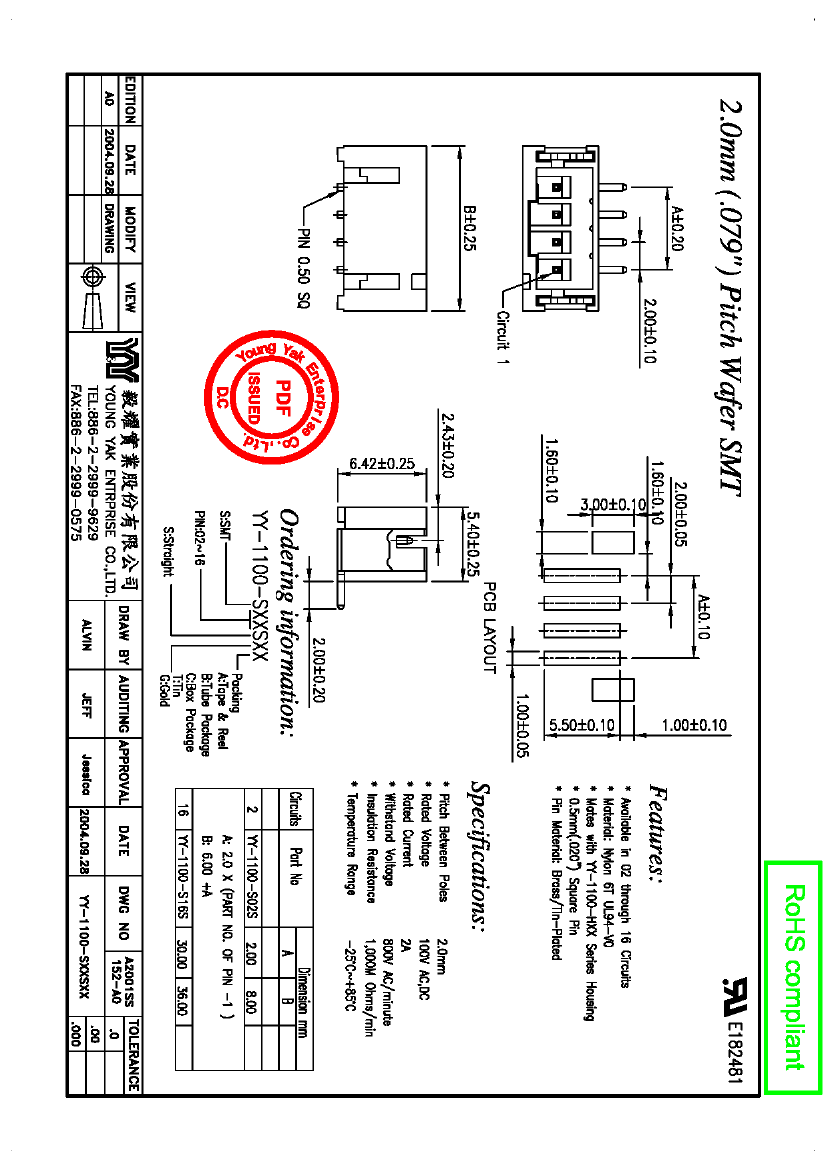

Board Connector, 10 Contact(s), 1 Row(s), Male, Right Angle, 0.079 inch Pitch, Surface Mount Terminal, Locking, Receptacle
| Parameter Name | Attribute value |
| Objectid | 303978213 |
| Reach Compliance Code | compliant |
| ECCN code | EAR99 |
| Other features | TUBE PKG |
| Board mount options | SOLDER HOLDING POSTS |
| body width | 0.217 inch |
| subject depth | 0.236 inch |
| body length | 0.945 inch |
| Body/casing type | RECEPTACLE |
| Connector type | BOARD CONNECTOR |
| Contact to complete cooperation | SN |
| Contact completed and terminated | TIN |
| Contact point gender | MALE |
| Contact material | BRASS |
| contact mode | RECTANGULAR |
| Contact style | SQ PIN-SKT |
| Dielectric withstand voltage | 800VAC V |
| Insulation resistance | 1000000000 Ω |
| insulator material | NYLON |
| Manufacturer's serial number | YY-1100 |
| Plug contact pitch | 0.079 inch |
| Installation option 1 | LOCKING |
| Installation method | RIGHT ANGLE |
| Installation type | BOARD |
| Number of connectors | ONE |
| PCB row number | 1 |
| Number of rows loaded | 1 |
| Maximum operating temperature | 85 °C |
| Minimum operating temperature | -25 °C |
| PCB contact pattern | RECTANGULAR |
| polarization key | POLARIZED HOUSING |
| Rated current (signal) | 2 A |
| Guideline | UL |
| reliability | COMMERCIAL |
| Terminal pitch | 2.0066 mm |
| Termination type | SURFACE MOUNT |
| Total number of contacts | 10 |
| YY-1100-S10RTB | YY-1100-S12RTB | YY-1100-S12RTC | |
|---|---|---|---|
| Description | Board Connector, 10 Contact(s), 1 Row(s), Male, Right Angle, 0.079 inch Pitch, Surface Mount Terminal, Locking, Receptacle | Board Connector, 12 Contact(s), 1 Row(s), Male, Right Angle, 0.079 inch Pitch, Surface Mount Terminal, Locking, Receptacle | Board Connector, 12 Contact(s), 1 Row(s), Male, Right Angle, 0.079 inch Pitch, Surface Mount Terminal, Locking, Receptacle |
| Objectid | 303978213 | 303978219 | 303978220 |
| Reach Compliance Code | compliant | compliant | compliant |
| ECCN code | EAR99 | EAR99 | EAR99 |
| Other features | TUBE PKG | TUBE PKG | BOX PKG |
| Board mount options | SOLDER HOLDING POSTS | SOLDER HOLDING POSTS | SOLDER HOLDING POSTS |
| body width | 0.217 inch | 0.217 inch | 0.217 inch |
| subject depth | 0.236 inch | 0.236 inch | 0.236 inch |
| body length | 0.945 inch | 1.102 inch | 1.102 inch |
| Body/casing type | RECEPTACLE | RECEPTACLE | RECEPTACLE |
| Connector type | BOARD CONNECTOR | BOARD CONNECTOR | BOARD CONNECTOR |
| Contact to complete cooperation | SN | SN | SN |
| Contact completed and terminated | TIN | TIN | TIN |
| Contact point gender | MALE | MALE | MALE |
| Contact material | BRASS | BRASS | BRASS |
| contact mode | RECTANGULAR | RECTANGULAR | RECTANGULAR |
| Contact style | SQ PIN-SKT | SQ PIN-SKT | SQ PIN-SKT |
| Dielectric withstand voltage | 800VAC V | 800VAC V | 800VAC V |
| Insulation resistance | 1000000000 Ω | 1000000000 Ω | 1000000000 Ω |
| insulator material | NYLON | NYLON | NYLON |
| Manufacturer's serial number | YY-1100 | YY-1100 | YY-1100 |
| Plug contact pitch | 0.079 inch | 0.079 inch | 0.079 inch |
| Installation option 1 | LOCKING | LOCKING | LOCKING |
| Installation method | RIGHT ANGLE | RIGHT ANGLE | RIGHT ANGLE |
| Installation type | BOARD | BOARD | BOARD |
| Number of connectors | ONE | ONE | ONE |
| PCB row number | 1 | 1 | 1 |
| Number of rows loaded | 1 | 1 | 1 |
| Maximum operating temperature | 85 °C | 85 °C | 85 °C |
| Minimum operating temperature | -25 °C | -25 °C | -25 °C |
| PCB contact pattern | RECTANGULAR | RECTANGULAR | RECTANGULAR |
| polarization key | POLARIZED HOUSING | POLARIZED HOUSING | POLARIZED HOUSING |
| Rated current (signal) | 2 A | 2 A | 2 A |
| Guideline | UL | UL | UL |
| reliability | COMMERCIAL | COMMERCIAL | COMMERCIAL |
| Terminal pitch | 2.0066 mm | 2.0066 mm | 2.0066 mm |
| Termination type | SURFACE MOUNT | SURFACE MOUNT | SURFACE MOUNT |
| Total number of contacts | 10 | 12 | 12 |
