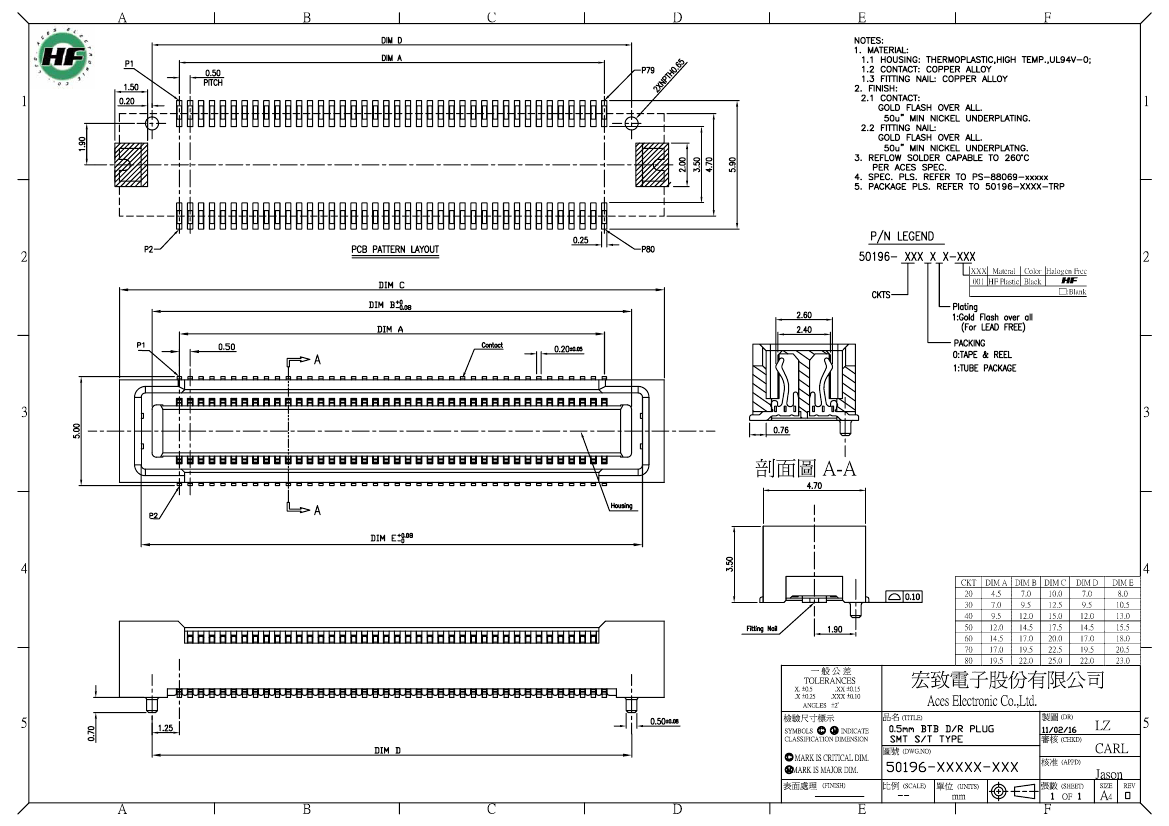

50196-06011-001: DescriptionBoard Connector, 60 Contact(s), 2 Row(s), Female, Straight, 0.02 inch Pitch, Surface Mount Terminal, Locking, Black Insulator, Plug; CategoryThe connector The connector; File Size170KB，1 Pages; ManufacturerAces Electronics Co., Ltd.; Environmental Compliance

Download Datasheet Parametric Compare View All

50196-06011-001 Overview

Board Connector, 60 Contact(s), 2 Row(s), Female, Straight, 0.02 inch Pitch, Surface Mount Terminal, Locking, Black Insulator, Plug

50196-06011-001 Parametric

Parameter Name	Attribute value
Is it Rohs certified?	conform to
Objectid	305564963
Reach Compliance Code	unknown
ECCN code	EAR99
Board mount options	PEG
body width	0.185 inch
subject depth	0.138 inch
body length	0.787 inch
Body/casing type	PLUG
Connector type	BOARD CONNECTOR
Contact to complete cooperation	AU ON NI
Contact completed and terminated	Gold (Au) - with Nickel (Ni) barrier
Contact point gender	FEMALE
Contact material	COPPER ALLOY
contact mode	RECTANGULAR
Contact resistance	40 mΩ
Dielectric withstand voltage	250VAC V
Durability	30 Cycles
maximum insertion force	.973 N
Insulation resistance	1000000000 Ω
Insulator color	BLACK
insulator material	THERMOPLASTIC
JESD-609 code	e4
Manufacturer's serial number	50196
Plug contact pitch	0.02 inch
Installation option 1	LOCKING
Installation method	STRAIGHT
Installation type	BOARD
Number of connectors	ONE
PCB row number	2
Number of rows loaded	2
Maximum operating temperature	85 °C
Minimum operating temperature	-55 °C
PCB contact pattern	RECTANGULAR
PCB contact row spacing	4.699 mm
Plating thickness	FLASH inch
polarization key	POLARIZED HOUSING
Rated current (signal)	0.5 A
Guideline	UL
reliability	COMMERCIAL
Terminal pitch	0.508 mm
Termination type	SURFACE MOUNT
Total number of contacts	60
Evacuation force-minimum value	.0973 N

Preview

Download Datasheet

View All

50196-06011-001 Related Products

	50196-06011-001	GRM2162C1H102JA01	GRM2162C1H111GA01	50196-05011-001	50196-02011-001	50196-03001-001	50196-03011-001
Description	Board Connector, 60 Contact(s), 2 Row(s), Female, Straight, 0.02 inch Pitch, Surface Mount Terminal, Locking, Black Insulator, Plug	Chip Multilayer Ceramic Capacitors for General Purpose	Chip Multilayer Ceramic Capacitors for General Purpose	Board Connector, 50 Contact(s), 2 Row(s), Female, Straight, 0.02 inch Pitch, Surface Mount Terminal, Locking, Black Insulator, Plug	Board Connector, 20 Contact(s), 2 Row(s), Female, Straight, 0.02 inch Pitch, Surface Mount Terminal, Locking, Black Insulator, Plug	Board Connector, 30 Contact(s), 2 Row(s), Female, Straight, 0.02 inch Pitch, Surface Mount Terminal, Locking, Black Insulator, Plug	Board Connector, 30 Contact(s), 2 Row(s), Female, Straight, 0.02 inch Pitch, Surface Mount Terminal, Locking, Black Insulator, Plug
Is it Rohs certified?	conform to	-	-	conform to	conform to	conform to	conform to
Reach Compliance Code	unknown	-	-	unknown	unknown	unknown	unknown
Board mount options	PEG	-	-	PEG	PEG	PEG	PEG
body width	0.185 inch	-	-	0.185 inch	0.185 inch	0.185 inch	0.185 inch
subject depth	0.138 inch	-	-	0.138 inch	0.138 inch	0.138 inch	0.138 inch
body length	0.787 inch	-	-	0.689 inch	0.394 inch	0.492 inch	0.492 inch
Body/casing type	PLUG	-	-	PLUG	PLUG	PLUG	PLUG
Connector type	BOARD CONNECTOR	-	-	BOARD CONNECTOR	BOARD CONNECTOR	BOARD CONNECTOR	BOARD CONNECTOR
Contact to complete cooperation	AU ON NI	-	-	AU ON NI	AU ON NI	AU ON NI	AU ON NI
Contact completed and terminated	Gold (Au) - with Nickel (Ni) barrier	-	-	Gold (Au) - with Nickel (Ni) barrier	Gold (Au) - with Nickel (Ni) barrier	Gold (Au) - with Nickel (Ni) barrier	Gold (Au) - with Nickel (Ni) barrier
Contact point gender	FEMALE	-	-	FEMALE	FEMALE	FEMALE	FEMALE
Contact material	COPPER ALLOY	-	-	COPPER ALLOY	COPPER ALLOY	COPPER ALLOY	COPPER ALLOY
contact mode	RECTANGULAR	-	-	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR
Contact resistance	40 mΩ	-	-	40 mΩ	40 mΩ	40 mΩ	40 mΩ
Dielectric withstand voltage	250VAC V	-	-	250VAC V	250VAC V	250VAC V	250VAC V
Durability	30 Cycles	-	-	30 Cycles	30 Cycles	30 Cycles	30 Cycles
maximum insertion force	.973 N	-	-	.973 N	.973 N	.973 N	.973 N
Insulation resistance	1000000000 Ω	-	-	1000000000 Ω	1000000000 Ω	1000000000 Ω	1000000000 Ω
Insulator color	BLACK	-	-	BLACK	BLACK	BLACK	BLACK
insulator material	THERMOPLASTIC	-	-	THERMOPLASTIC	THERMOPLASTIC	THERMOPLASTIC	THERMOPLASTIC
JESD-609 code	e4	-	-	e4	e4	e4	e4
Manufacturer's serial number	50196	-	-	50196	50196	50196	50196
Plug contact pitch	0.02 inch	-	-	0.02 inch	0.02 inch	0.02 inch	0.02 inch
Installation option 1	LOCKING	-	-	LOCKING	LOCKING	LOCKING	LOCKING
Installation method	STRAIGHT	-	-	STRAIGHT	STRAIGHT	STRAIGHT	STRAIGHT
Installation type	BOARD	-	-	BOARD	BOARD	BOARD	BOARD
Number of connectors	ONE	-	-	ONE	ONE	ONE	ONE
PCB row number	2	-	-	2	2	2	2
Number of rows loaded	2	-	-	2	2	2	2
Maximum operating temperature	85 °C	-	-	85 °C	85 °C	85 °C	85 °C
Minimum operating temperature	-55 °C	-	-	-55 °C	-55 °C	-55 °C	-55 °C
PCB contact pattern	RECTANGULAR	-	-	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR
PCB contact row spacing	4.699 mm	-	-	4.699 mm	4.699 mm	4.699 mm	4.699 mm
Plating thickness	FLASH inch	-	-	FLASH inch	FLASH inch	FLASH inch	FLASH inch
polarization key	POLARIZED HOUSING	-	-	POLARIZED HOUSING	POLARIZED HOUSING	POLARIZED HOUSING	POLARIZED HOUSING
Rated current (signal)	0.5 A	-	-	0.5 A	0.5 A	0.5 A	0.5 A
Guideline	UL	-	-	UL	UL	UL	UL
reliability	COMMERCIAL	-	-	COMMERCIAL	COMMERCIAL	COMMERCIAL	COMMERCIAL
Terminal pitch	0.508 mm	-	-	0.508 mm	0.508 mm	0.508 mm	0.508 mm
Termination type	SURFACE MOUNT	-	-	SURFACE MOUNT	SURFACE MOUNT	SURFACE MOUNT	SURFACE MOUNT
Total number of contacts	60	-	-	50	20	30	30
Evacuation force-minimum value	.0973 N	-	-	.0973 N	.0973 N	.0973 N	.0973 N
