(1) The Terminal covers are not supplied for 1p and 2p, the use of phase separators, supplied with the standard circuit breaker, and the insulating of switchboard door are mandatory.
Terminal FCCuAl
Terminal FCCuAl with cable
H
D
W
NA
W
H
D
ø
S
R
=
=
=
=
=
=
=
Not available
Width
Hole height
Depth
Diameter
Standard
On request
UL FORMULA Molded Case Circuit Breakers - 3.5
Accessories
Mechanical accessories
Front Terminals
1 piece
KIT F A1
KIT F A2
KA1F-1
KA2F-1
2 pieces
KA1F-2
KA2F-2
3 pieces
KA1F-3
KA2F-3
4 pieces
KA1F-4
KA2F-4
6 pieces
KA1F-6
KA2F-6
Front Extended Terminals (IEC only)
KIT EF A1
KIT EF A2
KA1EF-1
KA2EF-1
KA1EF-2
KA2EF-2
KA1EF-3
KA2EF-3
KA1EF-4
KA2EF-4
KA1EF-6
KA2EF-6
Front Extended Spread Terminals (IEC only)
KIT ES A1
KIT ES A2
KA1ES-1
KA2ES-1
KA1ES-2
KA2ES-2
KA1ES-3
KA2ES-3
KA1ES-4
KA2ES-4
KA1ES-6
KA2ES-6
Front Terminals for copper aluminium cables - FCCuAl
KIT FC CuAl A1 80A
KIT FC CuAl A1 100A
KIT FC CuAL A2; 250A Cu cables and 225A Al cables
KIT FC CuAl A2 250A
KA1080-1
KA1100-1
KA2225-1
KA2250-1
KA1080-2
KA1100-2
KA2225-2
KA2250-2
KA1080-3
KA1100-3
KA2225-3
KA2250-3
KA1080-4
KA1100-4
KA2225-4
KA2250-4
KA1080-6
KA1100-6
KA2225-6
KA2250-6
3.6 - UL FORMULA Molded Case Circuit Breakers
Approximate dimensions
A1 - Circuit breaker and terminals
ES Terminals
3.94
100
1.57
40
0.79
20
3.94
100
0.79
20
1.57
40
0.79
20
3.94
100
0.33
8.5
2.17
55
1.38
35
0.20
5
0.98
25
0.20
5
0.79
20
0.79
20
0.33
8.5
3.79
96.25
4.14
105.25
3.79
96.25
3 pole
2 pole

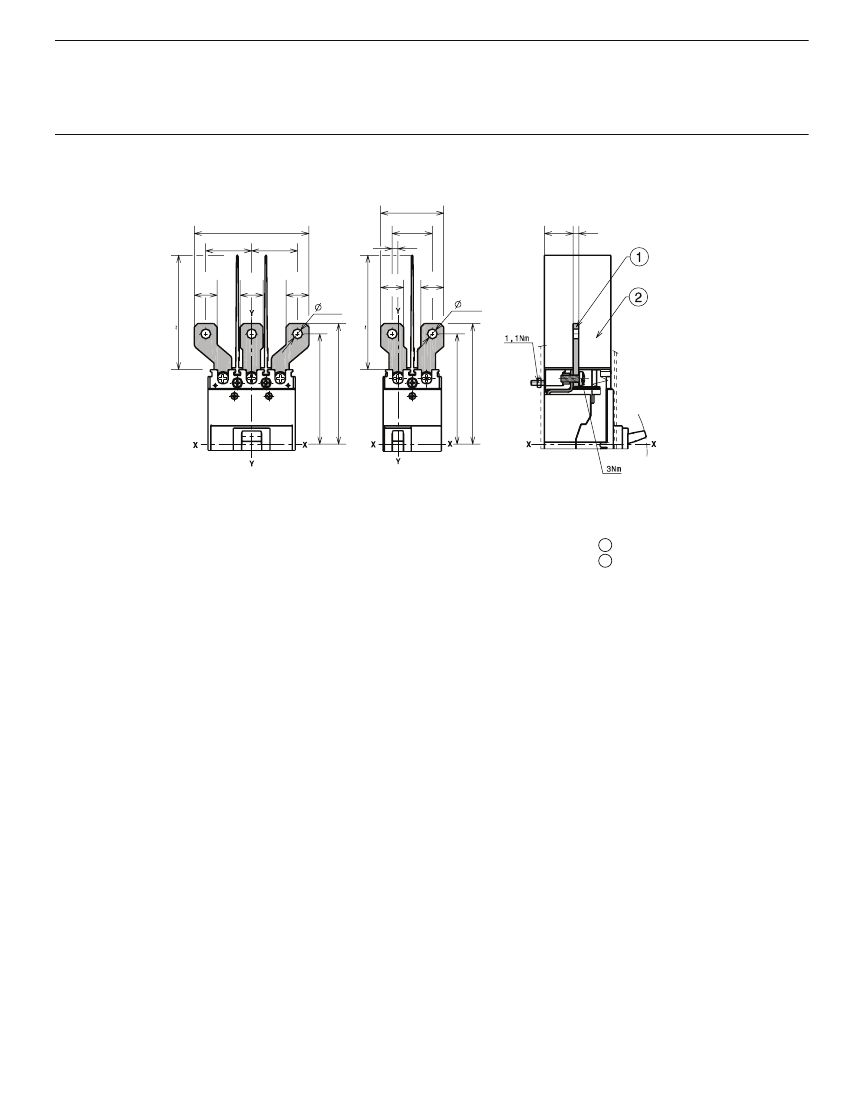

Caption
1 Front extended spread terminals
2 100mm insulating barriers
between the terminals
(compulsory) supplied
4.14
105.25
UL FORMULA Molded Case Circuit Breakers - 6.5
Approximate dimensions
A1 - Circuit breaker and terminals
FCCuAl 4-1 AWG Terminals
3.00
76.2
1.38
35
0.41
10.5
2.85
72.5
3 pole
2.25
57.25
3 pole
1.38
35
1.97
50
2.56
65
2.56
65
1.97
50
1.00
25.4
2.00
50.8
1-2 pole
50.8
2.25
57.25
1-2 pole
2.17
55
A [mm/in]
69/2.72
Without flange
69/2.72
61*/2.40*
61*/2.40*
B [mm/in]
33/1.30
58/2.28
33/1.30
58/2.28
C [mm/in]
66/2.60
91/3.58
66/2.60
91/3.58
1 POLE
2 POLE
1 POLE
2 POLE
1.38
35
1.38
35
* Distance only possible with insulation plate max 1mm / 0.04in thick
2.17
55

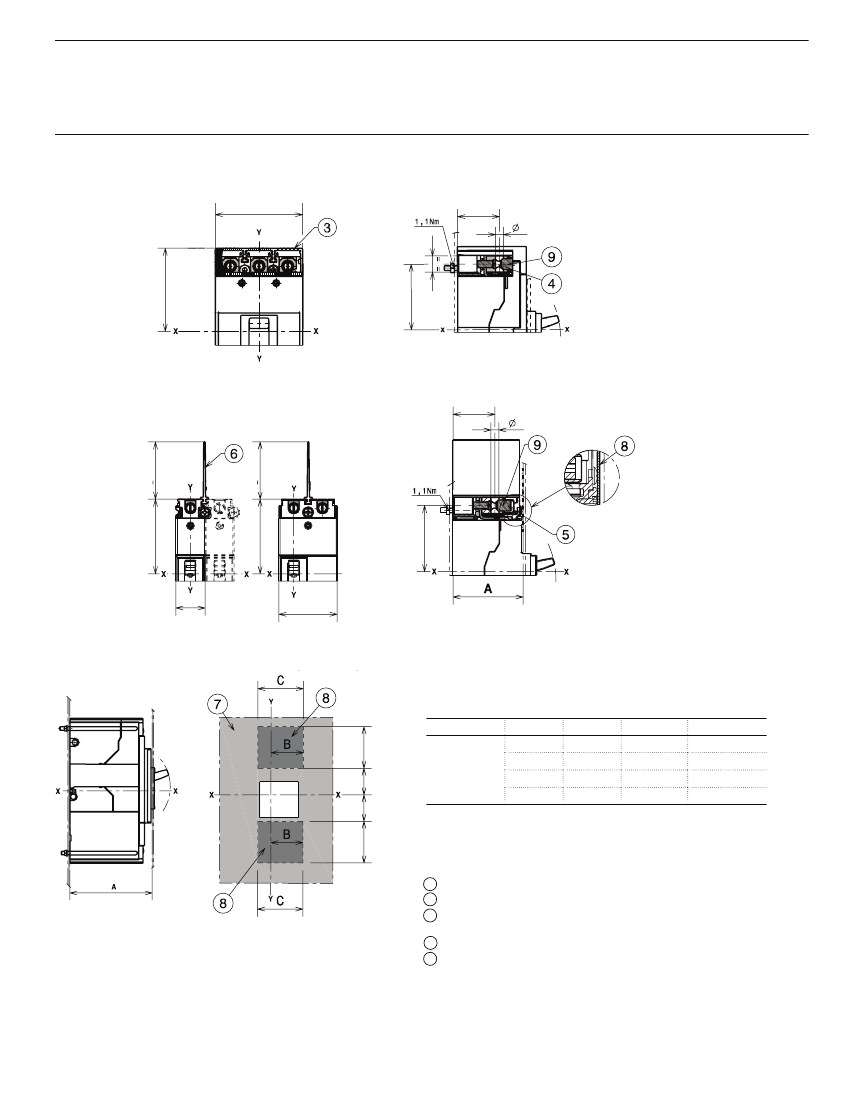

Caption
3 Bottom terminal covers with IP40 degree of protection (compulsory)
4 FCCuAl 4-1 AWG terminals
6 50mm insulating barriers between the terminals (compulsory) not supplied
with FCCuAl terminals kit, but with the circuit breaker in base version
7 Compartment door drilling template and fixing insulation (provided by
customer)
8 Compulsory internal 1 pole -
2 pole insulation plates (provided by customer)
1-2 pole
1-2 pole
6.6 - UL FORMULA Molded Case Circuit Breakers
Approximate dimensions
A1 - Circuit breaker and terminals
FCCuAl 14 - 2 AWG Terminals
3.00
76.2
0.55
14
1.44
36.5
0.28
7
2.85
72.5
3 pole
2.25
57.25
3 pole
1.44
36.5
0.28
7
1.97
50
2.56
65
1.97
50
1.00
25.4
2.00
50.8
1-2 pole
50.8
2.25
57.25
2.56
65
1-2 pole
2.17
55
A [mm/in] B [mm/in]
69/2.72
33/1.30
Without flange
69/2.72
61*/2.40*
61*/2.40*
58/2.28
33/1.30
58/2.28
C [mm/in]
66/2.60
91/3.58
66/2.60
91/3.58
1 POLE
2 POLE
1 POLE
2 POLE
1.38
35
1.38
35
* Distance only possible with insulation plate max 1mm/0.039in thick
2.17
55
Caption
3 Bottom terminal covers with IP40 degree of protection (compulsory)
5 FCCuAl 14-2 AWG terminals
6 50mm insulating barriers between the terminals (compulsory) not supplied with
FCCuAl terminals kit, but with the circuit breaker in base version
7 Compartment door drilling template and fixing insulation (provided by customer)
8 Compulsory internal 1 pole - 2 pole insulation plates (provided by customer)
