DBCIDCB3D66AG1 Overview

Board Connector, 66 Contact(s), 2 Row(s), Female, Straight, 0.1 inch Pitch, Solder Terminal, Black Insulator, Plug

DBCIDCB3D66AG1 Parametric

Parameter NameAttribute value
Is it Rohs certified?conform to
Objectid304357621
Reach Compliance Codeunknown
ECCN codeEAR99
body width0.2 inch
subject depth0.205 inch
body length3.3 inch
Body/casing typePLUG
Connector typeBOARD CONNECTOR
Contact to complete cooperationAU
Contact point genderFEMALE
Contact materialBRASS
contact modeRECTANGULAR
Contact resistance30 mΩ
Contact styleSQ PIN-SKT
Dielectric withstand voltage500VAC V
Insulation resistance3000000000 Ω
Insulator colorBLACK
insulator materialGLASS FILLED POLYBUTYLENE TEREPHTHALATE
Manufacturer's serial numberB3
Plug contact pitch0.1 inch
Match contact row spacing0.1 inch
Installation methodSTRAIGHT
Installation typeBOARD
Number of connectorsONE
PCB row number2
Number of rows loaded2
Maximum operating temperature105 °C
Minimum operating temperature-40 °C
PCB contact patternRECTANGULAR
PCB contact row spacing2.54 mm
Plating thicknessFLASH inch
Rated current (signal)1 A
GuidelineUL
reliabilityCOMMERCIAL
Terminal length0.138 inch
Terminal pitch2.54 mm
Termination typeSOLDER
Total number of contacts66
FEMALE HEADERS
Industry compatible
Competitively priced
Single or dual Row
No. of contacts 02-80
Gold plated contacts

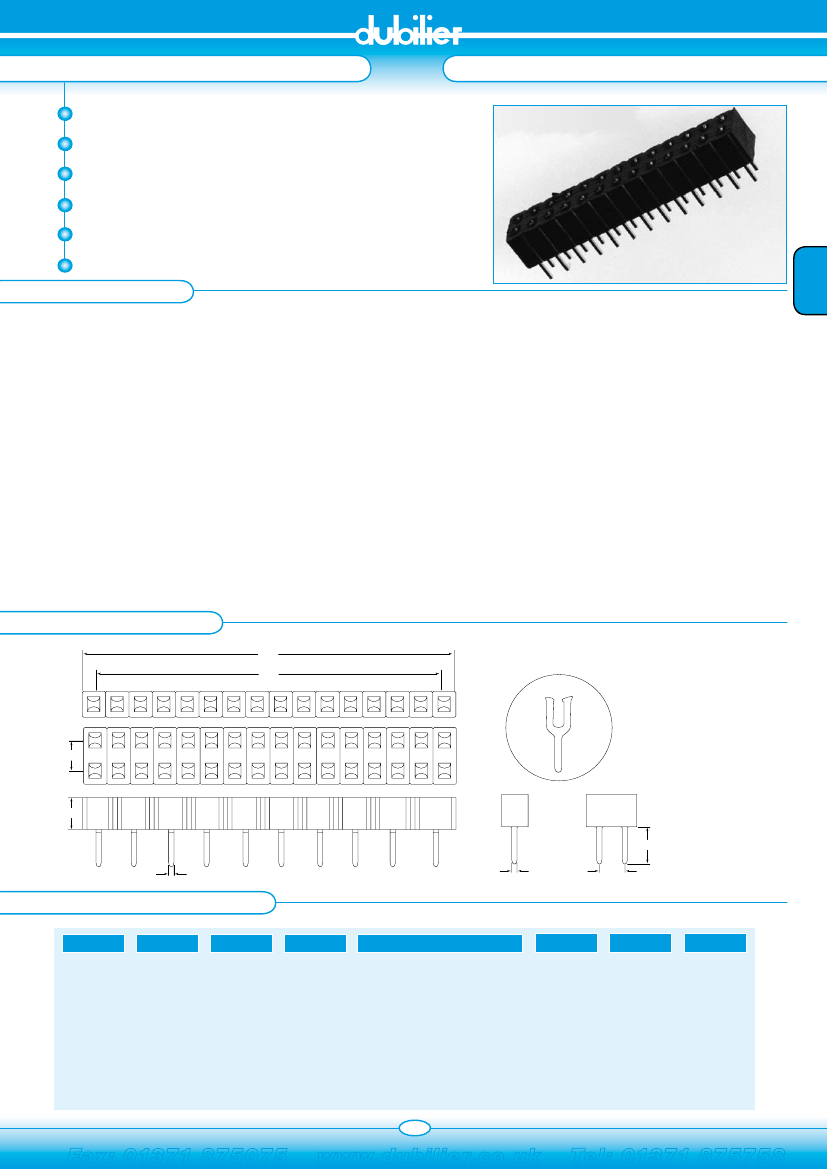

FEMALE HEADER STRAIGHT - 5.2mm PROFILE
SECTION 8
2.54mm pitch
SPECIFICATION
Material & Finish
Contact Material:
Insulator Material:
Current Rating:
Brass
PBT & Glass-Fibre Reinforced UL-94V-0
1 A DC
30M Ω Max
A
A
A
B
B
Contact Resistance:
Insulator Resistance:
Dielectric Withstanding
Voltage:
B
3000M Ω Min
A
B
500V AC for One Minute
-40°C to + 105°C
Operating Temperature:
OUTLINE DRAWING
2.54
2.54
2.54
A
B
A = 2.54mm x N° of Contacts
B = (2.54mm x N° of Contacts) -1
2.54
5.2
5.2
5.2
2.54
0.45
0.45
0.45
0.55
0.55
0.55
3.5
3.5
2.54
2.54
3.5
2.54
ORDERING INFORMATION
5.2
DBC
Dubilier
Connectors
IDC
IDC
Connector
0.45
B3
Series
S
Nº of Rows
S = Single Row
D = Dual Row
04
Nº of Contacts/per row
02=2way
Thro to
50=50way
A
Contact Material
G
3.5
Contact Plating
2.54
G= Gold Flash
1
Colour
1=Black
0.55
A=Brass
5.2
3.5
0.45
0.55
2.54
197
Fax: 01371 875075
www.dubilier.co.uk
Tel: 01371 875758
