LS-508A-CS datasheet, PDF - EEWORLD Datasheet

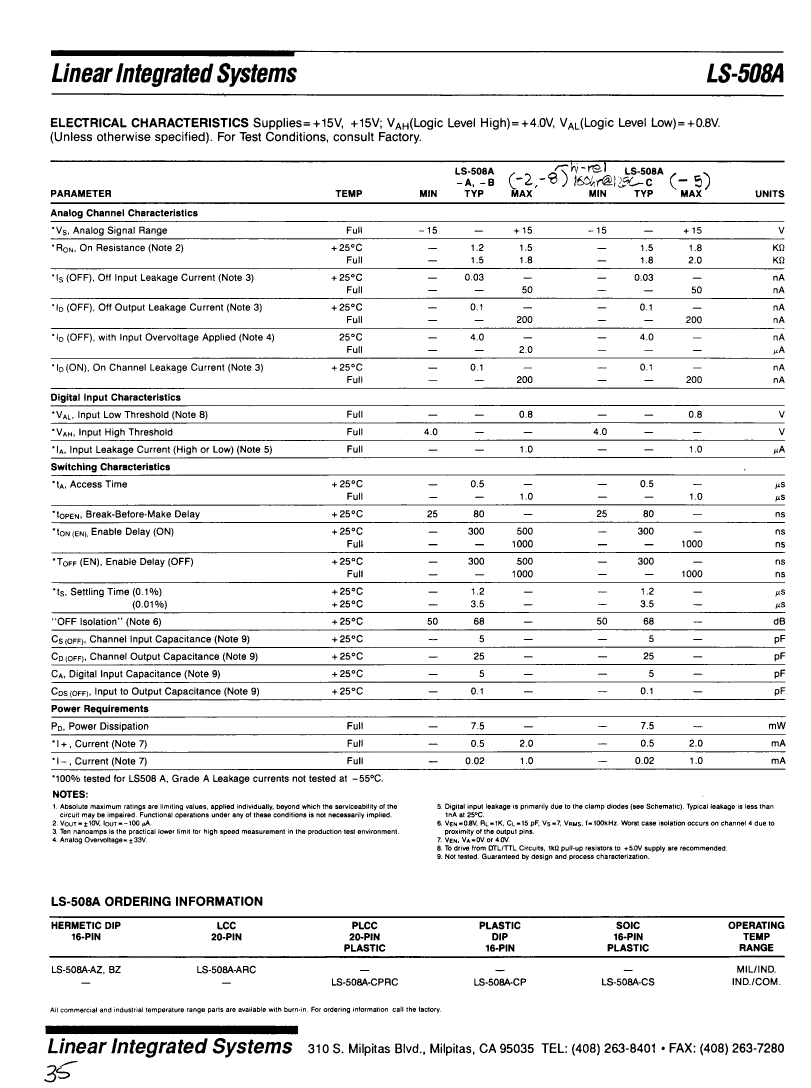

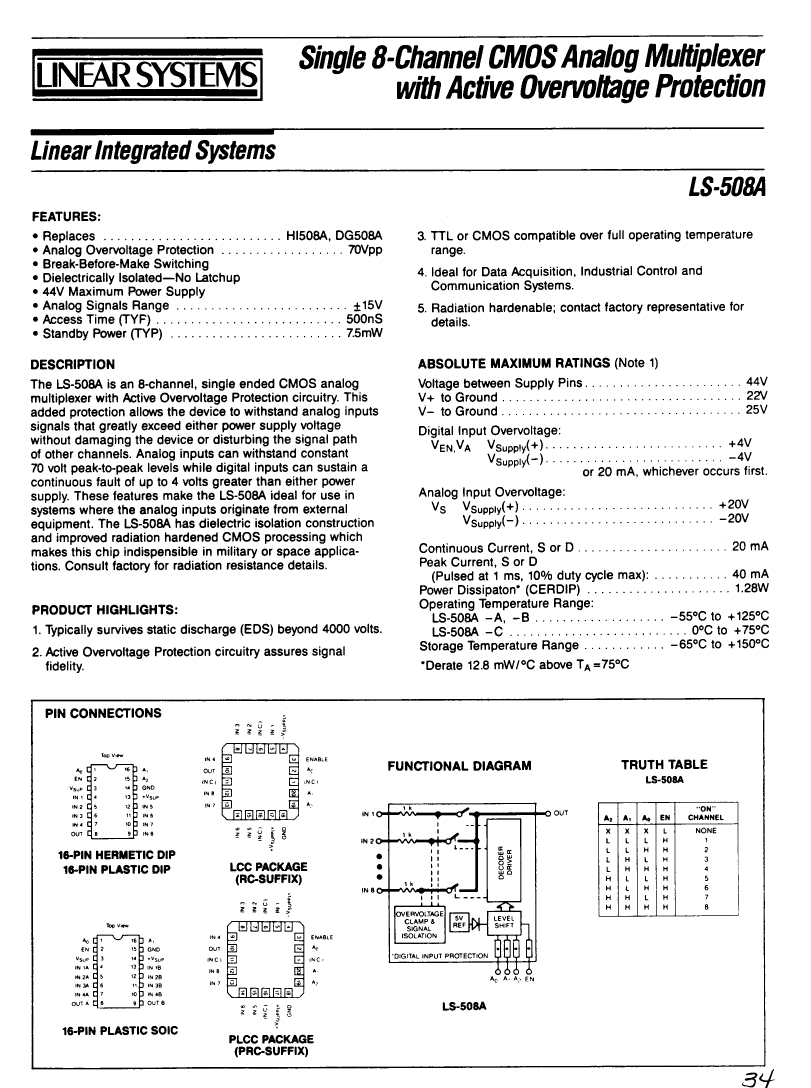

LS-508A-CS: DescriptionSingle-Ended Multiplexer, 1 Func, 8 Channel, CMOS, PDSO16, PLASTIC, SOIC-16; CategoryAnalog mixed-signal IC The signal circuit; File Size200KB，2 Pages; ManufacturerLinear Integrated Systems

Download Datasheet Parametric Compare View All

LS-508A-CS Overview

Single-Ended Multiplexer, 1 Func, 8 Channel, CMOS, PDSO16, PLASTIC, SOIC-16

Parameter Name	Attribute value
Is it Rohs certified?	incompatible
Objectid	1404859130
Parts packaging code	SOIC
package instruction	SOP, SOP16,.25
Contacts	16
Reach Compliance Code	compliant
Other features	OVERVOLTAGE PROTECTION
Analog Integrated Circuits - Other Types	SINGLE-ENDED MULTIPLEXER
JESD-30 code	R-PDSO-G16
Nominal Negative Supply Voltage (Vsup)	-15 V
Number of channels	8
Number of functions	1
Number of terminals	16
Nominal off-state isolation	68 dB
Maximum on-state resistance (Ron)	1800 Ω
Maximum operating temperature	75 °C
Minimum operating temperature
Package body material	PLASTIC/EPOXY
encapsulated code	SOP
Encapsulate equivalent code	SOP16,.25
Package shape	RECTANGULAR
Package form	SMALL OUTLINE
power supply	+-15 V
Certification status	Not Qualified
Maximum signal current	0.02 A
Maximum supply current (Isup)	2 mA
Nominal supply voltage (Vsup)	15 V
surface mount	YES
Maximum disconnect time	1000 ns
Maximum connection time	1000 ns
switch	BREAK-BEFORE-MAKE
technology	CMOS
Temperature level	COMMERCIAL EXTENDED
Terminal form	GULL WING
Terminal pitch	1.27 mm
Terminal location	DUAL

	LS-508A-CS	LS-508A-AZ
Description	Single-Ended Multiplexer, 1 Func, 8 Channel, CMOS, PDSO16, PLASTIC, SOIC-16	Single-Ended Multiplexer, 1 Func, 8 Channel, CMOS, CDIP16, HERMATIC SEALED, DIP-16
Is it Rohs certified?	incompatible	incompatible
Objectid	1404859130	1404859126
Parts packaging code	SOIC	DIP
package instruction	SOP, SOP16,.25	DIP, DIP16,.3
Contacts	16	16
Reach Compliance Code	compliant	compliant
Other features	OVERVOLTAGE PROTECTION	OVERVOLTAGE PROTECTION
Analog Integrated Circuits - Other Types	SINGLE-ENDED MULTIPLEXER	SINGLE-ENDED MULTIPLEXER
JESD-30 code	R-PDSO-G16	R-GDIP-T16
Nominal Negative Supply Voltage (Vsup)	-15 V	-15 V
Number of channels	8	8
Number of functions	1	1
Number of terminals	16	16
Nominal off-state isolation	68 dB	68 dB
Maximum on-state resistance (Ron)	1800 Ω	1500 Ω
Maximum operating temperature	75 °C	125 °C
Package body material	PLASTIC/EPOXY	CERAMIC, GLASS-SEALED
encapsulated code	SOP	DIP
Encapsulate equivalent code	SOP16,.25	DIP16,.3
Package shape	RECTANGULAR	RECTANGULAR
Package form	SMALL OUTLINE	IN-LINE
power supply	+-15 V	+-15 V
Certification status	Not Qualified	Not Qualified
Maximum signal current	0.02 A	0.02 A
Maximum supply current (Isup)	2 mA	2 mA
Nominal supply voltage (Vsup)	15 V	15 V
surface mount	YES	NO
Maximum disconnect time	1000 ns	500 ns
Maximum connection time	1000 ns	500 ns
switch	BREAK-BEFORE-MAKE	BREAK-BEFORE-MAKE
technology	CMOS	CMOS
Temperature level	COMMERCIAL EXTENDED	MILITARY
Terminal form	GULL WING	THROUGH-HOLE
Terminal pitch	1.27 mm	2.54 mm
Terminal location	DUAL	DUAL
