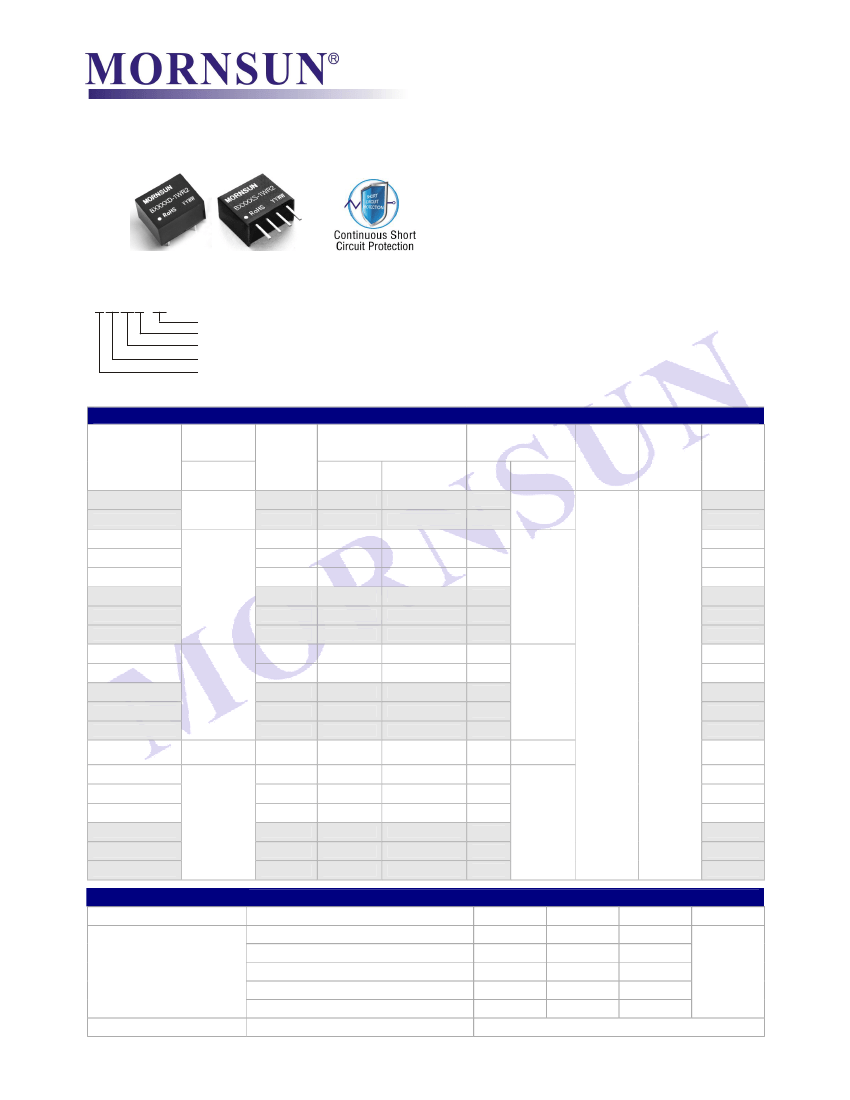

B_S-1WR2 & B_D-1WR2 Series
1W, FIXED INPUT, ISOLATED & UNREGULATED
SINGLE OUTPUT DC-DC CONVERTER
PRODUCT FEATURES
●Efficiency
up to 82%
●Miniature
SIP/DIP Package
●1500VDC
Isolation
●Operating
Temperature Range:
-40°C ~ +105°C
●No
External Component Required
●PCB
Mounting
●Industry
Standard Pinout
APPLICATIONS
The B_S-1WR2 & B_D-1WR2 Series are designed for
application where isolated output is required from a distributed
power system.
These products apply to where:
1)
2)
Input voltage rang :±10%Vin;
1.5KVDC input and output isolation;
Patent Protectied RoHS
PART NUMBER SYSTEM
B0505S-1WR2
Rated Power
Package
Output Voltage
Input Voltage
Product Series
3) Regulated and low ripple noise is not required.
Such as: digital circuits, low frequency analog circuits, and
relay drive circuit.
SELECTION GUIDE
Model
Input
Voltage(VDC)
Nominal
(Range)
B0303S/D-1WR2
B0305S/D-1WR2
B0503S/D-1WR2
B0505S/D-1WR2
B0509S/D-1WR2
B0512S/D-1WR2
B0515S/D-1WR2
B0524S/D-1WR2
B1203S/D-1WR2
B1205S/D-1WR2
B1209S/D-1WR2
B1212S/D-1WR2
B1215S/D-1WR2
B1515S/D-1WR2
B2403S/D-1WR2
B2405S/D-1WR2
B2409S/D-1WR2
B2412S/D-1WR2
B2415S/D-1WR2
B2424S/D-1WR2
24
(21.6-26.4)
15
(13.5-16.5)
12
(10.8-13.2)
5
(4.5-5.5)
3.3
(2.97-3.63)
Output
Voltage
(VDC)
3.3
5
3.3
5
9
12
15
24
3.3
5
9
12
15
15
3.3
5
9
12
15
24
Output Current (mA)
Max.
303
200
303
200
111
84
67
42
303
200
111
83
67
67
303
200
111
84
67
42
Min.
30
20
30
20
12
9
7
4
30
20
12
9
7
7
30
20
12
9
7
4
Input Current
(mA)(Typ.)
@Max.
Load
405
380
263
250
250
248
248
248
111
104
104
103
103
82
55
52
52
50
50
50
7
10
15
15
220
20
@No Load
25
Reflected
Ripple
Current
(mA,Typ.)
Max.
Efficiency
Capacitive
(%, Typ.)
Load(µF) @Max. Load
75
80
76
80
80
81
81
81
76
80
80
81
80
81
76
80
80
81
82
82
INPUT SPECIFICATIONS
Item
Test Conditions
3.3VDC Input Models
5VDC Input Models
Input Surge Voltage
(1sec. max.)
12VDC Input Models
15VDC Input Models
24VDC Input Models
Input Filter
The copyright and authority for the interpretation of the products are reserved by
MORNSUN
Min.
-0.7
-0.7
-0.7
-0.7
-0.7
Typ.
--
--
--
--
--
Capacitor
Max.
5
9
18
21
30
Unit
VDC
B_S-1WR2&B_D-1WR2
2013.06.18-A/2
Page 1 of 5

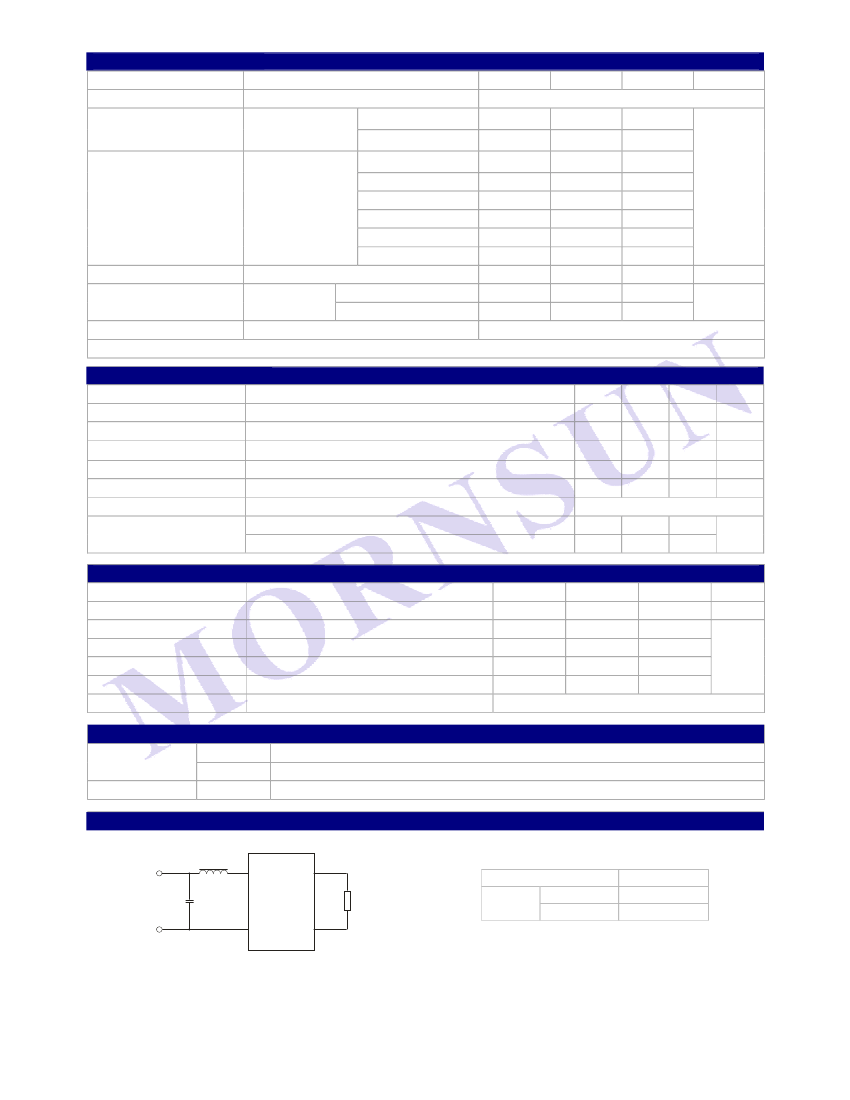

OUTPUT SPECIFICATIONS
Item
Output Voltage Accuracy
Line Voltage Regulation
For Vin change of
±1%
3.3V output
Others
3.3V output
5V output
Load Regulation
10% to 100% load
9V output
12V output
15V output
24V output
Temperature drift coefficient
Ripple & Noise*
Short Circuit Protection
100% load
20MHz
Bandwidth
Output Voltage
≤12V
Others
--
--
--
--
--
--
--
--
--
--
--
Test Conditions
Min.
Typ.
Max.
Unit
See tolerance envelope curve
--
--
18
12
8
7
6
5
--
30
60
±1.5
±1.2
--
--
--
--
--
--
±0.03
--
--
%/°C
mVp-p
%
Continuous, automatic recovery
Note:* Ripple and noise tested with
“parallel
cable” method. See detailed operation instructions at
DC-DC Application Notes.
COMMON SPECIFICATIONS
Item
Isolation Voltage
Isolation Resistance
Isolation Capacitance
Switching Frequency
MTBF
Case Material
Weight
B_S-1WR2 Series
B_D-1WR2 Series
--
--
Test Conditions
Input-Output, Tested for 1 minute and leakage current less than 1 mA
Input-Output, Test at 500VDC
Input-Output,100KHz/0.1V
Full load, nominal input
MIL-HDBK-217F@25℃
Min.
1500
1000
--
--
3500
Typ.
--
--
20
100
--
Max.
--
--
--
300
--
Unit
VDC
MΩ
pF
KHz
K hours
Plastic(UL94-V0)
1.2
1.8
--
--
g
ENVIRONMENTAL SPECIFICATIONS
Item
Storage Humidity
Operating Temperature
Storage Temperature
Temperature rise
Lead Temperature
Cooling
Ta=25°C,100% Load
1.5mm from case for 10 seconds
Test Conditions
Non condensing
Power derating (above 85℃ see Figure 2)
Min.
--
-40
-55
--
--
Typ.
--
--
--
25
--
Max.
95
105
125
--
300
°C
Unit
%
Free air convection
EMC SPECIFICATIONS
EMI
EMS
CE
RE
ESD
CISPR22/EN55022
CISPR22/EN55022
IEC/EN61000-4-2
CLASS B（Recommended Circuit Refer to Figure1）
CLASS B（Recommended Circuit Refer to Figure1）
Contact
±8KV
perf. Criteria B
EMC RECOMMENDED CIRCUIT
EMI Typical Recommended Circuit（CLASS B）:
L DM
Vin
Vin
+Vo
Recommended typical circuit parameters:
Vin(V)
L O AD
3.3/5/12/15/24
4.7µF /50V
6.8µH
C0
G ND
EU T
G ND
0V
EMI
C0
LDM
(Figure 1)
The copyright and authority for the interpretation of the products are reserved by
MORNSUN
B_S-1WR2&B_D-1WR2
2013.06.18-A/2
Page 2 of 5

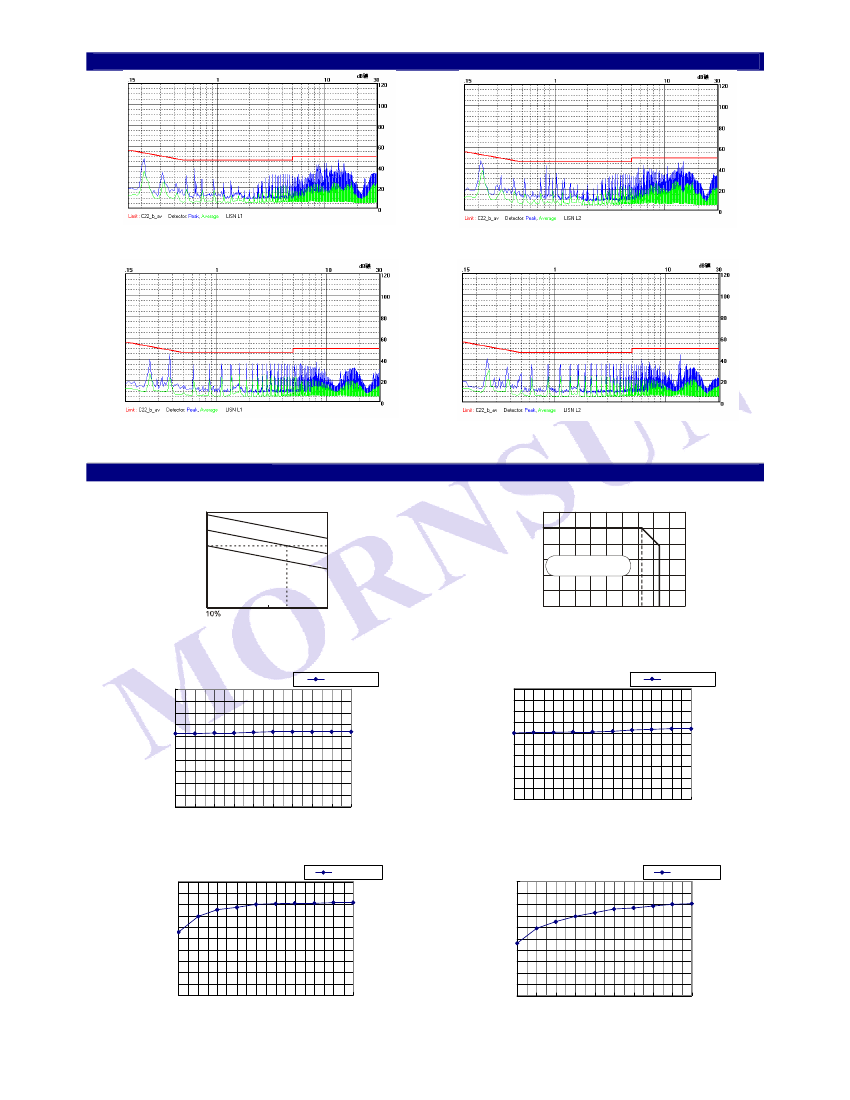

EMI TEST WAVEFORM (RECOMMENDED CIRCUIT FINGURE 1)
B0505S-1WR2
CE(Class B, Positive line)
B0505S-1WR2
CE(Class B , Negative line)
B0512D-1WR2
CE(Class B, Positive line)
B0512D-1WR2
CE(Class B , Negative line)
PRODUCT TYPICAL CURVE
Tolerance Envelope Curve
Output Power P ercent(% )
+10%
+5%
Ra ted
Output
Volta ge
Output Voltag e
Accuracy
(%)
12 0
10 0
80
60
S afe Operatin g A rea
40
20
0
-40
0
40
85 10 5
Ambient Te mp. (
℃
)
Temperature Derating Curve
Typi c
al
Load
L ine
+2.5%
-2.5%
-7.5%
50% 70%
Output Curren t P ercent (%)
(Nominal Input Voltage)
10 0%
(Figure 2)
100
95
Efficiency VS Input Voltage curve
B0505S-1WR2
(Full Load)
Efficiency(%)
75
70
65
60
55
50
4.6 4.7 4.8 4.9
5
5.1 5.2 5.3 5.4 5.5
Efficiency(%)
90
85
80
100
95
90
85
80
75
70
65
60
55
50
Efficiency VS Input Voltage curve
B2415S-1WR2
(Full Load)
22
22.5
23
23.5
24
24.5
25
25.5
26
Input Voltage(V)
Input Voltage(V)
Efficiency VS Output Load curve
(Vin=Vin-nominal)
B0505S-1WR2
100
90
80
70
60
50
40
30
20
10
0
10
20
30 40 50 60 70 80
Total Output Current (%)
90 100
Efficiency VS Output Load curve
(Vin=Vin-nominal)
B2415S-1WR2
100
90
80
70
60
50
40
30
20
10
0
10
20
30 40 50 60 70 80
Total Output Current (%)
90 100
Efficiency(%)
The copyright and authority for the interpretation of the products are reserved by
MORNSUN
Efficiency(%)
B_S-1WR2&B_D-1WR2
2013.06.18-A/2
26.4
Page 3 of 5

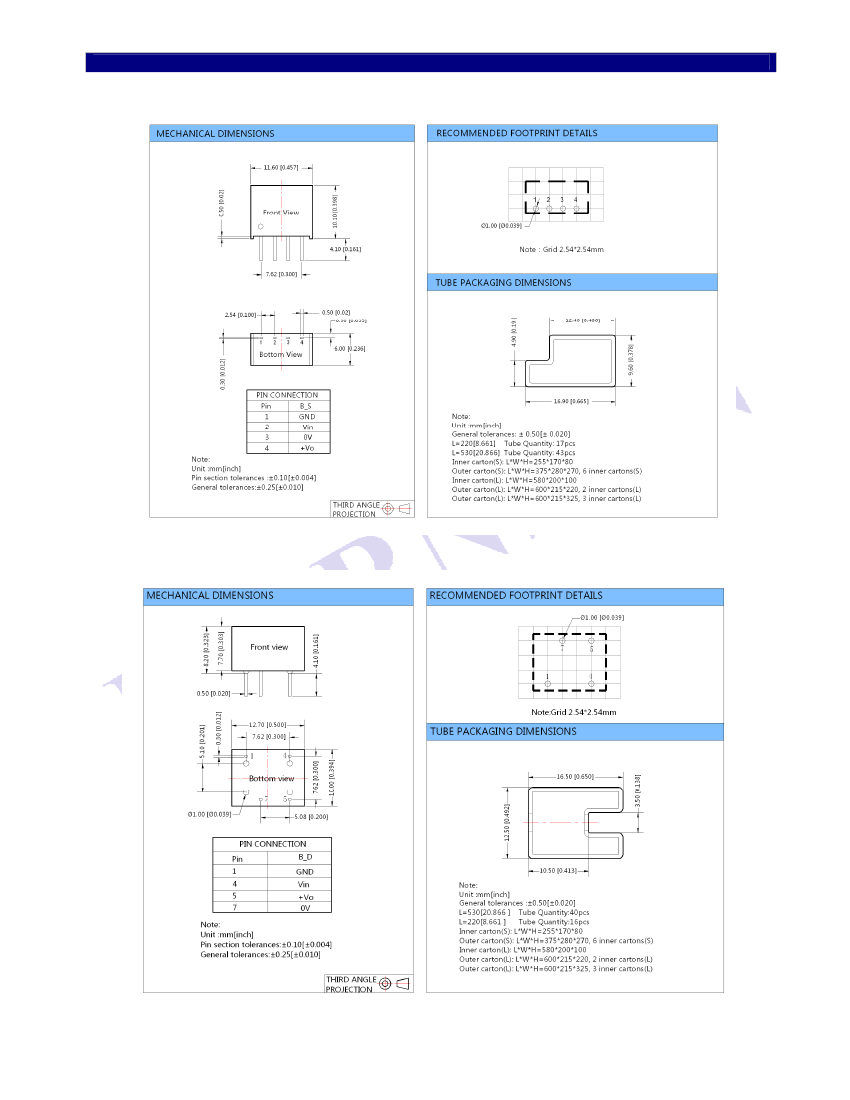

DIMENSIONS, RECOMMENDED FOOTPRINT & PACKAGING
B_S-1WR2
B_D-1WR2
The copyright and authority for the interpretation of the products are reserved by
MORNSUN
B_S-1WR2&B_D-1WR2
2013.06.18-A/2
Page 4 of 5

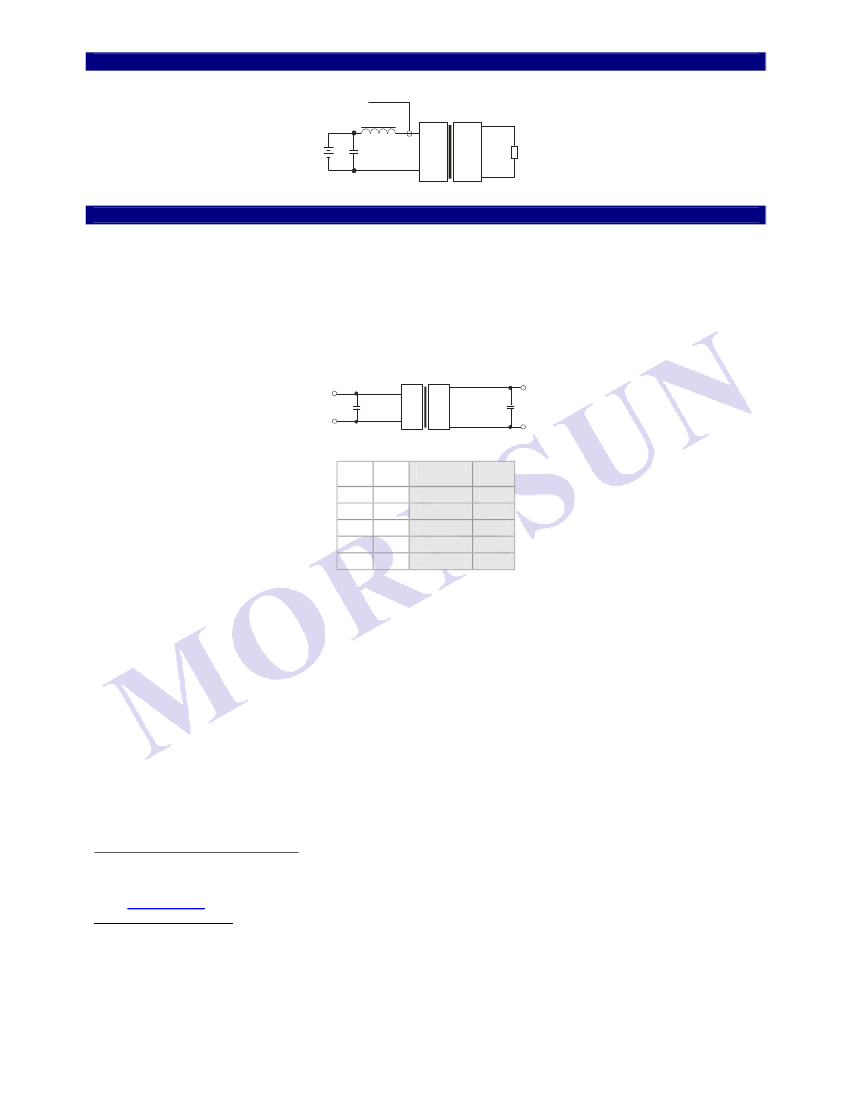

TEST CONFIGURATIONS
Input Reflected-Ripple Current Test Setup
Input reflected-ripple current is measured with an inductor Lin and Capacitor Cin to simulate source impedance.
Oscilloscope
Lin
Cin
Current
Probe
DC DC
Load
Lin(4.7µH)
Cin(220µF, ESR < 1.0Ω at 100 KHz)
DESIGN CONSIDERATIONS
1) Requirement for output load
To ensure this module can operate efficiently and reliably, the minimum output load could not be less than 10% of the full load. If the actual
output power is very small, please connect a resistor to the output in parallel to increase the load.
2) Overload Protection
Under normal operating conditions, the output circuit of these products have not overload protection. The simplest method is to add a breaker
circuit in the circuit.
3) Recommended circuit
If you want to further decrease the input/output ripple, an capacitor filtering network may be connected to the input and output ends of the
DC/DC converter, refer to Figure 3.
It should also be noted that the capacitance of the capacitor must be proper. If the capacitance is too large, a startup problem might arise.For
ensuring every channel of output can provide a safe and reliable operation , the recommended capacitance of the capacitor refer to Table 1.
Vin
Cin
+Vo
DC DC
Cout
GND
0V
(Figure 3)
EXTERNAL CAPACITOR TABLE (Table 1)
Vin
Cin
Vo
Cout
(VDC) (µF)
(VDC)
(µF)
3.3/5
4.7
3.3/5
10
12
15
24
2.2
1
1
9
12
15
4.7
2.2
1
--
--
24
0.47
It’s not recommended to connect any external capacitor in the application field with less than 0.5 watt output.
4) The input and the output of the product are recommended to be connected to ceramic capacitor or electrolytic capacitor.
Using tantalum capacitor may cause risk of failure
5) It is not recommended to increase the output power capability by connecting two or more converters in parallel. The product is
not hot-swappable
Note:
1. Operation under minimum load will not damage the converter; However, they may not meet all specifications.
2. Max. Capacitive Load is tested at nominal input voltage and full load.
3. Unless otherwise noted, All specifications are measured at Ta=25°C, humidity<75%, nominal input voltage and rated output load.
4. In this datasheet, all test methods are based on our corporate standards.
5. All characteristics are for listed models, and non-standard models may perform differently.Please contact our technical support for more detail.
6. Please contact our technical support for any specific requirement.
7. Specifications of this product are subject to changes without prior notice.
MORNSUN Science & Technology Co.,Ltd.
Address: No. 5, Kehui St. 1, Kehui development center, Science Ave., Guangzhou Science City, Luogang district, Guangzhou,P.R.China.
Tel: 86-20-38601850
Fax:86-20-38601272
E-mail:
info@mornsun.cn
Http://www.mornsun-power.com
The copyright and authority for the interpretation of the products are reserved by
MORNSUN
B_S-1WR2&B_D-1WR2
2013.06.18-A/2
Page 5 of 5
