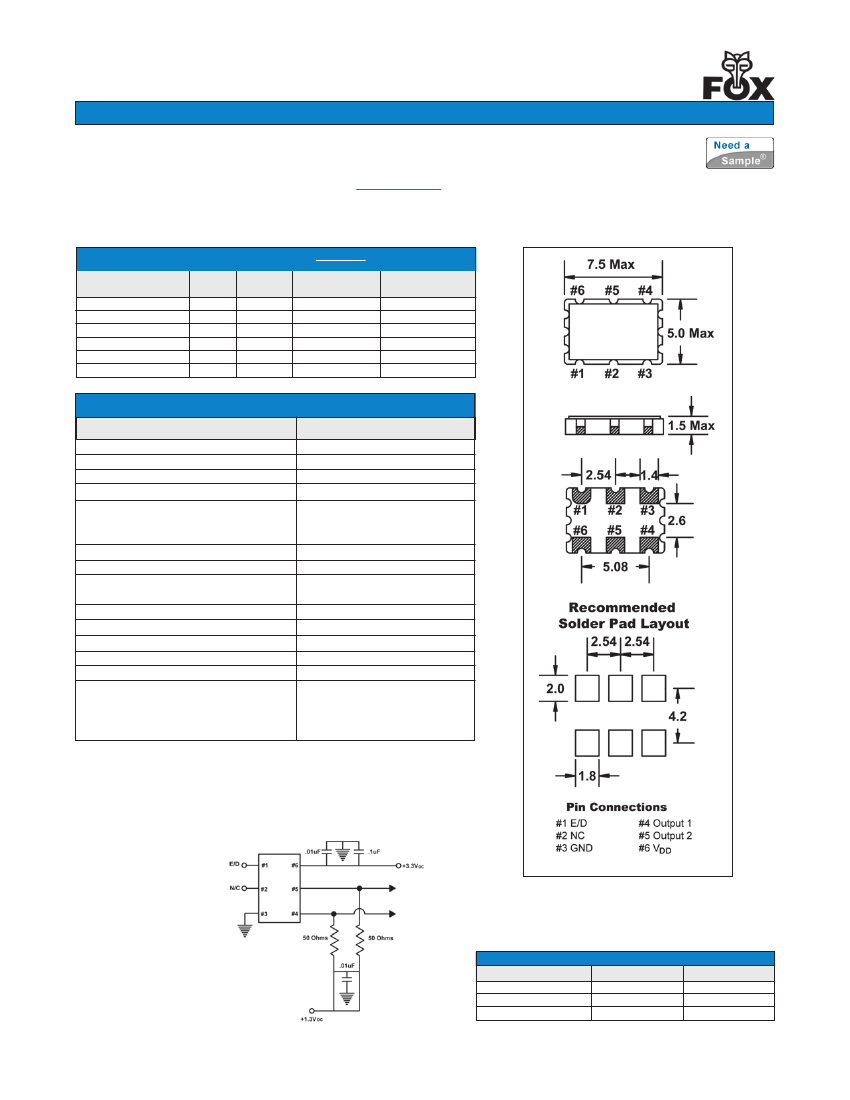

lVE-PEcl 7x5mm 2.5V Oscillator
F4620 sERiEs
Page 1 of 2
RoHs compliant / Pb Free
XpressO
®
Equivalent
FXO-PC72
Rev. 3/24/2009
http://www.foxonline.com/need_a_sample.htm
FEAtuREs
•
2.5V Operation
•
•
•
•
LV-PECL Output
Complementary Outputs
Standby Function
Tape and Reel
(2,000 pcs. STD)
Why XpressO?
Lower Cost, Faster Delivery, Low Jitter!
• PARt nuMbER sElEctiOn
Learn More - Internet Required
Part Number
359-Frequency-xxxxx
729-Frequency-xxxxx
360-Frequency-xxxxx
730-Frequency-xxxxx
720-Frequency-xxxxx
731-Frequency-xxxxx
Model
Number
F4620
F4620R
F4625
F4625R
F4626
F4626R
Operating
Frequency
Stability
1
Temperature (ºC)
-10 ~ +70
±100PPM
-40 ~ +85
±100PPM
-10 ~ +70
±50PPM
-40 ~ +85
±50PPM
-10 ~ +70
±25PPM*
-40 ~ +85
±25PPM*
Frequency
Range (MHz)
40.000 ~ 280.000
40.000 ~ 280.000
40.000 ~ 280.000
40.000 ~ 280.000
40.000 ~ 280.000
40.000 ~ 170.000
• ElEctRicAl cHARActERistics
PARAMETERS
Frequency Range (F
o
)
Storage Temperature Range (T
stg
)
Supply Voltage
(V
dd
)
Input Current
(I
dd
)
Output Symmetry (50% Vp-p Level)
40.000 MHz ~ 170.000 MHz
170.000* Mhz ~ 280.000 MHz
Rise Time (T
r
) (20% ~ 80% Vp-p)
Fall Time (T
f
)(80% ~ 20% Vp-p)
Output Voltage
(V
ol
)
(V
oh
)
Standby Current
Output Load
Start-up Time
(T
s
)
Output Disable Time
Output Enable Time
Jitter
12kHz ~ 20MHz
RMS Period
Cycle-to-Cycle
1
MAX
(unless otherwise noted)
40.000 ~ 280.000 MHz
-55ºC ~ +125ºC
2.5V ± 5%
88mA
45% ~ 55%
40% ~ 60%
1nS
1nS
1.195V
1.415 V Min
30µA
See Recommended Circuit
10mS
200nS
10mS
0.3pS Typ.
2.5pS Typ.
20pS Typ.
Inclusive of 25ºC tolerance, operating temperature range, input voltage change, load change, aging,
shock, and vibration. (*Excludes shock and vibration)
2
An internal pullup resistor from pin 1 to pin 6 allows active output if pin 1 is left open.
Note: A 0.01µF bypass capacitor should be placed between
V
dd
(Pin 6) and GND (Pin 3) to
minimize power supply line noise.
Drawing is for reference to critical specifications defined by size measurements.
Certain non-critical visual attributes, such as side castellations, reference pin shape, etc. may vary.
All specifications subject to change without notice.
All dimensions are in millimeters.
• EnAblE / DisAblE FunctiOn
2
OUTPUT (Pin 4)
(Pin 1)
ACTIVE
OPEN
2
'1' Level V
ih
≥
70% V
dd
ACTIVE
'0' Level V
il
≤
30% V
dd
High Z
OUTPUT (Pin 5)
ACTIVE
ACTIVE
High Z
FOXElectronics
5570 Enterprise Parkway Fort Myers, Florida 33905 USA +1.239.693.0099 FAX +1.239.693.1554
http://www.foxonline.com
© 2009 FOX ELECTRONICS | ISO9001:2000 Certified
EMEA
Tel/Fax: +44 .1767.312632 |
Asia
Hong Kong Tel: +852.2854.4285 Fax +852.2854.4282
|
Japan
Tel: +81.3.3374/2079 Fax: +81.3.3374.5221
lVE-PEcl 7x5mm 2.5V Oscillator
F4620 sERiEs
Page 2 of 2
RoHs compliant / Pb Free
Rev. 3/24/2009
http://www.foxonline.com/need_a_sample.htm

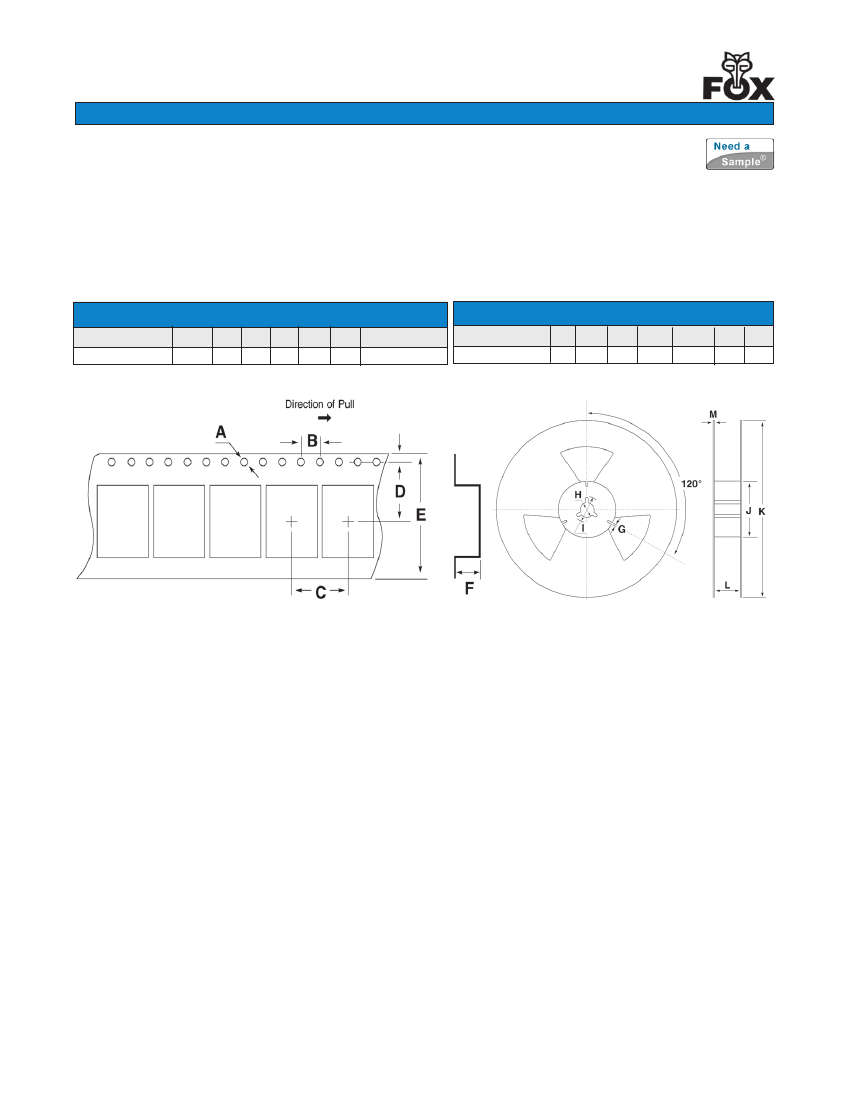

• tAPE sPEciFicAtiOns
(millimeters)
MODEl
F4620 Series
• REEl sPEciFicAtiOns
(millimeters)
G H
i
J
K
l M
2.0
∅13 ∅21 ∅80 ∅255
17.5 2.0
b
c D E
F
STD Reel QTY
MODEl
A
F4620 Series
2,000
∅1.5
4.0 8.0 7.5 16.0 2.15
FOXElectronics
5570 Enterprise Parkway Fort Myers, Florida 33905 USA +1.239.693.0099 FAX +1.239.693.1554
http://www.foxonline.com
© 2009 FOX ELECTRONICS | ISO9001:2000 Certified
EMEA
Tel/Fax: +44 .1767.312632 |
Asia
Hong Kong Tel: +852.2854.4285 Fax +852.2854.4282
|
Japan
Tel: +81.3.3374/2079 Fax: +81.3.3374.5221
