SCA600-CC3V2T datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > Analog mixed-signal IC> The signal circuit> SCA600-CC3V2T

SCA600-CC3V2T: DescriptionAnalog Circuit, Hybrid, PDSO8,; CategoryAnalog mixed-signal IC The signal circuit; File Size198KB，2 Pages; ManufacturerLittelfuse; Websitehttp://www.littelfuse.com

Download Datasheet Parametric View All

SCA600-CC3V2T Overview

Analog Circuit, Hybrid, PDSO8,

SCA600-CC3V2T Parametric

Parameter Name	Attribute value
Is it Rohs certified?	incompatible
Objectid	4000901311
package instruction	SOP, GWDIP8,.45
Reach Compliance Code	unknown
JESD-30 code	R-PDSO-G8
JESD-609 code	e0
Number of terminals	8
Maximum operating temperature	125 °C
Minimum operating temperature	-40 °C
Package body material	PLASTIC/EPOXY
encapsulated code	SOP
Encapsulate equivalent code	GWDIP8,.45
Package shape	RECTANGULAR
Package form	SMALL OUTLINE
power supply	5 V
Certification status	Not Qualified
Nominal supply voltage (Vsup)	5 V
surface mount	YES
technology	HYBRID
Temperature level	AUTOMOTIVE
Terminal surface	Tin/Lead (Sn/Pb)
Terminal form	GULL WING
Terminal pitch	2.54 mm
Terminal location	DUAL

Preview

Download Datasheet

View All

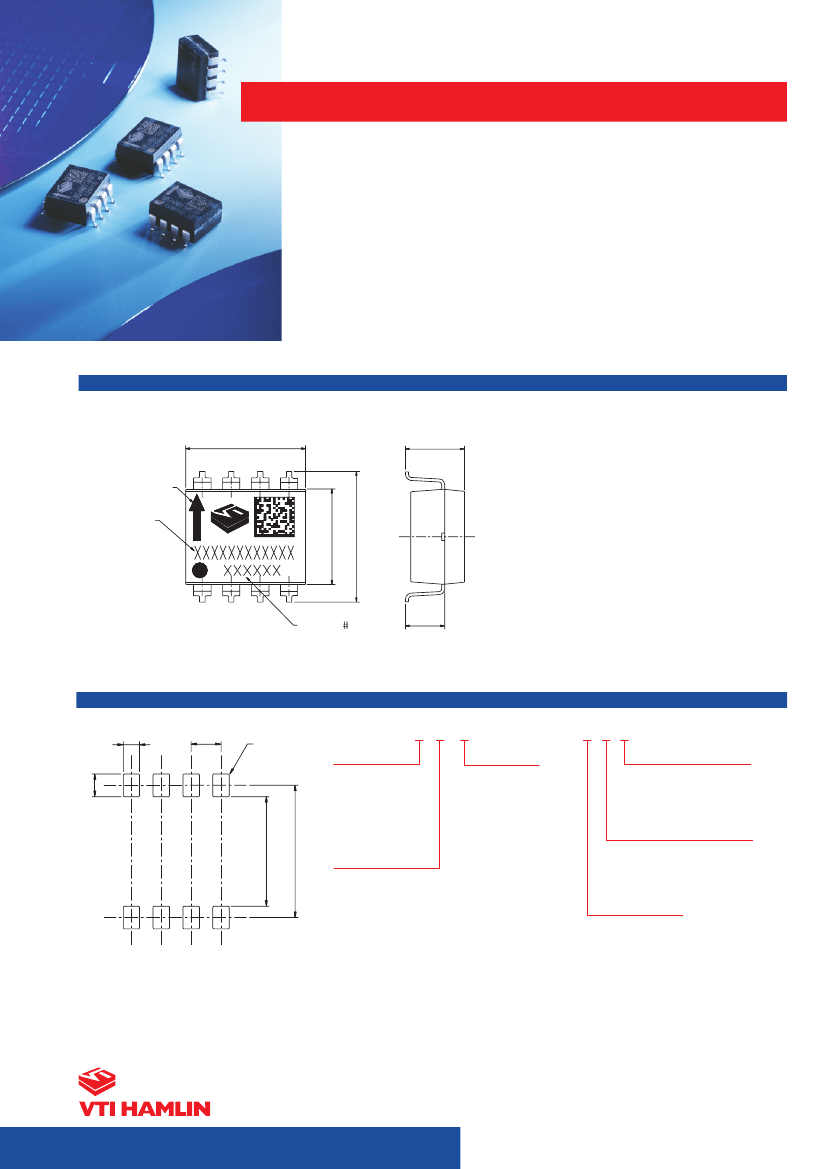

SCA600 Series

Accelerometer Chip

FEATURES

• Available ranges

±1g, ±1.5g, ±1.7g, ±3g

• 8-pin plastic surface mount DIP package

mountable with pick and place machines

• Enhanced failure detection

• Digitally activated electrostatic self test

• Calibration memory parity check

• Continuous connection failure detection

• Bi-directional acceleration measurement

• Controlled frequency response in the sensing

element

• Re-flow solder, process compatible

• Single +5V supply; ratiometric voltage output

in the range 4.75 … 5.25V

BENEFITS

• Exceptional reliability, unprecedented accuracy

and excellent stability over temperature and time

• Outstanding overload and shock durability

• No additional components required

APPLICATIONS

• Acceleration measurement

• Inclination measurement

• Vibration measurement

• Motion measurement

For customised products please contact

VTI HAMLIN

DIMENSIONS

The accelerometer weighs under 1g. The size of the part is approximately (w x h x l) 9 x 5 x 11 mm. Pin pitch is standard 100 mils.

10.54

5.20

SENSING DIRECTION

SERIAL NUMBER

CONNECTION

1, 2, 3, 5 Open or capacitively connected to GND for EMC

(2 (C1) may be used for frequency setting in a different mode)

4 Ground (GND)

6 Self test triggering (ST)

7 Analog output voltage (Vout)

8 Supply voltage (Vdd)

3.45

11.46

8.38

VTI PART

Acceleration in the direction of the arrow will increase the output

voltage.

PCB PAD LAYOUTS

1.39

2.54±0.05

RO. 1 TYP

1.81

PRODUCT CODE KEY

PART NUMBER

ASIC TYPE

C=HML294

SENSITIVITY

1=2000 mV/g

2=1500 mV/g

3=1333 mV/g

4=1000 mV/g

5=750 mV/g

8=1200mV/g

C=150mV/g

D=1575mV/g

E=1666mV/g

F=1471.5mV/g

G=1875mV/g

J=400mV/g

MECHANICAL FEATURE

G= SMD Pins

T= Through Hole

10.96±0.05

SENSING ELEMENT

1= Small 1g; G001BA (XC)

2= Small 1g; 50Hz; G001BB

3= Small 3g; G003BA (XE)

B= Inclinometer 0.5g; G001BC (XB)

C=Small 3g; G003BC; 115Hz

D=Small 12g, G012XX (XX)

Standard versions in bold

FREQUENCY RESPONSE

1= 400Hz

2= 1kHz

3= Wide Band

4= External Capacitor

OFFSET

H= Output @ 0g = 2.500V

V= Output @ +1g = 2.500V

VTI Hamlin Oy, P.O. Box 27, FIN-01621 Vantaa, Finland

Phone +358 9 879 181, Fax +358 9 8791 8791, www.vti.fi/vtihome.htm

9.15±0.05
