MX7572SQ12/883B datasheet, PDF

Datasheet> All Categories > Analog mixed-signal IC> converter> MX7572SQ12/883B

MX7572SQ12/883B: DescriptionADC, Successive Approximation, 12-Bit, 1 Func, 1 Channel, Parallel, 8 Bits Access, CMOS, CDIP24, CERDIP-24; CategoryAnalog mixed-signal IC converter; File Size618KB，16 Pages; ManufacturerMaxim; Websitehttps://www.maximintegrated.com/en.html; Related ProductsFound14parts with similar functions to MX7572SQ12/883B

Download Datasheet Parametric Compare View All

MX7572SQ12/883B Overview

ADC, Successive Approximation, 12-Bit, 1 Func, 1 Channel, Parallel, 8 Bits Access, CMOS, CDIP24, CERDIP-24

MX7572SQ12/883B Parametric

Parameter Name	Attribute value
Is it lead-free?	Contains lead
Is it Rohs certified?	incompatible
Maker	Maxim
Parts packaging code	DIP
package instruction	CERDIP-24
Contacts	24
Reach Compliance Code	_compli
ECCN code	3A001.A.2.C
Maximum analog input voltage	5 V
Minimum analog input voltage
Maximum conversion time	13 µs
Converter type	ADC, SUCCESSIVE APPROXIMATION
JESD-30 code	R-GDIP-T24
JESD-609 code	e0
Maximum linear error (EL)	0.024%
Humidity sensitivity level	1
Nominal negative supply voltage	-15 V
Number of analog input channels	1
Number of digits	12
Number of functions	1
Number of terminals	24
Maximum operating temperature	125 °C
Minimum operating temperature	-55 °C
Output bit code	OFFSET BINARY, COMPLEMENTARY OFFSET BINARY
Output format	PARALLEL, 8 BITS
Package body material	CERAMIC, GLASS-SEALED
encapsulated code	DIP
Package shape	RECTANGULAR
Package form	IN-LINE
Peak Reflow Temperature (Celsius)	245
Certification status	Not Qualified
Filter level	MIL-STD-883
Maximum seat height	5.08 mm
Nominal supply voltage	5 V
surface mount	NO
technology	CMOS
Temperature level	MILITARY
Terminal surface	TIN LEAD
Terminal form	THROUGH-HOLE
Terminal pitch	2.54 mm
Terminal location	DUAL
Maximum time at peak reflow temperature	NOT SPECIFIED
width	7.62 mm
Base Number Matches	1

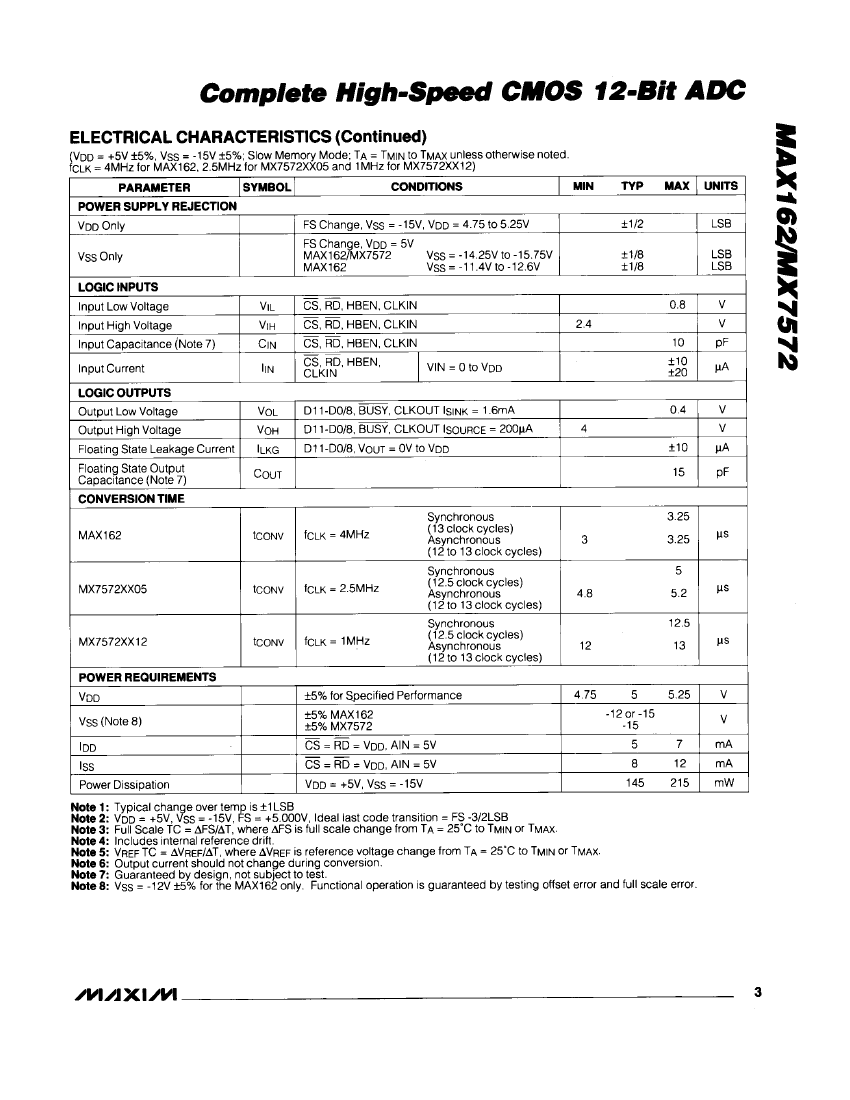

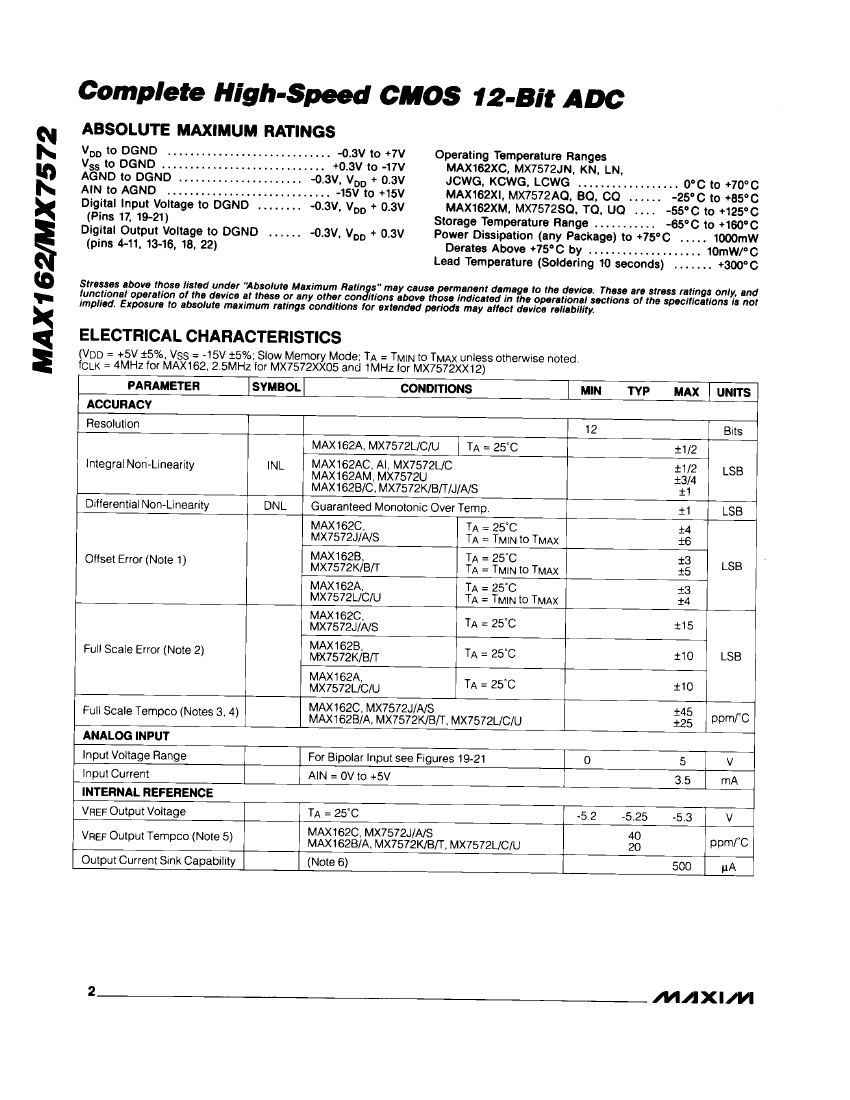

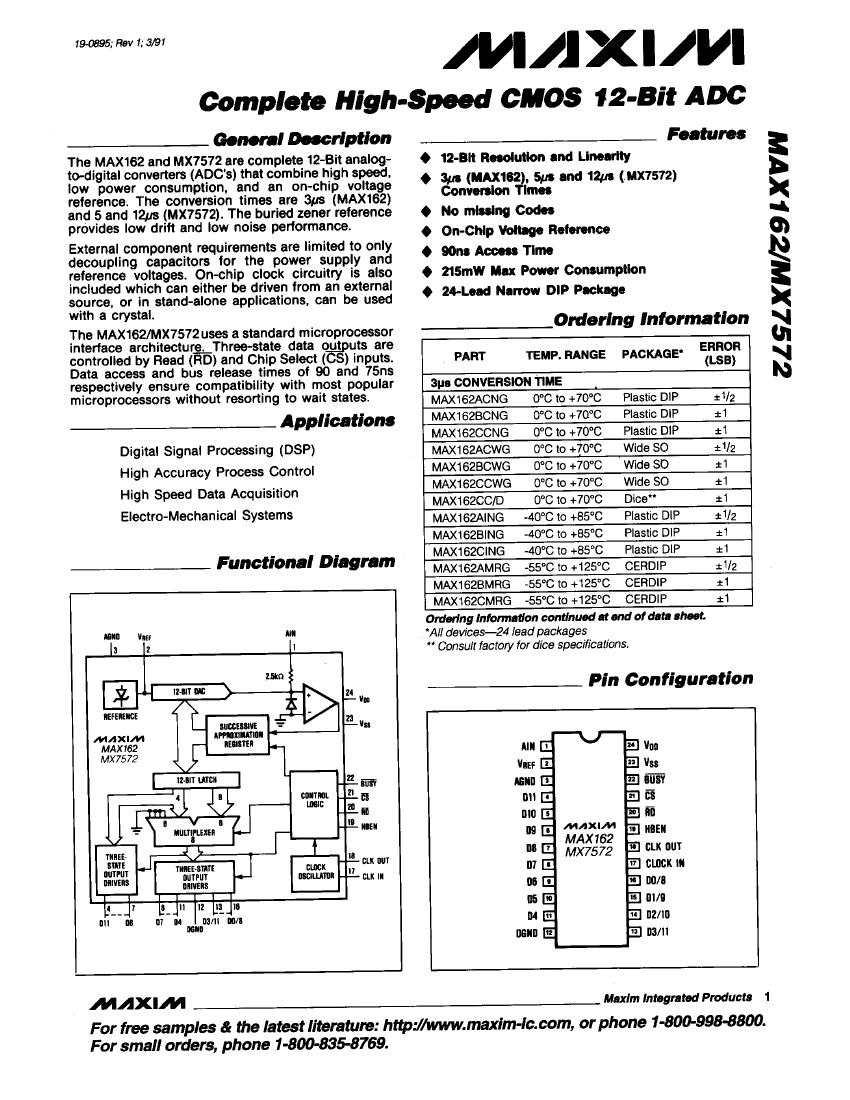

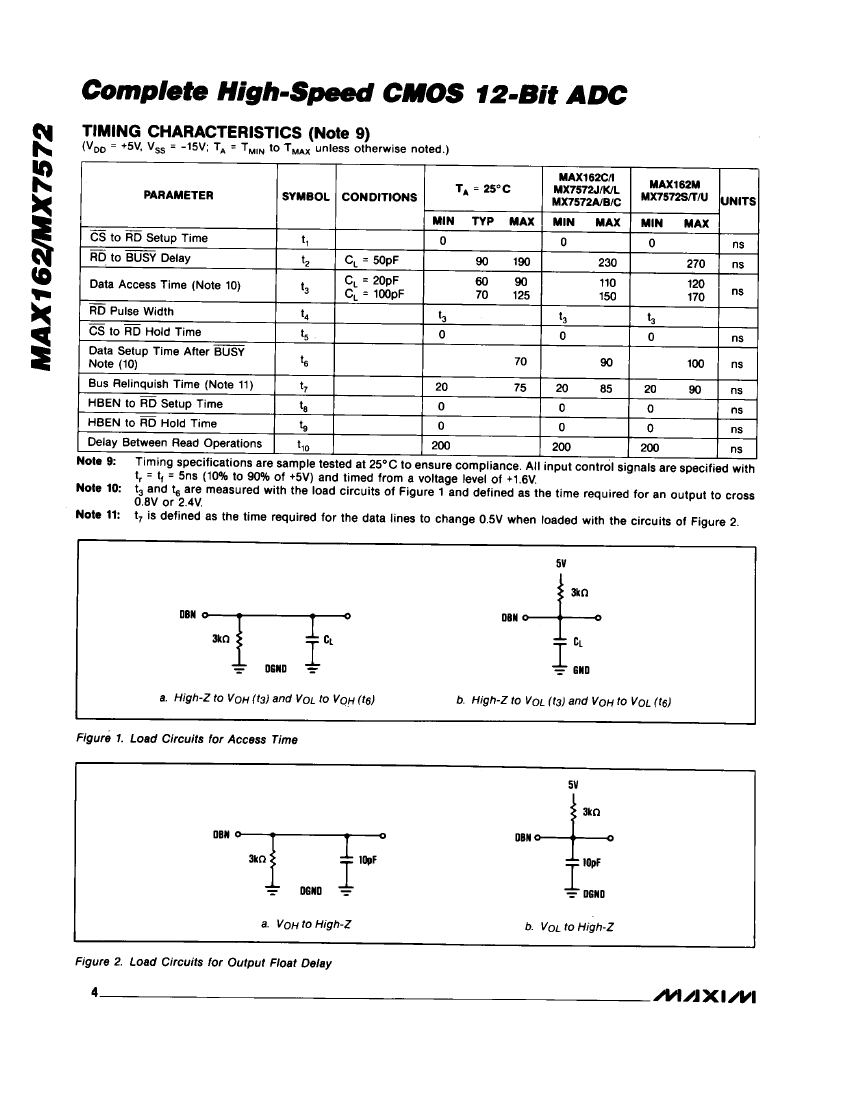

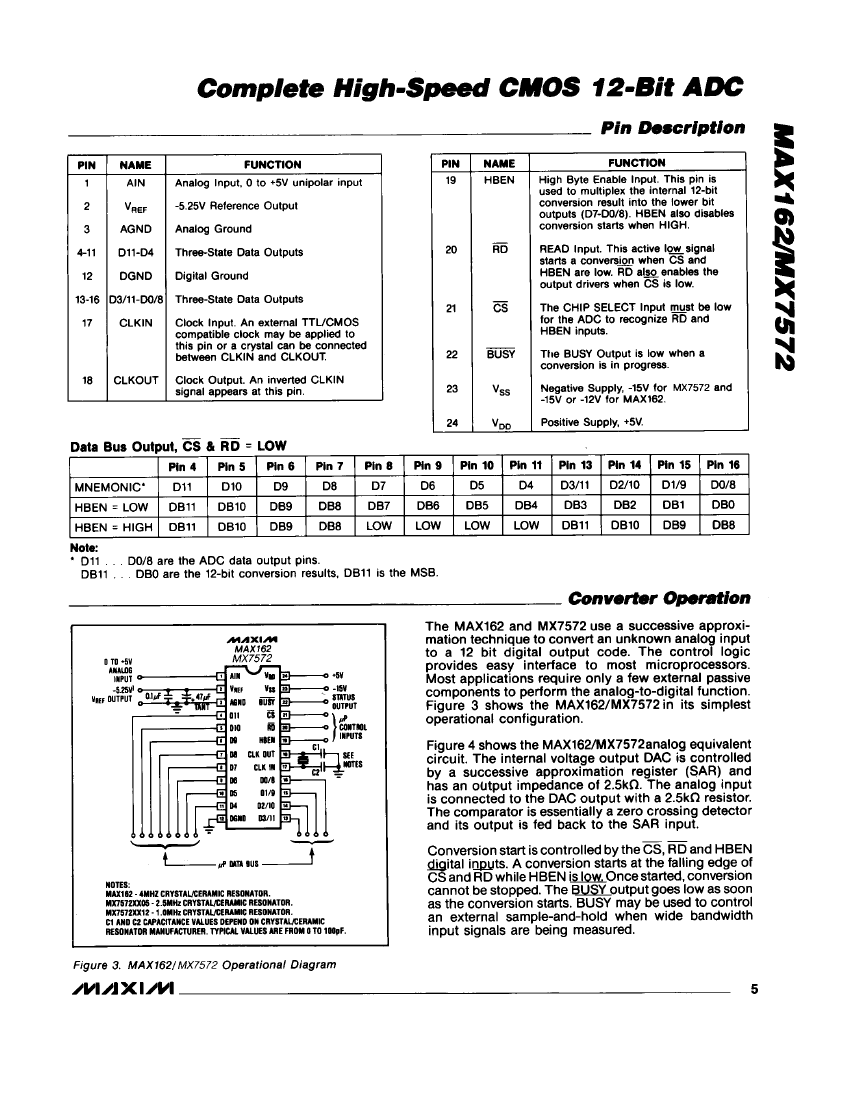

Preview

Download Datasheet

View All

MX7572SQ12/883B Related Products

	MX7572SQ12/883B	MX7572JCWG12+	MX7572KCWG05+T	MX7572LN12+	MX7572JEWG12+
Description	ADC, Successive Approximation, 12-Bit, 1 Func, 1 Channel, Parallel, 8 Bits Access, CMOS, CDIP24, CERDIP-24	ADC, Successive Approximation, 12-Bit, 1 Func, 1 Channel, Parallel, 8 Bits Access, CMOS, PDSO24, SOP-24	ADC, Successive Approximation, 12-Bit, 1 Func, 1 Channel, Parallel, 8 Bits Access, CMOS, PDSO24, SOP-24	ADC, Successive Approximation, 12-Bit, 1 Func, 1 Channel, Parallel, 8 Bits Access, CMOS, PDIP24, LEAD FREE, PLASTIC, DIP-24	ADC, Successive Approximation, 12-Bit, 1 Func, 1 Channel, Parallel, 8 Bits Access, CMOS, PDSO24, LEAD FREE, SOIC-24
Is it lead-free?	Contains lead	Lead free	Lead free	Lead free	Lead free
Is it Rohs certified?	incompatible	conform to	conform to	conform to	conform to
Maker	Maxim	Maxim	Maxim	Maxim	Maxim
Parts packaging code	DIP	SOIC	SOIC	DIP	SOIC
package instruction	CERDIP-24	SOP, SOP24,.4	SOP, SOP24,.4	DIP, DIP24,.3	SOP,
Contacts	24	24	24	24	24
Reach Compliance Code	_compli	compliant	compliant	compliant	compliant
ECCN code	3A001.A.2.C	EAR99	EAR99	EAR99	EAR99
Maximum analog input voltage	5 V	5 V	5 V	5 V	5 V
Maximum conversion time	13 µs	13000000 µs	5200000 µs	13 µs	5.2 µs
Converter type	ADC, SUCCESSIVE APPROXIMATION	ADC, SUCCESSIVE APPROXIMATION	ADC, SUCCESSIVE APPROXIMATION	ADC, SUCCESSIVE APPROXIMATION	ADC, SUCCESSIVE APPROXIMATION
JESD-30 code	R-GDIP-T24	R-PDSO-G24	R-PDSO-G24	R-PDIP-T24	R-PDSO-G24
JESD-609 code	e0	e3	e3	e3	e3
Maximum linear error (EL)	0.024%	0.024%	0.024%	0.012%	0.012%
Humidity sensitivity level	1	1	1	1	1
Nominal negative supply voltage	-15 V	-15 V	-15 V	-15 V	-15 V
Number of analog input channels	1	1	1	1	1
Number of digits	12	12	12	12	12
Number of functions	1	1	1	1	1
Number of terminals	24	24	24	24	24
Maximum operating temperature	125 °C	70 °C	70 °C	70 °C	70 °C
Output bit code	OFFSET BINARY, COMPLEMENTARY OFFSET BINARY	OFFSET BINARY, COMPLEMENTARY OFFSET BINARY	OFFSET BINARY, COMPLEMENTARY OFFSET BINARY	OFFSET BINARY, COMPLEMENTARY OFFSET BINARY	OFFSET BINARY, COMPLEMENTARY OFFSET BINARY
Output format	PARALLEL, 8 BITS	PARALLEL, 8 BITS	PARALLEL, 8 BITS	PARALLEL, 8 BITS	PARALLEL, 8 BITS
Package body material	CERAMIC, GLASS-SEALED	PLASTIC/EPOXY	PLASTIC/EPOXY	PLASTIC/EPOXY	PLASTIC/EPOXY
encapsulated code	DIP	SOP	SOP	DIP	SOP
Package shape	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR
Package form	IN-LINE	SMALL OUTLINE	SMALL OUTLINE	IN-LINE	SMALL OUTLINE
Peak Reflow Temperature (Celsius)	245	NOT SPECIFIED	250	NOT SPECIFIED	260
Certification status	Not Qualified	Not Qualified	Not Qualified	Not Qualified	Not Qualified
Maximum seat height	5.08 mm	2.65 mm	2.65 mm	4.572 mm	2.65 mm
Nominal supply voltage	5 V	5 V	5 V	5 V	5 V
surface mount	NO	YES	YES	NO	YES
technology	CMOS	CMOS	CMOS	CMOS	CMOS
Temperature level	MILITARY	COMMERCIAL	COMMERCIAL	COMMERCIAL	COMMERCIAL
Terminal surface	TIN LEAD	Matte Tin (Sn)	Matte Tin (Sn)	Matte Tin (Sn)	Matte Tin (Sn)
Terminal form	THROUGH-HOLE	GULL WING	GULL WING	THROUGH-HOLE	GULL WING
Terminal pitch	2.54 mm	1.27 mm	1.27 mm	2.54 mm	1.27 mm
Terminal location	DUAL	DUAL	DUAL	DUAL	DUAL
Maximum time at peak reflow temperature	NOT SPECIFIED	NOT SPECIFIED	30	NOT SPECIFIED	NOT SPECIFIED
width	7.62 mm	7.5 mm	7.5 mm	7.62 mm	7.5 mm
length	-	15.4 mm	15.4 mm	30.545 mm	15.4 mm
Encapsulate equivalent code	-	SOP24,.4	SOP24,.4	DIP24,.3	-
power supply	-	5,-15 V	5,-15 V	5,-15 V	-
