UWT1E220MCL1GBL datasheet, PDF

Datasheet> All Categories > Passive components> capacitor> UWT1E220MCL1GBL

UWT1E220MCL1GBL: DescriptionAluminum Electrolytic Capacitor, Polarized, Aluminum (wet), 25V, 20% +Tol, 20% -Tol, 22uF, Surface Mount, 2626, CHIP; CategoryPassive components capacitor; File Size53KB，2 Pages; ManufacturerNichicon; Websitehttp://www.nichicon.co.jp; Environmental Compliance

Download Datasheet Parametric View All

UWT1E220MCL1GBL Overview

Aluminum Electrolytic Capacitor, Polarized, Aluminum (wet), 25V, 20% +Tol, 20% -Tol, 22uF, Surface Mount, 2626, CHIP

UWT1E220MCL1GBL Parametric

Parameter Name	Attribute value
Is it lead-free?	Lead free
Is it Rohs certified?	conform to
Objectid	2046619871
package instruction	, 2626
Reach Compliance Code	compliant
ECCN code	EAR99
capacitance	22 µF
Capacitor type	ALUMINUM ELECTROLYTIC CAPACITOR
dielectric materials	ALUMINUM (WET)
JESD-609 code	e6
leakage current	0.0055 mA
Manufacturer's serial number	WT
Installation features	SURFACE MOUNT
negative tolerance	20%
Number of terminals	2
Maximum operating temperature	105 °C
Minimum operating temperature	-55 °C
Package shape	CYLINDRICAL PACKAGE
method of packing	TAPE
polarity	POLARIZED
positive tolerance	20%
Rated (DC) voltage (URdc)	25 V
ripple current	38 mA
size code	2626
surface mount	YES
Delta tangent	0.16
Terminal surface	Tin/Bismuth (Sn/Bi)
Terminal shape	FLAT

Preview

Download Datasheet

View All

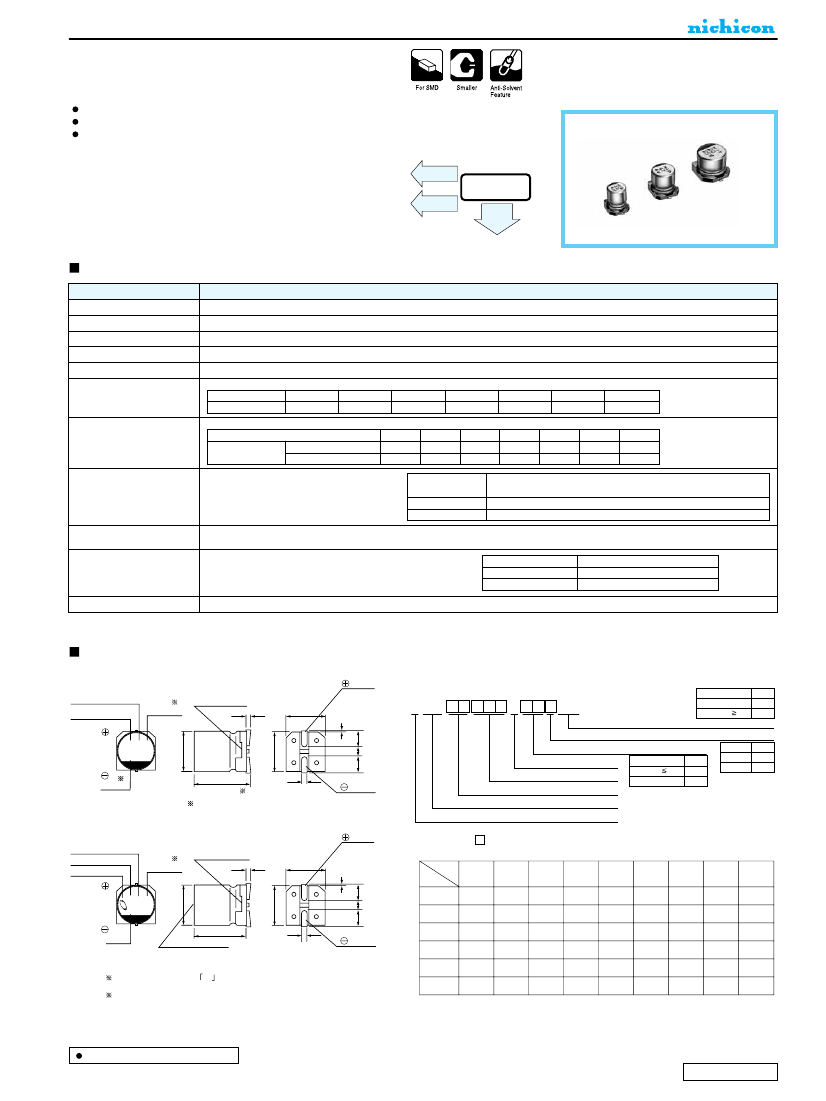

ALUMINUM ELECTROLYTIC CAPACITORS

Chip Type, Wide Temperature Range

series

Chip type operating over wide temperature range of to – 55 ~ +105

°C

Designed for surface mounting on high density PC board.

Applicable to automatic mounting machine using carrier tape.

Low

impeadance

Smaller

Long Life

Specifications

Item

Category Temperature Range

Rated Voltage Range

Rated Capacitance Range

Capacitance Tolerance

Leakage Current

tan

Performance Characteristics

– 55 ~ +105°C

4 ~ 50V

0.1 ~ 1500µF

±20% at 120Hz, 20°C

After 2 minutes' application of rated voltage, leakage current is not more than 0.01CV or 3 (µA) , whichever is greater.

Measurement frequency : 120Hz, Temperature : 20°C

Rated voltage (V)

tan

(MAX.)

0.40

6.3

0.30

0.24

6.3

0.20

0.16

0.14

Measurement frequency : 120Hz

Stability at Low Temperature

Rated voltage (V)

Z– 25°C / Z+20°C

Impedance ratio

Z– 40°C / Z+20°C

ZT / Z20 (MAX.)

Endurance

After 1000 hours' application of rated voltage

at 105°C, capacitors meet the characteristic

requirements listed at right.

Within ±25% of initial value for capacitors of

3mm unit, and 16V or less.

Within ±20% of initial value for capacitors of 25V or more.

200% or less of initial specified value

Leakage current

Initial specified value or less

Capacitance

change

tan

Shelf Life

Resistance to soldering

heat

Marking

After leaving capacitors under no load at 105°C for 1000 hours,

they meet the specified value for endurance characteristics listed above.

The capacitors shall be kept on the hot plate maintained at 250°C

Capacitance change

for 30 seconds. After removing from the hot plate and restored

tan

at room temperature, they meet the characteristic requirements

Leakage current

listed at right.

Black print on the case top.

Within ±10% of initial value

Initial specified value or less

Chip Type

(φ3 ~

φ8 ×

5.4L)

Capacitance

105°C Marking

Voltage

Plastic platform

0.3 MAX.

0.5 MAX.

C±0.2

Positive

Type numbering system (Example : 16V 10

φD

code

3 ~ 8 (5.4L)

6.3 ~ 10 (L 5.8) GS

Package code

Size code

Configuration

Capacitance tolerance (±20%)

Rated Capacitance (10µF)

Rated voltage (16V)

Series name

Type

φD

3 ~ 8 (L 7.7)

8 ~ 10 (L = 10)

code

φD

4 ~ 10

code

9 10 11 12 13 14

UWT 1 C 1 0 0 MC R 1 GB

A±0.2

φD±0.5

A2P

16V

B±0.2

Lot No.

+0.1

–0.2

(L±0.3)

Negative

3 Apply to

φ6.3 ×

5.8,

φ6.3 ×

7.7

A±0.2

(φ8

10L,

φ10 ×

10L)

105°C Marking

Trade mark

Voltage

Plastic platform

0.3 MAX.

0.5 MAX.

Capacitance

•

Positive

The lead-free product is also available upon request.

In this case, L will be put at 11th digit of type numbering system.

(mm)

φD

C±0.2

5.4

1.5

3.3

0.8

5.4

1.8

4.3

1.0

5.4

5.4 6.3

5.8 6.3

7.7 8

5.4

2.1

5.3

1.3

5.4

2.4

6.6

2.2

5.4

2.4

6.6

2.2

5.8

2.4

6.6

2.2

7.7

3.3

8.3

2.3

5.4

2.9

8.3

3.1

3.2

10.3

4.5

A±0.2

φD±0.5

B±0.2

A2P

100

35V

Negative

A±0.2

L±0.5

Lot No.

Pressure relief vent

1. Voltage mark for 6.3V is 6V . In case of marking for

φ3

units, “V” for rated

voltage is omitted.

2. In case of marking for

φ3

units. Lot No is expressed by a digit (month code).

0.5 ~ 0.8 0.5 ~ 0.8 0.5 ~ 0.8 0.5 ~ 0.8 0.5 ~ 0.8 0.5 ~ 0.8 0.5 ~ 0.8 0.8 ~ 1.1 0.8 ~ 1.1

Dimension table in next page.

CAT.8100T
