UWZ1E331MCLGS datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > Passive components> capacitor> UWZ1E331MCLGS

UWZ1E331MCLGS: DescriptionAluminum Electrolytic Capacitor, Polarized, Aluminum (wet), 25V, 20% +Tol, 20% -Tol, 330uF, Surface Mount, 4141, CHIP, ROHS COMPLIANT; CategoryPassive components capacitor; File Size51KB，2 Pages; ManufacturerNichicon; Websitehttp://www.nichicon.co.jp; Environmental Compliance

Download Datasheet Parametric View All

UWZ1E331MCLGS Overview

Aluminum Electrolytic Capacitor, Polarized, Aluminum (wet), 25V, 20% +Tol, 20% -Tol, 330uF, Surface Mount, 4141, CHIP, ROHS COMPLIANT

UWZ1E331MCLGS Parametric

Parameter Name	Attribute value
Is it lead-free?	Lead free
Is it Rohs certified?	conform to
Objectid	2092137646
package instruction	, 4141
Reach Compliance Code	compliant
ECCN code	EAR99
Other features	NON SOLVENT-PROOF
capacitance	330 µF
Capacitor type	ALUMINUM ELECTROLYTIC CAPACITOR
dielectric materials	ALUMINUM (WET)
JESD-609 code	e6
leakage current	0.0825 mA
Manufacturer's serial number	WZ
Installation features	SURFACE MOUNT
negative tolerance	20%
Number of terminals	2
Maximum operating temperature	105 °C
Minimum operating temperature	-55 °C
Package shape	CYLINDRICAL PACKAGE
method of packing	TAPE
polarity	POLARIZED
positive tolerance	20%
Rated (DC) voltage (URdc)	25 V
ripple current	190 mA
size code	4141
surface mount	YES
Delta tangent	0.16
Terminal surface	Tin/Bismuth (Sn/Bi)
Terminal shape	FLAT

Preview

Download Datasheet

View All

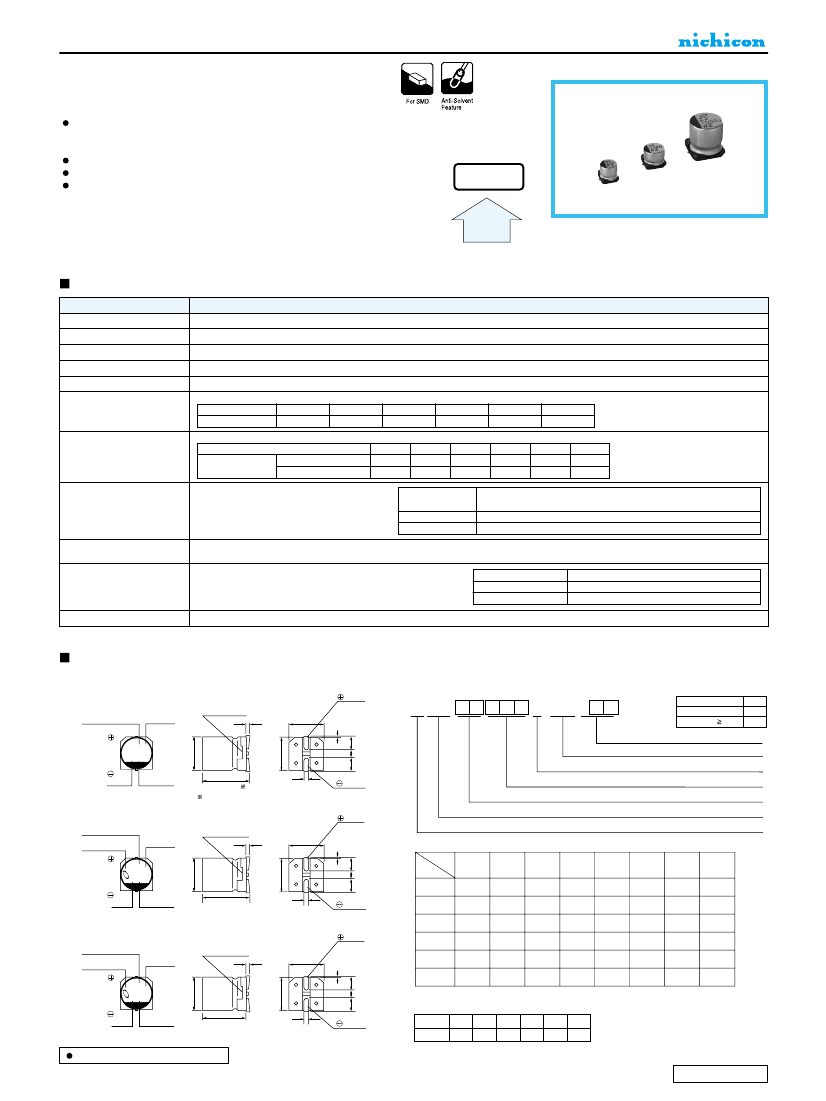

ALUMINUM ELECTROLYTIC CAPACITORS

Chip Type, Wide Temperature Range

High Temperature (260°C) Reflow

series

Corresponding with 260

°C peak reflow soldering

Recomended reflow condition : 260°C peak 5 sec 230°C over 60 sec 2 times

(

6.2,

10 : 1 time)

Chip type operating over wide temperature range of to – 55 to +105

°C

Applicable to automatic mounting machine fed with carrier tape.

Compliant to the RoHS directive (2002/95/EC).

High

Temperature

Reflow

Specifications

Item

Category Temperature Range

Rated Voltage Range

Rated Capacitance Range

Capacitance Tolerance

Leakage Current

Tangent of loss angle (tan

δ)

Performance Characteristics

– 55 to +105°C

6.3 to 50V

0.1 to 1500µF

±20% at 120Hz, 20°C

After 2 minutes' application of rated voltage, leakage current is not more than 0.01CV or 3 (µA) , whichever is greater.

Measurement frequency : 120Hz, Temperature : 20°C

Rated voltage (V)

tan

(MAX.)

6.3

0.30

0.24

6.3

0.20

0.16

0.14

Measurement frequency : 120Hz

Stability at Low Temperature

Rated voltage (V)

Z– 25°C / Z+20°C

Impedance ratio

Z– 40°C / Z+20°C

ZT / Z20 (MAX.)

Endurance

The specifications listed at right shall be

met when the capacitors are restored to

20°C after the rated voltage is applied for

1000 hours at 105°C.

Within ±25% of the initial capacitance value for capacitors of 16V or less.

Within ±20% of the initial capacitance value for capacitors of 25V or more.

tan

200% or less than the initial specified value

Leakage current

Less than or equal to the initial specified value

Capacitance

change

Shelf Life

Resistance to soldering

heat

Marking

After storing the capacitors under no load at 105°C for 1000 hours and then performing voltage treatment based on JIS C 5101-4

clause 4.1 at 20°C, they shall meet the specified values for the endurance characteristics listed above.

The capacitors are kept on a hot plate for 30 seconds, which is

Capacitance change

Within ±10% of the initial capacitance value

maintained at 250°C. The capacitors shall meet the

tan

Less than or equal to the initial specified value

characteristic requirements listed at right when they are

Leakage current

Less than or equal to the initial specified value

removed from the plate and restored to 20°C.

Black print on the case top.

Chip Type

(φ4 to

φ6.3

)

Voltage (C:16V)

Series

Plastic platform

0.3 MAX.

C±0.2

0.5 MAX.

Positive

Type numbering system (Example : 6.3V 33

10 11 12 13 14

UWZ 0 J 3 3 0 M C L 1G B

A±0.2

φD

4 to 6.3 (5.4L)

6.3 to 10 (L 5.8L)

code

Package code

Configuration

Capacitance tolerance (±20%)

Rated capacitance (33µF)

Rated voltage (6.3V)

Series name

φD±0.5

B±0.2

33C

Negative

Positive

A±0.2

Lot No.

Capacitance

+0.1

–0.2

(L±0.3)

1 Apply to

φ6.3 ×

5.8,

φ6.3 ×

7.7

(φ8

6.2 )

Voltage ( J:6.3V)

Trade mark

Series

Plastic platform

0.3 MAX.

C±0.2

0.5 MAX.

Type

(mm)

A±0.2

φD

φD±0.5

B±0.2

220j

5.4

1.8

4.3

1.0

5.4

5.4 6.3

5.8 6.3

7.7 8

6.2

2.1

5.3

1.3

5.4

2.4

6.6

2.2

5.4

2.4

6.6

2.2

5.4

2.4

6.6

2.2

7.7

3.3

8.3

2.3

6.2

2.9

8.3

3.1

3.2

10.3

4.5

A±0.2

Lot No.

Capacitance

L±0.3

Negative

(φ8

10,

φ10×10)

Voltage (E:25V)

Trade mark

Series

Plastic platform

0.3 MAX.

0.5 MAX.

C±0.2

Positive

220E

φD±0.5

B±0.2

A±0.2

0.5 to 0.8 0.5 to 0.8 0.5 to 0.8 0.5 to 0.8 0.5 to 0.8 0.5 to 0.8 0.8 to 1.1 0.8 to 1.1

L±0.5

Lot No.

Capacitance

Negative

Voltage

Code

6.3

Dimension table in next page.

CAT.8100A
