NST04-333-350TRF Overview

Surface Mount NTC Thermistors

Preview

Download Datasheet

View All

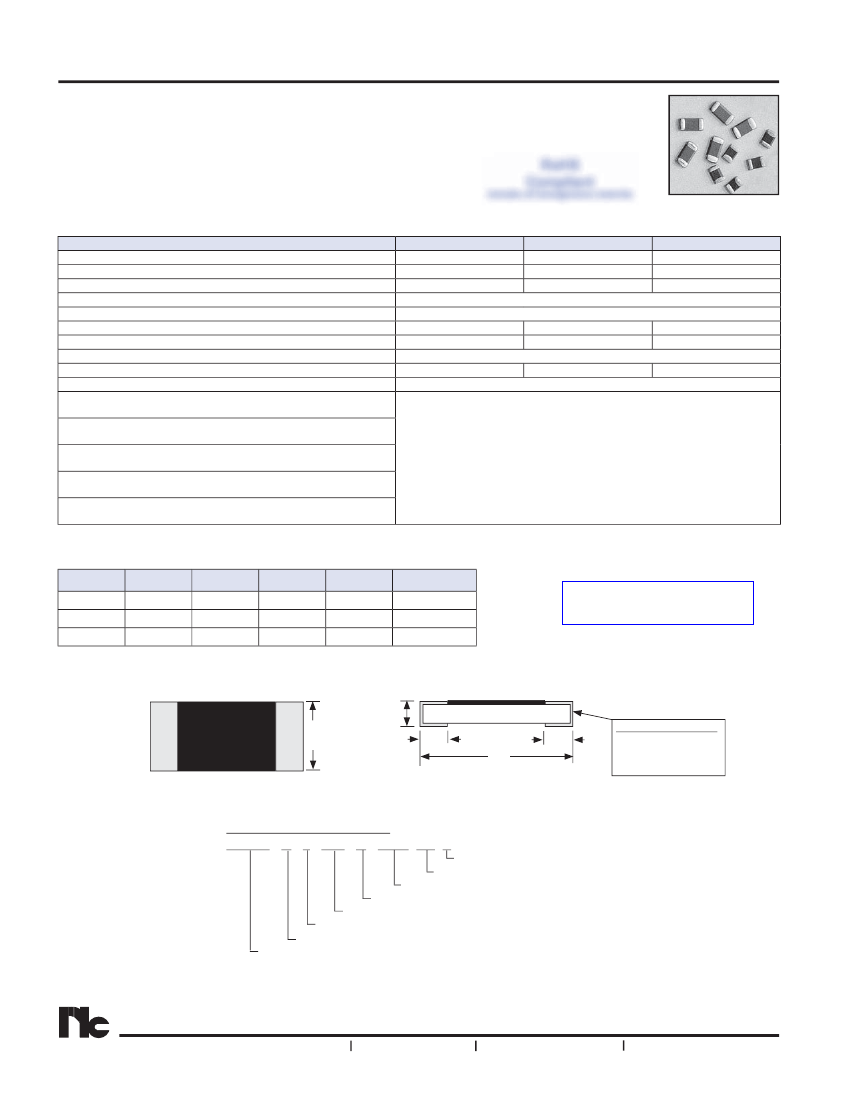

Surface Mount NTC Thermistors

FEATURES

• NEGATIVE TEMPERATURE COEFFICIENT

• FAST RESPONSE TO TEMPERATURE VARIATIONS MAKE THEM

IDEALLY FOR TEMPERATURE SENSORS AND COMPENSATORS

RoHS

• STANDARD EIA 0402, 0603 AND 0805 SIZES

Compliant

includes all homogeneous materials

• TAPE AND REEL FOR AUTOMATIC MOUNTING

CHARACTERISTICS AND PERFORMANCE

Series

EIA Size

Resistance Range (+25°C)

Power Rating (+25°C)

Resistance Tolerance (+25°C)

Operating Temperature Range

Dissipation Factor

Thermal Time Constant

Beta Temperature Range

Beta Value Range

Beta Value Tolerance

Resistance to Soldering Heat

+260°C for 5 seconds

Damp Heat

1000hrs @ +60°C, 90~95%RH

Thermal Shock

-55°C (30 min.), within 20 seconds to +125°C (30 min.), 100 cycles

Life Test

1,000hrs @ +85°C with maximum operating current applied

High Temperature Storage

1000hrs @ +125°C, 90~95%RH

*See Part Number System for Details

NST04

0402

22Ω ~ 680KΩ

100mW

NST Series

NST06

NST10

0603

0805

100Ω ~ 680KΩ

100mW

200mW

F = 1%,

= ±3%, J = ±5%, K = ±10%

-55°C ~ 125°C

1mW/°C

2mW/°C

<3 Sec.

<5 Sec.

D = +25°C ~ +50°C, A = +25°C ~ +85°C, E = +25°C ~ +105°C

3380 ~ 4400

3380 ~ 4500

F = 1%, H = ±3%

Resistance Change

ΔR

±1% for F tolerance parts

ΔR

±3% for

tolerance parts

ΔR

±5% for J & K tolerance parts

Beta Change

ΔBeta

±1% for F Beta tolerance parts

ΔBeta

±3% for H Beta tolerance parts

DIMENSIONS (mm)

Series

NST04

NST06

NST10

EIA Size

0402

0603

0805

1.0 ± 0.15

1.6 ± 0.15

2.0 ± 0.2

0.5 ± 0.15

0.8 ± 0.15

1.25 ± 0.2

T max.

0.5 ± 0.15

0.8 ± 0.15

0.85 ± 0.2

0.25 ± 0.1

0.3 ± 0.2

0.5 ± 0.3

Link: RT Tables

TOP VIEW

SIDE VIEW

Termination Material

Ag Base

Ni Barrier

100% Sn Finish

PART NUMBER SYSTEM

NST06 D J 103 H 3435 TR F

RoHS compliant

Packaging TR: Tape and Reel

Beta Value

Beta Value Tolerance: F=±1%, H=±3%

Resistance Value Code (E-24 Standard Values)

Resistance Value Tolerance: F=±1%,

H=±3%,

J=±5%, K=±10%

Temperature Characteristic: D = +25°C ~ +50°C, A = +25°C ~ +85°C, E = +25°C ~ +105°C

Series

NIC COMPONENTS CORP.

www.niccomp.com

www.lowESR.com

www.RFpassives.com

www.SMTmagnetics.com
