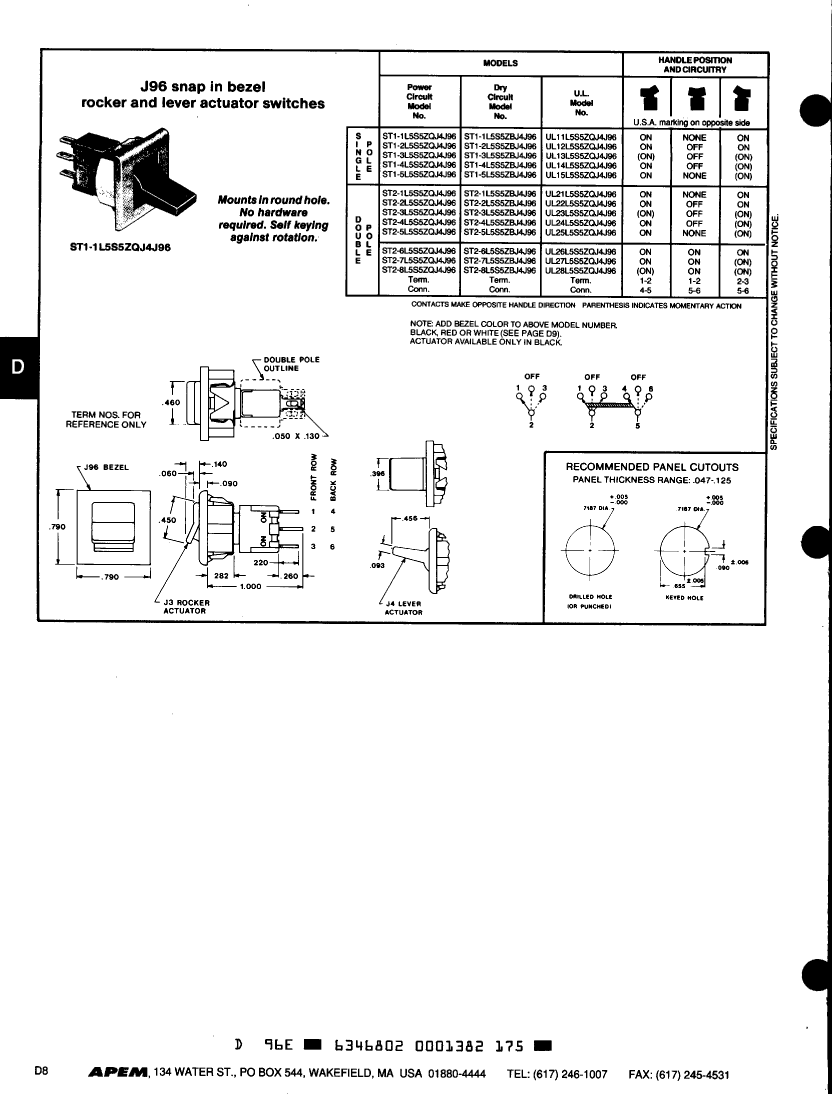

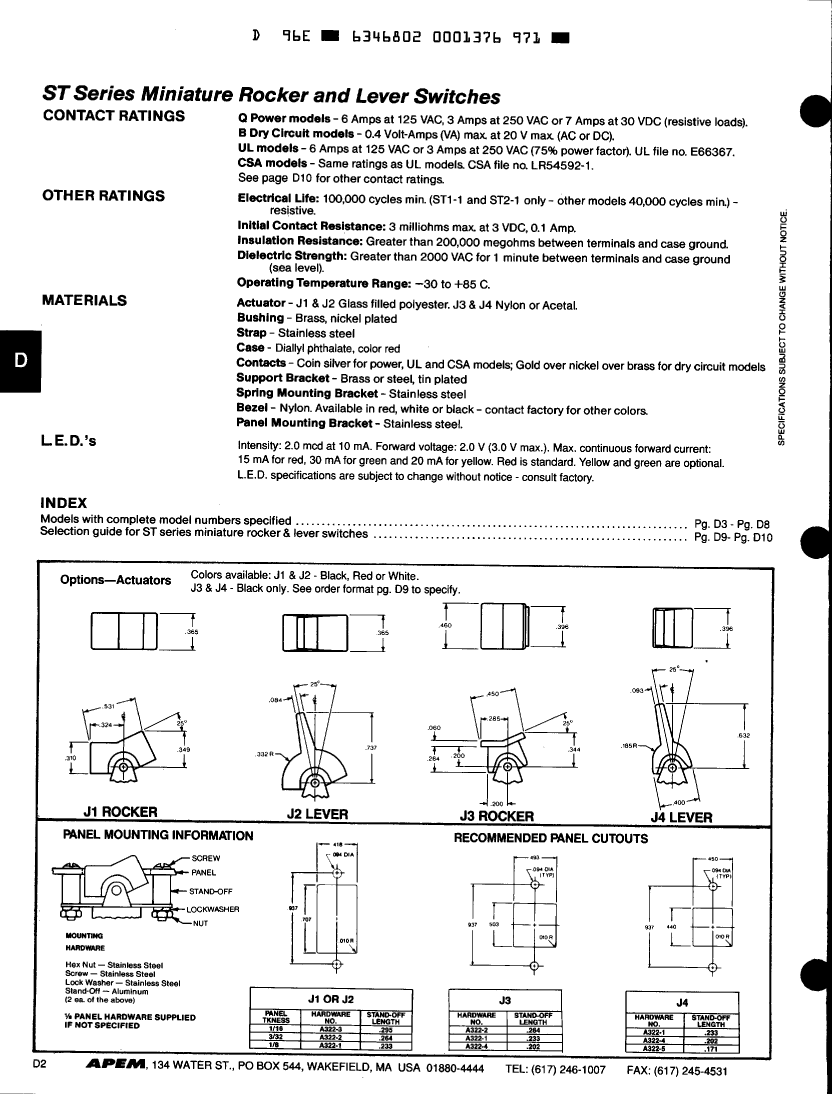

UL15L5S5ZQJ4J9622: DescriptionRocker Switch, SPDT, On-(on), Momentary, Solder Lug Terminal, Rocker Actuator, Panel Mount; CategoryMechanical and electronic products switch; File Size184KB，2 Pages; ManufacturerAPEM

Download Datasheet Parametric Compare View All

UL15L5S5ZQJ4J9622 Overview

Rocker Switch, SPDT, On-(on), Momentary, Solder Lug Terminal, Rocker Actuator, Panel Mount

UL15L5S5ZQJ4J9622 Parametric

Parameter Name	Attribute value
Objectid	302805706
Reach Compliance Code	compliant
ECCN code	EAR99
Actuator angle	25 deg
Actuator length	0.14 inch
Actuator material	NYLON
Actuator type	ROCKER
body width	20.066 mm
Body color	RED
body height	31.242 mm
Body length or diameter	20.066 mm
center contact material	SILVER
Contact (AC) maximum rated R load	3A@250VAC
Maximum contact current (AC)	3 A
Contact function	ON-(ON)
Contact resistance	0.003 mΩ
Maximum contact voltage (AC)	250 V
Dielectric withstand voltage	2000VAC V
Electrical life	100000 Cycle(s)
End contact material	SILVER
Insulation resistance	200000000000 Ω
insulator material	DIALLYL PHTHALATE
Manufacturer's serial number	UL
Installation features	PANEL MOUNT
Maximum operating temperature	85 °C
Minimum operating temperature	-30 °C
surface mount	NO
Switch action	MOMENTARY
switch function	SPDT
Switch type	ROCKER SWITCH
Terminal length	0.22 inch
Termination type	SOLDER LUG

Preview

Download Datasheet

View All

UL15L5S5ZQJ4J9622 Related Products

	UL15L5S5ZQJ4J9622	ST1-3L5S5ZQJ4J9622	ST1-5L5S5ZBJ4J9622	ST1-5L5S5ZQJ4J9622	ST1-4L5S5ZBJ4J9622	ST2-3L5S5ZBJ4J9622	ST2-3L5S5ZQJ4J9622	UL23L5S5ZQJ4J9622
Description	Rocker Switch, SPDT, On-(on), Momentary, Solder Lug Terminal, Rocker Actuator, Panel Mount	Rocker Switch, SPDT, (on)-off-(on), Momentary, 7A, 30VDC, Solder Lug Terminal, Rocker Actuator, Panel Mount	Rocker Switch, SPDT, On-(on), Momentary, Solder Lug Terminal, Rocker Actuator, Panel Mount	Rocker Switch, SPDT, On-(on), Momentary, 7A, 30VDC, Solder Lug Terminal, Rocker Actuator, Panel Mount	Rocker Switch, SPDT, On-off-(on), Momentary, Solder Lug Terminal, Rocker Actuator, Panel Mount	Rocker Switch, DPDT, (on)-off-(on), Momentary, Solder Lug Terminal, Rocker Actuator, Panel Mount	Rocker Switch, DPDT, (on)-off-(on), Momentary, 7A, 30VDC, Solder Lug Terminal, Rocker Actuator, Panel Mount	Rocker Switch, DPDT, (on)-off-(on), Momentary, Solder Lug Terminal, Rocker Actuator, Panel Mount
Reach Compliance Code	compliant	compliant	compliant	compliant	compliant	compliant	compliant	compliant
ECCN code	EAR99	EAR99	EAR99	EAR99	EAR99	EAR99	EAR99	EAR99
Actuator angle	25 deg	25 deg	25 deg	25 deg	25 deg	25 deg	25 deg	25 deg
Actuator length	0.14 inch	0.14 inch	0.14 inch	0.14 inch	0.14 inch	0.456 inch	0.456 inch	0.456 inch
Actuator material	NYLON	NYLON	NYLON	NYLON	NYLON	NYLON	NYLON	NYLON
Actuator type	ROCKER	ROCKER	ROCKER	ROCKER	ROCKER	ROCKER	ROCKER	ROCKER
body width	20.066 mm	20.066 mm	20.066 mm	20.066 mm	20.066 mm	20.066 mm	20.066 mm	20.066 mm
Body color	RED	RED	RED	RED	RED	RED	RED	RED
body height	31.242 mm	40.7924 mm	40.7924 mm	40.7924 mm	40.7924 mm	40.7924 mm	40.7924 mm	40.7924 mm
Body length or diameter	20.066 mm	20.066 mm	20.066 mm	20.066 mm	20.066 mm	20.066 mm	20.066 mm	20.066 mm
center contact material	SILVER	SILVER	BRASS	SILVER	BRASS	BRASS	SILVER	SILVER
Contact function	ON-(ON)	(ON)-OFF-(ON)	ON-(ON)	ON-(ON)	ON-OFF-(ON)	(ON)-OFF-(ON)	(ON)-OFF-(ON)	(ON)-OFF-(ON)
Contact resistance	0.003 mΩ	0.003 mΩ	0.003 mΩ	0.003 mΩ	0.003 mΩ	0.003 mΩ	0.003 mΩ	0.003 mΩ
Dielectric withstand voltage	2000VAC V	2000VAC V	2000VAC V	2000VAC V	2000VAC V	2000VAC V	2000VAC V	2000VAC V
Electrical life	100000 Cycle(s)	100000 Cycle(s)	100000 Cycle(s)	100000 Cycle(s)	100000 Cycle(s)	100000 Cycle(s)	100000 Cycle(s)	100000 Cycle(s)
End contact material	SILVER	SILVER	BRASS	SILVER	BRASS	BRASS	SILVER	SILVER
Insulation resistance	200000000000 Ω	200000000000 Ω	200000000000 Ω	200000000000 Ω	200000000000 Ω	200000000000 Ω	200000000000 Ω	200000000000 Ω
insulator material	DIALLYL PHTHALATE	DIALLYL PHTHALATE	DIALLYL PHTHALATE	DIALLYL PHTHALATE	DIALLYL PHTHALATE	DIALLYL PHTHALATE	DIALLYL PHTHALATE	DIALLYL PHTHALATE
Manufacturer's serial number	UL	ST	ST	ST	ST	ST	ST	UL
Installation features	PANEL MOUNT	PANEL MOUNT	PANEL MOUNT	PANEL MOUNT	PANEL MOUNT	PANEL MOUNT	PANEL MOUNT	PANEL MOUNT
Maximum operating temperature	85 °C	85 °C	85 °C	85 °C	85 °C	85 °C	85 °C	85 °C
Minimum operating temperature	-30 °C	-30 °C	-30 °C	-30 °C	-30 °C	-30 °C	-30 °C	-30 °C
surface mount	NO	NO	NO	NO	NO	NO	NO	NO
Switch action	MOMENTARY	MOMENTARY	MOMENTARY	MOMENTARY	MOMENTARY	MOMENTARY	MOMENTARY	MOMENTARY
switch function	SPDT	SPDT	SPDT	SPDT	SPDT	DPDT	DPDT	DPDT
Switch type	ROCKER SWITCH	ROCKER SWITCH	ROCKER SWITCH	ROCKER SWITCH	ROCKER SWITCH	ROCKER SWITCH	ROCKER SWITCH	ROCKER SWITCH
Terminal length	0.22 inch	0.22 inch	0.22 inch	0.22 inch	0.22 inch	0.22 inch	0.22 inch	0.22 inch
Termination type	SOLDER LUG	SOLDER LUG	SOLDER LUG	SOLDER LUG	SOLDER LUG	SOLDER LUG	SOLDER LUG	SOLDER LUG
Contact (AC) maximum rated R load	3A@250VAC	3A@250VAC	-	3A@250VAC	-	-	3A@250VAC	3A@250VAC
Maximum contact current (AC)	3 A	3 A	-	3 A	-	-	3 A	3 A
Maximum contact voltage (AC)	250 V	250 V	-	250 V	-	-	250 V	250 V
Maker	-	APEM	APEM	APEM	APEM	APEM	APEM	APEM
