The power amplifier module is designed for general purpose.
Operating frequency range is from 21100 ~ 2170 MHz.
Gallium Nitride on SiC technology is used and attached on an aluminum sub carrier.
Full in/out matching is already applied.
Improved thermal handling by patented technology.
Electrical Specifications
@
Tcc=28℃; T=25℃; Z
S
=Z
L
=50Ω
PARAMETER
Bandwidth
Power Gain
Gain Flatness
Gain Variation vs Temperature
Output Power
Power Added Efficiency
Output Power
Power Added Efficiency
Input Return Loss
Supply Voltage
Quiescent Current consumption
On/Off Switching Time
Shut Down or Switch On/Off
TTL Voltage
UNIT
MHz
dB
dBpp
dB
dBm
%
dBm
%
dB
V
A
uS
MIN
2110
32
-
-
46
45
47
47
-
27.5
-
-
0
2.5
TYP
-
33
±1
±1
47
50
47.5
52
-10
28
0.5
2
-
5
MAX
2170
-
±1.5
±2
-
-
-
-
-6
30
0.6
5
0.5
5.5
CONDITION
-
@ Pin=14dBm
@ Pin=14dBm
-20°C to 60°C,
@ Pin=14dBm
@ Pin=14dBm
@ Pin=14dBm
@ P3dB
@ P3dB
@Pin=10dBm
Vcc(=Vds)
-
On : TTL "Low"
On : TTL "Low"
On : TTL "Low"
On : TTL "Low"
V
Korean Facilities : 82-31-250-5078 / rfsales@rfhic.com
US Facility : 919-677-8780 / sales@rfhicusa.com
1
/
5
All specifications may change without notice
Version 1.0
Narrowband Power Amplifier
Absolute Maximum Ratings
PARAMETER
Operating Flange Temperature
Input RF Power
Supply Voltage
Load Mismatch Value
UNIT
°C
dBm
V
-
RNP21040-50
RATING
85
18
30
3 : 1 @all load phase
Environmental Characteristics
PARAMETER
Operating Temperature
Storage Temperature
Shock & Vibration
* Input Signal Condition : CW 1-Tone
UNIT
°C
°C
MIN
-20
-40
TYP
-
-
MAX
60
105
SYMBOL
Tc
Tstg
VI
MIL-STD-810G Method 514.6 ANNEX C

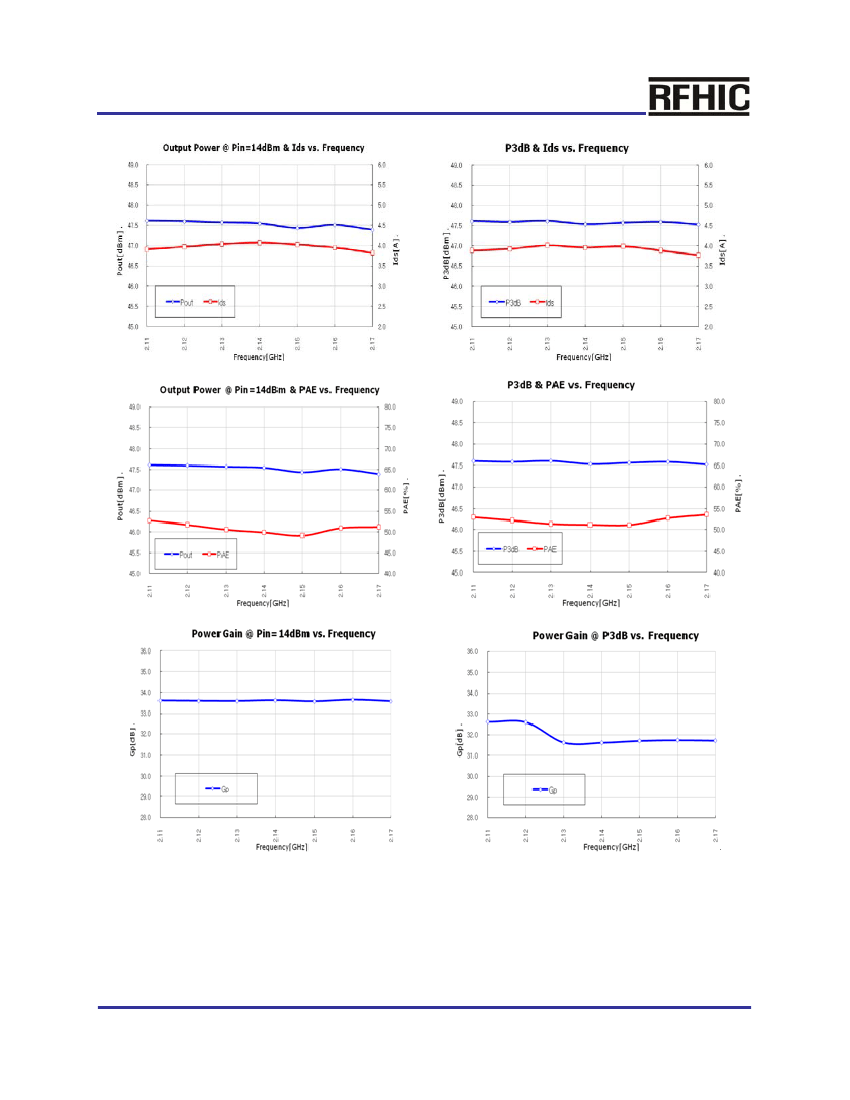

Typical Performance
@ 25°C
Test Condition : Fixed Input Power=14dBm
Frequency
MHz
2.11
2.12
2.13
2.14
2.15
2.16
2.17
Pout
dBm
47.61
47.60
47.57
47.54
47.43
47.51
47.39
Ids
@Pout
A
3.91
3.97
4.03
4.06
4.02
3.95
3.82
Power Gain
@Pout
dB
33.61
33.60
33.59
33.62
33.57
33.65
33.82
Drain Efficiency
@Pout
%
52.73
51.71
50.58
49.91
49.15
50.94
51.21
P3dB
dBm
47.61
47.59
47.61
47.54
47.57
47.59
47.53
Test Condition : P3dB
Ids[A] @
Psat
A
3.89
3.93
4.01
3.96
3.99
3.89
3.77
Drain Efficiency
@P3dB
%
53.00
52.20
21.36
51.16
51.11
52.77
53.61
Korean Facilities : 82-31-250-5078 / rfsales@rfhic.com
US Facility : 919-677-8780 / sales@rfhicusa.com
2
/
5
All specifications may change without notice
Version 1.0
Narrowband Power Amplifier
RNP21040-50
Precautions
1. This product is designed to be used for Narrowband amplification.
Heat generation is higher when there is no RF signal in the device. Therefore, the worst case scenario is when there is no RF
signal, and the amplifier is “on” with current draw. The temperature must be calculated properly.
Case temperature must maintain below 85°C.
2. Thermal Grease or Metal Thermal Interface Materials are recommended for heat dissipation.
An example would be spreading thermal grease on the bottom of the device.
Korean Facilities : 82-31-250-5078 / rfsales@rfhic.com
US Facility : 919-677-8780 / sales@rfhicusa.com
3
/
5
All specifications may change without notice
Version 1.0
Narrowband Power Amplifier
Package Dimensions
(Type : DP-75)
* Unit: mm[inch] | Tolerance
±0.2[.008]
RNP21040-50
Pin Description
Pin No
1
2
3
Function
RF IN
Vcc(+28V)
Shut Down(+5V)
Pin No
4
5
6
Function
Switch ON/OFF
GND
RF OUT
How to connected the package to a target PCB
With Pin
Without Pin
* Mounting Configuration Notes
1. Ground / thermal via holes are critical for the proper performance of this device.
2. Add as much copper as possible to inner and outer layers near the part to ensure optimal thermal performance.
3. Mounting screws can be added near the part to fasten the board to a heatsink. Ensure that the ground / thermal via hole region contacts the heatsink.
4. Do not put solder mask on the backside of the PCB in the region where the board contacts the heatsink.
5. RF trace width depends upon the PCB material and construction.
6. Use 1 oz. Copper minimum.
Korean Facilities : 82-31-250-5078 / rfsales@rfhic.com
US Facility : 919-677-8780 / sales@rfhicusa.com
4
/
5
All specifications may change without notice
Version 1.0
Narrowband Power Amplifier
Revision History
Part Number
RNP21040-50
Release Date
2012.9.28
Version
1.0
RNP21040-50
Modification
-
Data Sheet Status
-
RFHIC Corporation reserves the right to make changes to any products herein or to discontinue any product at any time without notice. While product specifications have been thoroughly
examined for reliability, RFHIC Corporation strongly recommends buyers to verify that the information they are using is accurate before ordering. RFHIC Corporation does not assume
any liability for the suitability of its products for any particular purpose, and disclaims any and all liability, including without limitation consequential or incidental damages.
RFHIC products are not intended for use in life support equipment or application where malfunction of the product can be expected to result in personal injury or death. Buyer uses or
sells such products for any such unintended or unauthorized application, buyer shall indemnify, protect and hold RFHIC Corporation and its directors, officers, stockholders, employees,
representatives and distributors harmless against any and all claims arising out of such unauthorized use.
Sales, inquiries and support should be directed to the local authorized geographic distributor for RFHIC Corporation. For customers in the US, please contact the US Sales Team at 919-
677-8780. For all other inquiries, please contact the International Sales Team at 82-31-250-5078.
Korean Facilities : 82-31-250-5078 / rfsales@rfhic.com
