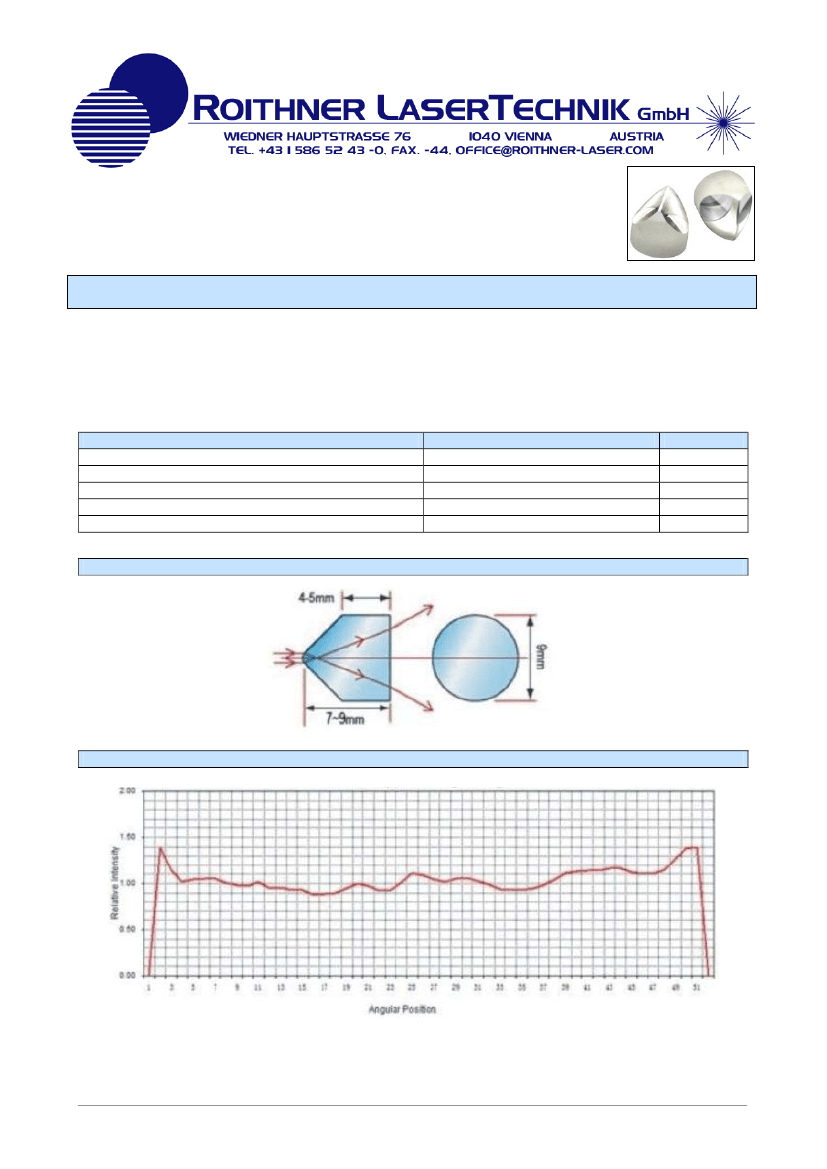

PL650

TECHNICAL DATA

POWELL LINE GENERATOR

PL650 is a powell lens line generator prism, offering very even intensity distribution over the complete length

of the projected line. PL650 is being specifically designed to be used in conjunction with red diode lasers,

featuring 630-670nm anti reflective coating and is smoothed for either 3mm or 5mm beam diameter. PL650

can be delivered with fan angles ranging 5° - 120°

Specifications

Item

Dimsension

Fan angle

Beam diameter

Anti Reflection Coating

Material

Outline Dimensions

Value

Ø9 x 9

5, 10, 30, 45, 53, 60, 70, 85, 90

3 or 5

630 - 670

BK7, SF6

Unit

mm

°

mm

nm

Line Intensity Profile

27.03.2012

PL650

1 of 1
