ACT20JJ24BB
Standard Circular Connectors, Wire-to-Wire, 24 Position, .06 mm [.1 in] Centerline,
Sealable, Wire & Cable, Power & Signal, Panel Mount, Cadmium O.D.
ACT20JJ24BB
DEUTSCH
ACTIVE
TE Internal #: YACT20JJ24BB000000
Standard Circular Connectors, Wire-to-Wire, 24 Position, .06 mm [.1
in] Centerline, Sealable, Wire & Cable, Power & Signal, Panel
Mount, Cadmium O.D.
View on TE.com >
Connectors
>
Circular Connectors
>
Standard Circular Connectors
Connector System:
Wire-to-Wire
Number of Positions:
24
Centerline (Pitch):
.06 mm [ .1 in ]
Sealable:
Yes
Connector & Contact Terminates To:
Wire & Cable
Features
Product Type Features
Product Type
Connector System
Sealable
Connector & Contact Terminates To
Circular Connector Type
Shell Type
Configuration Features
Number of Positions
Number of Power Positions
Number of Signal Positions
Contacts Preloaded
Body Features
Shell Plating Material
Shell Base Material
Circular Connector Insulation Material Type
Hermetically Sealed
Contact Features
Contact Current Rating (Max)
23 A
Cadmium O.D.
Composite
Hard Dielectric/Silicone
No
24
12
12
No
Connector
Wire-to-Wire
Yes
Wire & Cable
Receptacle
Square Flange Receptacle
For support call+1 800 522 6752
03/15/2022 11:47AM | Page 1
ACT20JJ24BB
Standard Circular Connectors, Wire-to-Wire, 24 Position, .06 mm [.1 in] Centerline,
Sealable, Wire & Cable, Power & Signal, Panel Mount, Cadmium O.D.
Contact Current Rating (Max)
Reverse Gender
Contact Layout Arrangement
Circular Connector Contact Type
Mechanical Attachment
Connector Mounting Type
Polarization Code
Mating Alignment Type
Mating Retention
Housing Features
Centerline (Pitch)
Circular Connector Shell Size
Alignment Keyed
Dimensions
Wire Size
Usage Conditions
Operating Temperature Range
Operation/Application
Circuit Application
Shielded
23 A
No
Circular
Pin/Socket
Panel Mount
Normal
Polarization
Without
.06 mm[.1 in]
J (25)
Clocking
2 – 3 mm²
-65 – 200 °C[-85 – 392 °F]
Power & Signal
Yes
Product Compliance
For compliance documentation, visit the product page on TE.com>
EU RoHS Directive 2011/65/EU
EU ELV Directive 2000/53/EC
China RoHS 2 Directive MIIT Order No 32, 2016
EU REACH Regulation (EC) No. 1907/2006
Not Compliant
Not Compliant
Restricted Materials Above Threshold
Current ECHA Candidate List: JAN 2022
(223)
Candidate List Declared Against: JAN 2021
(211)
SVHC > Threshold:
Cd (4.1% in Plating)
Decamethylcyclopentasiloxane (D5) (5% in
Insert Subassembly)
Article Safe Usage Statements:
Use personal protective equipment as required. Do not eat, drink or smoke when
using this product. Wash thoroughly after handling. Recycle if possible and dispose
of the article by following all applicable governmental regulations relevant to your
For support call+1 800 522 6752
03/15/2022 11:47AM | Page 2
ACT20JJ24BB
Standard Circular Connectors, Wire-to-Wire, 24 Position, .06 mm [.1 in] Centerline,
Sealable, Wire & Cable, Power & Signal, Panel Mount, Cadmium O.D.
of the article by following all applicable governmental regulations relevant to your
geographic location.
Halogen Content
Solder Process Capability
Not Yet Reviewed for halogen content
Not reviewed for solder process capability
Product Compliance Disclaimer
This information is provided based on reasonable inquiry of our suppliers and represents our current actual knowledge
based on the information they provided. This information is subject to change. The part numbers that TE has identified as
EU RoHS compliant have a maximum concentration of 0.1% by weight in homogenous materials for lead, hexavalent
chromium, mercury, PBB, PBDE, DBP, BBP, DEHP, DIBP, and 0.01% for cadmium, or qualify for an exemption to these
limits as defined in the Annexes of Directive 2011/65/EU (RoHS2). Finished electrical and electronic equipment products
will be CE marked as required by Directive 2011/65/EU. Components may not be CE marked. Additionally, the part
numbers that TE has identified as EU ELV compliant have a maximum concentration of 0.1% by weight in homogenous
materials for lead, hexavalent chromium, and mercury, and 0.01% for cadmium, or qualify for an exemption to these limits
as defined in the Annexes of Directive 2000/53/EC (ELV). Regarding the REACH Regulation, the information TE provides
on SVHC in articles for this part number is based on the latest European Chemicals Agency (ECHA) ‘Guidance on
requirements for substances in articles’ posted at this URL: https://echa.europa.eu/guidance-documents/guidance-on-
reach

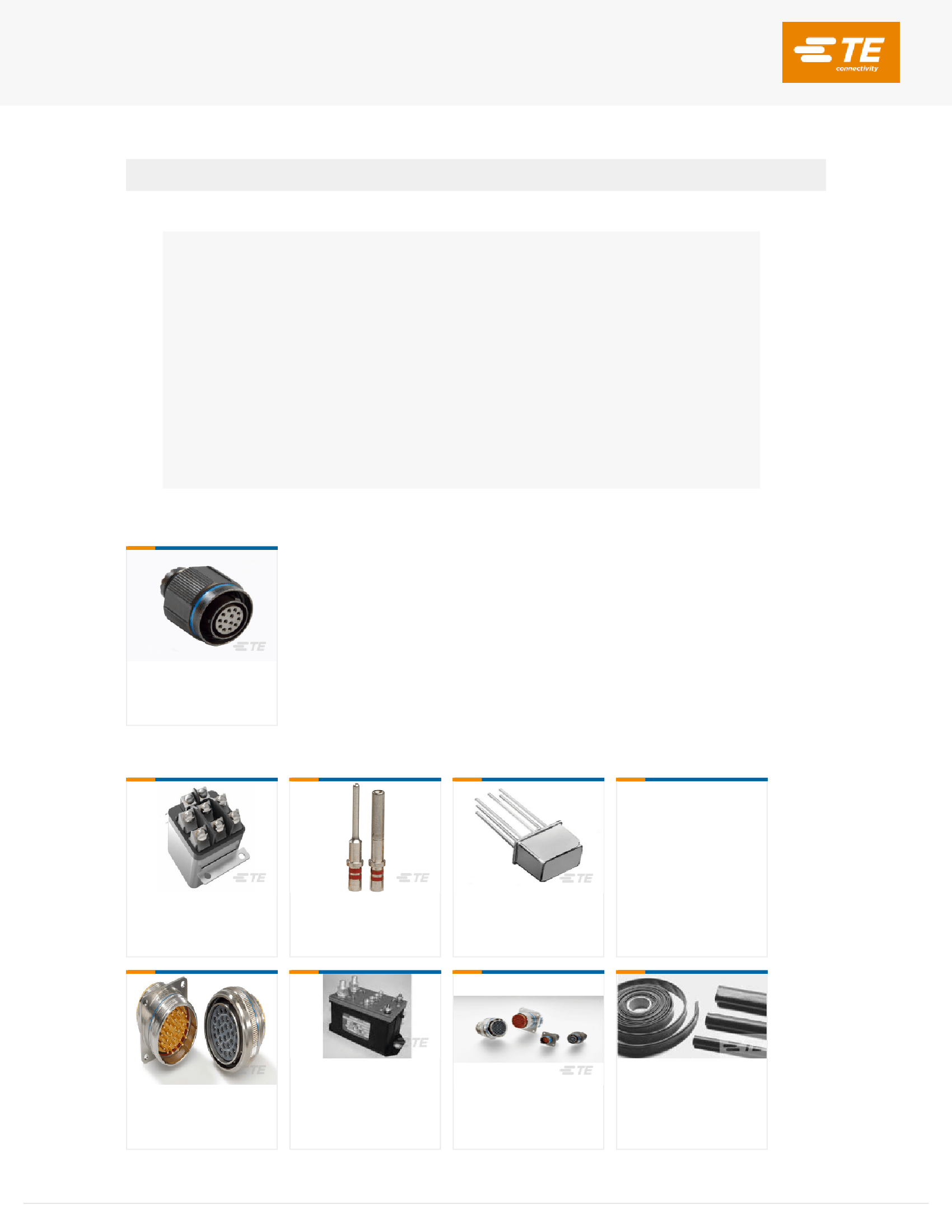

Compatible Parts
TE Part # YACT26JJ24ABV00100
STRAIGHT PLUG
Customers Also Bought
TE Part #1617807-5
FC-335-SY8= RELAY, 3PST
TE Part #ZPF000000000001261
097-0267-16 A1267
TE Part #1617147-5
JMGAP-26P = M39016/17-030P
TE Part #358279-000
382C312-50-01-0
TE Part #ZPF000000000007174
983-0RS 08-98 PN
TE Part #1616058-6
A703CD (FAA/PMA)=RELAY
TE Part #YAFD56-14-15SWC019
PLUG ASSY
TE Part #CX1369-000
BSTS-13X4FR/NM
For support call+1 800 522 6752
03/15/2022 11:47AM | Page 3
ACT20JJ24BB
Standard Circular Connectors, Wire-to-Wire, 24 Position, .06 mm [.1 in] Centerline,
Sealable, Wire & Cable, Power & Signal, Panel Mount, Cadmium O.D.
TE Part #YDTS20Y13-98XNV001
HERM RECP
TE Part #CS8624-000
BSTS-15X4FR/NM
Documents
Product Drawings
SQUARE FLANGE RECETACLE
English
Datasheets & Catalog Pages
DEUTSCH MIL-DTL-38999 CIRCULAR CONNECTORS
English
