ACT26MJ24BN [V001]
DEUTSCH 38999 Series III Composite Connectors, Standard Circular Connectors,
Cable-to-Panel, 24 Position, Sealable, Wire & Cable, Power, Panel Mount
ACT26MJ24BN [V001]
ACTIVE
DEUTSCH
|

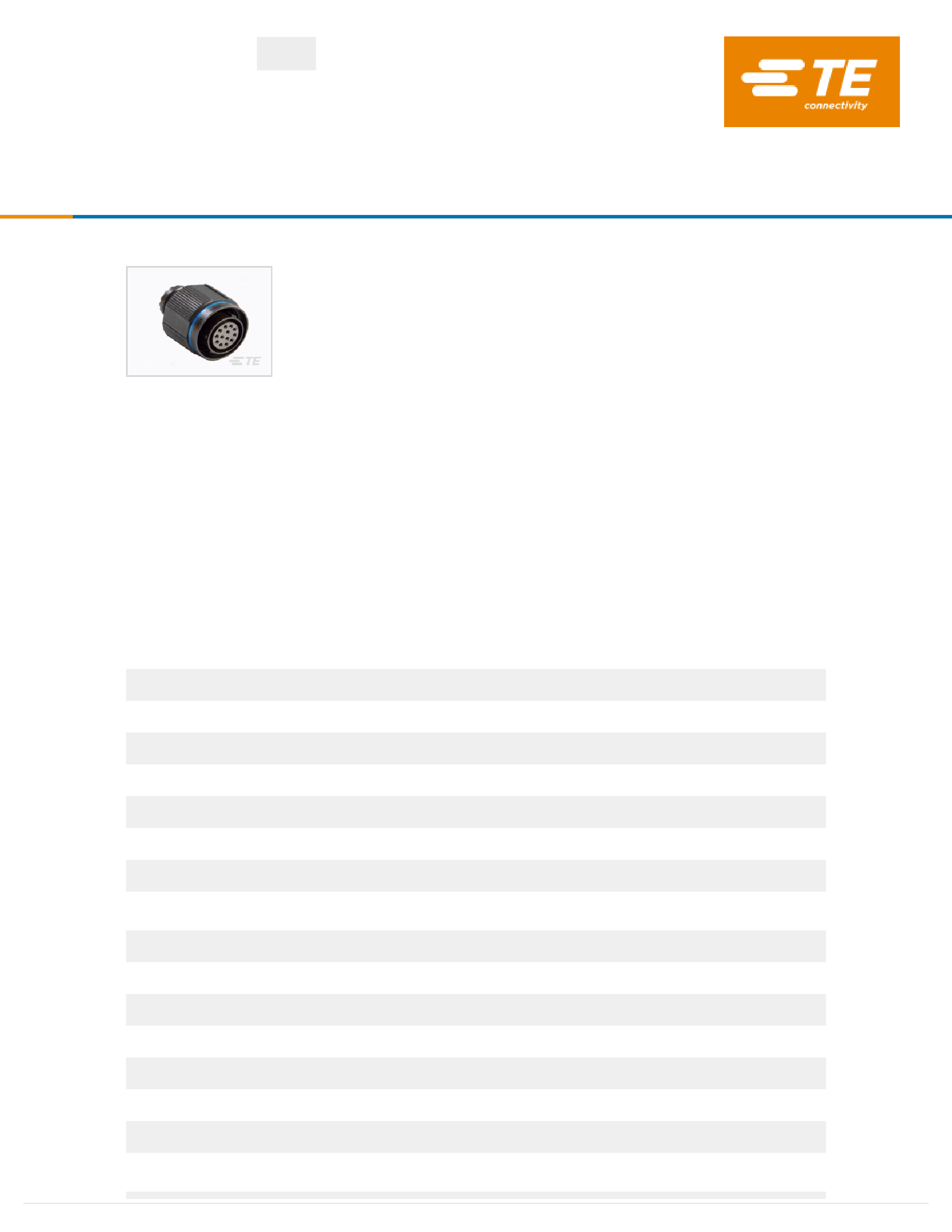

DEUTSCH 38999 Series III Composite Connectors
TE Internal #: YACT26MJ24BNV00100
DEUTSCH 38999 Series III Composite Connectors, Standard
Circular Connectors, Cable-to-Panel, 24 Position, Sealable, Wire &
Cable, Power, Panel Mount
View on TE.com >
Connectors
>
Circular Connectors
>
Standard Circular Connectors
>
Straight Plug D38999, J24 Insert
Connector System:
Cable-to-Panel
Number of Positions:
24
Sealable:
Yes
Connector & Contact Terminates To:
Wire & Cable
Contact Current Rating (Max):
23 A
All Straight Plug D38999, J24 Insert (120)
Features
Product Type Features
Product Type
Assembly Type
Connector System
Sealable
Connector & Contact Terminates To
Circular Connector Type
Shell Type
Configuration Features
Keying & Polarized Position Locations
Factory Installed Backshell
Keying
Number of Positions
Number of Power Positions
Number of Signal Positions
Contacts Preloaded
Electrical Characteristics
For support call+1 800 522 6752
Connector
Electrical Connector
Cable-to-Panel
Yes
Wire & Cable
Plug
Straight Plug
N
No
Key Polarization N
24
24
0
No
Operating Voltage
600 VAC
03/15/2022 11:47AM | Page 1
ACT26MJ24BN [V001]
DEUTSCH 38999 Series III Composite Connectors, Standard Circular Connectors,
Cable-to-Panel, 24 Position, Sealable, Wire & Cable, Power, Panel Mount
Operating Voltage
Voltage
Body Features
Environmental Protection
Weight
Feedthrough Type
Environmental Protection Type
Entry Style
Fluid Type
600 VAC
1800 Vrms
Yes
46.1 g[.1018 lb]
No
Elastomer Sealed
Rear Insertion
Coolanol 25, M2-V, MIL-DTL-5624 (JP-4,JP-
5), MIL-DTL-83133 (JP-8), MIL-PRF-23699,
MIL-PRF-5606, MIL-PRF-7808, SEA-
AMS1424 Type I
Shell Plating Material
Shell Base Material
Circular Connector Insulation Material Type
Hermetically Sealed
Contact Features
Contact Quantity (Size 16)
Contact Quantity (Size 12)
Contact Current Rating (Max)
Reverse Gender
Contact Layout Arrangement
Circular Connector Contact Type
Mechanical Attachment
Mating Retention Type
Panel Mount Feature
Connector Mounting Type
Polarization Code
Mating Alignment Type
Mating Retention
Housing Features
Circular Connector Shell Size
Alignment Keyed
Dimensions
Electroless Nickel
Composite
Hard Dielectric/Silicone
No
12
12
23 A
No
J24
Less Socket
Triple Start Threaded
Without
Panel Mount
N
Keyed
With
25
Clocking
For support call+1 800 522 6752
03/15/2022 11:47AM | Page 2
ACT26MJ24BN [V001]
DEUTSCH 38999 Series III Composite Connectors, Standard Circular Connectors,
Cable-to-Panel, 24 Position, Sealable, Wire & Cable, Power, Panel Mount
Dimensions
Assembly Length
Wire Size
Usage Conditions
Fluid Resistance
Operating Temperature Range
Operation/Application
Durability Rating
Circuit Application
Shielded
Packaging Features
Packaging Quantity
Other
Position Locations Omitted
All
1
500 Cycles
Power
Yes
Yes
-65 – 200 °C[-85 – 392 °F]
31.5 mm[1.24 in]
2.08 – 3.31 mm²
Product Compliance
For compliance documentation, visit the product page on TE.com>
EU RoHS Directive 2011/65/EU
EU ELV Directive 2000/53/EC
China RoHS 2 Directive MIIT Order No 32, 2016
EU REACH Regulation (EC) No. 1907/2006
Compliant
Compliant
No Restricted Materials Above Threshold
Current ECHA Candidate List: JAN 2022
(223)
Candidate List Declared Against: JAN 2021
(211)
SVHC > Threshold:
Decamethylcyclopentasiloxane (D5) (5% in
Insert Assembly)
Article Safe Usage Statements:
Wash thoroughly after handling. Recycle if possible and dispose of the article by
following all applicable governmental regulations relevant to your geographic
location.
Halogen Content
Solder Process Capability
Not Yet Reviewed for halogen content
Not reviewed for solder process capability
Product Compliance Disclaimer
This information is provided based on reasonable inquiry of our suppliers and represents our current actual knowledge
based on the information they provided. This information is subject to change. The part numbers that TE has identified as
EU RoHS compliant have a maximum concentration of 0.1% by weight in homogenous materials for lead, hexavalent
chromium, mercury, PBB, PBDE, DBP, BBP, DEHP, DIBP, and 0.01% for cadmium, or qualify for an exemption to these
limits as defined in the Annexes of Directive 2011/65/EU (RoHS2). Finished electrical and electronic equipment products
will be CE marked as required by Directive 2011/65/EU. Components may not be CE marked. Additionally, the part
numbers that TE has identified as EU ELV compliant have a maximum concentration of 0.1% by weight in homogenous
For support call+1 800 522 6752
03/15/2022 11:47AM | Page 3
ACT26MJ24BN [V001]
DEUTSCH 38999 Series III Composite Connectors, Standard Circular Connectors,
Cable-to-Panel, 24 Position, Sealable, Wire & Cable, Power, Panel Mount
numbers that TE has identified as EU ELV compliant have a maximum concentration of 0.1% by weight in homogenous
materials for lead, hexavalent chromium, and mercury, and 0.01% for cadmium, or qualify for an exemption to these limits
as defined in the Annexes of Directive 2000/53/EC (ELV). Regarding the REACH Regulation, the information TE provides
on SVHC in articles for this part number is based on the latest European Chemicals Agency (ECHA) ‘Guidance on
requirements for substances in articles’ posted at this URL: https://echa.europa.eu/guidance-documents/guidance-on-
reach

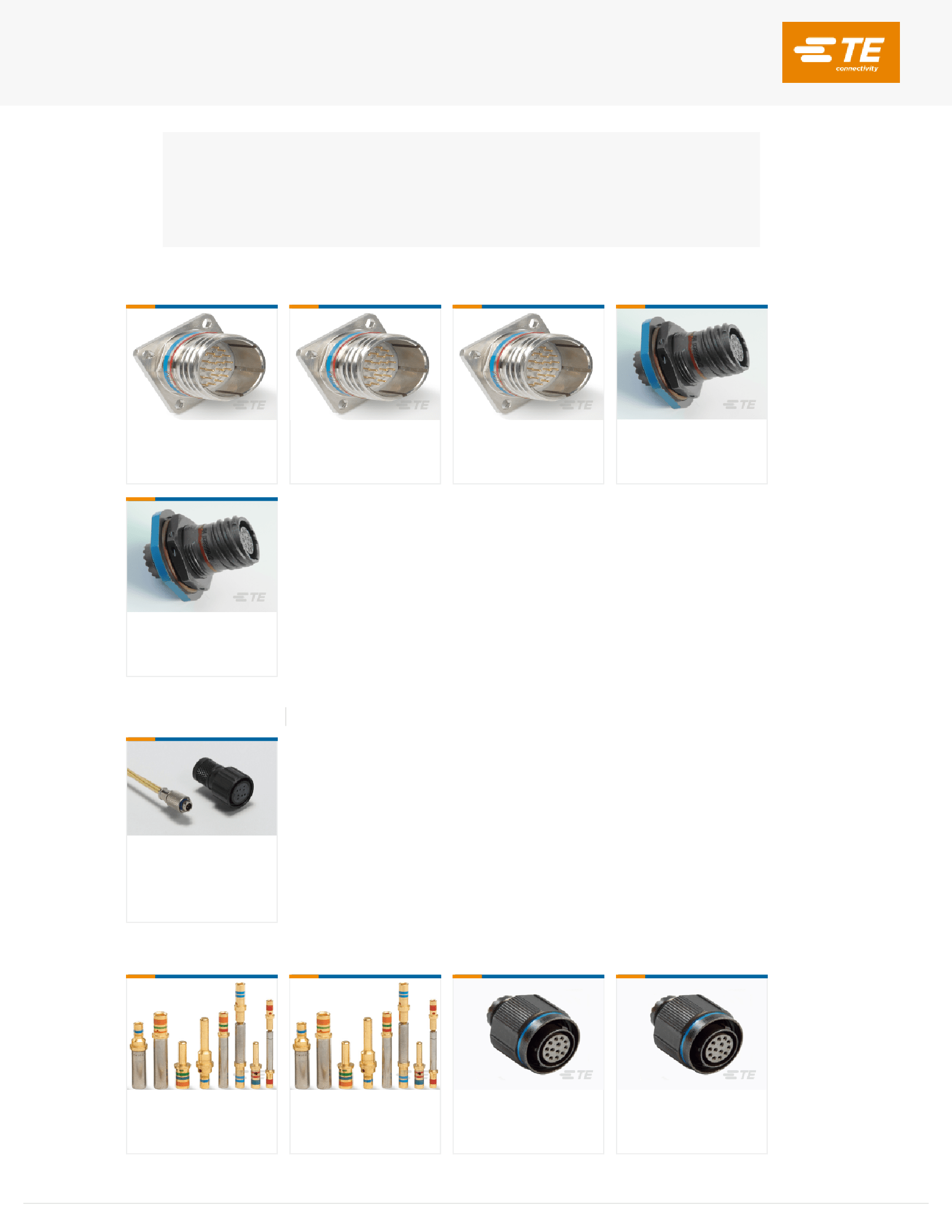

Compatible Parts
TE Part # YACT20MJ24AN000000
SQUARE FLANGE RECETACLE
TE Part # YACT20MJ24ANV00100
SQUARE FLANGE RECEPTACLE
TE Part # YACT20MJ24ANC15400
SQUARE FLANGE RECEPTACLE
TE Part # YACT24MJ24AN000000
JAM NUT RECEPTACLE
TE Part # YACT24MJ24ANV00100
JAM NUT RECEPTACLE

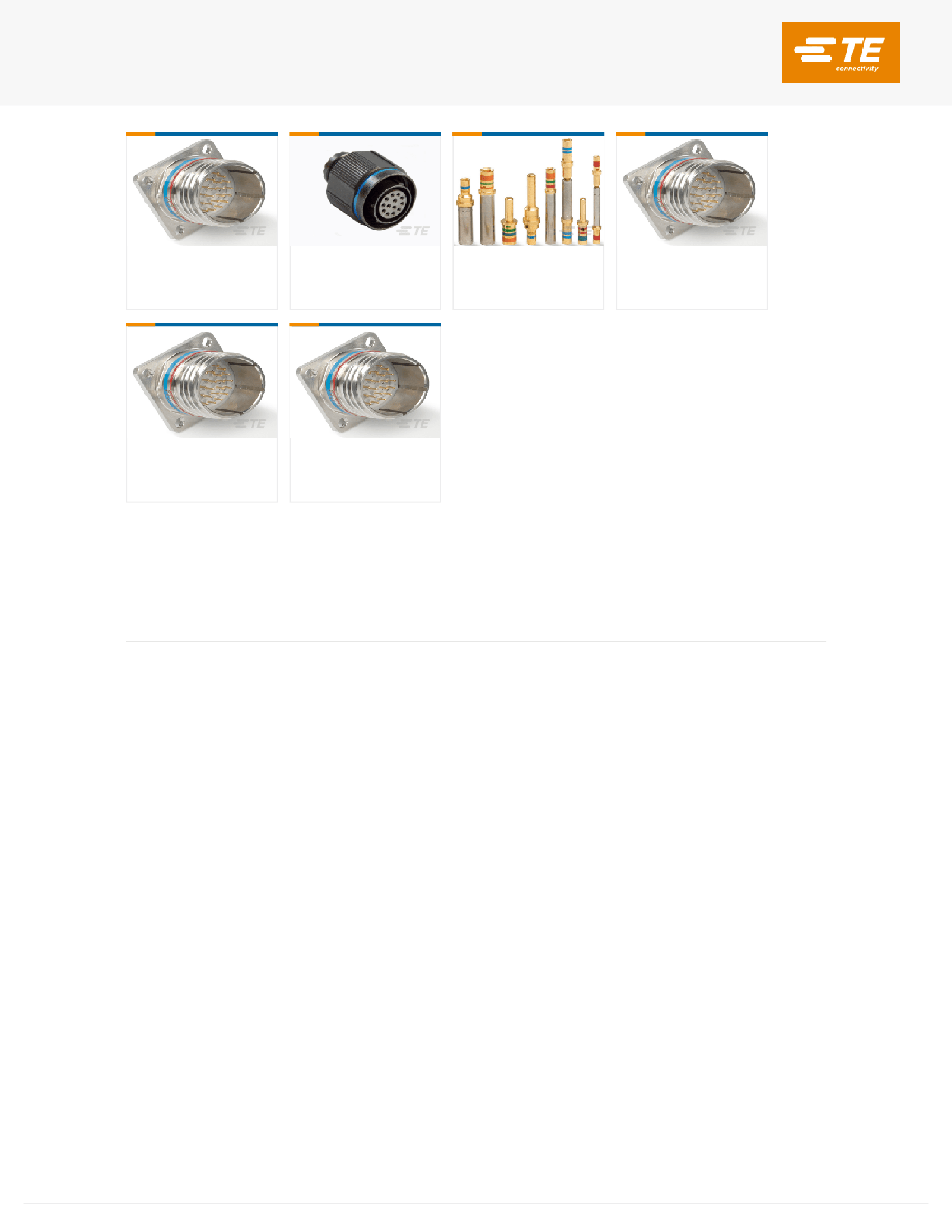

Also in the Series
DEUTSCH 38999 Series III Composite Connectors
Standard Circular Connectors(19419)
Customers Also Bought
TE Part #38943-16L
CONT SOC ASSY
TE Part #38943-20L
CONTACTS (=724-0007-20)
TE Part #YACT26MB98BNV00100
STRAIGHT PLUG
TE Part #YACT26ME06BNV00100
STRAIGHT PLUG
For support call+1 800 522 6752
03/15/2022 11:47AM | Page 4
ACT26MJ24BN [V001]
DEUTSCH 38999 Series III Composite Connectors, Standard Circular Connectors,
Cable-to-Panel, 24 Position, Sealable, Wire & Cable, Power, Panel Mount
TE Part #YDTS20F25-24ANV001
RECP ASSY
TE Part #YDTS26F25-24BNV001
PLUG ASSY
TE Part #38943-12L
CONTACT T12 FEMELLE (= 724-0007-
12)
TE Part #YACT20ME06ANV00100
SQUARE FLANGE RECEPTACLE
TE Part #YACT20MB98ANV00100
SQUARE FLANGE RECEPTACLE
TE Part #YACT20MJ24ANV00100
SQUARE FLANGE RECEPTACLE
Documents
Product Drawings
STRAIGHT PLUG
English
Datasheets & Catalog Pages
DEUTSCH MIL-DTL-38999 Connectors Quick Reference Guide
English
For support call+1 800 522 6752
03/15/2022 11:47AM | Page 5
