F152M59Y5RR63K7R datasheet, PDF

Datasheet> All Categories > Passive components> capacitor> F152M59Y5RR63K7R

F152M59Y5RR63K7R: DescriptionCeramic Capacitor, Ceramic, 3000V, 20% +Tol, 20% -Tol, Y5R, -/+15ppm/Cel TC, 0.0015uF, 5924,; CategoryPassive components capacitor; File Size415KB，7 Pages; ManufacturerVishay; Websitehttp://www.vishay.com; Environmental Compliance

Download Datasheet Parametric View All

F152M59Y5RR63K7R Overview

Ceramic Capacitor, Ceramic, 3000V, 20% +Tol, 20% -Tol, Y5R, -/+15ppm/Cel TC, 0.0015uF, 5924,

F152M59Y5RR63K7R Parametric

Parameter Name	Attribute value
Is it Rohs certified?	conform to
Objectid	700537726
package instruction	, 5924
Reach Compliance Code	unknown
ECCN code	EAR99
capacitance	0.0015 µF
Capacitor type	CERAMIC CAPACITOR
dielectric materials	CERAMIC
high	19.8 mm
JESD-609 code	e3
length	15 mm
negative tolerance	20%
Number of terminals	2
Maximum operating temperature	125 °C
Minimum operating temperature	-30 °C
Package form	Radial

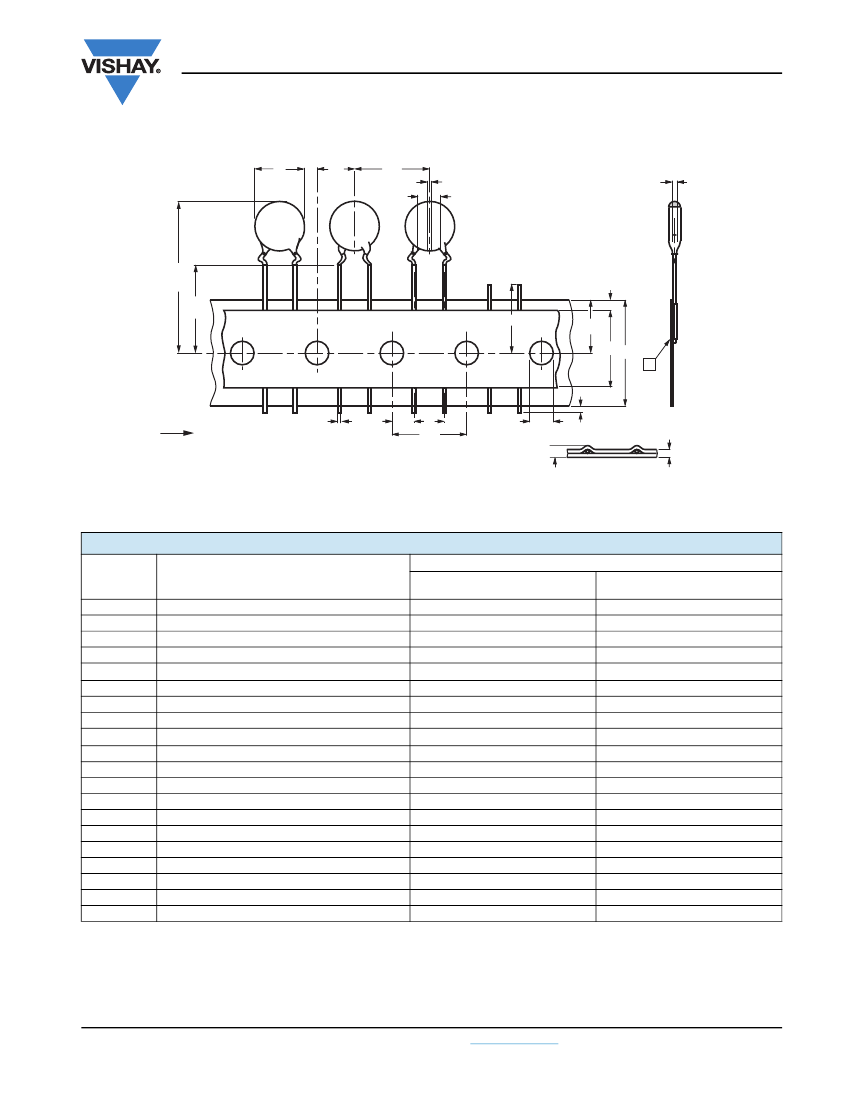

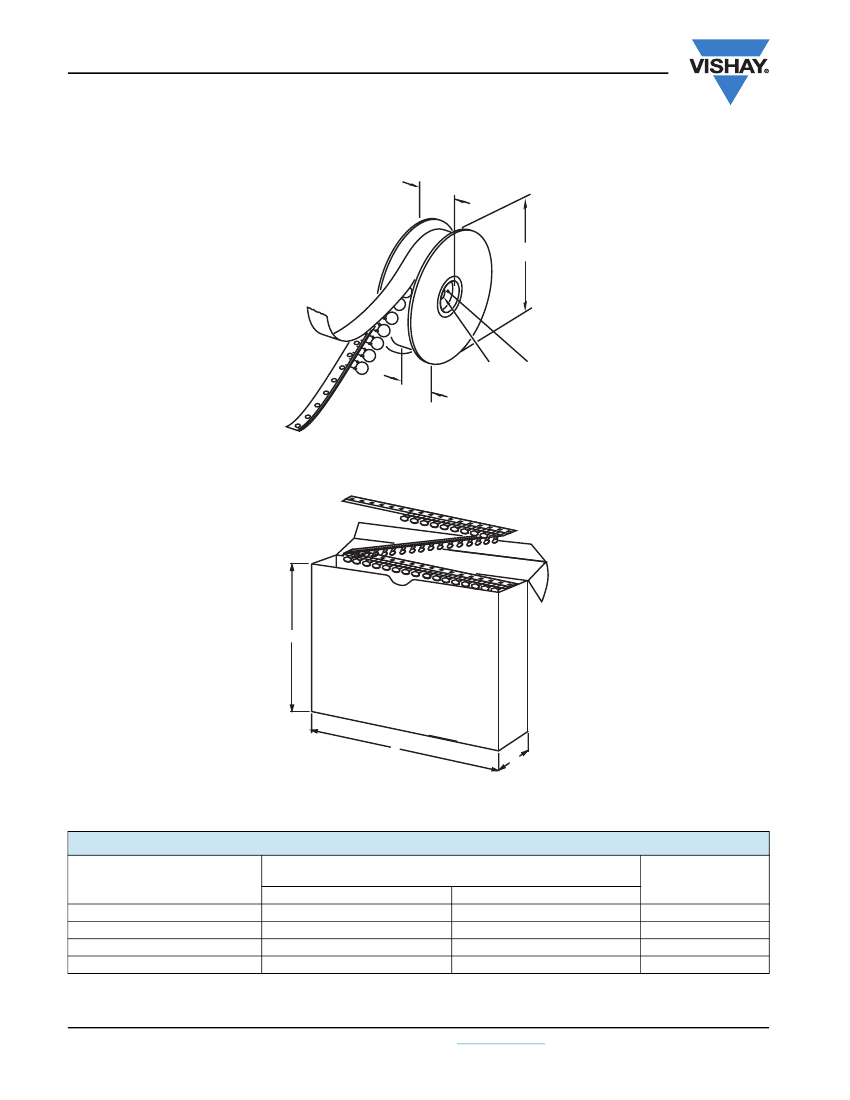

method of packing	Bulk
positive tolerance	20%
Rated (DC) voltage (URdc)	3000 V
series	F(0.2%)
size code	5924
Temperature characteristic code	Y5R
Temperature Coefficient	-/+15ppm/Cel ppm/°C
Terminal surface	Tin (Sn) - hot dipped
Terminal pitch	7.5 mm
width	6 mm

Preview

Download Datasheet

View All

F Series

Vishay BCcomponents

Ceramic Disc Capacitors Class 2,

Low Loss (0.2 %), 500 V

, 1 kV

, 2 kV

and 3 kV

FEATURES

•

High reliability

Low losses

High capacitance in small size

Kinked leads

Compliant to RoHS directive 2002/95/EC

tangent

line

tangent

line

APPLICATIONS

In electronic circuits where low losses and high capacitance

per volume are essential, for example:

• SMPS

• HF ballast

• Snubber and high voltage circuits

Capacitors with outside and inside kink lead spacing

DESIGN

QUICK REFERENCE DATA

DESCRIPTION

Voltage (V

)

Min. Capacitance (pF)

Max. Capacitance (pF)

Mounting

CLASS 2 (Y5R)

500, 1000, 2000, 3000

100

4700

Through hole

The capacitors consist of a ceramic disc both sides of which

are silver-plated. Connection leads are made of tinned

copper having a diameter of 0.6 mm or 0.8 mm.

The capacitors are supplied with kinked leads and lead

spacings of 5 mm or 7.5 mm and 10 mm. Encapsulation is

made of epoxy-resin, flammable resistant in accordance with

“UL 94 V-0”

MARKING

Marking indicates capacitance value and tolerance in

accordance with “EIA 198” and voltage marks.

CAPACITANCE RANGE

100 pF to 4700 pF

OPERATING TEMPERATURE RANGE

- 30 °C to + 125 °C

RATED DC VOLTAGE

500 V; 1 kV; 2 kV; 3 kV

TEMPERATURE COEFFICIENT Y5R (2C4)

- 30 °C TO + 85 °C

± 15 %

DIELECTRIC STRENGTH

200 % of rated voltage

INSULATION RESISTANCE AT 500 V

≥

10 000 MΩ min.

SECTIONAL SPECIFICATIONS

IEC 60384-9, EIA 198

TOLERANCE ON CAPACITANCE

± 10 %; ± 20 %

Disc size (D

max.

)

≥

5 mm:

102K

3 kV

EXAMPLES OF MARKING CODE

Disc size (D

max.

)

≤

6.5 mm:

RP = low loss with T.C. Y5P

101K

2 kV

DISSIPATION FACTOR

0.2 % max.

AGING

typical 0.5 % per time decade

Note

The capacitors meet the essential requirements of “IEC 60384-9 and EIA 198”. Unless stated otherwise all electrical values apply at an ambient

temperature of 25 °C ± 3 °C, at normal atmospheric conditions

www.vishay.com

For technical questions, contact:

CDC@vishay.com

Document Number: 28500

Revision: 07-Jan-10
