SM4124BT1K64 datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > Passive components> The resistor> SM4124BT1K64

SM4124BT1K64: DescriptionFixed Resistor, Wire Wound, 2W, 1640ohm, 50V, 0.1% +/-Tol, 20ppm/Cel, Surface Mount, 4124, CHIP, ROHS COMPLIANT; CategoryPassive components The resistor; File Size117KB，2 Pages; ManufacturerSEI(Stackpole Electronics Inc.); Websitehttps://www.seielect.com/; Environmental Compliance

Download Datasheet Parametric Compare View All

SM4124BT1K64 Overview

Fixed Resistor, Wire Wound, 2W, 1640ohm, 50V, 0.1% +/-Tol, 20ppm/Cel, Surface Mount, 4124, CHIP, ROHS COMPLIANT

SM4124BT1K64 Parametric

Parameter Name	Attribute value
Is it lead-free?	Lead free
Is it Rohs certified?	conform to
Objectid	1089523247
package instruction	CHIP, ROHS COMPLIANT
Reach Compliance Code	compliant
ECCN code	EAR99
structure	Chip
JESD-609 code	e3
Manufacturer's serial number	SM
Installation features	SURFACE MOUNT
Number of terminals	2
Maximum operating temperature	275 °C
Minimum operating temperature	-55 °C
Package height	4.57 mm
Package length	10.41 mm
Package shape	RECTANGULAR PACKAGE
Package form	SMT
Package width	6.1 mm
method of packing	TR, PLASTIC, 13 INCH
Rated power dissipation(P)	2 W
Rated temperature	70 °C
resistance	1640 Ω
Resistor type	FIXED RESISTOR
series	SM
size code	4124
surface mount	YES
technology	WIRE WOUND
Temperature Coefficient	20 ppm/°C
Terminal surface	Matte Tin (Sn)
Terminal shape	WRAPAROUND
Tolerance	0.1%
Operating Voltage	50 V

Preview

Download Datasheet

View All

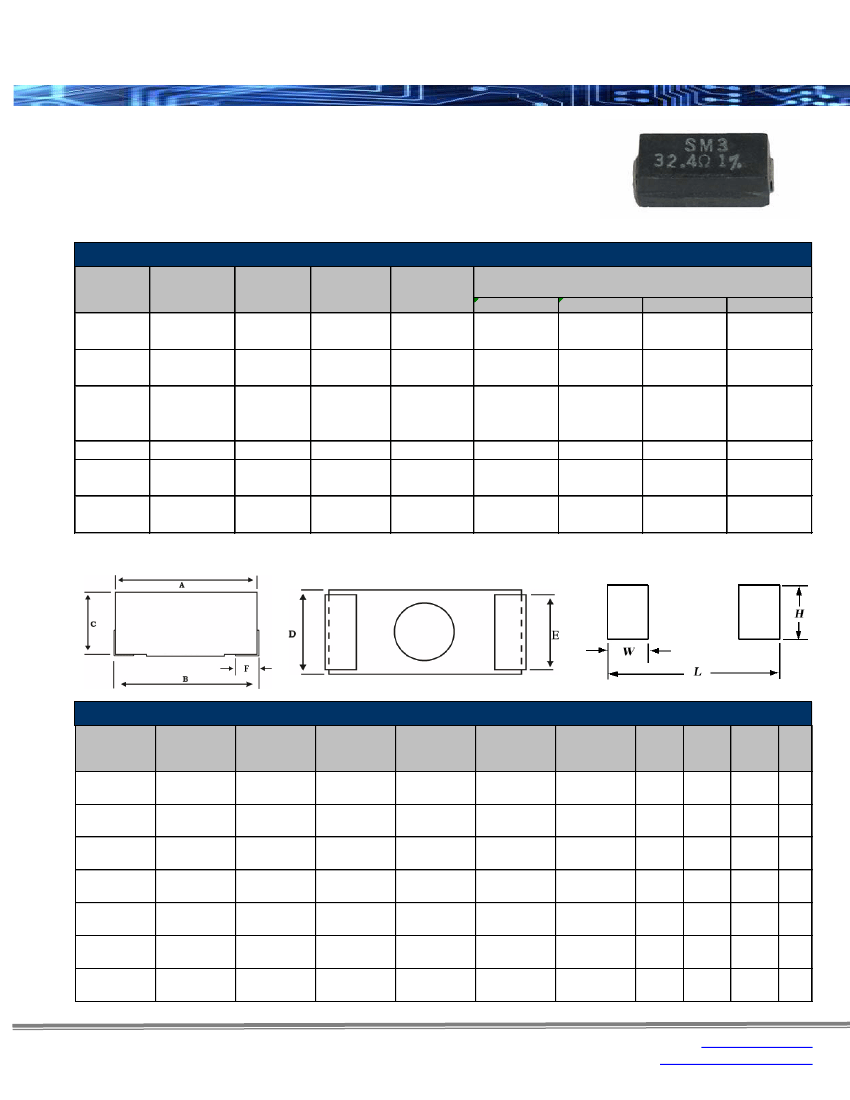

SM/SMH Series

Surface Mount Wirewound Resistor

Features:

•

High temperature molded encapsulation

Flex termination for absorbing thermal expansion

All welded construction

Non-inductive types available as NSM

RoHS compliant / lead-free

Stackpole Electronics, Inc.

Resistive Product Solutions

Electrical Specifications

Power Rating

(Watts)

Type / Code

@ 70ºC

SM2615

SM4124

Maximum

Working

Voltage

25V

50V

Dielectric

Withstanding

Voltage

>500V

Resistance

Temperature

Coefficient

±100 ppm/ºC

± 20 ppm/ºC

±100 ppm/ºC

± 20 ppm/ºC

±75 ppm/ºC

±100 ppm/ºC

±20 ppm/ºC

±75 ppm/ºC

±100 ppm/ºC

± 20 ppm/ºC

±100 ppm/ºC

± 20 ppm/ºC

Ohmic Range (Ω) and Tolerance

0.1%

1 - 10

10.2 - 1K

1 - 10

10.2 - 2K

0.5%

1 - 10

10.2 - 1K

0.5 - 10

10.2 - 2K

0.01 - 0.06

0.01 - 10

10.2 - 1K

0.01 - 10

10.2 - 2K

0.01 - 0.06

0.1 - 10

10.2 - 2K

0.01 - 0.06

0.01 - 10

10.2 - 3.01K

0.1 - 9.76

10 - 2K

0.01 - 10

10.2 - 1K

0.01 - 10

10.2 - 2K

0.01 - 0.06

0.1 - 10

10.2 - 2K

0.01 - 0.06

0.01 - 10

10.2 - 3K

0.1 - 9.76

10 - 2K

SM4527

SMH4527

SM6227

SM8035

60V

100V

>500V

0.5 - 10

10.2 - 3K

0.1 - 10

10.2 - 2K

0.01 - 0.06

0.2 - 10

10.2 - 3K

Zero ohm available on all sizes

Mechanical Specifications

Type / Code

Body

Length

0.260 ± 0.015

6.60 ± 0.38

0.410 ± 0.015

10.41 ± 0.38

0.455 ± 0.015

11.56 ± 0.38

0.455 ± 0.015

11.56 ± 0.38

0.455 ± 0.015

11.56 ± 0.38

0.625 ± 0.015

15.88 ± 0.38

0.800 ± 0.015

20.32 ± 0.38

Total

Length

0.280 ± 0.032

7.11 ± 0.81

0.430 ± 0.032

10.92 ± 0.81

0.475 ± 0.032

12.07 ± 0.81

0.475 ± 0.032

12.07 ± 0.81

0.475 ± 0.032

12.07 ± 0.81

0.645 ± 0.032

16.38 ± 0.81

0.825 ± 0.032

20.96 ± 0.81

Body

Height

0.140 ± 0.015

3.56 ± 0.38

0.180 ± 0.015

4.57 ± 0.38

0.150 ± 0.015

3.81 ± 0.38

0.180 ± 0.015

4.57 ± 0.38

0.150 ± 0.015

3.81 ± 0.38

0.250 ± 0.015

6.35 ± 0.38

0.362 ± 0.015

9.19 ± 0.38

Body

Width

0.150 ± 0.015

3.81 ± 0.38

0.240 ± 0.015

6.10 ± 0.38

0.270 ± 0.015

6.86 ± 0.38

0.270 ± 0.015

6.86 ± 0.38

0.270 ± 0.015

6.86 ± 0.38

0.275 ± 0.015

6.99 ± 0.38

0.350 ± 0.015

8.89 ± 0.38

Termination

Width

0.100 ± 0.015

2.54 ± 0.38

0.122 ± 0.015

3.10 ± 0.38

0.122 ± 0.015

3.10 ± 0.38

0.122 ± 0.015

3.10 ± 0.38

0.122 ± 0.015

3.10 ± 0.38

0.122 ± 0.015

3.10 ± 0.38

0.122 ± 0.015

3.10 ± 0.38

Termination

Length

0.090 ± 0.015

2.29 ± 0.38

0.090 ± 0.015

2.29 ± 0.38

0.105 ± 0.015

2.67 ± 0.38

0.105 ± 0.015

2.67 ± 0.38

0.105 ± 0.015

2.67 ± 0.38

0.130 ± 0.015

3.30 ± 0.38

0.122 ± 0.015

3.10 ± 0.38

0.138

3.51

0.181

4.60

0.169

4.29

0.169

4.29

0.169

4.29

0.236

5.99

0.340

8.64

0.130

3.30

0.157

3.99

0.157

3.99

0.157

3.99

0.157

3.99

0.157

3.99

0.157

3.99

0.350

8.89

0.583

14.81

0.587

14.91

0.587

14.91

0.587

14.91

0.850

21.59

0.950

24.13

Unit

inches

SM2615

SM4124

SM4527

0.01Ω - 0.06Ω

SM4527

0.1Ω - 2KΩ

SMH4527

SM6227

SM8035

Rev Date: 01/16/2013

This specification may be changed at any time without prior notice

Please confirm technical specifications before you order and/or use.

www.seielect.com

marketing@seielect.com

SM4124BT1K64 Related Products

	SM4124BT1K64	SM4124BT3R12	SM4124DT1K64	SM4124DT2R23	SM4124DT2R32
Description	Fixed Resistor, Wire Wound, 2W, 1640ohm, 50V, 0.1% +/-Tol, 20ppm/Cel, Surface Mount, 4124, CHIP, ROHS COMPLIANT	Fixed Resistor, Wire Wound, 2W, 3.12ohm, 50V, 0.1% +/-Tol, 100ppm/Cel, Surface Mount, 4124, CHIP, ROHS COMPLIANT	Fixed Resistor, Wire Wound, 2W, 1640ohm, 50V, 0.5% +/-Tol, 20ppm/Cel, Surface Mount, 4124, CHIP, ROHS COMPLIANT	Fixed Resistor, Wire Wound, 2W, 2.23ohm, 50V, 0.5% +/-Tol, 100ppm/Cel, Surface Mount, 4124, CHIP, ROHS COMPLIANT	Fixed Resistor, Wire Wound, 2W, 2.32ohm, 50V, 0.5% +/-Tol, 100ppm/Cel, Surface Mount, 4124, CHIP, ROHS COMPLIANT
Is it lead-free?	Lead free	Lead free	Lead free	Lead free	Lead free
Is it Rohs certified?	conform to	conform to	conform to	conform to	conform to
Objectid	1089523247	1089523534	1089524266	1089524453	1089524456
package instruction	CHIP, ROHS COMPLIANT	CHIP, ROHS COMPLIANT	CHIP, ROHS COMPLIANT	CHIP, ROHS COMPLIANT	CHIP, ROHS COMPLIANT
Reach Compliance Code	compliant	compliant	compliant	compliant	compliant
ECCN code	EAR99	EAR99	EAR99	EAR99	EAR99
structure	Chip	Chip	Chip	Chip	Chip
JESD-609 code	e3	e3	e3	e3	e3
Manufacturer's serial number	SM	SM	SM	SM	SM
Installation features	SURFACE MOUNT	SURFACE MOUNT	SURFACE MOUNT	SURFACE MOUNT	SURFACE MOUNT
Number of terminals	2	2	2	2	2
Maximum operating temperature	275 °C	275 °C	275 °C	275 °C	275 °C
Minimum operating temperature	-55 °C	-55 °C	-55 °C	-55 °C	-55 °C
Package height	4.57 mm	4.57 mm	4.57 mm	4.57 mm	4.57 mm
Package length	10.41 mm	10.41 mm	10.41 mm	10.41 mm	10.41 mm
Package shape	RECTANGULAR PACKAGE	RECTANGULAR PACKAGE	RECTANGULAR PACKAGE	RECTANGULAR PACKAGE	RECTANGULAR PACKAGE
Package form	SMT	SMT	SMT	SMT	SMT
Package width	6.1 mm	6.1 mm	6.1 mm	6.1 mm	6.1 mm
method of packing	TR, PLASTIC, 13 INCH	TR, PLASTIC, 13 INCH	TR, PLASTIC, 13 INCH	TR, PLASTIC, 13 INCH	TR, PLASTIC, 13 INCH
Rated power dissipation(P)	2 W	2 W	2 W	2 W	2 W
Rated temperature	70 °C	70 °C	70 °C	70 °C	70 °C
resistance	1640 Ω	3.12 Ω	1640 Ω	2.23 Ω	2.32 Ω
Resistor type	FIXED RESISTOR	FIXED RESISTOR	FIXED RESISTOR	FIXED RESISTOR	FIXED RESISTOR
series	SM	SM	SM	SM	SM
size code	4124	4124	4124	4124	4124
surface mount	YES	YES	YES	YES	YES
technology	WIRE WOUND	WIRE WOUND	WIRE WOUND	WIRE WOUND	WIRE WOUND
Temperature Coefficient	20 ppm/°C	100 ppm/°C	20 ppm/°C	100 ppm/°C	100 ppm/°C
Terminal surface	Matte Tin (Sn)	Matte Tin (Sn)	Matte Tin (Sn)	Matte Tin (Sn)	Matte Tin (Sn)
Terminal shape	WRAPAROUND	WRAPAROUND	WRAPAROUND	WRAPAROUND	WRAPAROUND
Tolerance	0.1%	0.1%	0.5%	0.5%	0.5%
Operating Voltage	50 V	50 V	50 V	50 V	50 V

Recommended Resources

High frequency VCO circuit with frequency from 3 to 30MHz

Touch relay circuit diagram

MLX10803 application circuit

A simple checker for printed circuit board wiring connectivity

-9v recorder stable power supply circuit

FM transmitter circuit 03

Ask about the bit error meter problem ~: Has anyone made a bit error tester? I am making a bit error tester recently and I am stuck on a problem. The problem is that I need to generate bit errors and then detect them. The code types are NRZ,...; tsnana Embedded System

TI China University Program Overview: In 1996, with the rapid development of digital signal processing technology, TI launched a university program in China to help Chinese universities combine digital signal processing theory with practi...; 德州仪器_视频 TI Technology Forum

[Serial] [ALIENTEK MiniSTM32 Development Board] STM32 Incomplete Manual - Internal Temperature Sensor Experiment (14): Development board purchase address: http://shop62103354.taobao.com[[i] This post was last edited by Zhengdian Yuanzi on 2010-9-7 09:45[/i]]...; 正点原子 stm32/stm8

Some problems encountered in VGA experiment ---- help from newbies: [i=s] This post was last edited by seu_zc on 2016-10-14 21:13[/i] [color=#000000] [/color][color=#ff0000] [/color][b][color=#ff0000] [/color][color=#0000ff]VGA timing diagram:[/color][/b] [align=cente...; seu_zc FPGA/CPLD

The difference between various chips in TI's CC series: CC2430 CC1100: When using CC series chips, it is often difficult to choose among various models. Here are the parameters and differences of each model. Many chips will perform better in different fields.CC1101/CC110...; fish001 Wireless Connectivity

Year-end summary-a different 2016: I don't like to summarize these things online, it's a personal habit. In 2016, after buying a house and decorating it, I suddenly returned to the pre-liberation era. I woke up inexplicably at night. F...; 54chenjq Talking
