RS5-R30/RD30
3.0 Watt 2:1 regulated
single & dual output
8 Pin SIP8 package
■
Wide 2:1 input range
■
1600 VDC isolation
■
Continuous short circuit protection
■
Efficiency up to 84%
■
-40°C~71°C operation temperature range
■
Metal case, Remote On/Off optional
■
OUTPUT SPECIFICATIONS
Voltage accuracy
± 1%
Line regulation
± 0.5%
Load regulation
(From 25% to 100% Load)
± 1%
Cross regulation (dual output)
± 5%
Ripple & Noise
(20 MHz bandwith) (1)
75 mV pk-pk
Short circuit protection
Indefinite (automatic recovery)
Temperature coefficient
± 0.02%/°C
Capacitor load
(2)
See table
ABSOLUTE MAXIMUM RATINGS
(4)
These are stress ratings. Exposure of devices to any of these
conditions may adversely affect long-term reliability.
Input voltage (100 mS)
5 modes
-0.7 ~ 15 VDC
12 modes
-0.7 ~ 36 VDC
24 modes
-0.7 ~ 50 VDC
48 modes (SIP) -0.7 ~ 100 VDC
Lead soldering temperature
260°C
(1.5 mm from case 10 sec.)
INPUT SPECIFICATIONS
Voltage range
Max. input current
No-load input current
Input filter
Input reflected ripple current
(3)
See table
See table
See table
Capacitors
35 mA pk-pk
All specifications typical at Ta = 25°C, nominal input voltage and full load
unless otherwise specified.
The information and specifications contained in this data sheet are believed
to be correct at time of publication. However, we accept no responsibility
for consequences arising from printing errors or inaccuracies.
Subject to change without notice.
GENERAL SPECIFICATIONS
Efficiency
See table
I/O isolation voltage
(3 sec.)
Input / Output
1600 VDC
I/O isolation capacitance
680 pF max.
I/O isolation resistance
(min.)
1000 M Ohm
Switching frequency
(min.)
100 kHz
Humidity
95% rel. H
Reliability calculated MTBF
> 2.465 Mhrs. @25°C
Safety standard
(designed to meet)
IEC 60950
NOTE
1) Ripple / Noise measured with 20 MHz bandwith.
2) Tested by minimal Vin and constant resistive load.
3) Measured input reflected ripple current with a simulated
source inductance of 12uH and source capacitor Cin (47uF,
ESR < 1.0 Ohm @100 kHz).
4) Exceeding the absolute ratings of the unit could cause
damage. It is not allowed for continuous operating.
5) Operation at no-load conditions will not damage these
devices. However they may not meet all listed
specifications.
Transient Recovery Time 300 us typ., Transient Response
Deviation ± 3% max., Test by normal Vin and 100% -
25% load, 25% load step change.

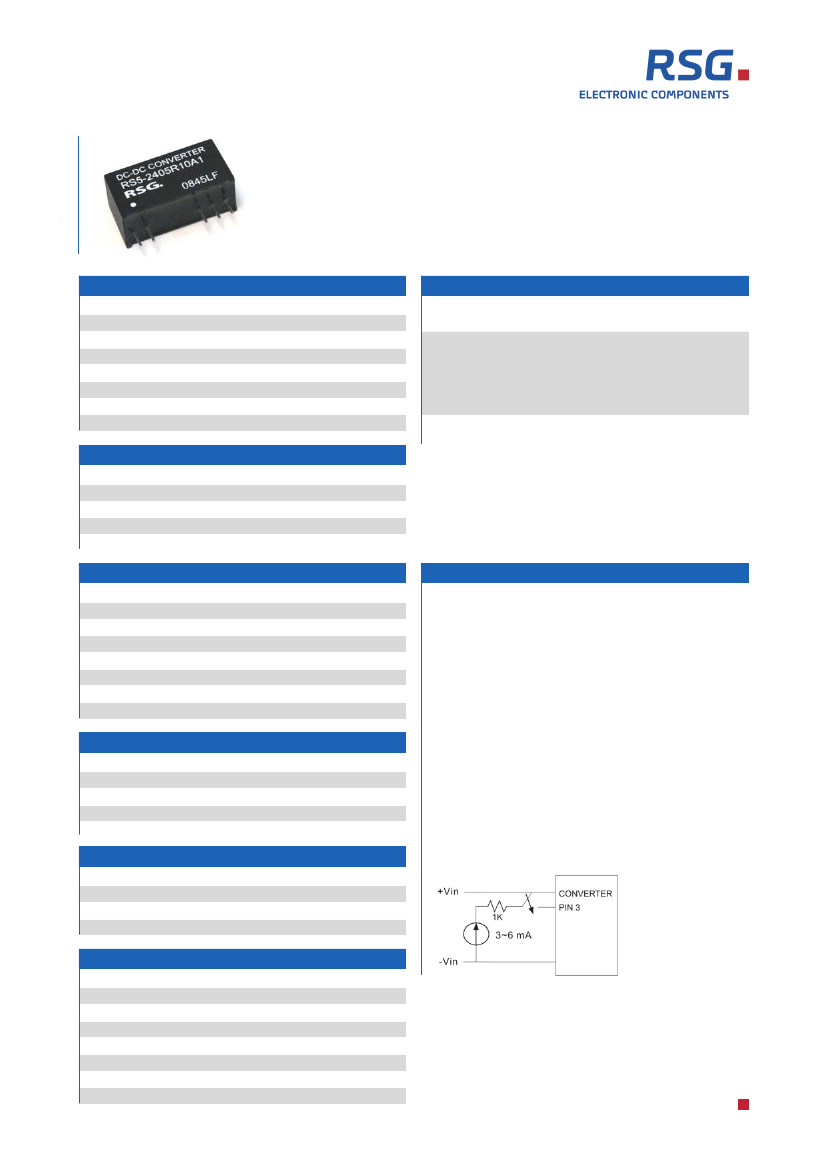

Remote ON / OFF control
ON: open or high impedance
OFF: 3.0~6.0 mA input current (via 1K)
PHYSICAL SPECIFICATIONS
Case material
Pin material
Potting material
Weight
Dimensions
Non-conductive black plastic
C5191R-H solder-coated
Epoxy (UL94V-0 rated)
4.8 g, typ.
SIP > 0.86“ x 0.36“ x 0.44“
ENVIRONMENT SPECIFICATIONS
Operating temperature
Maximum case temperature
Storage temperature
Cooling
-40°C~ 71°C
100°C
-40°C~125°C
Nature convection
EMI CHARACTERISTICS
Conducted Emissions
Radiated Emissions
ESD
RS
EFT
(11)
Surge
(11)
CS
PFMF
(10)
EN55022
CLASS A
EN55022
CLASS A
IEC61000-4-2 Perf.Criteria B
IEC61000-4-3 Perf.Criteria A
IEC61000-4-4 Perf.Criteria B
IEC61000-4-5 Perf.Criteria B
IEC61000-4-6 Perf.Criteria A
IEC61000-4-8 Perf.Criteria A
Input filter components are required to help meet Conducted Emission
class A, which application refer to the EMI filter of design & feature
configuration.
An external filter capacitor is required if the module has to meet EN61000-
4-4 and EN61000-4-5.
Page: 1/4
Last update: 30.01.09

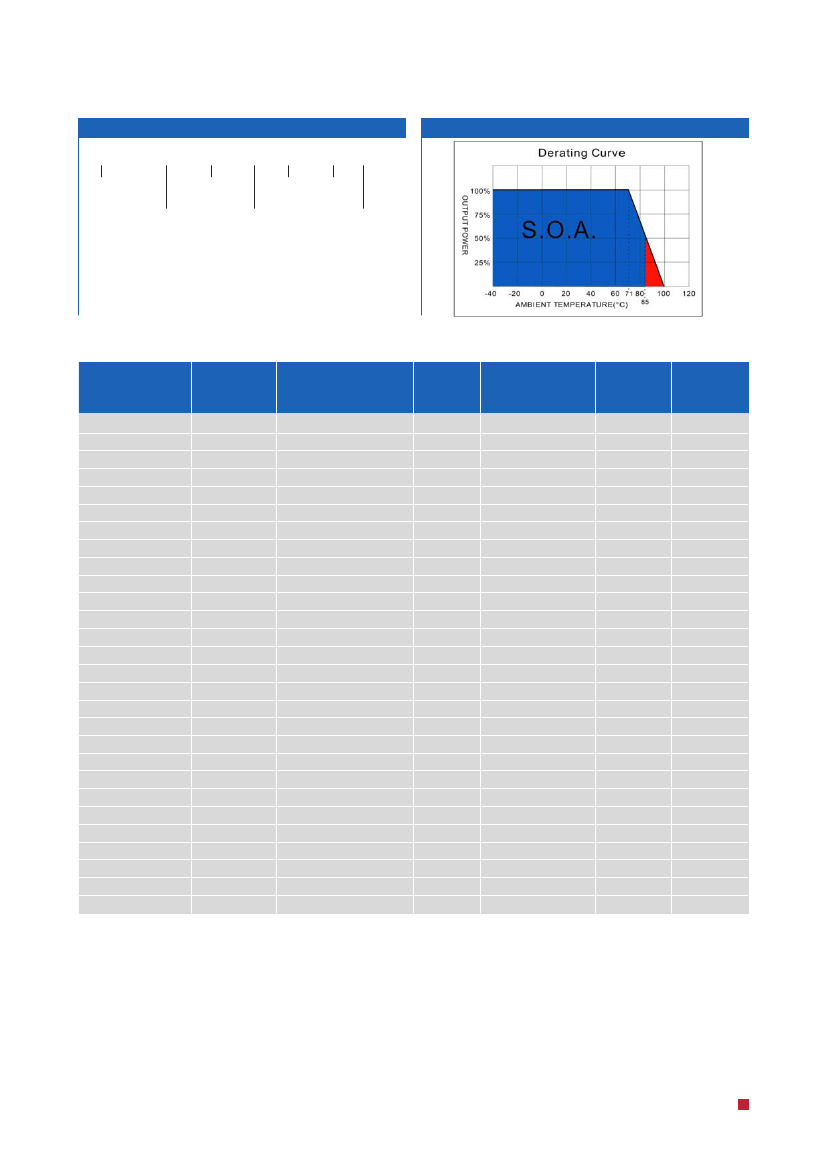

RS5-R30/RD30
3.0 Watt 2:1 regulated
single & dual output

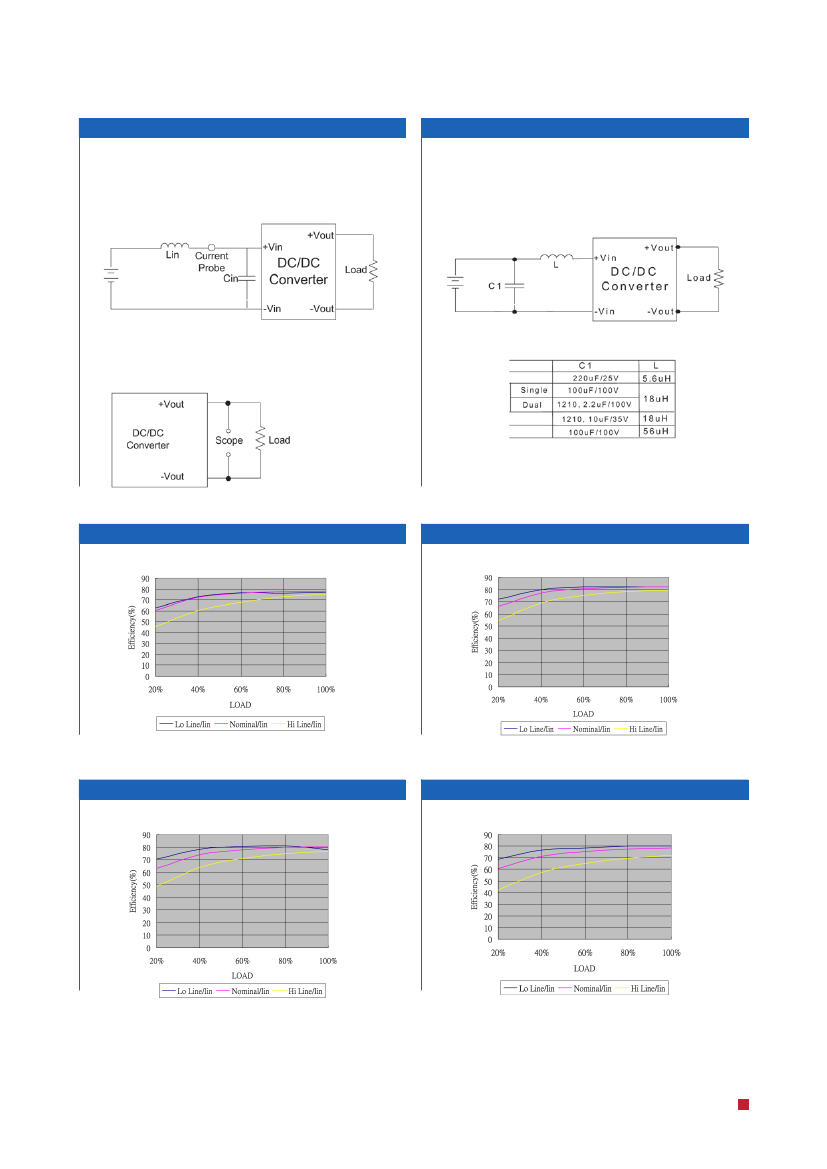

TEST CONFIGURATIONS
INPUT REFLECTED RIPPLE CURRENT TEST STEP
Input Reflected Ripple Current is measured through a
source inductor Lin (12 uH) and a source capacitor
Cin (47 uF, ESR < 1.0
M
at 100 kHz) at nominal input and
full load.
EMI Filter
Input filter components (C1, L) are used to help meet
conducted emissions requirement for the module. These
components should be mounted as close as possible to the
module; and all leads should be minimized to decrease
radiated noise.
OUTPUT RIPPLE & NOISE MEASUREMENT TEST
The Scope measurement bandwidth is 20 MHz.
RS5-05XXXXX
RS5-12XXXXX
RS5-24XXXXX
RS5-48XXXXX
EFFICIENCY VS OUTPUT CURRENT 05
05 MODELS
EFFICIENCY VS OUTPUT CURRENT 12
12 MODELS
EFFICIENCY VS OUTPUT CURRENT 24
24 MODELS
EFFICIENCY VS OUTPUT CURRENT 48
48 MODELS
The models listed are just for standard type. If you need a
special specification product, please contact our service.
Phone: +49 69 984047-0, mail to: info@rsg-electronic.de
or use the forms on www.rsg-electronic.de („Kontakt“).
Page: 3/4
Last update: 30.01.09
