BR354 datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > Discrete semiconductor> diode> BR354

BR354: DescriptionSINGLE-PHASE SILICON BRIDGE RECTIFIER; CategoryDiscrete semiconductor diode; File Size28KB，2 Pages; ManufacturerRectron Semiconductor; Websitehttp://www.rectron.com/; Environmental Compliance

Download Datasheet Parametric Compare View All

BR354 Online Shopping

Suppliers	Part Number	Price	MOQ	In stock
	BR354	-	-	View	Buy Now

BR354 Overview

SINGLE-PHASE SILICON BRIDGE RECTIFIER

BR354 Parametric

Parameter Name	Attribute value
Is it Rohs certified?	conform to
Maker	Rectron Semiconductor
package instruction	S-PUFM-D4
Contacts	4
Reach Compliance Code	compli
Other features	UL RECOGNIZED
Minimum breakdown voltage	400 V
Shell connection	ISOLATED
Configuration	BRIDGE, 4 ELEMENTS
Diode component materials	SILICON
Diode type	BRIDGE RECTIFIER DIODE
Maximum forward voltage (VF)	1.1 V
JESD-30 code	S-PUFM-D4
JESD-609 code	e3
Humidity sensitivity level	1
Maximum non-repetitive peak forward current	400 A
Number of components	4
Phase	1
Number of terminals	4
Maximum operating temperature	175 °C
Minimum operating temperature	-55 °C
Maximum output current	35 A
Package body material	PLASTIC/EPOXY
Package shape	SQUARE
Package form	FLANGE MOUNT
Peak Reflow Temperature (Celsius)	260
Certification status	Not Qualified
Maximum repetitive peak reverse voltage	400 V
Maximum reverse current	0.00001 µA
surface mount	NO
Terminal surface	TIN
Terminal form	SOLDER LUG
Terminal location	UPPER
Maximum time at peak reflow temperature	10

Preview

Download Datasheet

View All

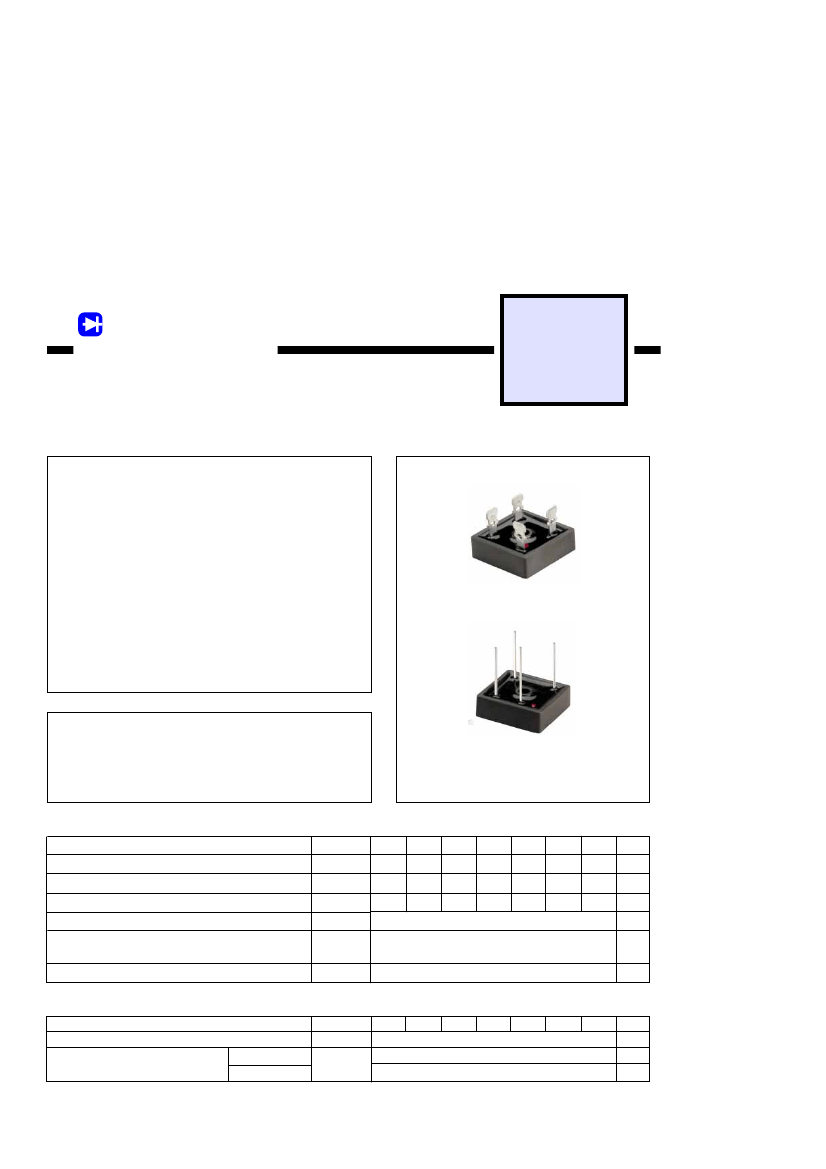

RECTRON

SEMICONDUCTOR

TECHNICAL SPECIFICATION

BR3505

THRU

BR3510

SINGLE-PHASE SILICON BRIDGE RECTIFIER

VOLTAGE RANGE 50 to 1000 Volts CURRENT 35 Amperes

FEATURES

Superior thermal desing

400 amperes surge rating

1/4 universal faston terminal

Hole thru for # 8 screw

MECHANICAL DATA

* UL listed the recognized component directory, file #E94233

* Epoxy: Device has UL flammability classification 94V-O

BR-35

MAXIMUM RATINGS AND ELECTRICAL CHARACTERISTICS

Ratings at 25 C ambient temperature unless otherwise specified.

Single phase, half wave, 60 Hz, resistive or inductive load.

For capacitive load, derate current by 20%.

BR-35W

MAXIMUM RATINGS

(At T

= 25

C unless otherwise noted)

RATINGS

Maximum Recurrent Peak Reverse Voltage

Maximum RMS Bridge Input Voltage

Maximum DC Blocking Voltage

Maximum Average Forward Rectified Output Current at Tc = 55 C

Peak Forward Surge Current 8.3 ms single half sine-wave

superimposed on rated load (JEDEC method)

Operating and Storage Temperature Range

STG

-55 to + 175

SYMBOL

RRM

RMS

FSM

BR3505

BR351

100

BR352

200

140

200

BR354

400

280

400

35.0

400

BR356

600

420

600

BR358

800

560

800

BR3510

1000

700

1000

UNITS

Volts

Amps

ELECTRICAL CHARACTERISTICS

(At T

= 25 C unless otherwise noted)

CHARACTERISTICS

Maximum Forward Voltage Drop per element at 17.5A DC

Maximum Reverse Current at Rated

DC Blocking Voltage per element

NOTE: Suffix ”W” for wire type

= 25

= 100

SYMBOL

0.5

mAmps

2001-6

BR3505

BR351

BR352

BR354

1.1

BR356

BR358

BR3510 UNITS

Volts

uAmps

BR354 Related Products

	BR354	BR3505
Description	SINGLE-PHASE SILICON BRIDGE RECTIFIER	SINGLE-PHASE SILICON BRIDGE RECTIFIER
Is it Rohs certified?	conform to	conform to
Maker	Rectron Semiconductor	Rectron Semiconductor
package instruction	S-PUFM-D4	S-PUFM-D4
Contacts	4	4
Reach Compliance Code	compli	compli
Other features	UL RECOGNIZED	UL RECOGNIZED
Minimum breakdown voltage	400 V	50 V
Shell connection	ISOLATED	ISOLATED
Configuration	BRIDGE, 4 ELEMENTS	BRIDGE, 4 ELEMENTS
Diode component materials	SILICON	SILICON
Diode type	BRIDGE RECTIFIER DIODE	BRIDGE RECTIFIER DIODE
Maximum forward voltage (VF)	1.1 V	1.1 V
JESD-30 code	S-PUFM-D4	S-PUFM-D4
JESD-609 code	e3	e3
Humidity sensitivity level	1	1
Maximum non-repetitive peak forward current	400 A	400 A
Number of components	4	4
Phase	1	1
Number of terminals	4	4
Maximum operating temperature	175 °C	175 °C
Minimum operating temperature	-55 °C	-55 °C
Maximum output current	35 A	35 A
Package body material	PLASTIC/EPOXY	PLASTIC/EPOXY
Package shape	SQUARE	SQUARE
Package form	FLANGE MOUNT	FLANGE MOUNT
Peak Reflow Temperature (Celsius)	260	260
Certification status	Not Qualified	Not Qualified
Maximum repetitive peak reverse voltage	400 V	50 V
Maximum reverse current	0.00001 µA	0.00001 µA
surface mount	NO	NO
Terminal surface	TIN	TIN
Terminal form	SOLDER LUG	SOLDER LUG
Terminal location	UPPER	UPPER
Maximum time at peak reflow temperature	10	10
